13.COVER COMPONENTS(6)
7
6
3
6
4
5
6
1 2
9
1 1
1 2
1 0
1 1
8
6 7
6 7
1 3
1 3
1 6
2 0
2 0
1 7
1 8
1 9
2 0
1 4 1 5
2 1
2 7
2 6
2 4
2 3
2 6
2 5
2 6
2 2
4 1
3 3
3 8
3 9
2 9
3 0
3 1
3 2
3 4
3 5
3 5
3 6
3 7
4 0
2 8
5 4
4 3
4 4
4 5
4 6
4 7
4 8
4 9
5 0
5 1
5 1
5 2
5 2
5 3
4 2
5 9
5 6
5 7
5 7
5 8
6 8
5 5
5 6
5 7
5 7
5 9
5 8
5 5
6 8
6 1
6 1
6 2
6 3
6 4
6 4
6 4
6 5
6 5
6 5
6 0
6 6 6 9
1 1
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-28344 COVER_SU_ASM_LF 1
2
#01
401-28368 COVER_SU_ASM_LF(EN) 1
3 401-28273 STUD_BOLT_C (1)
4 401-28294 COVER_SU_LF (1)
5 CM-3009000-06 WATCH_YOUR_HANDS_LABEL(100) (1)
6 400-81751 B_COVER_SCREW (15)
7 401-28271 STUD_BOLT_A (4)
8 401-28345 COVER_SU_ASM_LR 1
9 401-28273 STUD_BOLT_C (1)
10 401-28296 COVER_SU_LR (1)
11 400-81751 B_COVER_SCREW (15)
12 401-28271 STUD_BOLT_A (4)
13 SL-6061292-TN SCREW M6 L=12 4
14 401-28346 COVER_SU_ASM_RF 1
15
#01
401-28369 COVER_SU_ASM_RF(EN) 1
16 401-28271 STUD_BOLT_A (4)
17 401-28273 STUD_BOLT_C (1)
18 401-28295 COVER_SU_RF (1)
19 CM-3009000-06 WATCH_YOUR_HANDS_LABEL(100) (1)
20 400-81751 B_COVER_SCREW (15)
21 400-93708 HOLE_PLUGS_HP11 (1)
22 401-28347 COVER_SU_ASM_RR 1
23 401-28271 STUD_BOLT_A (4)
24 401-28273 STUD_BOLT_C (1)
25 401-28297 COVER_SU_RR (1)
26 400-81751 B_COVER_SCREW (15)
27 400-93708 HOLE_PLUGS_HP11 (1)
28 401-28350 MONITOR_ASM_F 1
29 401-28308 LCD_BRACKET_F (1)
30 401-28309 LCD_BRACKET_R (1)
31 401-28313 MONITOR_BRACKET_F (1)
32 HX-0029400-00 FIXED BASE (2)
33 SD-0640246-SP SHOULDER SCREW D=6.35 H=2.4 (2)
34 SL-4030691-SC SCREW M3 L=6 (2)
35 SL-6041092-TN SCREW M4 L=10 (10)
36 SL-6061692-TN SCREW M6 L=16 (3)
37 400-81751 B_COVER_SCREW (2)
38 WP-0641601-SC WASHER M6 (1)
39 WS-0610002-KN SPRING WASHER M6 (1)
40 EA-9500B02-00 CABLE BAND (3)
41 161-87007 WING BOLT (1)
42 401-28351 PWB_SAFETY_ASM 1
43 400-46040 HEAD STUD 10 (6)
44 401-28303 SAFETY_PWB_COVER_A (1)
45 SL-4040881-SC SCREW M4 L=8 (6)
46 SL-4040891-SC SCREW M4X8 (2)
47 SL-6061292-TN SCREW M6 L=12 (2)
48 HX-0067100-0A GROMMET (0.07)
49 HX-0066900-0A GROMMET (0.14)
50 EA-9500B02-00 CABLE BAND (2)
51 HX-0029400-00 FIXED BASE (2)
52 SM-4040601-SC SCREW M4X0.7 L=6 (2)
53 401-28872 SAFETY PCB ASM (1)
54 401-28302 SAFETY_PWB_BRACKET (1)
55 401-28353 SOLENOID_ASM 2
56 400-46535 CHECK VALVE (1)
57 PX-0505010-00 SILENCER (2)
58 SL-4030891-SC SCREW M3 L=8 (2)
59 PV-1505380-00 5-PORT SOLENOID VALVE (1)
60 SL-6041692-TN SCREW M4 L=16 4
61 SL-6061292-TN SCREW M6 L=12 4
62 EA-9500B02-00 CABLE BAND 4
63 401-58158 15INCH LCD MONITOR 1
64 HX-0029400-00 FIXED BASE 3
65 SM-4040601-SC SCREW M4X0.7 L=6 3
66 401-29009 SIGNAL TOWER CABLE ASM 1
67 401-28158 LIFTER_BRACKET 2
68 401-28158 LIFTER_BRACKET 2
69
#01
400-48037 SIGNAL TOWER 1
- -

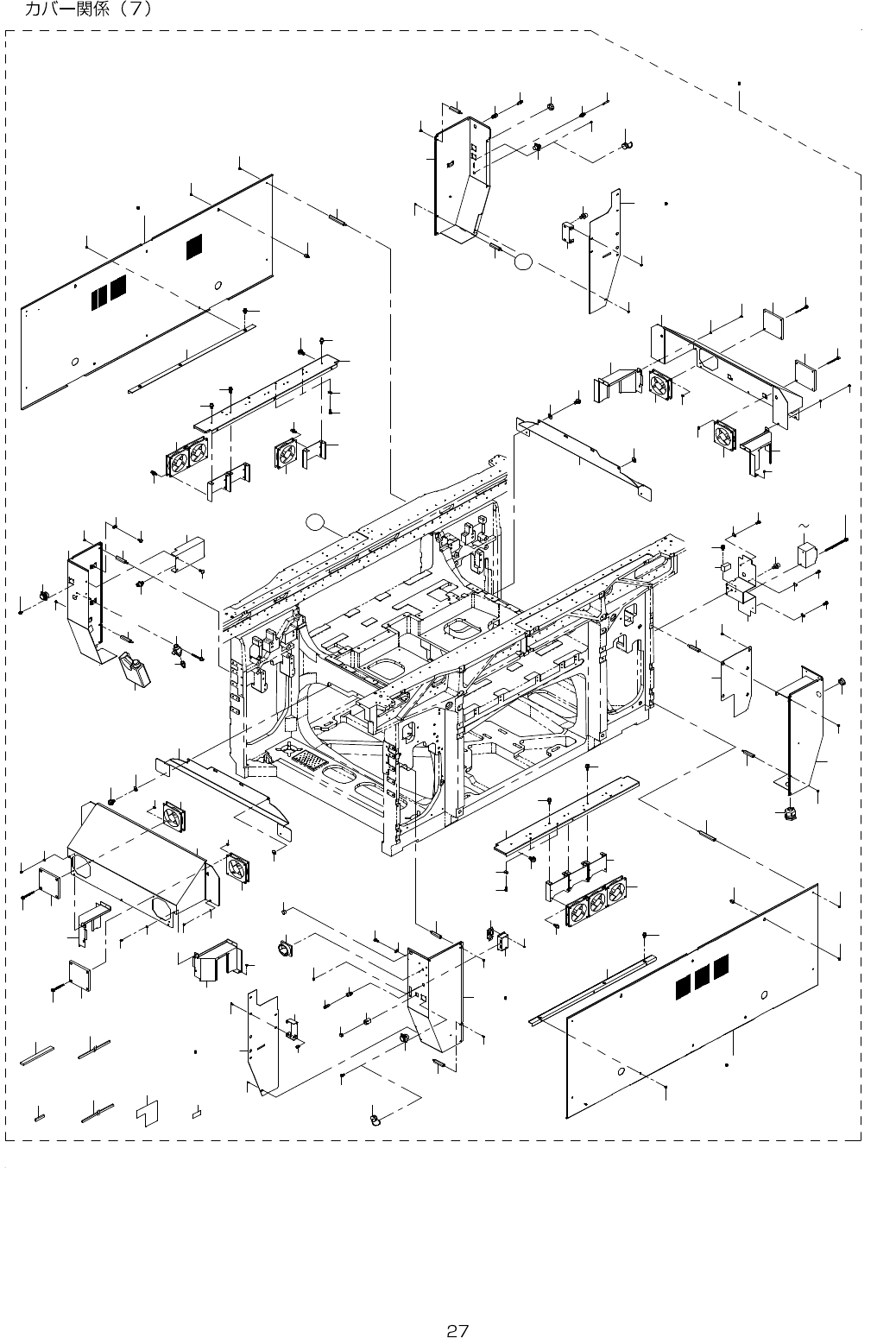

14.COVER COMPONENTS(7)
