- - 23 . 6 N OZZLE HEA D CO M P O NENTS (1) (FOR RX -6R) 1 8 3 3 8 1 9 9 2 3 2 0 2 3 2 1 1 3 3 3 3 3 A A 5 4 6 7 1 0 4 1 1 4 1 2 1 3 1 1 4 7 4 8 4 9 1 6 1 7 3 2 2 8 3 1 2 6 2 7 2 6 2 7 3 8 3 3 2 2 2 5 3 5 3 8 3 7 3 6 3…
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-32674 HEAD_UP_CYLINDER_ASSY_T 2
2 SL-6052092-TN SCREW M5 L=20 (4)
3 401-34122 CYLINDER_BASE_3 (2)
4 PA-1005003-A0 AIR CYLINDER (2)
5 SM-6033002-TN SCREW M3 L=30 (4)
6 401-32694 RELEASE_BAR_3 (1)
7 WP-0430801-SC WASHER M4 (2)
8 WZ-0541510-KP WAVED WASHER 5.4X9.0X0.3 (2)
9 400-54879 CYLINDER NUT (2)
10 PC-0105080-00 SPEED CONTROLLER (2)
11 PJ-3040405-04 UNION (2)
12 401-33020 NZL UP SENSOR 3T L CABLE ASM (1)
13 401-33021 NZL UP SENSOR 3T R CABLE ASM (1)
14 401-32675 DIFFUSER_ASSY_T 2
15 SL-6040892-TN SCREW M4 L=8 (2)
16 SL-6030892-TN SCREW M3 L=8 (2)
17 401-32687 DIFFUSER_BASE (1)
18 401-34121 DIFFUSER_BASE_FF (1)
19 401-32688 DIFFUSER_BASE_R (1)
20 401-32703 DIFFUSER_BASE_FB (1)
21 SM-3040652-TN SCREW M4 L=6 (6)
22 401-32689 DIFFUSER_U (1)
23 401-32690 DIFFUSER_B (2)
24 401-32691 DIFFUSER_SU (2)
25 401-32692 DIFFUSER_S (2)
26 401-32693 DIFFUSER_F (2)
27 401-34133 HEAD_HANDLE_ASSY 2
28 401-32651 HEAD_BRACKET_L (1)
29 401-32650 HEAD_BRACKET_R (1)
30 SM-1051052-TN PLATE SCREW M5 L=10 (12)
31 400-93170 HANDLE (2)
32 SL-6051292-TN SCREW M5 L=12 (2)
33 401-34132 HEAD_BRACKET_SUPPORT (1)
34 SL-6040892-TN SCREW M4 L=8 (4)
35 HX-0029400-00 FIXED BASE (5)
36 SM-4040601-SC SCREW M4X0.7 L=6 (5)
37 401-32702 T_AMP_BASE_3 2
38 SM-6041202-TN SCREW M4X0.7 L=12 4
39 401-33005 T ORG SENSOR CABLE ASM 6
40 HX-0034400-00 FIXED BASE 6
41 SL-4030691-SC SCREW M3 L=6 6
42 HX-0023300-00 CABLE BAND 15
- -

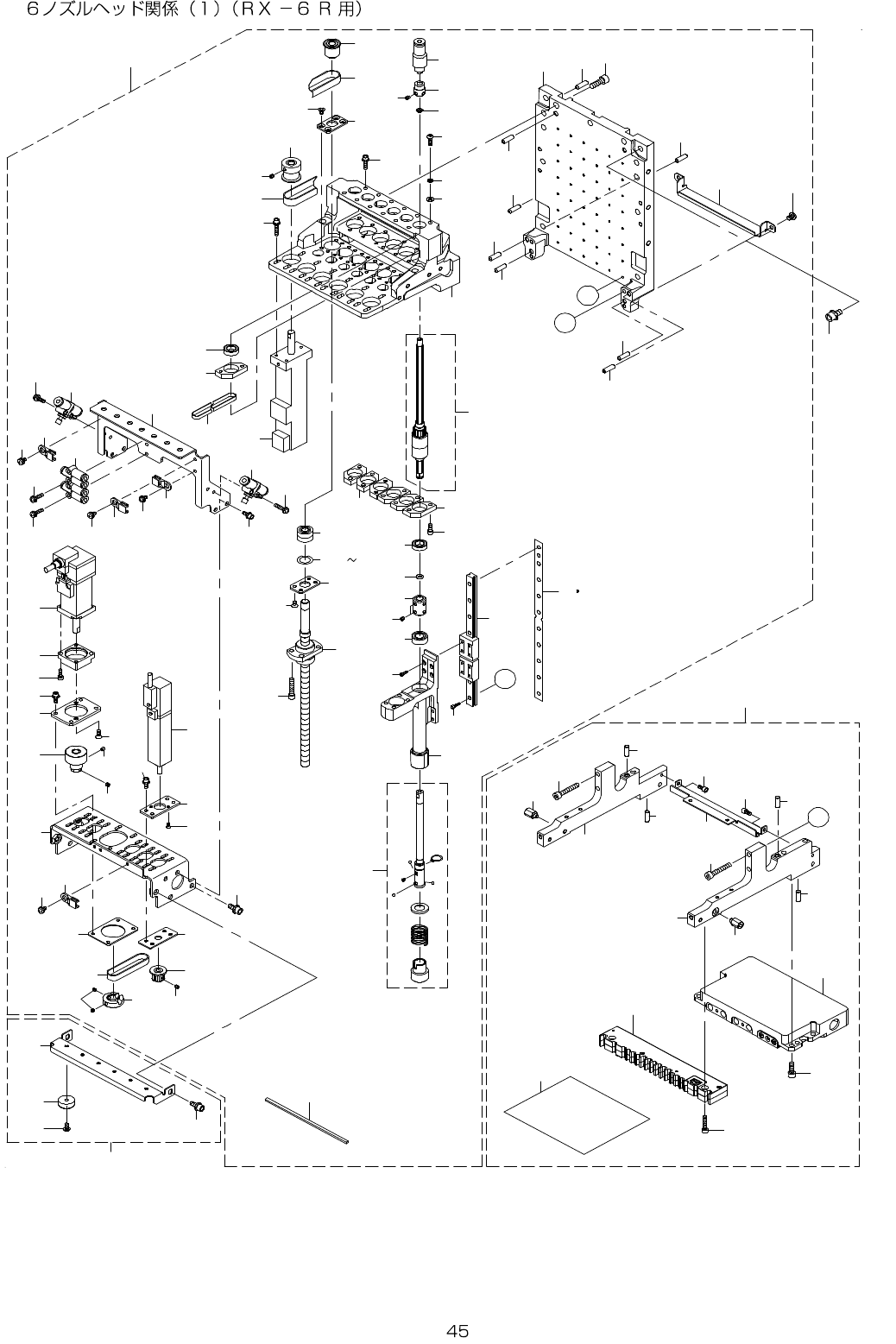

23.6 NOZZLE HEAD COMPONENTS(1)(FOR RX-6R)
1 8
3
3
8
1 9
9
2 3
2 0
2
3
2 1
1
3
3
3
3
3
A
A
5
4
6 7
1 0
4 1
1 4
1 2
1 3
1 1
4 7
4 8
4 9
1 6
1 7
3 2
2 8 3 1
2 6
2 7
2 6
2 7
3 8
3 3
2 2
2 5
3 5
3 8
3 7
3 6
3 9
4 0
5 4
5 1
5 0
5 2
4 1
4 2
5 5
4 3
3 4
4 6
4 5
4 4
5 3
5 6
6 1
6 2
1 5
8 3
8 5
9 0
9 1
8 6
8 6
8 9
B
B
8 7
8 8
8 5
8 4
2 4
8 9
5 8
7 9
8 0
8 2
8 1
7 8
8 6
8 6
9 3
9 4
9 4
9 2
9 2
9 5
5 7
5 9
6 0
6 0
7 4
7 4
7 5
7 5
7 6
7 6
7 6
7 7
7 7
7 7
6 6
7 3
7 1
6 4
6 9
6 7
6 3
6 5
6 6
6 6
6 8
7 0
7 2
7 6
7 7
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-66135 6NOZZLE_HEAD_ASSY_R 2
