- - 24 . 6 N OZZLE HEA D CO M P O NENTS (2) (FOR RX -6R) 2 4 3 0 3 0 3 4 3 2 3 2 3 0 3 0 3 1 3 1 2 9 2 8 1 1 1 2 3 5 6 7 8 9 9 8 7 4 1 2 1 6 1 7 1 8 1 6 2 0 2 1 2 1 2 2 2 3 2 3 1 4 A A 3 7 3 8 3 9 4 0 4 1 2 5 2 7 2 6 3…
- -

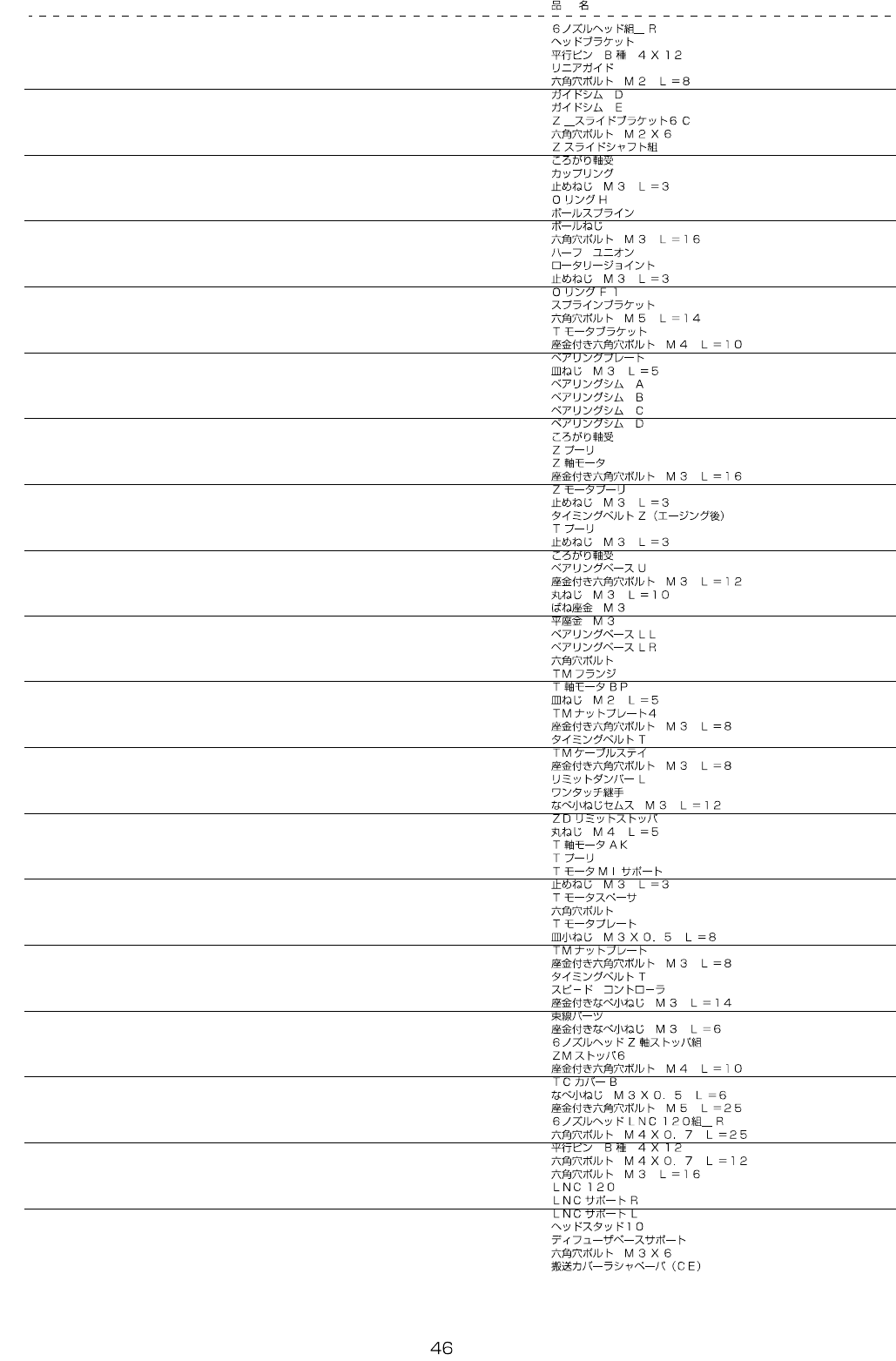

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-66135 6NOZZLE_HEAD_ASSY_R 2
2 401-32636 HEAD_BRACKET (1)
3 PH-0400122-C0 PARALLEL PIN TYPE B 4X12 (8)
4 401-65825 LINEAR_GUIDE (6)
5 SM-6020802-TN SCREW M2 L=8 (48)
6 E3028-729-000 GUIDE SHIM D (3)
7 E3029-729-000 GUIDE SHIM E (3)
8 401-65821 Z_SLIDE_BRACKET_6C (6)
9 SM-6020602-TN SCREW M2X6 (48)
10 401-32660 Z_SLIDE_SHAFT_ASM (6)
11 SB-1060004-00 BEARING (12)
12 400-46515 COUPRING (6)
13 SM-8030312-TP SCREW M3 L=3 (24)
14 400-46060 O RING H (6)
15 400-44584 BALL SPLINE (6)
16 400-44583 BALL SCREW (6)
17 SM-6031602-TN SCREW M3 L=16 (24)
18 PJ-2105041-00 HALF UNION (6)
19 400-46525 ROTARY JOINT (6)
20 SM-8030312-TP SCREW M3 L=3 (12)
21 400-46058 O RING F1 (6)
22 401-32638 SPLINE_BRACKET (1)
23 SM-6051402-TN SCREW M5 L=14 (7)
24 401-65826 T_MOTOR_BRACKET (1)
25 SL-6041092-TN SCREW M4 L=10 (4)
26 400-46056 BEARING PLATE (12)
27 SM-1030552-TN PLATE SCREW M3 L=5 (48)
28 E3071-729-000 BEARING SHIM A (6)
29 E3072-729-000 BEARING SHIM B (6)
30 E3073-729-000 BEARING SHIM C (6)
31 E3074-729-000 BEARING SHIM D (6)
32 SB-1060018-00 BEARING (6)
33 400-01123 Z PULLEY (6)
34 401-33141 Z AXIS MOTOR (6)
35 SL-6031692-TN SCREW M3 L=16 (18)
36 400-01124 Z MOTOR PULLEY (6)
37 SM-8030312-TP SCREW M3 L=3 (12)
38 401-34136 TIMING_BELT_Z(AFTER_AGING) (6)
39 400-46516 T PULLEY (5)
40 SM-8030312-TP SCREW M3 L=3 (5)
41 SB-1080016-00 BEARING (12)
42 400-46048 BEARING BASE U (6)
43 SL-6031292-TN SCREW M3 L=12 (11)
44 SM-3031052-TN SCREW M3 L=10 (1)
45 WS-0310002-KN SPRING WASHER M3 (1)
46 WP-0320501-SC WASHER M3 (1)
47 400-46049 BEARING BASE LL (3)
48 400-46050 BEARING BASE LR (3)
49 SM-6030802-TN SCREW (12)
50 400-71805 TM FRANGE (5)
51 401-33142 T AXIS MOTOR BP (5)
52 SM-1020501-SC SCREW M2 L=5 (10)
53 400-72868 TM NUT PLATE 4 (5)
54 SL-6030842-TN SCREW M3 L=8 (20)
55 400-46521 TIMING BELT T (5)
56 401-65833 TM_CABLE_STAY (1)
57 SL-6030892-TN SCREW M3 L=8 (4)
58 401-32662 LIMIT_DAMPER_L (2)
59 PJ-3080400-02 QUICK JOINT (2)
60 SL-4031281-SC SCREW M3 L=12 (4)
61 401-65834 ZD_LIMIT_STOPPER (1)
62 SM-3040552-TN SCREW M4 L=5 (2)
63 401-33143 T AXIS MOTOR AK (1)
64 401-65827 T_PULLEY (1)
65 401-65828 T_MOTOR_MI_SUPPORT (1)
66 SM-8030312-TP SCREW M3 L=3 (4)
67 401-65829 T_MOTOR_SPACER (1)
68 SM-6030802-TN SCREW (2)
69 401-65830 T_MOTOR_PLATE (1)
70 SM-1030801-SC SCREW M3 L=8 (2)
71 401-65831 TM_NUT_PLATE (1)
72 SL-6030842-TN SCREW M3 L=8 (4)
73 401-65832 TIMING_BELT_T (1)
74 PC-0124010-00 SPEED CONTROLLER (2)
75 SL-4031481-SC SCREW M3 L=14 (4)
76 HX-0034400-00 FIXED BASE (4)
77 SL-4030691-SC SCREW M3 L=6 (4)
78 401-32633 ZM_STOPPER_ASSY_S 2
79 401-34159 ZM_STOPPER_6 (1)
80 SL-6041092-TN SCREW M4 L=10 (2)
81 400-69671 TC_COVER_B (6)
82 SM-4030601-SC SCREW M3X0.5 L=6 (6)
83 SL-6052592-TN SCREW M5 L=25 6
84 401-66136 6NOZZLE_HEAD_LNC120_ASM_R 2
85 SM-6042502-TN SCREW M4X0.7 L=25 (4)
86 PH-0400122-C0 PARALLEL PIN TYPE B 4X12 (4)
87 SM-6041202-TN SCREW M4X0.7 L=12 (4)
88 SM-6031602-TN SCREW M3 L=16 (2)
89 401-29658 LNC120 (1)
90 401-65836 LNC_SUPPORT_R (1)
91 401-65835 LNC_SUPPORT_L (1)
92 400-46040 HEAD STUD 10 (2)
93 401-65837 DIFFUSER_BASE_SUPPORT (1)
94 SM-6030602-TN SCREW M3X6 (2)
95 E1143-721-000 WOOLEN CLOTH PAPER (1)
- -

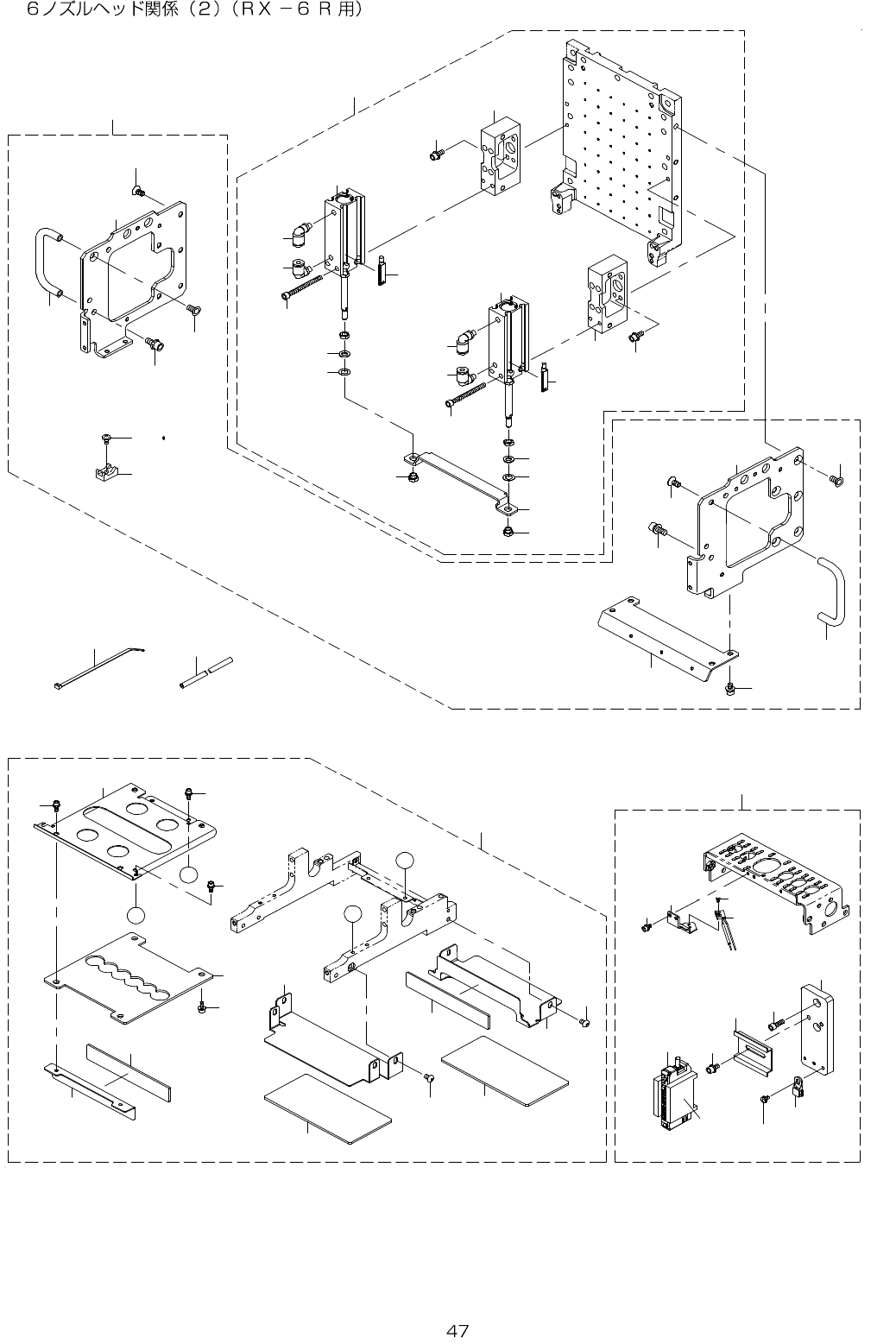

24.6 NOZZLE HEAD COMPONENTS(2)(FOR RX-6R)
2 4
3 0
3 0
3 4
3 2
3 2
3 0
3 0
3 1
3 1
2 9
2 8
1
1 1
2
3
5
6
7
8
9
9
8
7
4
1 2
1 6
1 7
1 8
1 6
2 0
2 1
2 1
2 2
2 3
2 3
1 4
A
A
3 7
3 8
3 9
4 0
4 1
2 5 2 7
2 6
3 3
4 8
1 6
B
1 6
B
1 5
1 5
1 9
3 6
4 2
4 3
4 4
4 5
4 6
4 7
3 5
1 3
2
3
4
1 0
1 1
1 1
1 1
5
- -

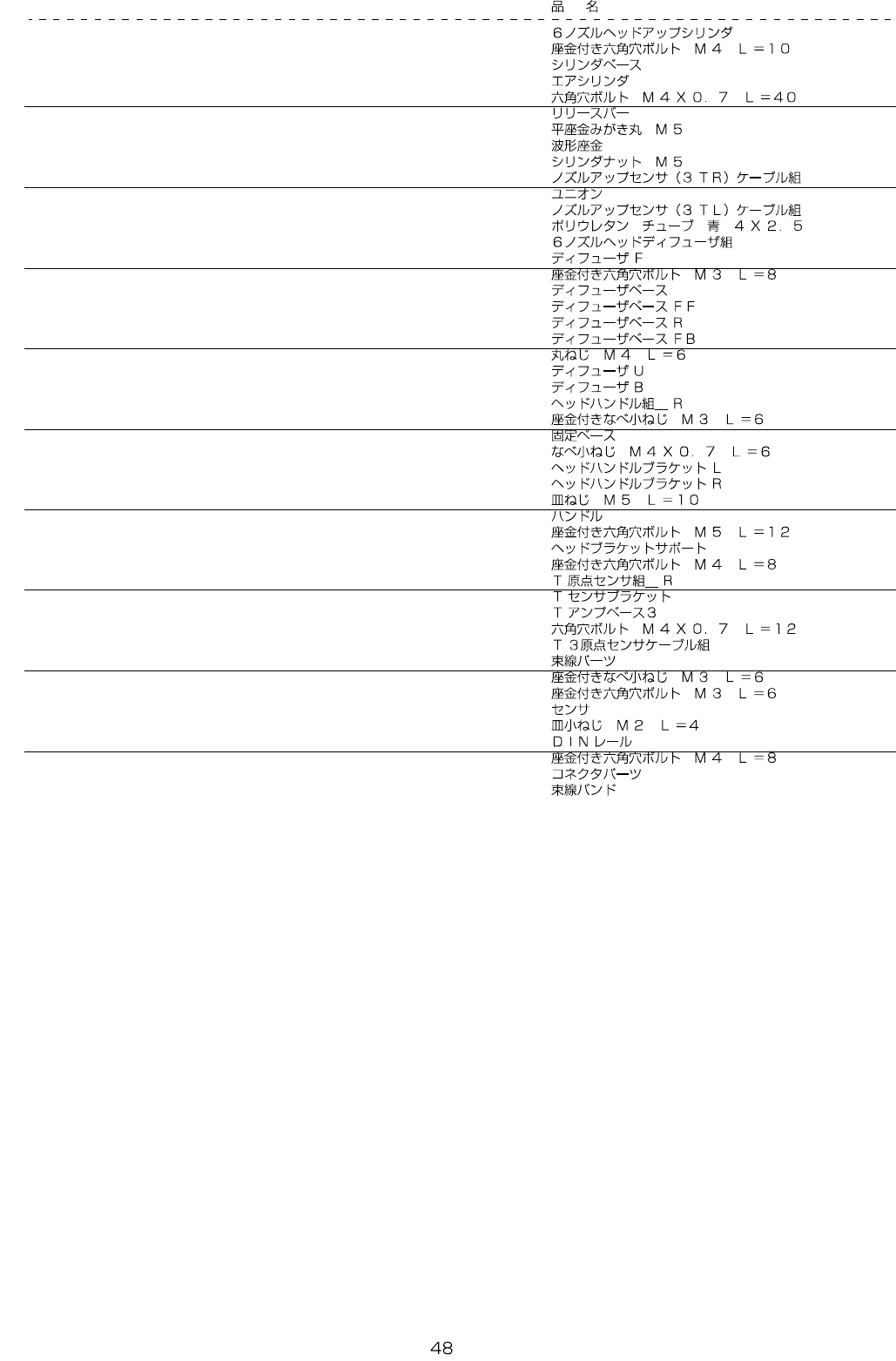

REF.NO NOTE PART NO D E S C R I P T I O N Qty
