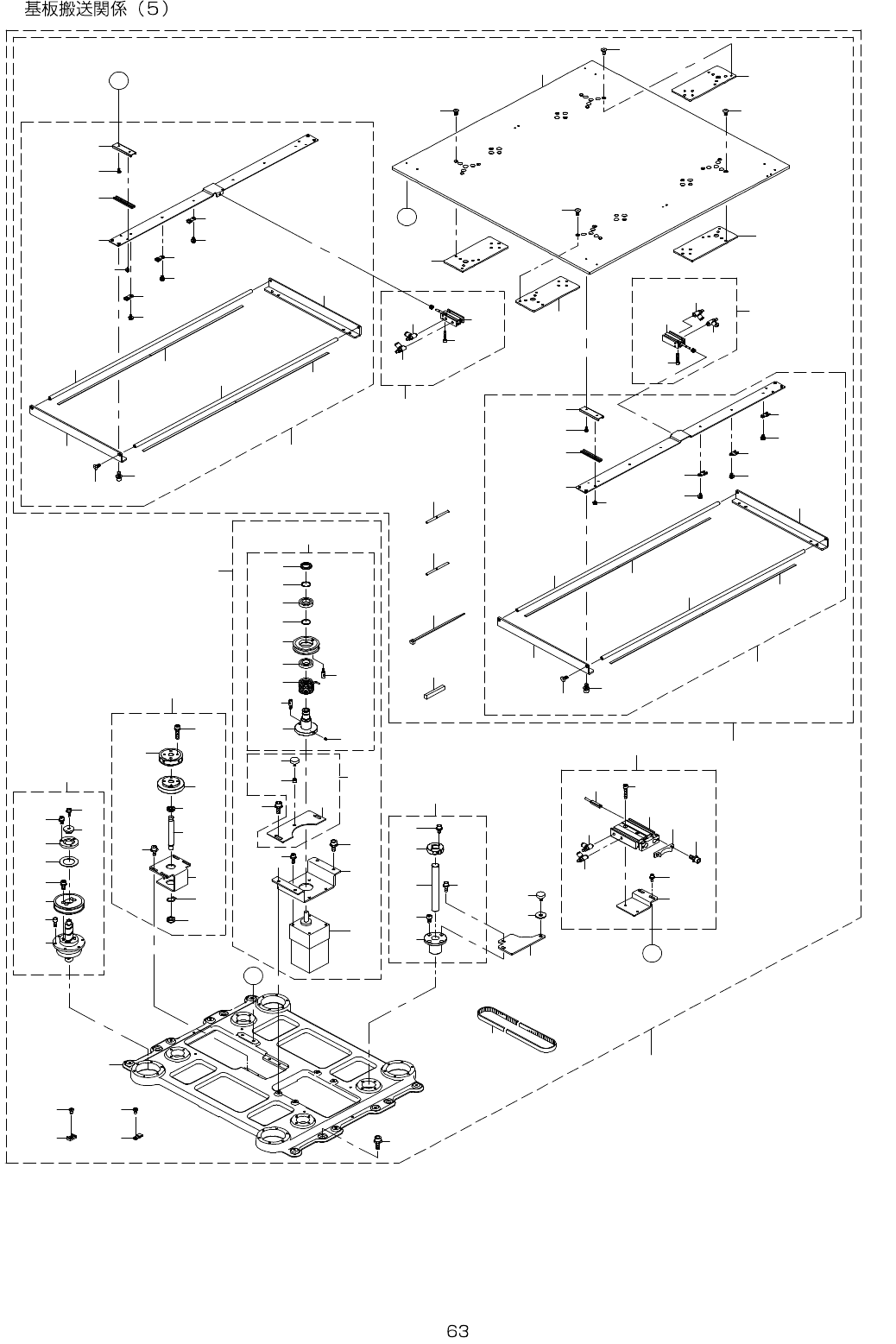

- - 32. PW B C ONVE YO R CO MPO NE NTS( 5) 7 1 1 4 1 0 5 6 3 9 2 8 1 5 1 7 1 3 1 4 1 6 1 2 2 5 2 1 2 4 2 3 2 4 2 0 2 2 1 9 2 7 2 6 3 7 2 9 3 1 3 5 3 4 3 5 3 2 3 3 3 1 3 2 3 0 4 0 4 1 3 6 3 8 5 3 5 0 5 2 5 2 5 1 5 4 5 5…
- -

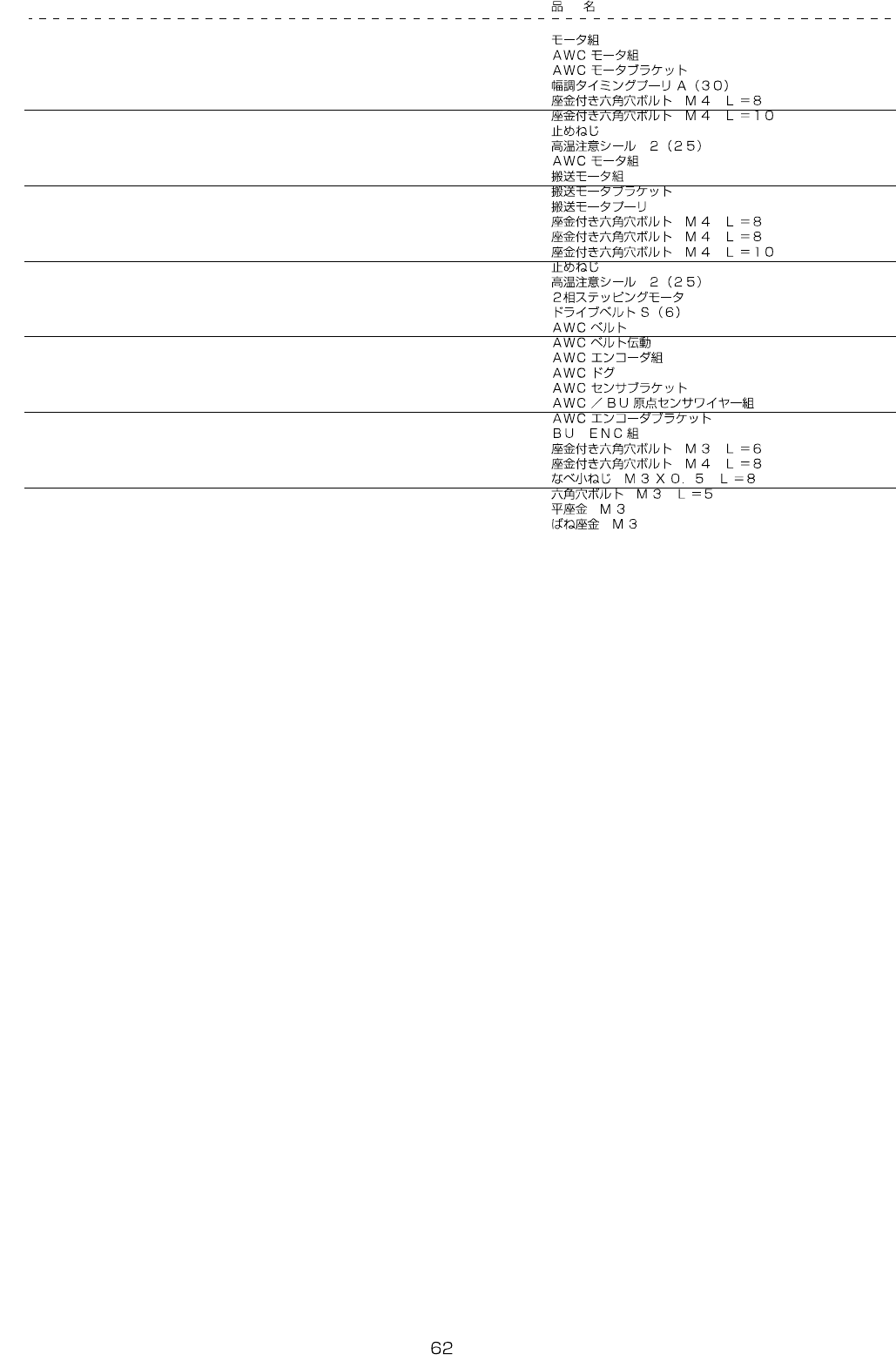

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-28544 MOTOR_ASM 1
2 401-28546 AWC_MOTOR_ASM (1)
3 401-28462 AWC_MOTOR_BRACKET (1)
4 E4561-729-000 TIMING PULLEY A (30) (1)
5 SL-6040892-TN SCREW M4 L=8 (4)
6 SL-6041042-TN SCREW M4 L=10 (4)
7 SM-8040602-TP SCREW M4X0.7 L=6 (2)
8 CM-3003000-02 HIGH TEMPARATURE CAUTION LABEL 2 (25) (1)
9 401-29040 AWC MOTOR ASM (1)
10 401-28558 CONVEYOR_MOTOR_ASM (2)
11 401-28463 CONVEYOR_MOTOR_BRACKET (1)
12 401-28512 CONVEYOR_MOTOR_PULLEY (1)
13 SL-6040842-TN SCREW M4 L=8 (4)
14 SL-6040892-TN SCREW M4 L=8 (2)
15 SL-6041092-TN SCREW M4 L=10 (2)
16 SM-8040602-TP SCREW M4X0.7 L=6 (2)
17 CM-3003000-02 HIGH TEMPARATURE CAUTION LABEL 2 (25) (1)
18 401-58136 2PHASE STEPPING MOTOR (1)
19 400-46033 DRIVE BELT S(6) 2
20 401-28521 TIMING_BELT_AWC 1
21 401-28522 TIMING_BELT_AWC_M 1
22 401-28535 AWC_ENCODER_ASM 1
23 401-28464 AWC_DOG (1)
24 401-28475 AWC_SENSOR_BRACKET (1)
25 401-29042 AWC/BU ORG SENSOR CABLE ASM (1)
26 401-28476 AWC_ENCODER_BRACKET (1)
27 E9433-729-0A0 BU ENC ASM. (1)
28 SL-6030692-TN SCREW M3 L=6 (2)
29 SL-6040892-TN SCREW M4 L=8 (4)
30 SM-4030801-SC SCREW M3X0.5 L=8 (1)
31 SM-6030502-TN SCREW M3 L=5 (2)
32 WP-0320501-SC WASHER M3 (2)
33 WS-0310002-KN SPRING WASHER M3 (2)
- -
32.PWB CONVEYOR COMPONENTS(5)
7
1 1
4
1 0
5
6
3
9
2
8
1 5
1 7
1 3
1 4
1 6
1 2
2 5
2 1
2 4
2 3
2 4
2 0
2 2
1 9
2 7
2 6
3 7
2 9
3 1
3 5
3 4
3 5
3 2
3 3
3 1
3 2
3 0
4 0
4 1
3 6
3 8
5 3
5 0
5 2
5 2
5 1
5 4
5 5
4 8
4 9
A
A
4 7
7 8
7 9
8 0
8 0
7 9
8 0
8 1
8 3
7 8
7 8
8 3
8 1
7 9
8 0
7 9
8 0
7 9
7 8
7 7
7 7
7 4
7 4
8 7
8 6
8 6
8 6
8 6
8 7
8 8
8 8
8 5
8 5
7 0
6 2
6 3
6 4
2 8
6 5
1
1 8
6 0
6 1
5 9
5 7
5 8
5 6
5 8
3 9
4 6
4 5
4 4
4 3
4 2
7 6
8 0
7 5
7 5
8 2
7 6
7 7
8 2
7 5
7 4
7 4
7 7
7 5
7 9
6 6
8 4
8 4
6 7
6 7
7 0
7 0
6 7
7 2
7 1
6 8
6 9
7 0
6 7
7 3
B
B
7 3
- -

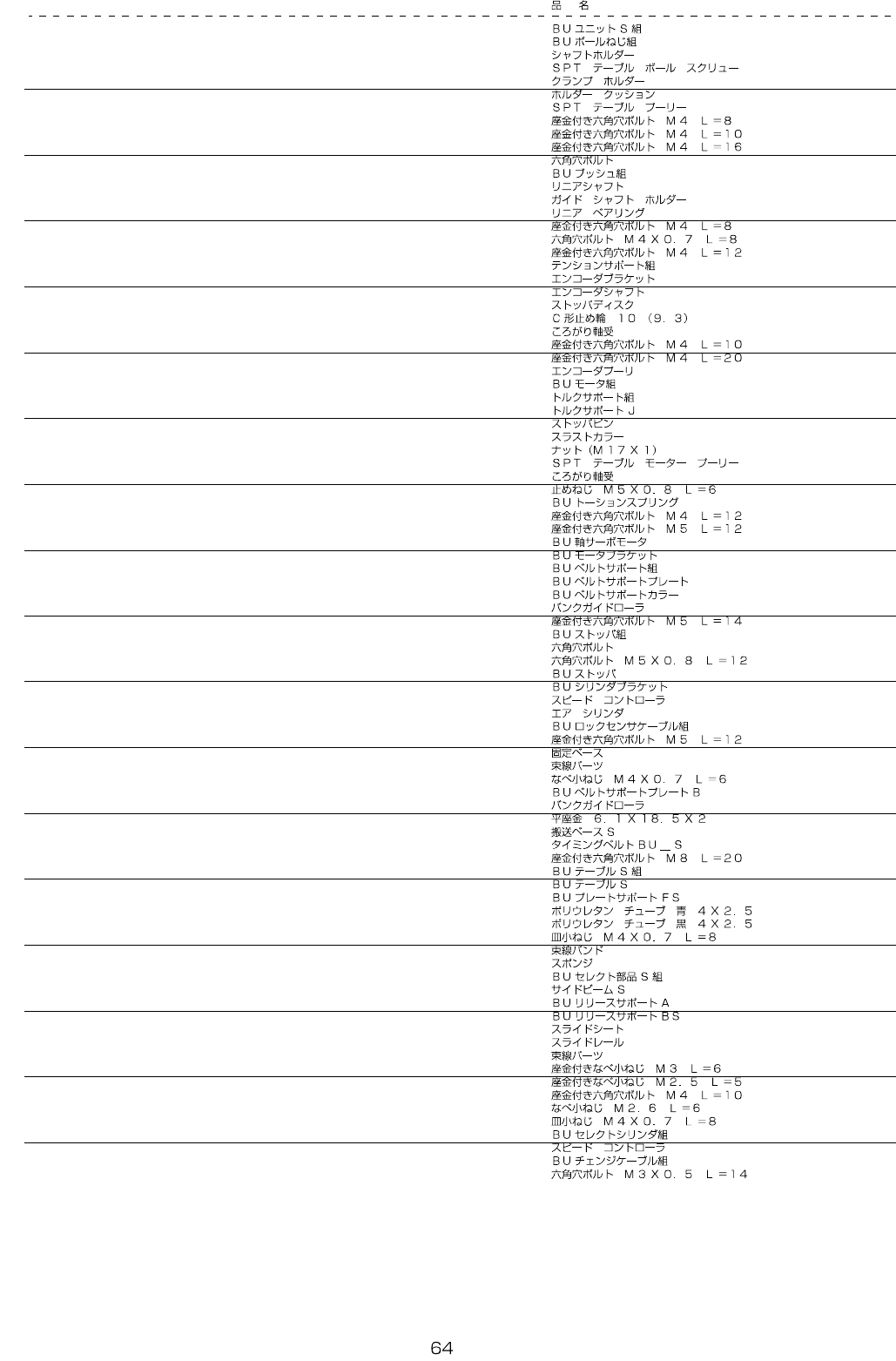

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-28536 BU_UNIT_S_ASM 1
2 401-28552 BU_BALL_SCREW_ASM (4)
3 E4124-729-000 SHAFT HOLDER (1)
4 L176E-821-000 SPT TBL BALL SCREW (1)
5 L176E-921-000 CLAMP HOLDER (1)
6 L177E-021-000 HOLDER CUSHION (1)
7 L177E-221-000 SPT TBL PULLEY (1)
8 SL-6040892-TN SCREW M4 L=8 (3)
9 SL-6041092-TN SCREW M4 L=10 (1)
10 SL-6041642-TN SCREW M4 L=16 (4)
11 SM-6041002-TN SCREW (6)
12 401-28551 BU_BUSH_ASM (4)
13 401-28047 LINEAR_SHAFT (1)
14 L177E-521-000 GUIDE SHAFT HOLDER (1)
15 SB-8160008-00 LINEAR BEARING (1)
16 SL-6040892-TN SCREW M4 L=8 (2)
17 SM-6040802-TN SCREW M4X0.7 L=8 (2)
18 SL-6041292-TN SCREW M4 L=12 (2)
19 401-28561 TENSION_SUPPORT_ASM (1)
20 400-93904 ENCORDER_BR (1)
21 400-93905 ENCORDER_SHAFT (1)
22 400-93906 STOPPER_DISC (1)
23 RC-0100001-KP C-RING 10 (9.3) (1)
24 SB-1100005-00 BEARING (2)
25 SL-6041092-TN SCREW M4 L=10 (4)
26 SL-6042092-TN SCREW M4 L=20 (4)
27 400-93612 ENCORDER PULLEY (1)
28 401-28553 BU_MOTOR_ASM (1)
29 401-28569 TORQUE_SUPPORT_ASM (1)
30 401-28428 TORQUE_SUPPORT_J (1)
31 E4142-729-000 STOPPER PIN (2)
32 E4144-729-000 THRUST COLLAR (2)
33 E4156-729-000 NUT (M17X1) (1)
34 L177E-721-000 SPT TBL MOTOR PULLEY (1)
35 SB-1170001-00 BEARING (2)
36 SM-8050602-TP SCREW M5 L=6 (2)
37 401-28440 BU_TOSION_SPRING (1)
38 SL-6041292-TN SCREW M4 L=12 (4)
39 SL-6051292-TN SCREW M5 L=12 (2)
40 401-29637 BU AXIS SERVO MOTOR (1)
41 401-28447 BU_MOTOR_BRACKET (1)
42 401-34142 BU_BELT_SUPPORT_ASM (1)
43 401-34143 BU_BELT_SUPPORT_PLATE (1)
44 401-34144 BU_BELT_SUPPORT_COLLOR (1)
45 E2732-721-000 BANK GUIDE ROLLER (1)
46 SL-6051492-TN SCREW M5 L=14 (2)
47 401-28548 BU_STOPPER_ASM (1)
48 SM-6042002-TN SCREW (2)
49 SM-6051202-TN SCREW M5X0.8 L=12 (2)
50 400-00970 BU_STOPER (1)
51 401-28480 BU_CYLINDER_BRACKET (1)
52 PC-0105080-00 SPEED CONTROLLER (2)
53 PA-1601019-00 AIR CYLINDER (1)
54 401-29049 BU LOCK SENSOR CABLE ASM (1)
55 SL-6051292-TN SCREW M5 L=12 (2)
56 HX-0029400-00 FIXED BASE (7)
57 HX-0034400-00 FIXED BASE (6)
58 SM-4040601-SC SCREW M4X0.7 L=6 (13)
59 401-34158 BU_BELT_SUPPORT_PLATE_B (4)
60 E2732-721-000 BANK GUIDE ROLLER (4)
61 WP-0612056-SE WASHER 6.1X18.5X2 (8)
62 401-28421 CONVEYOR_BASE_S (1)
63 401-28523 TIMING_BELT_BU_S (1)
64 SL-6082092-TN SCREW M8 L=20 (4)
65 401-28549 BU_TABLE_S_ASM (1)
66 401-34151 BU_TABLE_S (1)
67 401-34152 BU_PLATE_SUPPORT_FS (4)
68 BT-0400251-EA URETHANE TUBE BLUE 4X2.5 (1.6)
69 BT-0400251-EB URETHANE TUBE BLACK 4X2.5 (1.6)
70 SM-1040801-SC SCREW M4X0.7 L=8 (16)
71 EA-9500B00-00 CABLE BAND (10)
72 400-80833 SPONGE (4)
73 401-28563 BU_SELECT_PARTS_S_ASM (2)
74 401-34149 SIDE_BEAM_S (2)
75 401-34146 BU_RELEASE_SUPPORT_A (2)
76 401-34147 BU_RELEASE_SUPPORT_BS (1)
77 401-28507 SLIDE_SHEET (5)
78 401-28510 SLIDE_RAIL (2)
79 HX-0034400-00 FIXED BASE (3)
80 SL-4030691-SC SCREW M3 L=6 (3)
81 SL-4850591-SC SCREW M2.5 L=5 (4)
82 SL-6041092-TN SCREW M4 L=10 (4)
83 SM-4860601-SC SCREW M2.6 L=6 (4)
84 SM-1040801-SC SCREW M4X0.7 L=8 (4)
85 401-28562 BU_SELECT_CYLINDER_ASM (2)
86 PC-0105080-00 SPEED CONTROLLER (2)
87 401-29048 BU CHANGE CABLE ASM (1)
88 SM-6031402-TN SCREW M3X0.5 L=14 (2)
