- - REF.NO NOTE PART NO D E S C R I P T I O N Qty 1 401-2 8550 BU_DRIVER_S_A SM 1 2 401-2 8501 BU_DRIVER_BA SE_S (1) 3 401-2 8502 BU_DRIVER_BRA CKET_S (1) 4 401-2 8503 BU_DRIVER_COV ER_S (1) 5 HX- 0029400-00 FIXED BA S…
- -
33.PWB CONVEYOR COMPONENTS(6)
1 0
7 4
3 0
3 1
2
3
4
5
5
6
7
7
7
7
7
5 9
9
1 1
1 9
1 5
1 7
1 71 7
1 8
1 4
2 7
2 8
2 2
2 3
2 4
2 5
2 6
2 1
4 0
4 1
4 2
3 2
3 3
3 6
3 6
3 3
3 3
3 6
3 4
3 6
3 7
3 5
3 8
3 9
5 0
4 7
4 8
5 1
4 6
1 6
4 7
4 5
6 1
6 2
5 8
6 3
5 8
5 2
5 8
6 4
5 3
5 4
5 5
5 6
5 8
5 7
5 8
6 0
7 3
1 3
4 4
1
A
A
7 1
7 2
6 6
6 7
6 8
6 9
7 0
6 5
1 7
2 0
4 7
4 9
5 6
5 8
1 2
8
4 3
2 9
5 8
5 6
- -

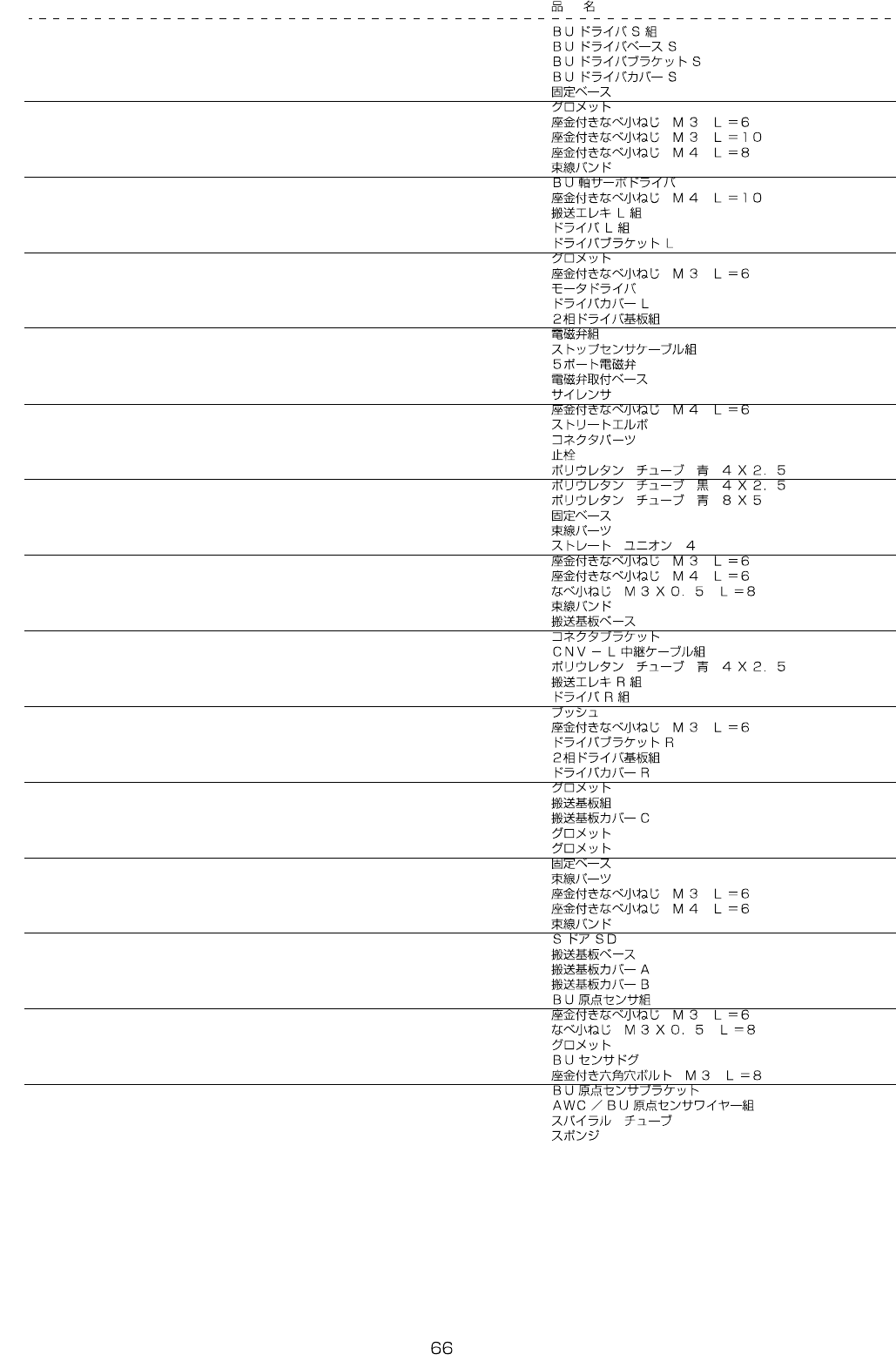

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-28550 BU_DRIVER_S_ASM 1
2 401-28501 BU_DRIVER_BASE_S (1)
3 401-28502 BU_DRIVER_BRACKET_S (1)
4 401-28503 BU_DRIVER_COVER_S (1)
5 HX-0029400-00 FIXED BASE (5)
6 HX-0066900-0A GROMMET (0.12)
7 SL-4030691-SC SCREW M3 L=6 (14)
8 SL-4031091-SC SCREW M3 L=10 (1)
9 SL-4040891-SC SCREW M4X8 (2)
10 EA-9500B02-00 CABLE BAND (6)
11 401-29636 BU AXIS SERVO AMP (1)
12 SL-4041091-SC SCREW M4 L=10 (1)
13 401-28556 CONVEYOR_E_L_ASM 1
14 401-28567 DRIVER_L_ASM (1)
15 401-28498 DRIVER_BRACKET_L (1)
16 HX-0067100-0A GROMMET (0.07)
17 SL-4030691-SC SCREW M3 L=6 (12)
18 HM-0013200-00 STEPPING MOTOR (1)
19 401-28497 DRIVER_COVER_L (1)
20 401-54209 2PHASE DRIVER PCB ASM (1)
21 401-28566 SOLENOID_VALVE_ASM (1)
22 401-29061 STOP SENSOR CABLE ASM (2)
23 PV-1502093-00 5-PORT SOLENOID VALVE (5)
24 PV-9150050-00 SOLENOID VALVE INSTALLING BASE (2)
25 PX-0500030-00 SILENCER (1)
26 SL-4040691-SC SCREW M4 L=6 (2)
27 400-69281 STREET ELBOW (1)
28 HK-0498900-0G BLOCK TERMINAL (1)
29 PX-5000140-00 PLUG (2)
30 BT-0400251-EA URETHANE TUBE BLUE 4X2.5 (8.6)
31 BT-0400251-EB URETHANE TUBE BLACK 4X2.5 (2.6)
32 BT-0800501-EA URETHANE TUBE BLUE 8X5 (1)
33 HX-0029400-00 FIXED BASE (8)
34 HX-0034400-00 FIXED BASE (1)
35 PJ-3030400-02 STRAIGHT UNION 4 (4)
36 SL-4030691-SC SCREW M3 L=6 (11)
37 SL-4040691-SC SCREW M4 L=6 (2)
38 SM-4030801-SC SCREW M3X0.5 L=8 (2)
39 EA-9500B02-00 CABLE BAND (15)
40 401-28492 CONVEYOR_PWB_BASE (1)
41 401-28496 CONNECTER_BRACKET (1)
42 401-29050 CNV-L RELAY CABLE ASM (1)
43 BT-0400251-EA URETHANE TUBE BLUE 4X2.5 (1)
44 401-28557 CONVEYOR_E_R_ASM 1
45 401-28568 DRIVER_R_ASM (1)
46 E5348-033-100 CABLE PROTECTOR 106MM (0.046)
47 SL-4030691-SC SCREW M3 L=6 (8)
48 401-28500 DRIVER_BRACKET_R (1)
49 401-54209 2PHASE DRIVER PCB ASM (1)
50 401-28499 DRIVER_COVER_R (1)
51 HX-0066900-0A GROMMET (0.07)
52 401-28875 CONVEYOR PCB ASM (1)
53 401-28495 CONVEYOR_PWB_COVER_C (1)
54 HX-0066900-0A GROMMET (0.165)
55 HX-0067100-0A GROMMET (0.1)
56 HX-0029400-00 FIXED BASE (7)
57 HX-0034400-00 FIXED BASE (1)
58 SL-4030691-SC SCREW M3 L=6 (24)
59 SL-4040691-SC SCREW M4 L=6 (1)
60 EA-9500B02-00 CABLE BAND (10)
61 400-48899 S DOOR SD (5)
62 401-28492 CONVEYOR_PWB_BASE (1)
63 401-28493 CONVEYOR_PWB_COVER_A (1)
64 401-28494 CONVEYOR_PWB_COVER_B (1)
65 401-28547 BU_ORG_SENS_ASM 1
66 SL-4030691-SC SCREW M3 L=6 (2)
67 SM-4030801-SC SCREW M3X0.5 L=8 (1)
68 HX-0067100-0A GROMMET (0.023)
69 401-34157 BU_SENSOR_DOG (1)
70 SL-6030892-TN SCREW M3 L=8 (2)
71 401-34153 BU_ORG_SENSOR_BRACKET (1)
72 401-29042 AWC/BU ORG SENSOR CABLE ASM (1)
73 HX-0031400-0A SPIRAL TUBE 0.65
74 400-80833 SPONGE 3
- -

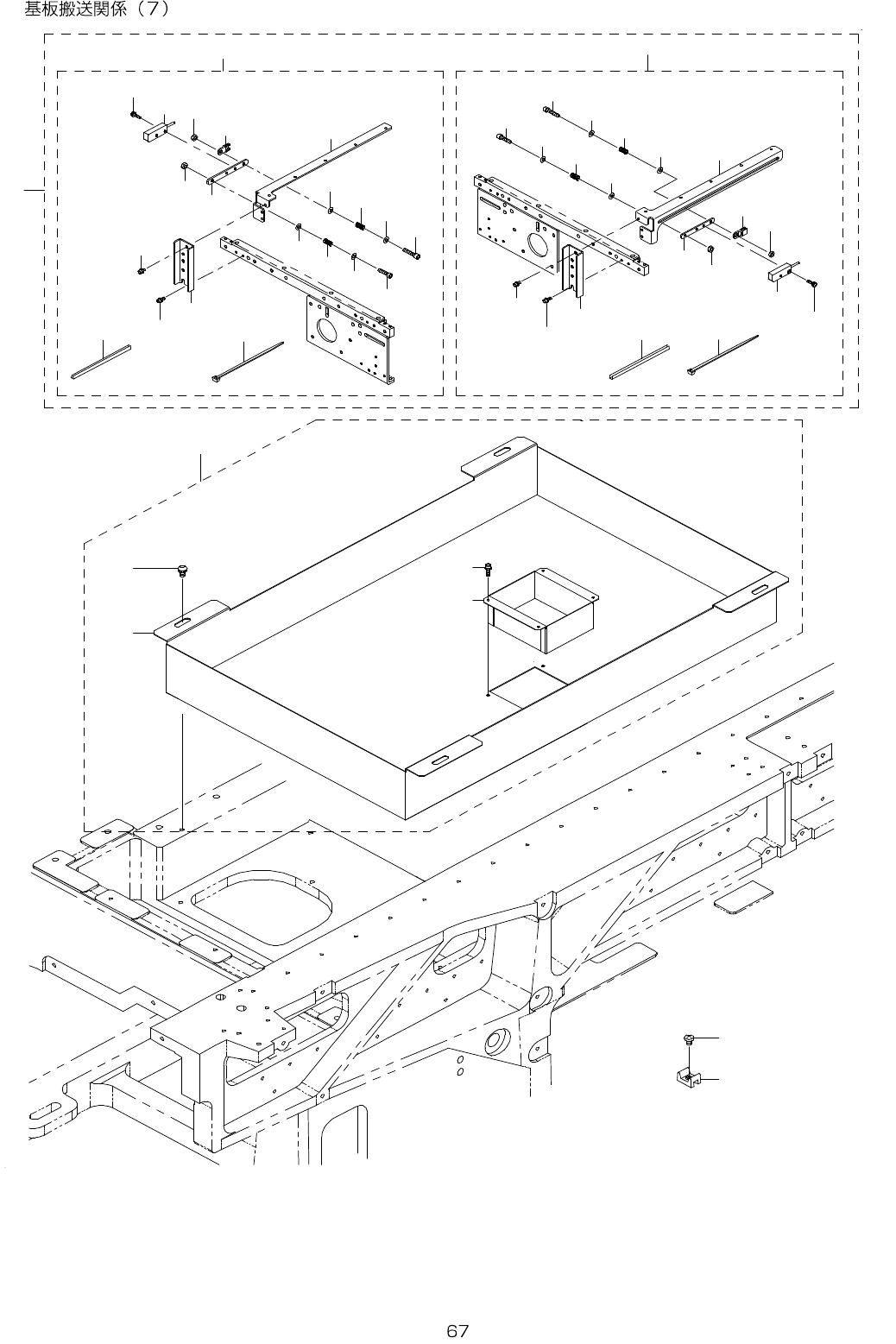

34.PWB CONVEYOR COMPONENTS(7)
1 6
8
3 6
3 7
3 8
3 5
4
5
6
7
1 0
1 2
1 3
1 4
2
1 9
2 0
2 2
2 3
3 1
2 5
3 0
3 0
2 4
1 1
2 7
2 8
2 9
1 8
3 9
4 0
3 4
1
1 0
9
3
1 5
1 5
1 5
3
1 5
1 7
2 6
2 1
3 0
3 3
2 4
3 0
2 5
3 2
