- - 39. DU AL P WB CON VEY OR C OM PON ENTS (5) 1 1 4 1 4 2 1 2 3 3 4 4 5 6 6 7 8 4 5 1 0 1 1 1 1 1 2 1 2 1 3 1 3 1 5 1 5 1 5 1 4 1 4 1 5 1 6 1 6 1 6 1 7 1 8 1 8 1 9 2 0 9 2 2 2 1 2 3 2 3 2 3 2 3 2 6 2 6 2 6 2 3 2 3 2 …
- -

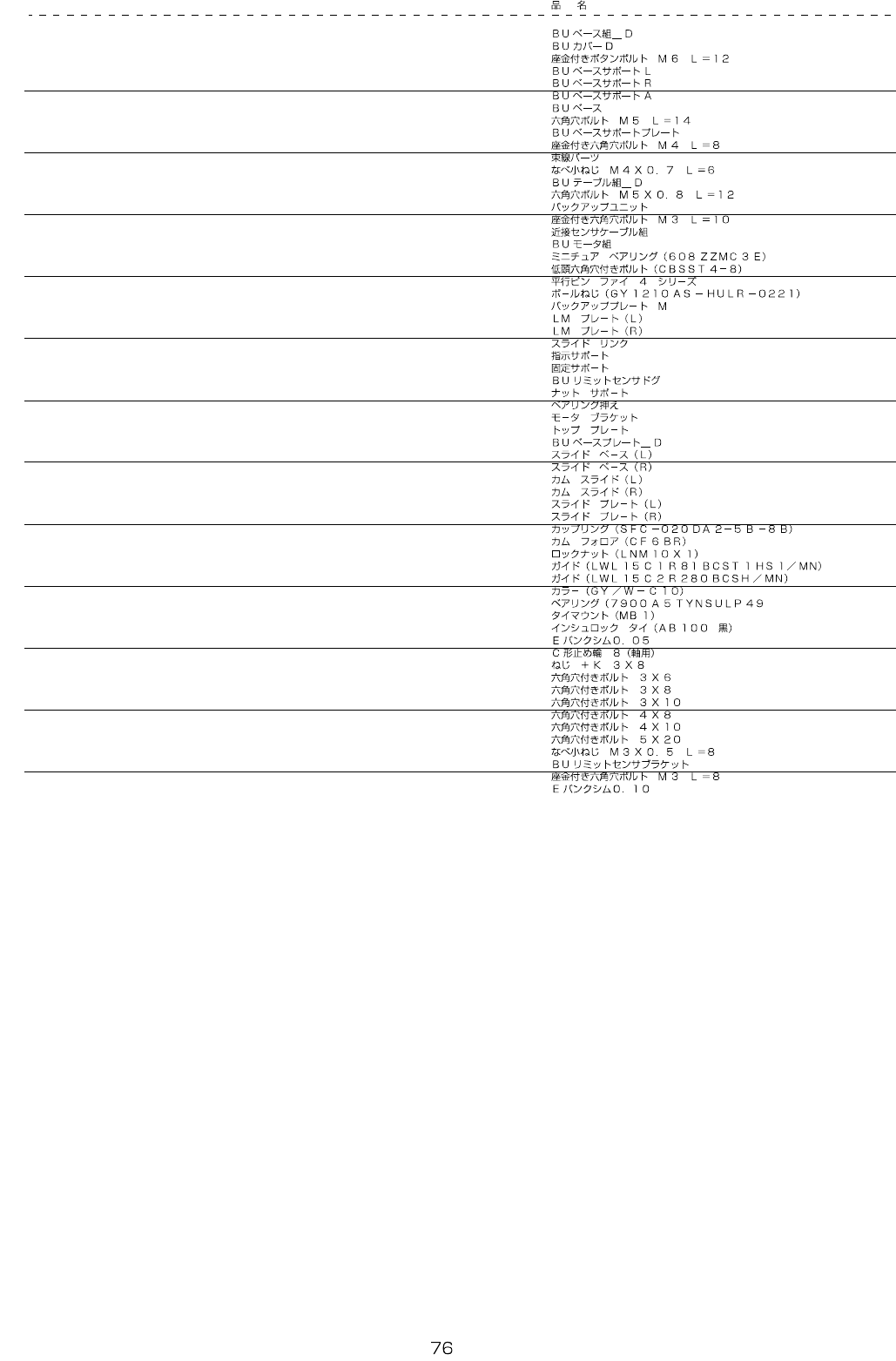

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-58981 BU_BASE_ASSY_D 1
2 401-59058 BU_COVER_D (1)
3 SL-3061232-TN SCREW M6 L=12 (4)
4 401-59059 BU_BASE_SUPPORT_L (1)
5 401-59060 BU_BASE_SUPPORT_R (1)
6 401-59050 BU_BASE_SUPPORT_A (2)
7 401-59061 BU_BASE (1)
8 SM-6051402-TN SCREW M5 L=14 (32)
9 401-59062 BU_BASE_SUPPORT_PLATE (4)
10 SL-6040892-TN SCREW M4 L=8 (24)
11 HX-0034400-00 FIXED BASE (2)
12 SM-4040601-SC SCREW M4X0.7 L=6 (2)
13 401-58982 BU_UNIT_ASSY_D 2
14 SM-6051202-TN SCREW M5X0.8 L=12 (4)
15 EZA-1921217A UP UNIT BACK (1)
16 SL-6031042-TN SCREW M3 L=10 (4)
17 401-54793 PROXIMITY SENSOR CABLE ASM (2)
18 401-54790 BU MOTOR ASM (1)
19 EZ-2022823-01 BEARING MINIATURE (608ZZMC3E) (1)
20 EZ-2584960-01 BOLT (CBSST4-8) (12)
21 EZ-4431981-31 PIN (DIA. 4) PARALLEL (22)
22 EZ-4453821-01 SCREW (GY1210AS-HULR-0221) (1)
23 EZ-4454389-01 PLATE (M) BACK UP (1)
24 EZ-4454390-02 PLATE (L) LM (1)
25 EZ-4454390-12 PLATE (R) LM (1)
26 EZ-4454391-01 LINK SLIDE (1)
27 EZ-4454392-01 SUPPORT SUPPORT (1)
28 EZ-4454393-01 SUPPORT FIXED (1)
29 401-59013 BU_LIMIT_SENSOR_DOG (1)
30 EZ-4454395-01 SUPPORT NUT (1)
31 EZ-4454396-01 RETAINER BEARING (1)
32 EZ-4454397-01 BRACKET MOTOR (1)
33 EZ-4454398-01 PLATE TOP (1)
34 401-59093 BU_BASE_PLATE_D (1)
35 EZ-4454400-01 BASE (L) SLIDE (2)
36 EZ-4454400-11 BASE (R) SLIDE (2)
37 EZ-4454401-01 SLIDE (L) CAM (2)
38 EZ-4454401-11 SLIDE (R) CAM (2)
39 EZ-4454402-02 PLATE (L) SLIDE (1)
40 EZ-4454402-12 PLATE (R) SLIDE (1)
41 EZ-4454524-01 COUPLING (SFC-020DA2-5B-8B) (1)
42 EZ-4454525-01 FOLLOWER (CF6BR) CAM (4)
43 EZ-4454526-01 NUT (LNM10X1) LOCK (1)
44 EZ-4454527-01 GUIDE (LWL15C1R81BCST1HS1/MN) (4)
45 EZ-4454528-01 GUIDE (LWL15C2R280BCSH/MN) (2)
46 EZ-4454529-01 COLLAR (GY/W-C10) (1)
47 EZ-4461217-01 BEARING (7900A5TYNSULP4) (2)
48 EZ-4701529-01 TIE MOUNT (MB1) (3)
49 EZ-4716434-11 TIE INSULOCK(AB100 BLACK) (3)
50 400-84715 E_BANK_SHIM_0.05 (2)
51 EZ-7624198-01 STOP RING 8 TYPE C (1)
52 EZ-7682248-04 SCREW +K 3X8 (3)
53 EZ-7683403-04 BOLT HEXAGON SOCKET 3X6 (36)
54 EZ-7683404-04 BOLT HEXAGON SOCKET 3X8 (20)
55 EZ-7683405-04 BOLT HEXAGON SOCKET 3X10 (8)
56 EZ-7683419-04 BOLT HEXAGON SOCKET 4X8 (8)
57 EZ-7683420-04 BOLT HEXAGON SOCKET 4X10 (12)
58 EZ-7683440-04 BOLT HEXAGON SOCKET 5X20 (6)
59 SM-4030801-SC SCREW M3X0.5 L=8 (2)
60 401-59015 BU_LIMIT_SENSOR_BRACKET (2)
61 SL-6030892-TN SCREW M3 L=8 (6)
62 400-84699 E_BANK_SHIM_0.10 (4)
- -

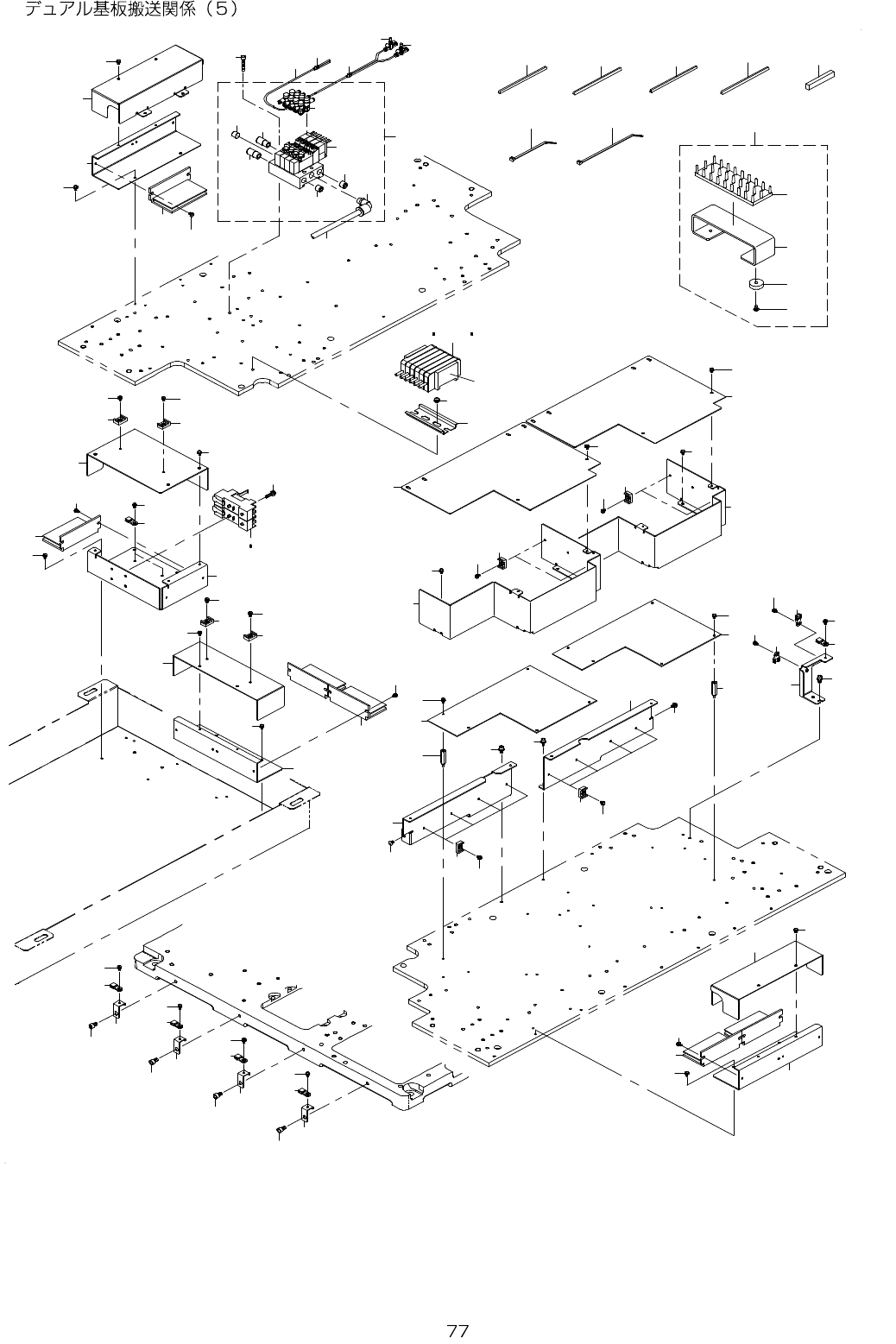

39.DUAL PWB CONVEYOR COMPONENTS(5)
1
1 4
1 4
2
1
2
3
3
4
4
5
6
6
7
8
4 5
1 0
1 1
1 1
1 2
1 2
1 3
1 3
1 5
1 5
1 5
1 4
1 4
1 5
1 6
1 6
1 6
1 7
1 8
1 8
1 9
2 0
9
2 2
2 1
2 3
2 3
2 3
2 3
2 6
2 6
2 6
2 3
2 3
2 3
2 3
2 4
2 5
2 5
2 5
2 5
2 6
2 7 2 8
2 9
3 0
3 2
3 1
3 2
3 2
3 1
3 1
3 2
3 2
3 1
3 4
3 5
3 5
3 5
3 6
3 7
3 7
3 8
3 3
3 9
4 0 6 1 6 2
4 1
4 2
4 3
4 4
4 9
4 8
4 9
4 8
4 9
4 8
4 8
4 9
4 7
4 6
5 1
5 2
5 2
5 3
5 3
5 0
5 5
5 4
4 7
4 6
4 7
4 6
4 7
4 6
4 8
4 9
4 8
4 9
4 8
4 9
5 7
5 8
5 9
6 0
5 6
1 0
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-28875 CONVEYOR PCB ASM 2
2 400-48899 S DOOR SD 10
3 SL-4030691-SC SCREW M3 L=6 10
4 401-59066 CONVEYOR_PWB_COVER_C_D 2
5 HX-0067100-0A GROMMET 0.26
6 SL-4030691-SC SCREW M3 L=6 8
7 401-59064 CONVEYOR_PWB_COVER_BF_D 1
8 401-59065 CONVEYOR_PWB_COVER_BR_D 1
9 HX-0067100-0A GROMMET
0.18
10 SL-6040892-TN SCREW M4 L=8 4
11 SM-3040652-TN SCREW M4 L=6 2
12 401-59063 CONVEYOR_PWB_COVER_A_D 2
13 SL-4030691-SC SCREW M3 L=6 8
14 HX-0029400-00 FIXED BASE 12
15 SL-4030691-SC SCREW M3 L=6 12
16 401-59090 DRIVER_BRACKET_D 3
17 401-61925 CONVEYOR_DRIVER_COVER_BU 1
18 401-59085 CONVEYOR_DRIVER_COVER_LR 2
19 401-59067 DRIVER_RELAY_BOX 1
20 401-59068 DRIVER_RELAY_COV ER 1
21 HX-0066900-00 GROMMET 0.35
22 HX-0067100-00 GROMMET 0.1
23 SL-4030691-SC SCREW M3 L=6 26
24 400-80833 SPONGE 3
25 HM-0013200-00 STEP PING MOTOR 6
26 SL-4030691-SC SCREW M3 L=6 12
27 HB-0012500-00 RELAY 2
28 HB-0012500-10 RELAY 2
29 SL-4031681-SC SCREW M3 L=16 2
30 HX-0034400-00 FIXED BASE 2
31 HX-0029400-00 FIXED BASE 4
32 SL-4030691-SC SCREW M3 L=6 6
33 401-64904 SOLENOID_VALVE_ASSY_D_4 1
34 401-64892 SOLENOID VALVE (4STATION) CABLE ASM (1)
35 EZ-4453569-01 PLUG (CYP025-08B29449) (3)
36 EZ-4447063-41 UNION (KQ2L08-01AS) ELBOW (1)
37 EZ-4426151-01 SILENCER(AN10-01) (2)
38 EZ-4457146-31 CONTROLLER (AS1211F-M5-02A) (4)
39 SM-6042502-TN SCREW M4X0.7 L=25 4
40 401-54795 OPTICAL FIBER SENSOR CABLE ASM 2
41 HK-0498900-0G BLOCK TERMINAL 2
42 400-47097 DIN_RAIL 1
43 SL-4040691-SC SCREW M4 L=6 2
44 401-59069 ATC_CABLE_GUIDE_R 1
45 SL-6040892-TN SCREW M4 L=8 2
46 401-59070 CABLE_STAY_R 4
47 SM-6050802-TN SCREW 4
48 HX-0034400-00 FIXED BASE 7
49 SL-4030691-SC SCREW M3 L=6 7
50 BT-0800501-EA URETHANE TUBE BLUE 8X5 1
51 EZ-7630003-55 TUBE (TU0212B-20) 2MMX20M BLK 8
52 EZ-4455733-01 WYE (KJU02-00) UNION 12
53 PC-0122010-00 SPEED CONTROLLER 4
54 HX-0023300-00 CABLE BAND 140
55 HX-0023300-0E CABLE BAND 30
56
#01
401-34187 BACK_UP_SPONGE_S_ASSY 1
57 EZ-2664098-01 SPONGE (BLUE) BACK UP (1)
58 401-34188 BU_SPONGE_BASE_S (1)
59 401-34189 MAGNET (2)
60 SM-4040601-SC SCREW M4X0.7 L=6 (2)
61
#02
401-54795 OPTICAL FIBER SENSOR CABLE ASM 4
62
#03
EZ-1492213-11 AMPLIFIER SENSOR (FX-502) 4
