- - 40 . FEE DER BA NK CO MPO NENT S 2 3 4 4 5 6 6 7 1 1 1 2 1 2 1 3 1 3 1 3 1 3 1 4 1 4 1 4 1 5 1 6 1 7 1 7 1 6 1 5 1 5 1 6 1 7 1 5 1 6 1 7 1 8 1 8 1 8 1 8 1 9 2 0 2 0 1 9 2 2 9 1 4 2 1 9 2 1 2 3 2 3 8 1 1 0
- -

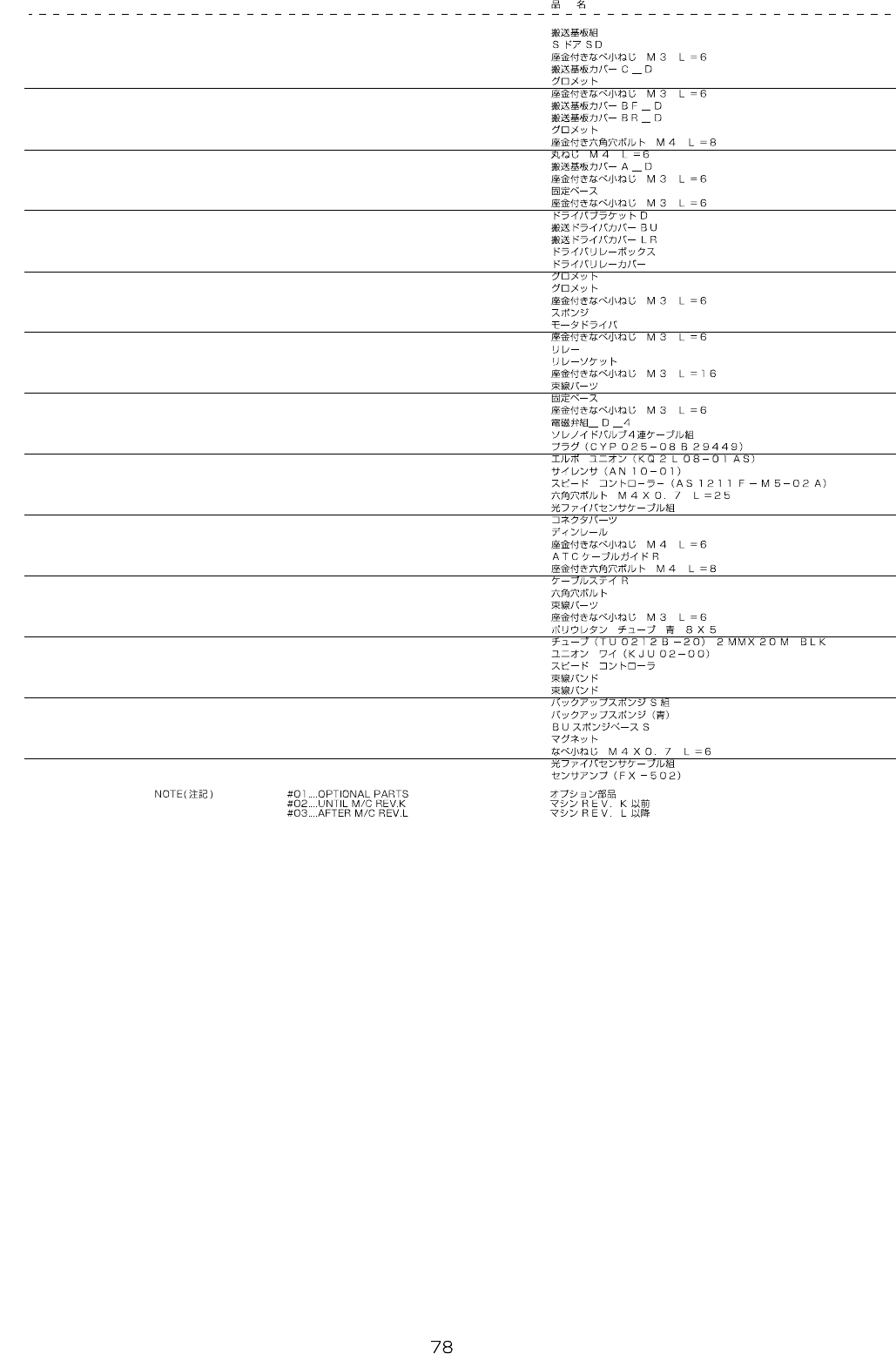

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-28875 CONVEYOR PCB ASM 2
2 400-48899 S DOOR SD 10
3 SL-4030691-SC SCREW M3 L=6 10
4 401-59066 CONVEYOR_PWB_COVER_C_D 2
5 HX-0067100-0A GROMMET 0.26
6 SL-4030691-SC SCREW M3 L=6 8
7 401-59064 CONVEYOR_PWB_COVER_BF_D 1
8 401-59065 CONVEYOR_PWB_COVER_BR_D 1
9 HX-0067100-0A GROMMET
0.18
10 SL-6040892-TN SCREW M4 L=8 4
11 SM-3040652-TN SCREW M4 L=6 2
12 401-59063 CONVEYOR_PWB_COVER_A_D 2
13 SL-4030691-SC SCREW M3 L=6 8
14 HX-0029400-00 FIXED BASE 12
15 SL-4030691-SC SCREW M3 L=6 12
16 401-59090 DRIVER_BRACKET_D 3
17 401-61925 CONVEYOR_DRIVER_COVER_BU 1
18 401-59085 CONVEYOR_DRIVER_COVER_LR 2
19 401-59067 DRIVER_RELAY_BOX 1
20 401-59068 DRIVER_RELAY_COV ER 1
21 HX-0066900-00 GROMMET 0.35
22 HX-0067100-00 GROMMET 0.1
23 SL-4030691-SC SCREW M3 L=6 26
24 400-80833 SPONGE 3
25 HM-0013200-00 STEP PING MOTOR 6
26 SL-4030691-SC SCREW M3 L=6 12
27 HB-0012500-00 RELAY 2
28 HB-0012500-10 RELAY 2
29 SL-4031681-SC SCREW M3 L=16 2
30 HX-0034400-00 FIXED BASE 2
31 HX-0029400-00 FIXED BASE 4
32 SL-4030691-SC SCREW M3 L=6 6
33 401-64904 SOLENOID_VALVE_ASSY_D_4 1
34 401-64892 SOLENOID VALVE (4STATION) CABLE ASM (1)
35 EZ-4453569-01 PLUG (CYP025-08B29449) (3)
36 EZ-4447063-41 UNION (KQ2L08-01AS) ELBOW (1)
37 EZ-4426151-01 SILENCER(AN10-01) (2)
38 EZ-4457146-31 CONTROLLER (AS1211F-M5-02A) (4)
39 SM-6042502-TN SCREW M4X0.7 L=25 4
40 401-54795 OPTICAL FIBER SENSOR CABLE ASM 2
41 HK-0498900-0G BLOCK TERMINAL 2
42 400-47097 DIN_RAIL 1
43 SL-4040691-SC SCREW M4 L=6 2
44 401-59069 ATC_CABLE_GUIDE_R 1
45 SL-6040892-TN SCREW M4 L=8 2
46 401-59070 CABLE_STAY_R 4
47 SM-6050802-TN SCREW 4
48 HX-0034400-00 FIXED BASE 7
49 SL-4030691-SC SCREW M3 L=6 7
50 BT-0800501-EA URETHANE TUBE BLUE 8X5 1
51 EZ-7630003-55 TUBE (TU0212B-20) 2MMX20M BLK 8
52 EZ-4455733-01 WYE (KJU02-00) UNION 12
53 PC-0122010-00 SPEED CONTROLLER 4
54 HX-0023300-00 CABLE BAND 140
55 HX-0023300-0E CABLE BAND 30
56
#01
401-34187 BACK_UP_SPONGE_S_ASSY 1
57 EZ-2664098-01 SPONGE (BLUE) BACK UP (1)
58 401-34188 BU_SPONGE_BASE_S (1)
59 401-34189 MAGNET (2)
60 SM-4040601-SC SCREW M4X0.7 L=6 (2)
61
#02
401-54795 OPTICAL FIBER SENSOR CABLE ASM 4
62
#03
EZ-1492213-11 AMPLIFIER SENSOR (FX-502) 4
- -

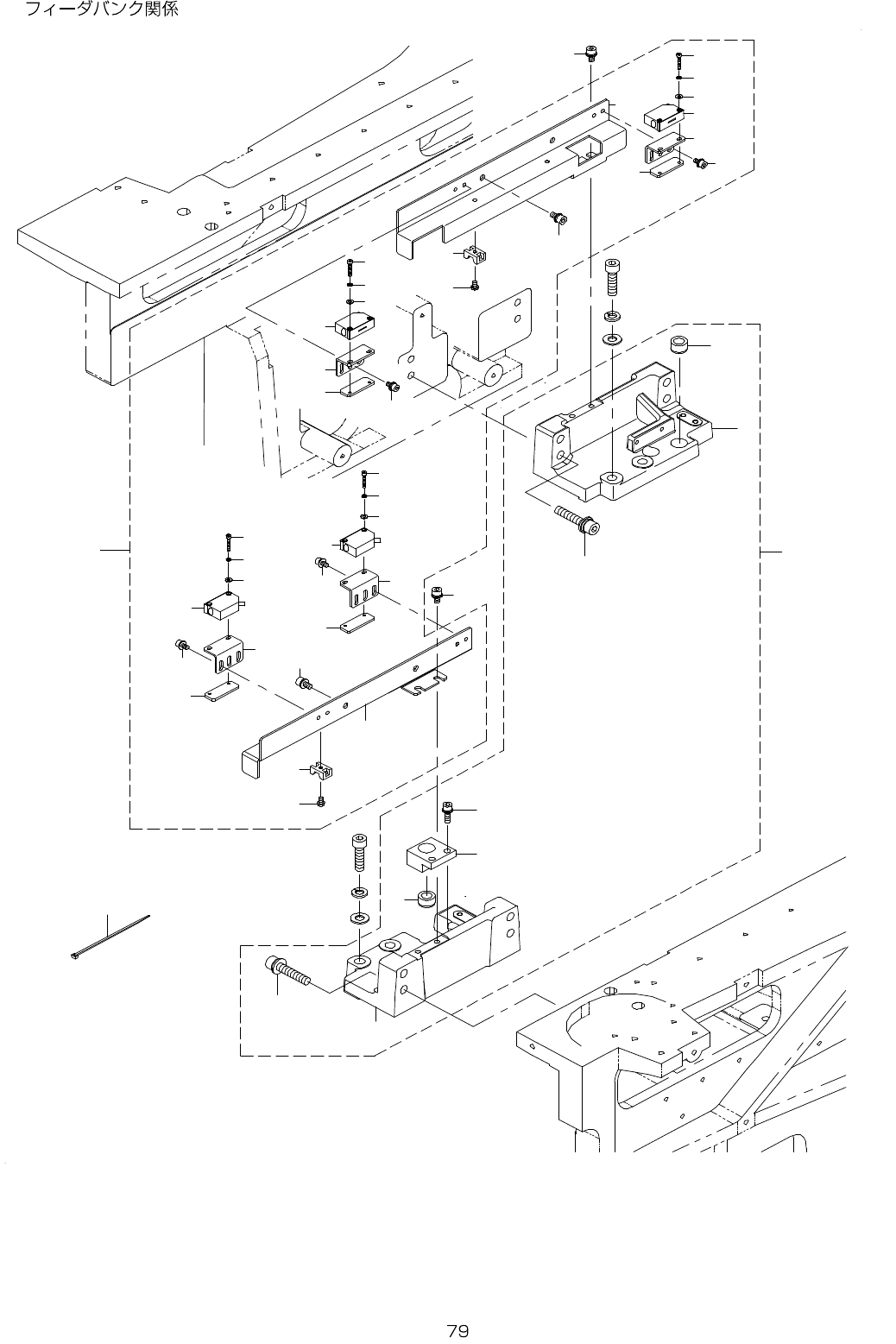

40.FEEDER BANK COMPONENTS
2
3
4
4
5
6
6
7
1 1
1 2
1 2
1 3
1 3
1 3
1 3
1 4
1 4
1 4
1 5
1 6
1 7
1 7
1 6
1 5
1 5
1 6
1 7
1 5
1 6
1 7
1 8
1 8
1 8
1 8
1 9
2 0
2 0
1 9
2 2
9
1 4
2 1
9
2 1
2 3
2 3
8
1
1 0
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-28054 BANK_SUPPORTER_ASM 2
2 401-27971 BANK_SUPPORTER_L (1)
3 401-27972 BANK_SUPPORTER_R (1)
4 SL-6084092-TN SCREW M8 L=40 (8)
5 401-27992 LOCATE_BUSH_SUPPORT (1)
6 E2623-721-000 BANK LOCATE BUSH B (2)
7 SL-6051692-TN SCREW M5 L=16 (2)
8 401-28064 DETECT_FEEDER_SENSOR_ASM 2
9 401-29058 SEPARATE SENSOR EMISSION ASM (2)
10 401-28036 SENSOR_BRACKET_A_L (1)
11 401-28037 SENSOR_BRACKET_A_R (1)
12 SL-6051092-TN SCREW M5 L=10 (4)
13 401-28046 SENSOR_BRACKET_B (4)
14 SL-6040892-TN SCREW M4 L=8 (8)
15 WP-0280501-SC WASHER M2.6 (8)
16 WS-0270002-KN SPRING WASHER M2.6 (8)
17 SM-6851602-TN SCREW M2.5X16 (8)
18 400-93993 NUT_PLATE (4)
19 HX-0029400-00 FIXED BASE (4)
20 SM-4040601-SC SCREW M4X0.7 L=6 (4)
21 401-29057 SEPARATE SENSOR RECEIVER ASM (2)
22 EA-9500B01-00 CABLE BAND 10
23 SL-6051092-TN SCREW M5 L=10 4
