- - REF.NO NOTE P ART NO D E S C R I P T I O N Qt y 1 4 01-2 8242 C VS_UNIT 1 2 4 01-2 8225 C VS_BAS E_P (1) 3 4 01-2 8226 C VS_BRAC KET (1) 4 S M-304 1052-TN S CRE W M4 L= 10 (4) 5 4 01-0 1989 C ONTA CT SUB UNIT (6) 6…
- -
OPTION

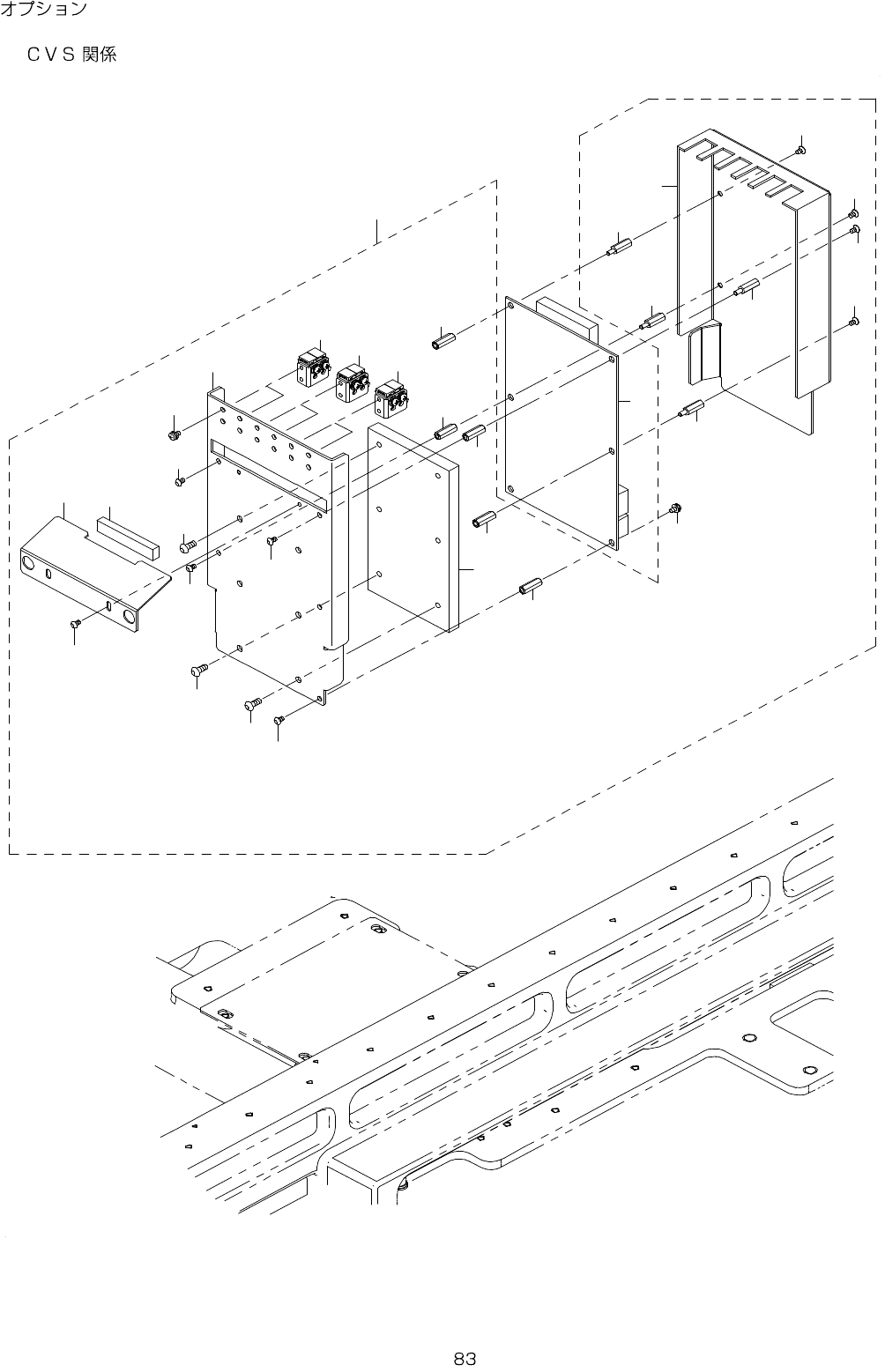

42.CVS COMPONENTS
1 5
1 6
1
7
7
7
7
4
3
2
1 0
1 4
1 3
1 2
1 1
1 0
9
9
9
9
8
8
8
8
8
1 0
1 0
6
5
5
5
4
4
- -

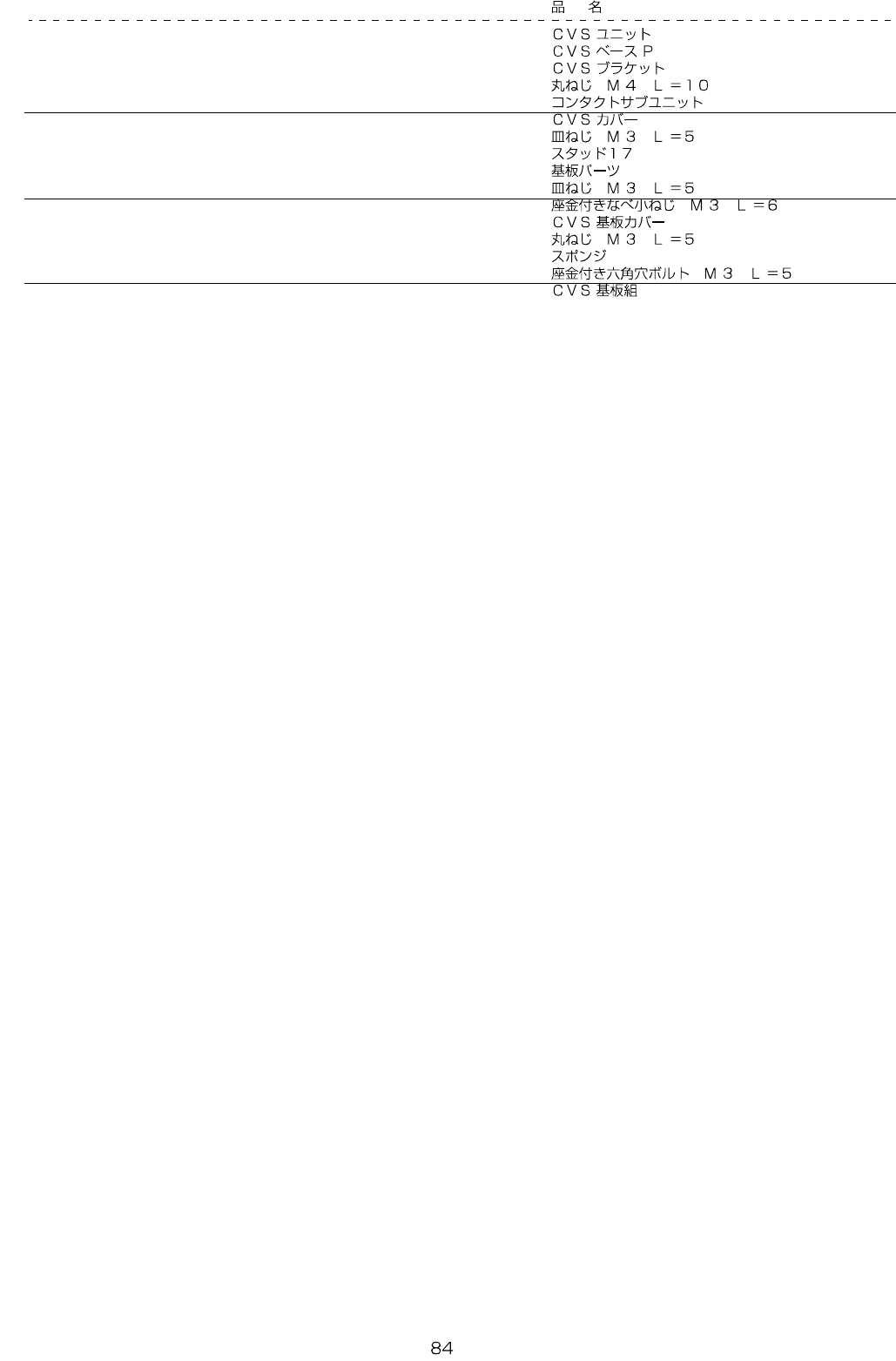

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-28242 CVS_UNIT 1
2 401-28225 CVS_BASE_P (1)
3 401-28226 CVS_BRACKET (1)
4 SM-3041052-TN SCREW M4 L=10 (4)
5 401-01989 CONTACT SUB UNIT (6)
6 401-05838 CVS COVER (1)
7 SM-1030552-TN PLATE SCREW M3 L=5 (5)
8 400-48829 STUD17 (5)
9 HX-0035400-0G BOARD PARTS (4)
10 SM-1030552-TN PLATE SCREW M3 L=5 (4)
11 SL-4030681-SC SCREW M3 L=6 (1)
12 401-05840 CVS PCB COVER (1)
13 SM-3030552-TN SCREW M3 L=5 (2)
14 400-80833 SPONGE (1)
15 SL-6030592-TN SCREW M3 L=5 (12)
16 400-95117 CVS PCB ASM. 1
- -

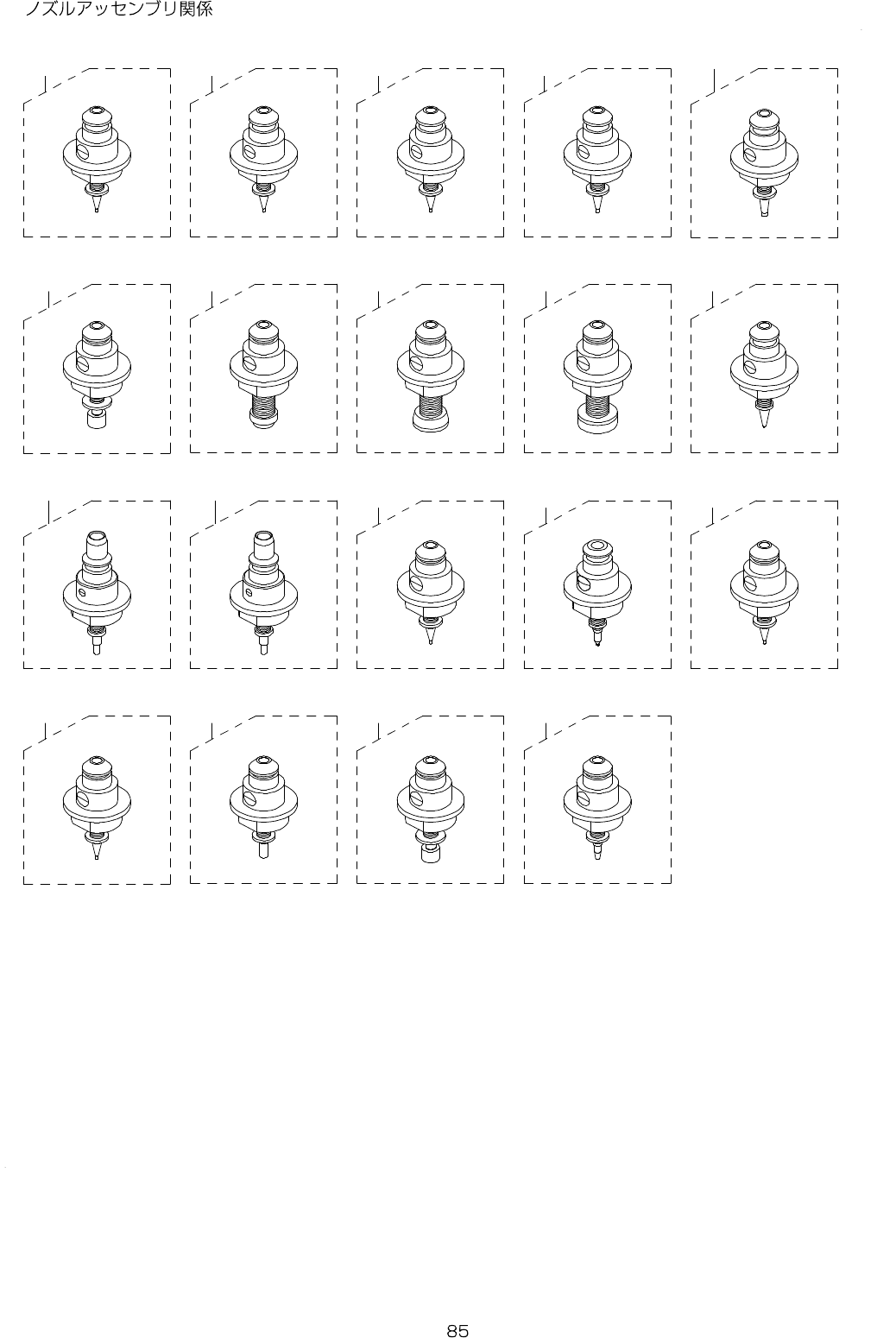

43.NOZZLE ASSEMBLY COMPONENTS
1 9
1 0987
1 2
1 81 71 6
1 51 3
21
5
1 1
6
43
1 4
