- - 43. NOZ ZL E AS SEM BL Y COM PON EN TS 1 9 1 0 9 8 7 1 2 1 8 1 7 1 6 1 5 1 3 2 1 5 1 1 6 4 3 1 4
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-28242 CVS_UNIT 1
2 401-28225 CVS_BASE_P (1)
3 401-28226 CVS_BRACKET (1)
4 SM-3041052-TN SCREW M4 L=10 (4)
5 401-01989 CONTACT SUB UNIT (6)
6 401-05838 CVS COVER (1)
7 SM-1030552-TN PLATE SCREW M3 L=5 (5)
8 400-48829 STUD17 (5)
9 HX-0035400-0G BOARD PARTS (4)
10 SM-1030552-TN PLATE SCREW M3 L=5 (4)
11 SL-4030681-SC SCREW M3 L=6 (1)
12 401-05840 CVS PCB COVER (1)
13 SM-3030552-TN SCREW M3 L=5 (2)
14 400-80833 SPONGE (1)
15 SL-6030592-TN SCREW M3 L=5 (12)
16 400-95117 CVS PCB ASM. 1
- -
43.NOZZLE ASSEMBLY COMPONENTS
1 9
1 0987
1 2
1 81 71 6
1 51 3
21
5
1 1
6
43
1 4
- -

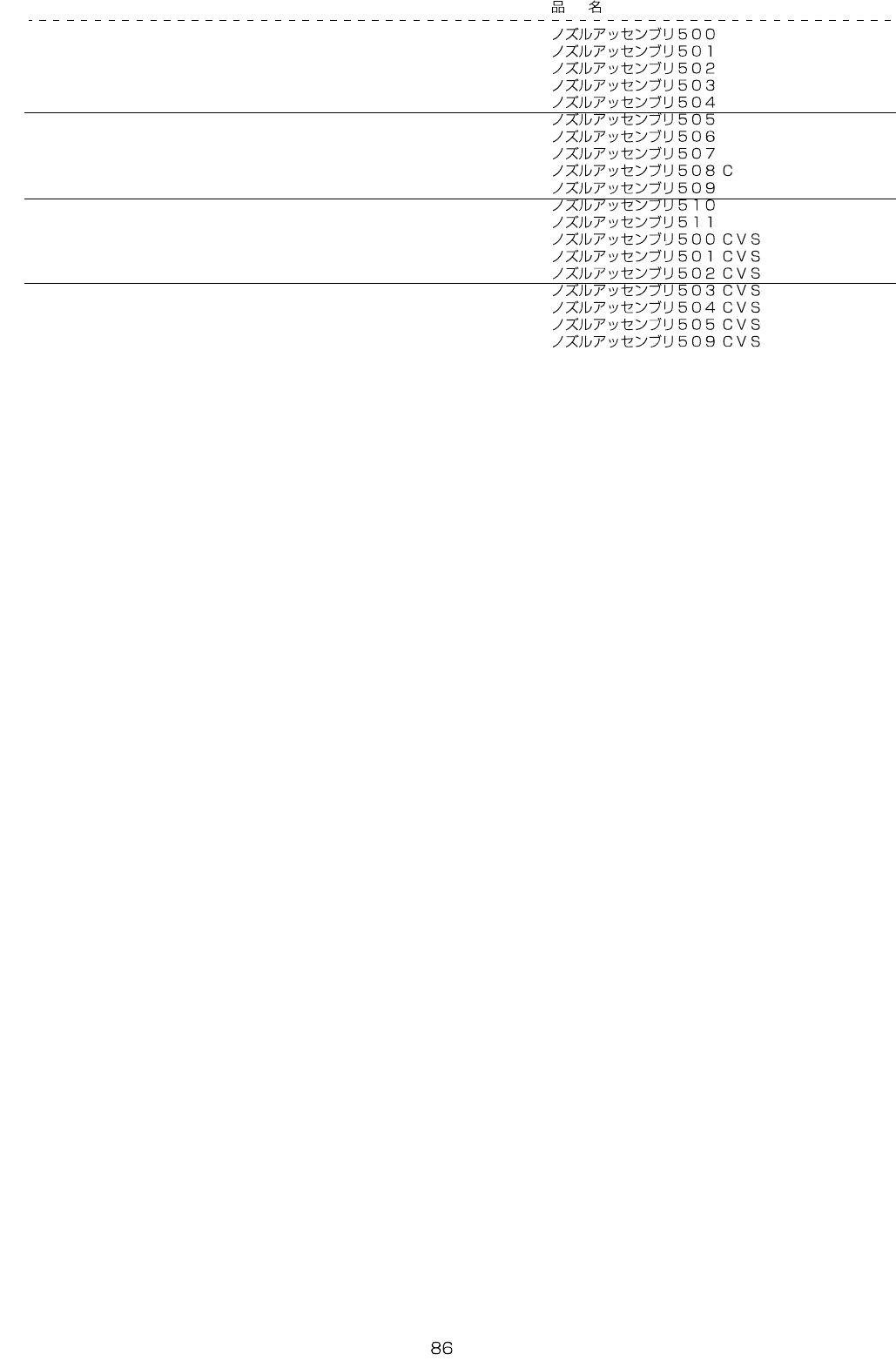

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-11046 NOZZLE ASSEMBLY 500 1
2 400-01339 NOZZLE ASSEMBLY 501 1
3 400-01340 NOZZLE ASSEMBLY 502 1
4 400-01341 NOZZLE ASSEMBLY 503 1
5 400-01342 NOZZLE ASSEMBLY 504 1
6 400-01343 NOZZLE ASSEMBLY 505 1
7 400-01344 NOZZLE ASSEMBLY 506 1
8 400-01345 NOZZLE ASSEMBLY 507 1
9 400-44239 NOZZLE ASSEMBLY 508C 1
10 400-25165 NOZZLE ASSEMBLY 509 1
11 E3615-729-0A0 NOZZLE ASSEMBLY 510 1
12 E3616-729-0A0 NOZZLE ASSEMBLY 511 1
13 400-10999 NOZZLE ASSEMBLY 500 CVS 1
14 400-40067 NOZZLE ASSEMBLY 501 CVS 1
15 400-10995 NOZZLE ASSEMBLY 502 CVS 1
16 400-10996 NOZZLE ASSEMBLY 503 CVS 1
17 400-10997 NOZZLE ASSEMBLY 504 CVS 1
18 400-10998 NOZZLE ASSEMBLY 505 CVS 1
19 401-05854 NOZZLE ASSEMBLY 509 CVS 1
