- - 45 . MINI PAT , SO T CH ECK TAB LE & FI XTUR E CO MP ONEN TS 1 1 2 2 1 5 1 6 1 4 1 4 1 4 1 7 1 9 1 8 1 8 1 7 1 9 1 4 1 4 1 4 3 4 5 6 7 9 8 1 0 1 2 1 3 1 1 1 2
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-32965 TR7_MONITOR_BRACKET_ASM 1
2 401-32970 TR7_MACHINE_FIX_BOX (1)
3 SL-6061692-TN SCREW M6 L=16 (3)
4 401-32966 TR7_MONITOR_B (1)
5 SL-6061692-TN SCREW M6 L=16 (4)
6 401-32968 TR7_MONITOR_C (1)
7 SL-6061092-TN SCREW M6 L=10 (4)
8 401-32969 HINGE (1)
9 SL-6041092-TN SCREW M4 L=10 (3)
10 SM-1040801-SN SCREW M4X0.7 L=8 (3)
11 401-32971 TR-7_MONITOR_BRACKET (1)
12 SD-0800327-TP SHOULDER SCREW D=8 H=3.2 (2)
13 E3404-700-000 THRUST WASHER (4)
14 SM-3041052-TN SCREW M4 L=10 (4)
15 HX-0029400-00 FIXED BASE (2)
16 SM-4040601-SC SCREW M4X0.7 L=6 (2)
17 EA-9500B01-00 CABLE BAND (5)
18 400-92371 STOPPER_SUPPORT_C (1)
19 SM-6040502-TN SCREW (2)
20 401-58158 15INCH LCD MONITOR 1
- -
45.MINI PAT, SOT CHECK TABLE & FIXTURE COMPONENTS
1
1
2
2
1 5 1 6
1 4
1 4
1 4
1 7
1 9
1 8
1 8
1 7
1 9
1 4
1 4
1 4
3
4
5
6
7
9
8
1 0
1 2
1 3
1 1
1 2
- -

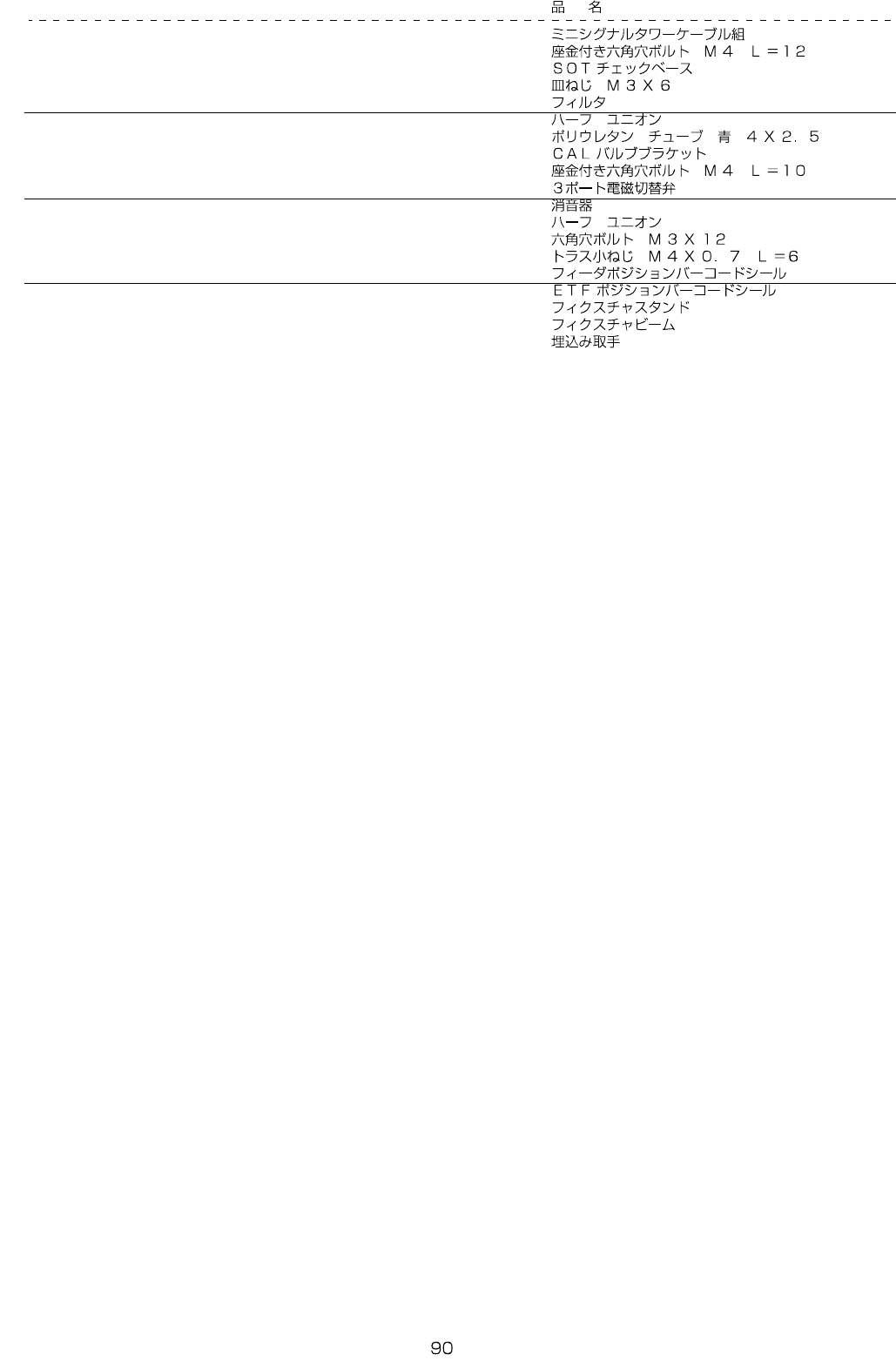

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-29010 MINI SIGNAL TOWER CABLE ASM(OP) 2
2 SL-6041292-TN SCREW M4 L=12 8
3 401-28179 SOT CHECK BASE 1
4 SM-1030601-SC SCREW M3X6 2
5 400-00641 FILTER 1
6 PJ-3010405-05 HALF UNION 1
7 BT-0400251-EA URETHANE TUBE BLUE 4X2.5 0.34
8 401-28175 CAL_VALVE_BRKT 1
9 SL-6041092-TN SCREW M4 L=10 2
10 PV-1305410-00 3-PORT SOLENOID VALVE 1
11 PX-0505010-00 SILENCER 1
12 PJ-3010405-05 HALF UNION 2
13 SM-6031202-TN SCREW M3X12 2
14 SM-0040601-SC SCREW M4X0.7 L=6 12
15 400-97736 FEEDER_POSITION_BARCODE_SEAL 1
16 400-97737 ETF_POSITION_BARCODE_SEAL 1
17 400-33403 FIXTURE STAND 2
18 400-33404 FIXTURE BEAM 2
19 400-33539 EMBEDDED PULLS 2
