RX-6_RX-6B_RX-6R-Rev08 - 第97页
- - REF.NO NOTE P ART NO D E S C R I P T I O N Qt y 1 4 01-2 8591 C ONVEYO R_EX _ASM_S(ONE-S IDE) 1 2 4 01-2 8525 EX7 5_CONV EYOR _BELT (2) 3 4 01-2 8526 EX7 5_CONV EYOR _RAIL (2) 4 4 01-2 8527 EX7 5_PW B_GUI DE (2) 5 …
- -

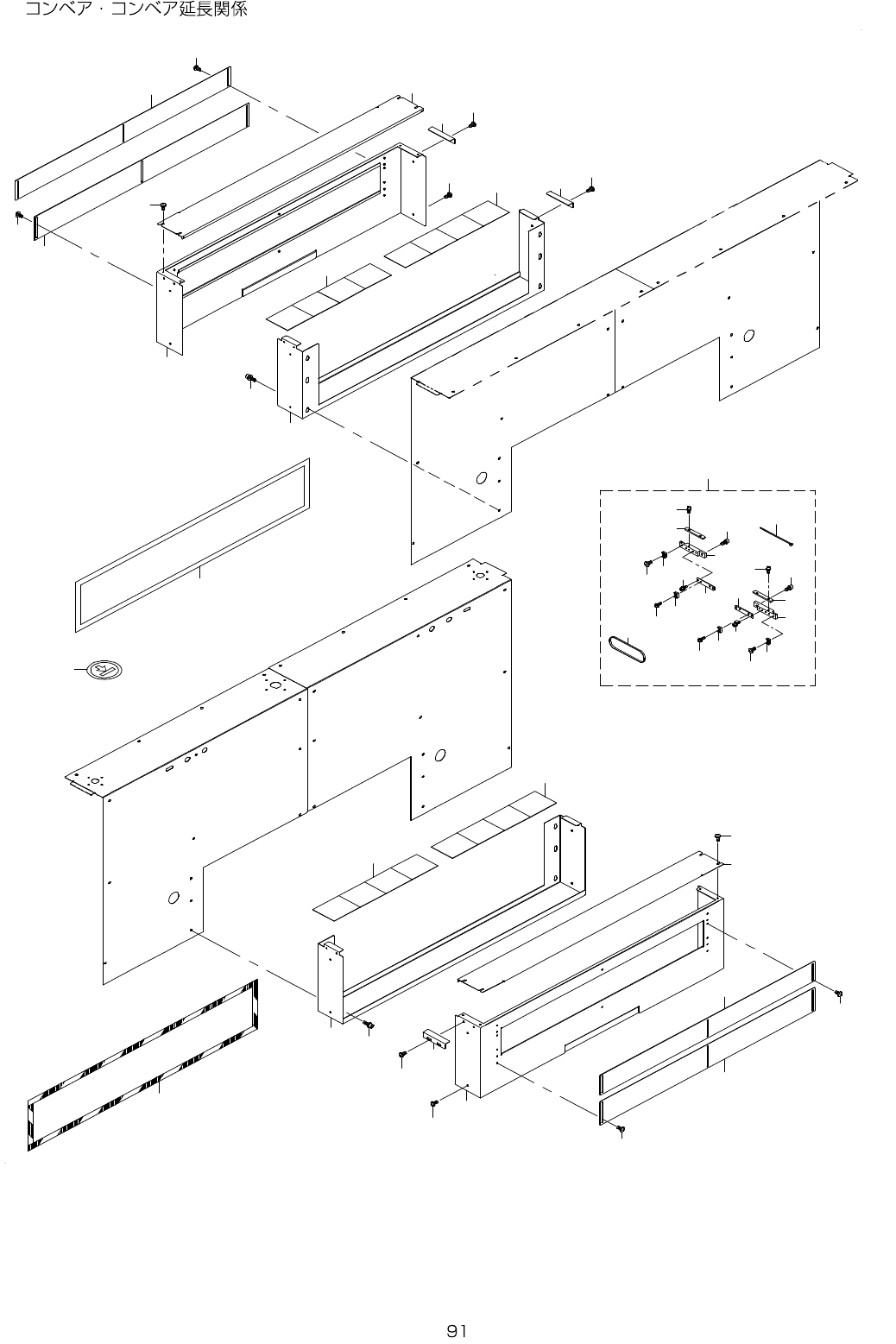

46.CONVEYOR & CONVEYOR EXTENTION COMPONENTS
1 2
1 2
2 2
1 4
1 3
2 2
2 2
2 2
1 4
1 3
1 6
1 6
2 2
1 8
1 8
2 2
1 5
2 2
1 7
2 2
1 8
1 5
2 2
1 7
2 2
2 2
1 9
1 9
1 9
1 9
2 1
2 1
2 0
1 1
2
2
3
3
4
5
7
6
8
8
8
9
6
1 0
1
8
7
6
4
6
9
1 0
- -

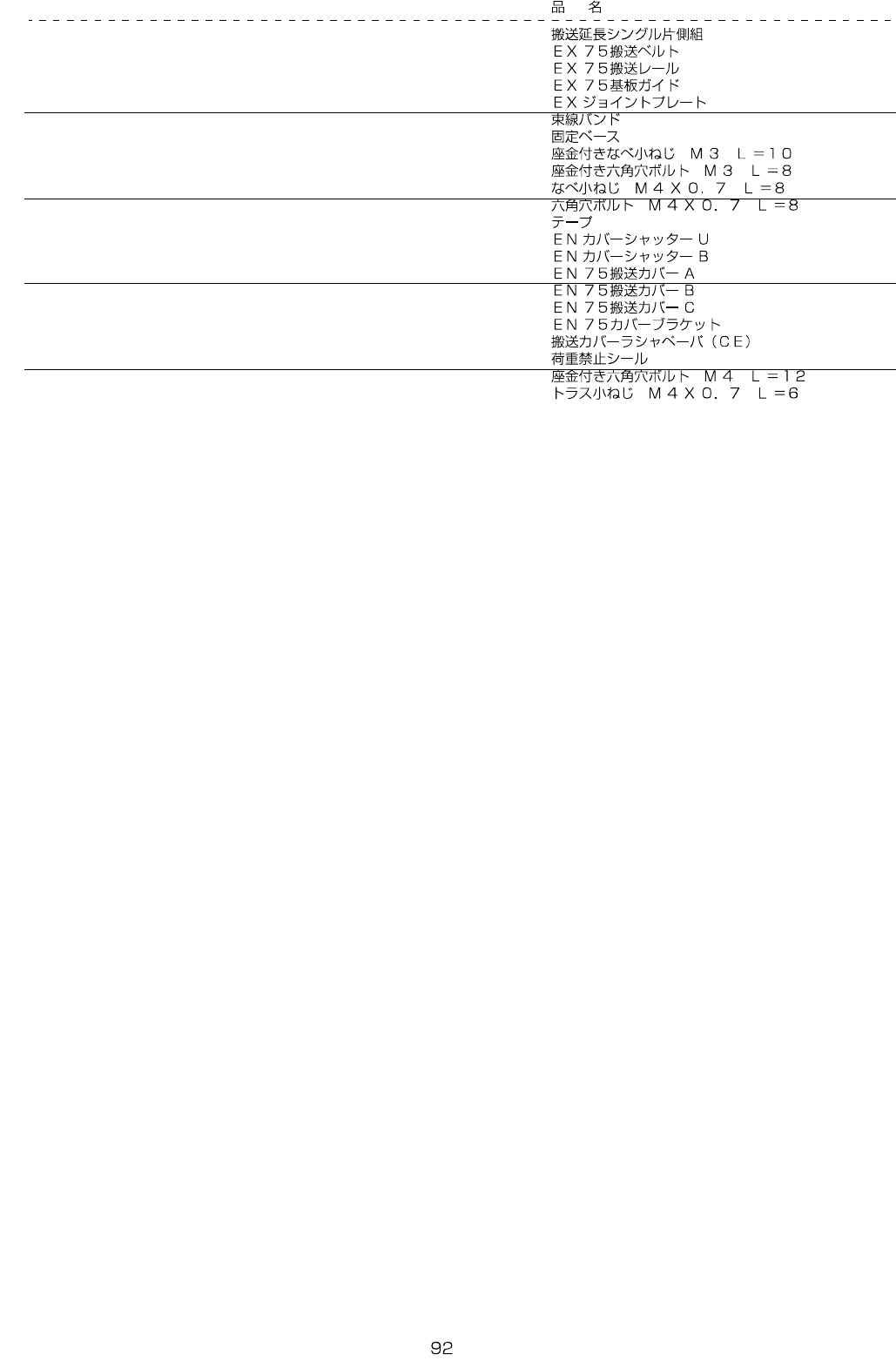

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-28591 CONVEYOR_EX_ASM_S(ONE-SIDE) 1
2 401-28525 EX75_CONVEYOR_BELT (2)
3 401-28526 EX75_CONVEYOR_RAIL (2)
4 401-28527 EX75_PWB_GUIDE (2)
5 401-28531 EX_JOINT_PLATE (2)
6 EA-9500B00-00 CABLE BAND (5)
7 HX-0029400-00 FIXED BASE (4)
8 SL-4031091-SC SCREW M3 L=10 (2)
9 SL-6030892-TN SCREW M3 L=8 (10)
10 SM-4040801-SC SCREW M4X0.7 L=8 (2)
11 SM-6040802-TN SCREW M4X0.7 L=8 (2)
12 400-01490 TAPE 5
13 401-28319 EN_COVER_SH_U 2
14 401-61338 EN_COVER_SH_B 2
15 401-28322 EN75_CONVEYOR_COVER_A 2
16 401-28323 EN75_CONVEYOR_COVER_B 2
17 401-28324 EN75_CONVEYOR_COVER_C 2
18 401-28325 EN75_COVER_BRACKET 2
19 E1143-721-000 WOOLEN CLOTH PAPER 16
20 E5721-729-000 LABEL 2
21 SL-6041292-TN SCREW M4 L=12 8
22 SM-0040601-SC SCREW M4X0.7 L=6 40
- -

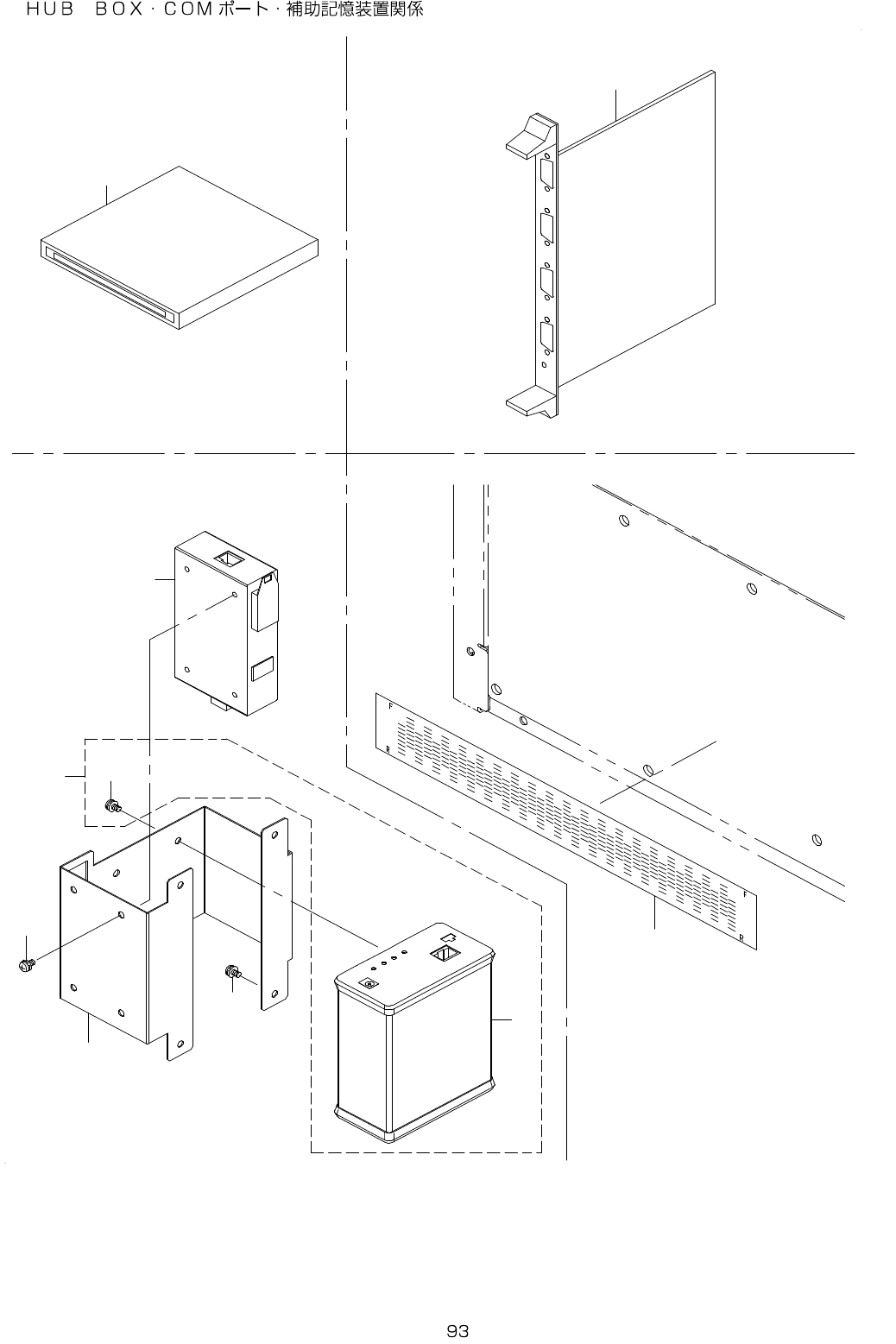

47.HUB BOX, COM PORT & AUXILIARY MEMORY COMPONENTS
2
1
6
4
5
9
8
1 0
3
7
