SIPLACE F5 HM 1 Montageanleitung LP-Kamera Multicolor SIPLACE F5 HM Ausgabe 05/2007 1.13 Anhang: Platinen, Kabel und Schaltpläne 41 Abb. 1.13.3 LP-Kamera Multicolor: Anschlußkabel und Fokushöhe (LP-Unter kante -> Kame…

100%1 / 88
1 Montageanleitung LP-Kamera Multicolor SIPLACE F5 HM SIPLACE F5 HM
1.13 Anhang: Platinen, Kabel und Schaltpläne Ausgabe 05/2007
40
1

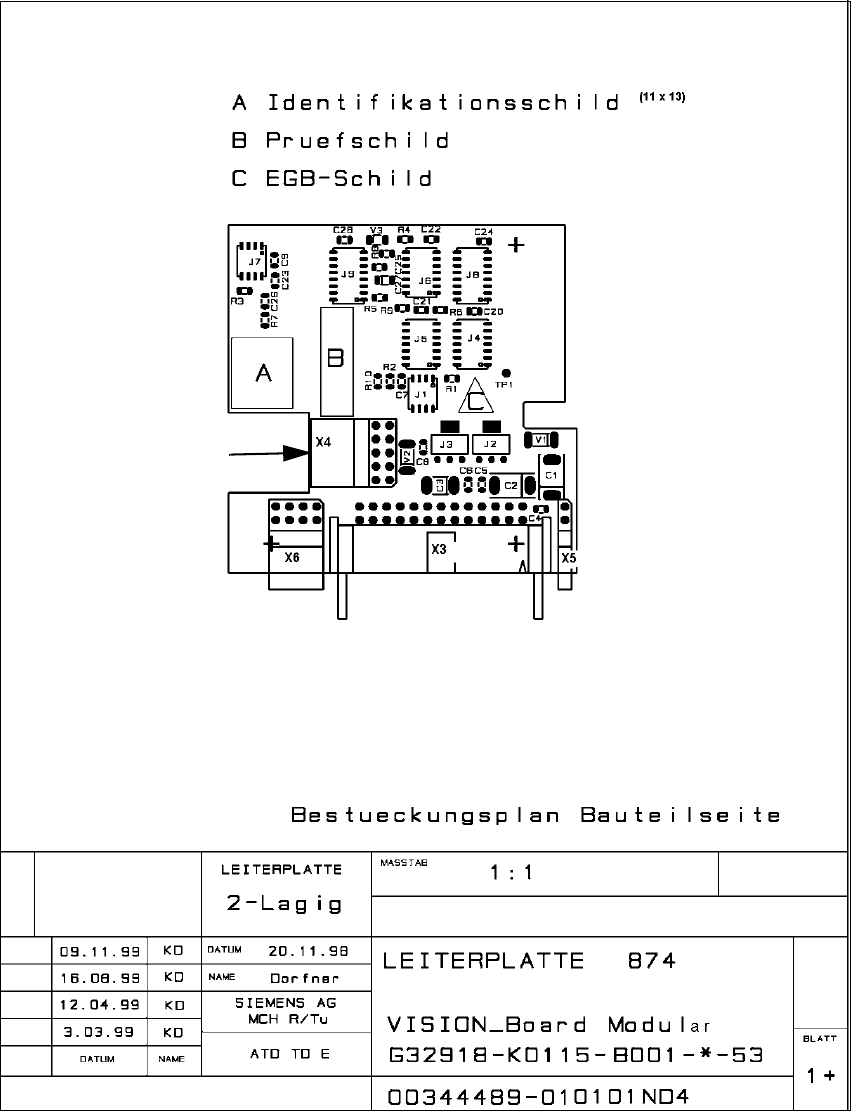

Abb. 1.13.2 Layout: Vision-Board modular
1
1
"Kamera" der
LP-Kamera Multicolor
-> X4
Kabel
SIPLACE F5 HM 1 Montageanleitung LP-Kamera Multicolor SIPLACE F5 HM
Ausgabe 05/2007 1.13 Anhang: Platinen, Kabel und Schaltpläne
41

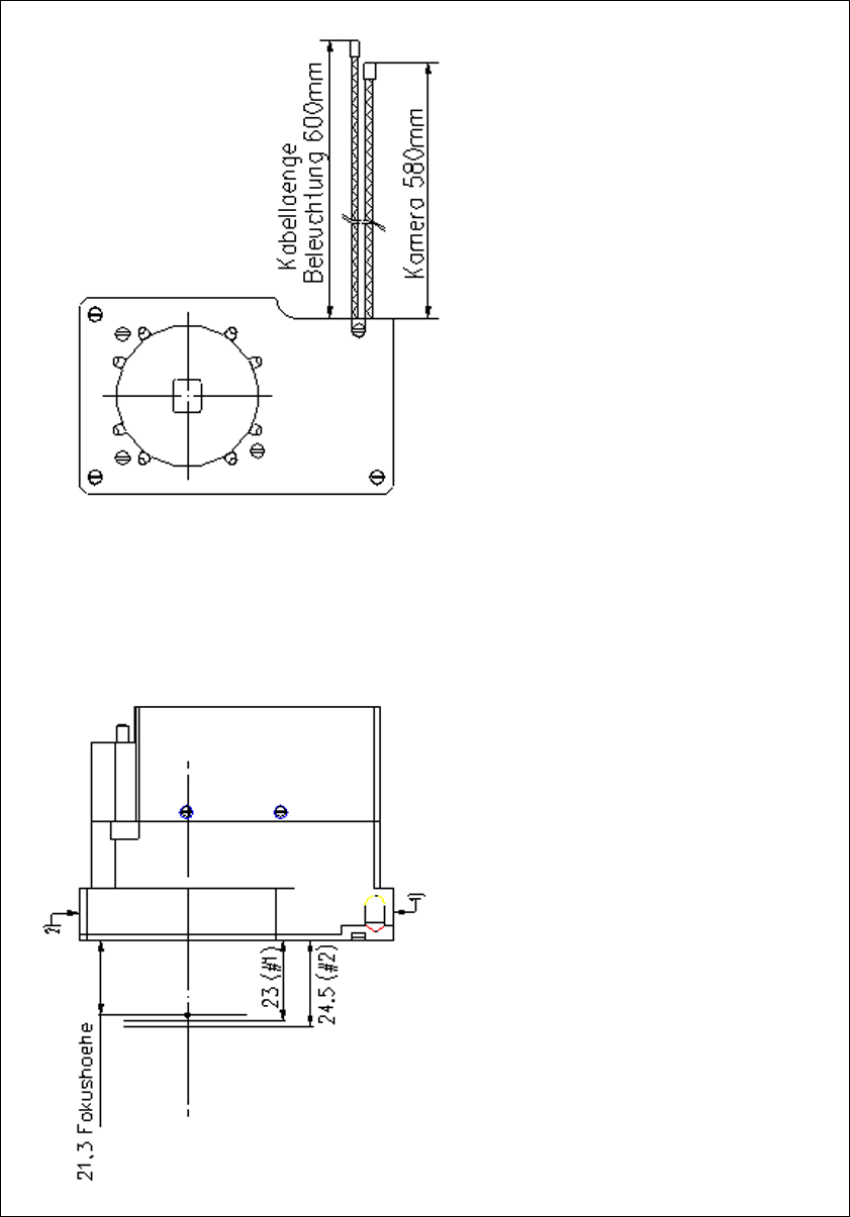

Abb. 1.13.3 LP-Kamera Multicolor: Anschlußkabel und Fokushöhe (LP-Unterkante -> Kamera) (Art.Nr.: 00348075-xx)
#1 Abstand LP-Unterkante mit Zwischenplatte
#2 Abstand LP-Unterkante ohen Zwischenplatte
1) laufende Nummer
29 Beschriftung nach VA F510-001
1 Montageanleitung LP-Kamera Multicolor SIPLACE F5 HM SIPLACE F5 HM
1.13 Anhang: Platinen, Kabel und Schaltpläne Ausgabe 05/2007
42
1

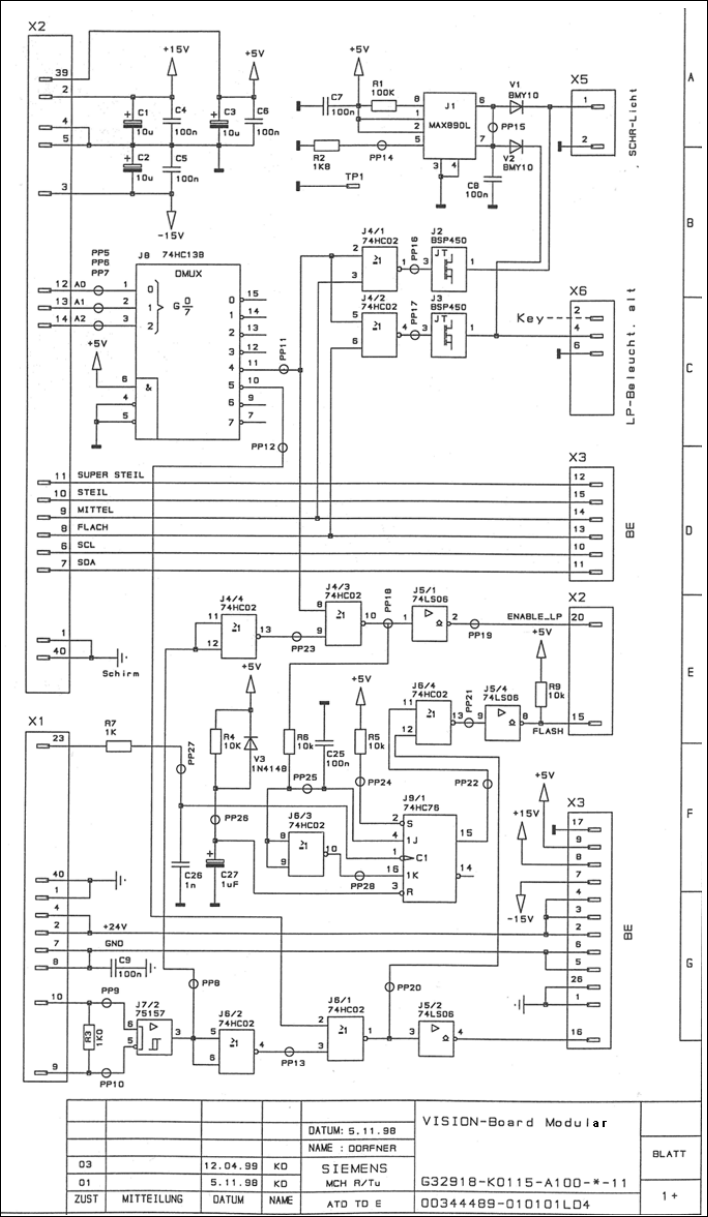

Abb. 1.13.4 Schaltplan Vision-Board modular: Anschluß alte LP-Kamera und Schräglicht
