105 MODEL PXH-1 1006-002 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE 101 6301398167 FEED SCREW 1 831H--1 10-101 223A0087 103 6301425672 GUIDE,LINEAR 1 831H--1 10-103 222L0812 104 6300890495 SHAFT ,LINEAR 1 …

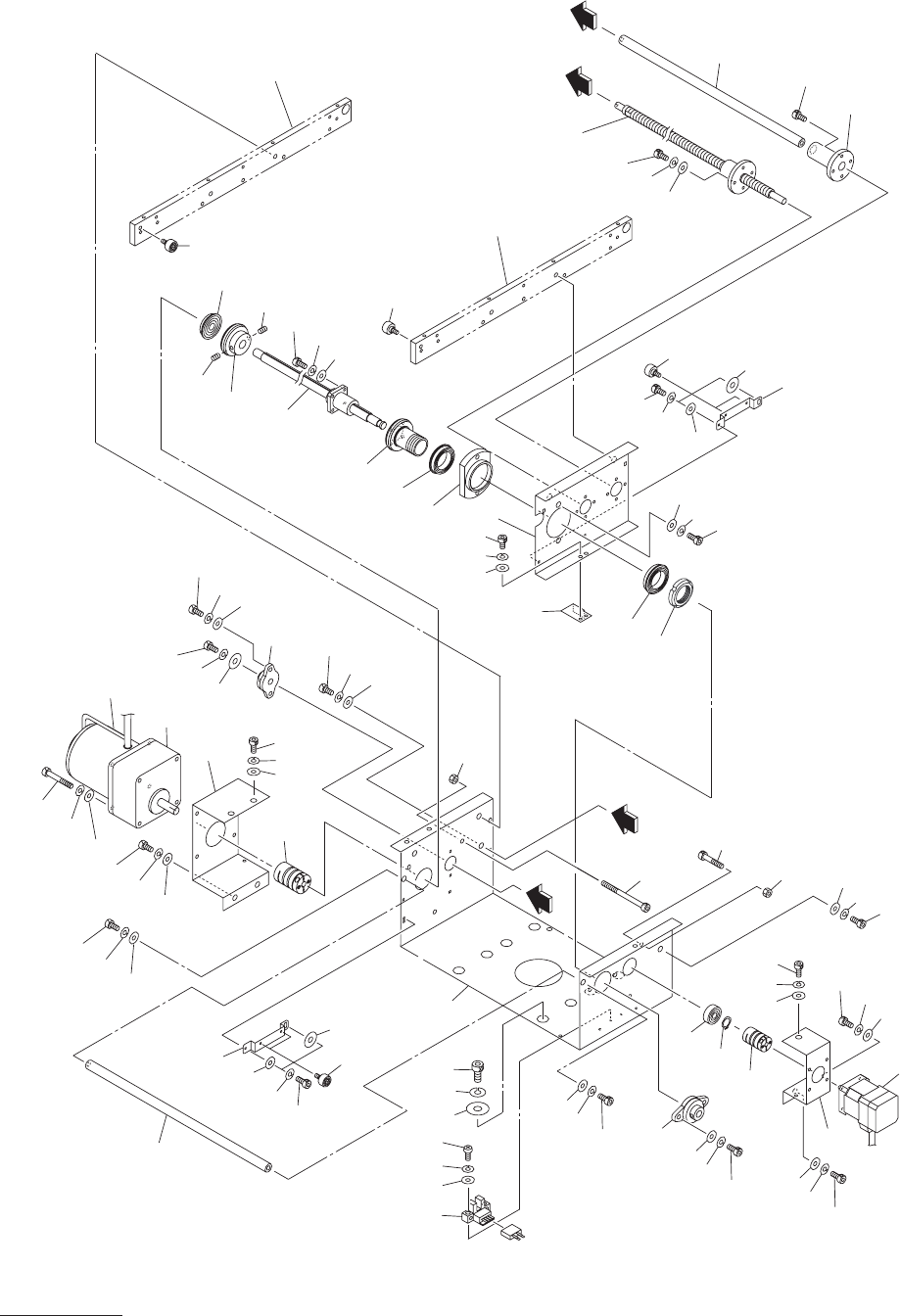

MODEL PXH-1
1006-002
104
コンベア部
CONVEYOR SECTION
Fig. H-2 L
コンベアフレーム
L Conveyor Frame
( 奥基準）
(Rear Reference)
114
See Fig.H-1
Key No.13
181
172
11
5
170
171
162
11
4
166
176
177
109
165
176
175
161
171
170
169
179
178
170
171
161
171
170
162
170
171
161
See Fig.H-1
Key No.13
170
171
108
161
106
107
11
7
A
B
130
119
131
171
170
162
129
11
8
161
171
170
162
171
170
163
174
173
120
121
122
101
168
105
104
165
176
175
B
A
176
167
175
128
11
2
111
170
171
161
123
124
111
126
103
127
183
11
3
183
165
176
175
114
132
175
176
167
177
114
125
177
167
176
175
110
185
186
187
172
180
189
188
105
MODEL PXH-1
1006-002
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
101 6301398167 FEED SCREW 1 831H--110-101 223A0087
103 6301425672 GUIDE,LINEAR 1 831H--110-103 222L0812
104 6300890495 SHAFT,LINEAR 1 831H--110-104 222K0205
105 6300883947 BUSH,BALL 1 831H--110-105 222J0195
106 6300884043 BEARING,RADIAL 1 831H--110-106 222D0327
107 6300966602 RING 1 831H--110-107 221K0040
108 6300085303 BEARING,UNIT 1 831H--110-108 222F0020
109 6300882988 BEARING,UNIT 1 831H--110-109 222F0076
110 6300000252 SENSOR,PHOTO 1 B371 831H--110-110 23G10002
111 6300884050 BEARING,RADIAL 2 831H--110-111 222D0328
112 6300012057 BEARING,PARTS 1 831H--110-112 222G0009
113 6300011548 BEARING,RADIAL 1 831H--110-113 222D0033
114 6301068978 PULLEY,FLAT 6 831H--110-114 223M0037
115 6300848533 BOLT,HEX 1 M6X70 HEX 221B0103
117 6300883985 COUPLING 1 831H--110-117 223C0153
118 6300883992 COUPLING 1 831H--110-118 223C0154
119 6301400655 MOTOR,STEPPING 1 M37 831H--110-119 4M140155
120 6301427638 MOTOR,REVERSIBLE 1 M02 831H--110-120 4M110048
121 6300884111 GEAR,REDUCTION 1 831H--110-121 223F0122
122 6301422893 FRAME 1 831H--110-122 210B3967
123 6301422909 PLATE 1 831H--110-123 211DB272
124 6301422565 BOSS 1 831H--110-124 213E0185
125 6301418087 BRACKET 1 831H--110-125 211FA308
126 6300880588 PULLEY 1 831H--110-126 213B0122
127 6300880601 PULLEY 1 831H--110-127 213B0123
128 6301422923 BRACKET 1 831H--110-128 211FB273
129 6300880625 BRACKET 1 831H--110-129 211F4883
130 6300880632 BRACKET 1 831H--110-130 211F4884
131 6300880656 SHAFT 1 831H--110-131 213A0658
132 6301418094 BRACKET 1 831H--110-132 211FA309
161 6300007886 BOLT,HEX-SCT 8 M6X16 221A0043
162 6300007862 BOLT,HEX-SCT 6 M6X10 221A0041
163 6300007824 BOLT,HEX-SCT 4 M5X45 221A0037
165 6300007633 BOLT,HEX-SCT 10 M4X12 221A0018
166 6300007626 BOLT,HEX-SCT 1 M4X10 221A0017
167 6300007619 BOLT,HEX-SCT 6 M4X8 221A0016
168 6300007602 BOLT,HEX-SCT 4 M4X6 221A0015
169 6300007527 BOLT,HEX-SCT 4 M3X10 221A0007
170 4111414305 WASHER V 6X12.5X1.6 14 FW6 221H0320
171 4111413001 WASHER SPR 6 14 SW6 221H0289
172 4110045104 NUT HEX 6 2 M6 F 221F0086
173 4111414107 WASHER V 5X10X1 4 FW5 221H0318
174 4111416705 WASHER SPR 5 4 SW5 221H0287
175 4111414008 WASHER V 4X9X0.8 14 FW4 221H0315
176 4111412905 WASHER SPR 4 17 SW4 221H0284
177 6300010213 WASHER 3 BW4 221H0004
178 4111413902 WASHER V 3X7X0.5 4 FW3 221H0312
179 4111412806 WASHER SPR 3 4 SW3 221H0281
180 4110406202 SCR PAN 3X10 2 M3X10 PAN 221E0488
181 6300008692 BOLT,HEX 1 M6X25 HEX 221B0014
H-2
106
MODEL PXH-1
1006-002
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
183 6300008951 SET SCREW 2 M5X8 SET 221C0008
185 6300008012 BOLT,HEX-SCT 4 M8X20 221A0056
186 4111413100 WASHER SPR 8 4 SW8 221H0291
187 6300010244 WASHER 4 BW8 221H0007
188 4111191909 WASHER V 3X7X0.5 2 FW3 F 221H0311
189 4110864408 WASHER SPR 3 2 SW3 F 221H0280
H-2
