MODEL PXH-1 1006-004 145 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE MM-2 102 63016861 10 MOTOR,AC 1 M01 831MM-1 10-102 4M120071 105 6301410432 PIPE FITTINGS 1 831MM-1 10-105 225F0650 1 12 6300493443 CASTER…
144
MODEL PXH-1
0805-003
116
115
105
102
11
2
168
167
163
161
164
165
163
120

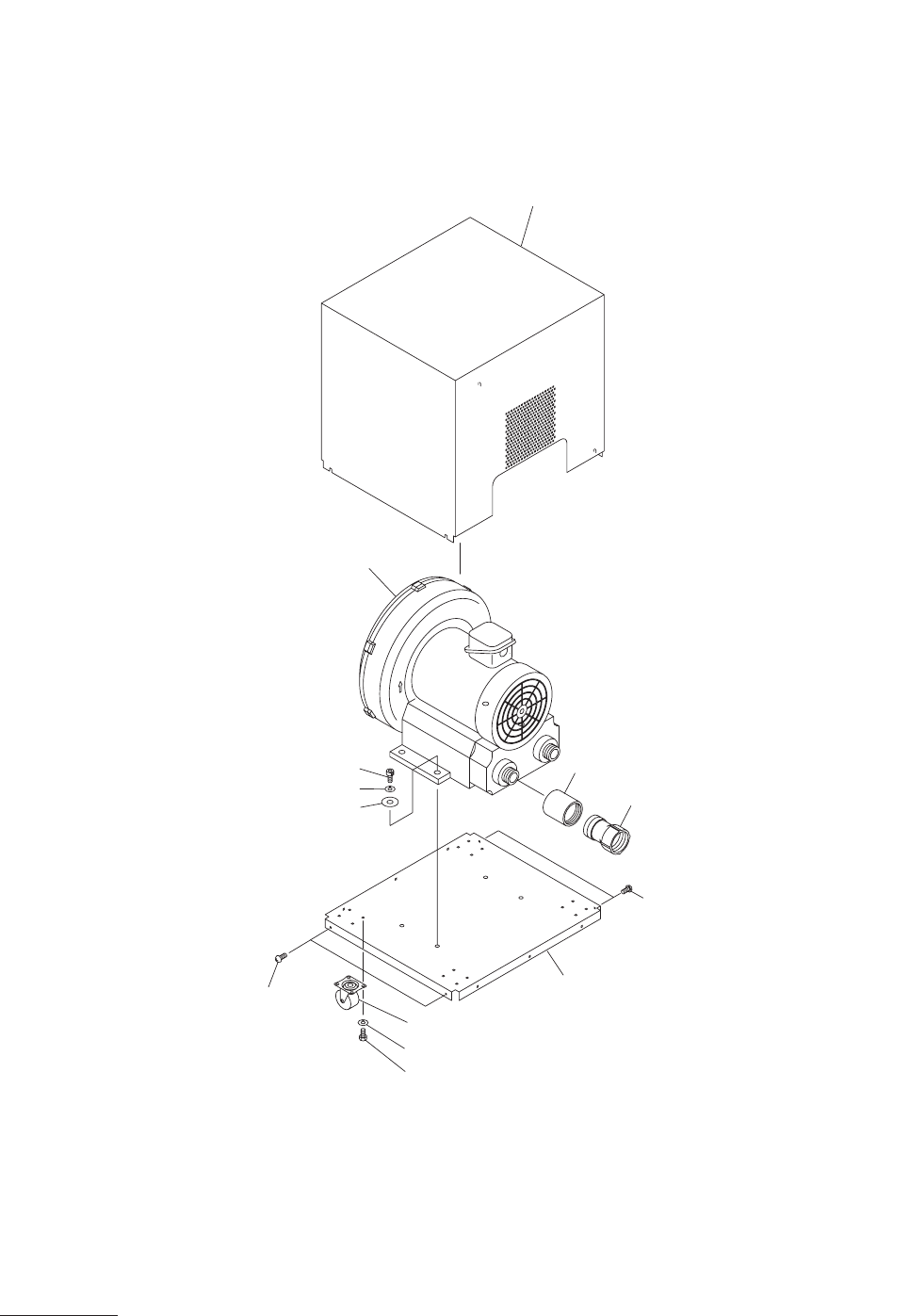

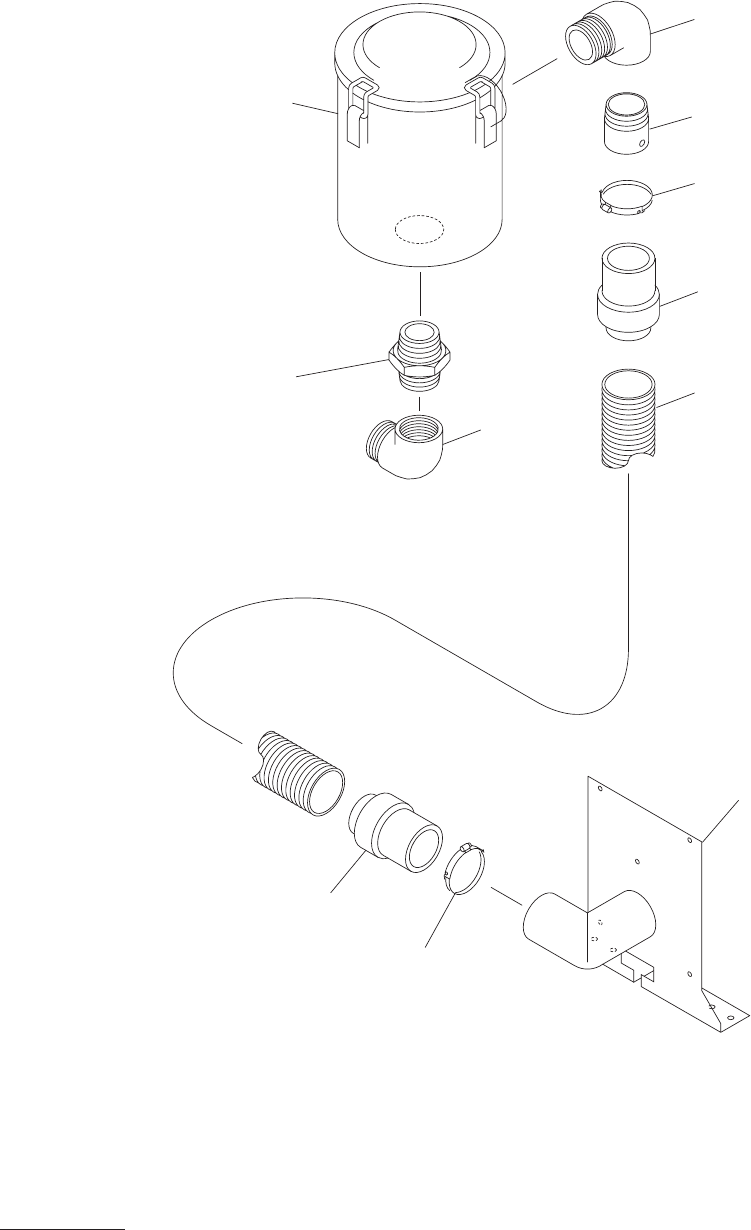

ブロアユニット部
BLOWER UNIT SECTION
Fig. MM-2
ブロア
Blower
MODEL PXH-1
1006-004
145
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
MM-2
102 6301686110 MOTOR,AC 1 M01 831MM-110-102 4M120071
105 6301410432 PIPE FITTINGS 1 831MM-110-105 225F0650
112 6300493443 CASTER 4 831MM-110-112 226E0025
115 6301429311 BASE 1 831MM-110-115 210A2504
116 6301465166 COVER 1 831MM-110-116 211AA841
120 6301433752 PIPE FITTINGS 1 831MM-110-120 225F0659
161 6300008029 BOLT,HEX-SCT 4 M8X25 221A0057
163 4110512804 SCR TRS 4X8 4 M4X8 TRS 221E0533
164 4111413100 WASHER SPR 8 4 SW8 221H0291
165 6300010244 WASHER 4 BW8 221H0007
167 4111404900 BOLT HEX 5X12 16 M5X12 HEX 221B0140
168 4110082109 WASHER SPR 5 16 SW5 F 221H0286
146
MODEL PXH-1
1006-002
ブロアユニット部
BLOWER UNIT SECTION
Fig. MM-3
フィルタ
Filter
214
223
See Fig MM-1
Key No.1
1
201
202
203
204
204
205
205
202
