MODEL PXH-1 1006-002 153 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE K-1 2 6300030570 FEED SCREW 4 831K--1 10-002 223A0001 3 6300298178 BLOCK,LOCA TE 4 831K--1 10-003 216R0055 4 6301425092 FRAME 1 831K--1 1…
MODEL PXH-1
1006-002
152
4
6
5
62
63
61
62
63
61
2
3
2
3
メカ廻り
MECHANICAL DISTRIBUTION SECTION
Fig. K-1

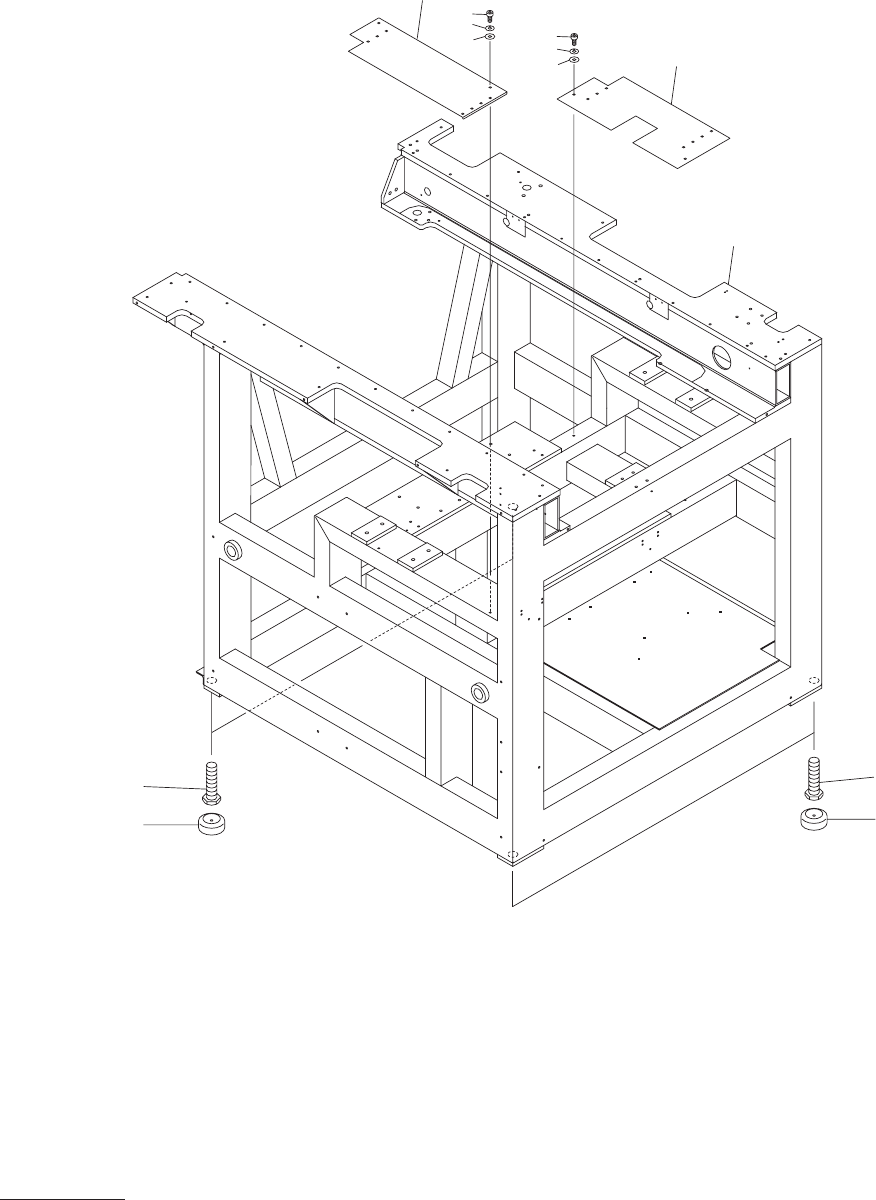

ベースアングル
Base Angle
MODEL PXH-1
1006-002
153
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
K-1
2 6300030570 FEED SCREW 4 831K--110-002 223A0001
3 6300298178 BLOCK,LOCATE 4 831K--110-003 216R0055
4 6301425092 FRAME 1 831K--110-004 210B3972
5 6301428680 PLATE 1 831K--110-005 211DB332
6 6301428697 PLATE 1 831K--110-006 211DB333
61 6300007749 BOLT,HEX-SCT 4 M5X10 221A0029
62 4111414107 WASHER V 5X10X1 4 FW5 221H0318
63 4111416705 WASHER SPR 5 4 SW5 221H0287
MODEL PXH-1
0606-001
154
162
163
161
101
139
See Fig.K-1
Key No.4
See Fig.R-4
Key No.301
106
メカ廻り
MECHANICAL DISTRIBUTION SECTION
Fig. K-2

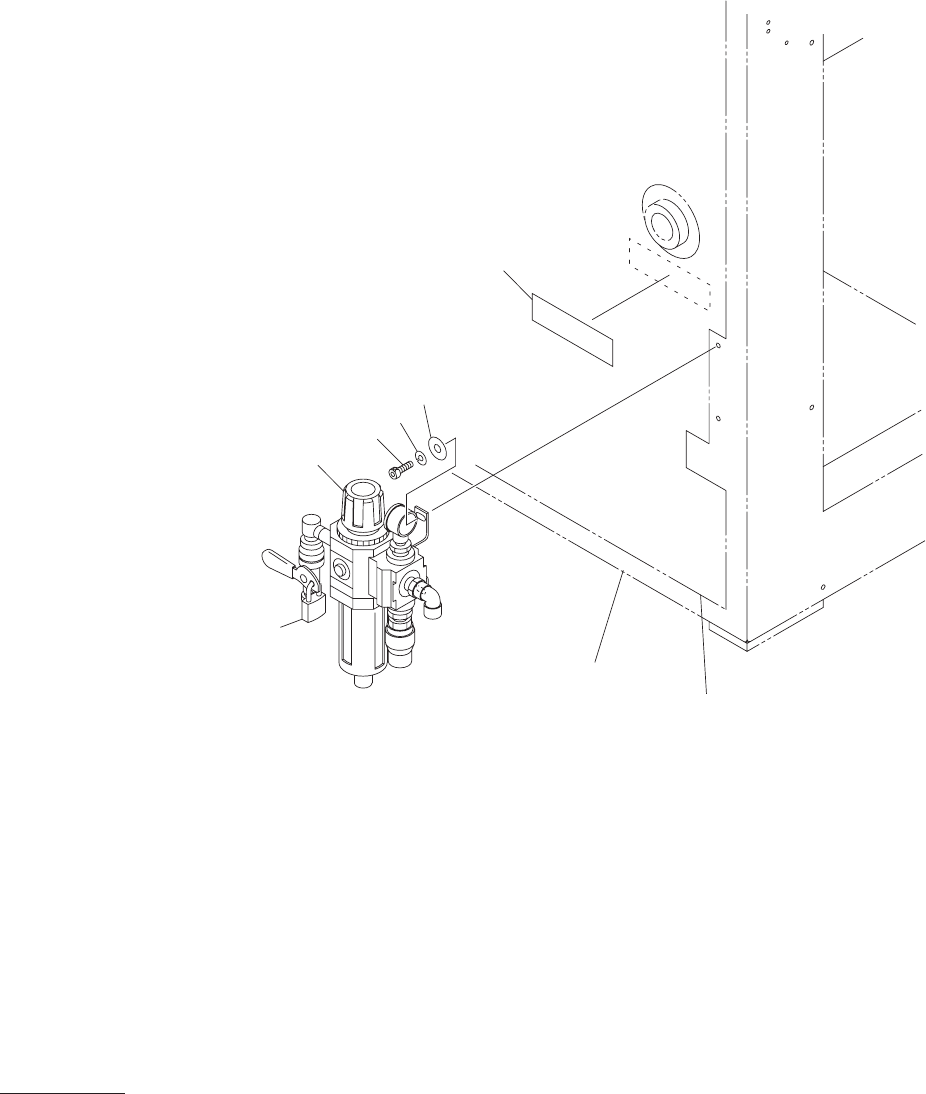

エア配管１
Air Piping 1
