MODEL PXH-1 071 1-002 166 カバー部 COVER SECTION Fig. R-3 カバー１ Cover 1 280 282 281 206 224 272 273 265 266 275 274 208 219 220 239 216 215 237 212 276 229 276 276 269 271 264 269 271 264 272 273 287 264 271 279 See Fig.K-1 K…
MODEL PXH-1
1006-003
165
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
R-2
101 6301447391 SPRING 1 831R--110-101 222R0049
102 6300855043 SPRING 1 831R--110-102 222R0016
103 6301164557 HANDLE 2 831R--110-103 226C0184
105 6300885361 ACCESSORY,SW (KEY) 2 831R--110-105 23H20053
106 4110010003 RING E 4 8 831R--110-106 221K0097
107 6301421209 PLATE 1 831R--110-107 211AA310
108 6301756318 COVER 1 831R--110-108 211AE002
109 6301470801 COVER 1 831R--110-109 211AA894
110 6301726304 COVER(COVER) 2 831R--110-110 211AD692
118 6301421285 BRACKET 1 831R--110-118 211FA352
120 6301409689 BRACKET 2 831R--110-120 211FA236
121 6301409771 COVER 1 831R--110-121 211AA248
122 6301081854 PIN,HINGE 2 831R--110-122 216D0390
123 6301031415 HOLDER 4 831R--110-123 216B1062
124 6301031422 HOLDER 4 831R--110-124 216B1063
125 6300909326 PIN,HINGE 4 831R--110-125 216D0327
128 6301410371 PIN,HINGE 2 831R--110-128 216D0526
129 6301447421 MECH PARTS(DOOR GASKET) 2 831R--110-129 226J2248
130 6301459714 MECH PARTS(DOOR GASKET) 1 831R--110-130 226J2257
131 6301481395 SWITCH,LIMIT(DOOR SWITCH) 2 S12,13 831R--110-001 4S1F0064
138 6301422008 BRACKET 1 831R--110-008 211FA365
139 6301421087 BRACKET 1 831R--110-009 211FA346
142 6301421094 BRACKET 1 831R--110-012 211FA347
143 6301421100 BRACKET 1 831R--110-013 211FA348
161 6300007886 BOLT,HEX-SCT 4 M6X16 221A0043
163 6300007763 BOLT,HEX-SCT 16 M5X16 221A0031
164 6300007756 BOLT,HEX-SCT 2 M5X12 221A0030
165 6300007749 BOLT,HEX-SCT 6 M5X10 221A0029
167 6300007626 BOLT,HEX-SCT 4 M4X10 221A0017
169 4111414305 WASHER V 6X12.5X1.6 4 FW6 221H0320
170 4111413001 WASHER SPR 6 4 SW6 221H0289
171 4111414107 WASHER V 5X10X1 28 FW5 221H0318
172 4111416705 WASHER SPR 5 28 SW5 221H0287
173 4111414008 WASHER V 4X9X0.8 4 FW4 221H0315
174 4111412905 WASHER SPR 4 4 SW4 221H0284
177 4111408007 SCR TRS 5X6 4 M5X6 TRS 221E0536
178 4110511708 SCR TRS 4X6 4 M4X6 TRS 221E0532
179 4111132407 SCR PAN 4X30 4 M4X30 PAN 221E0506
180 4111192104 WASHER V 4X9X0.8 4 FW4 F 221H0314
181 4110081706 WASHER SPR 4 4 SW4 F 221H0283
182 6300007732 BOLT,HEX-SCT 4 M5X8 221A0028
183 6300007503 BOLT,HEX-SCT 20 M3X6 221A0005
184 4111412806 WASHER SPR 3 20 SW3 221H0281
185 6300010206 WASHER 20 BW3 221H0003
MODEL PXH-1
0711-002
166

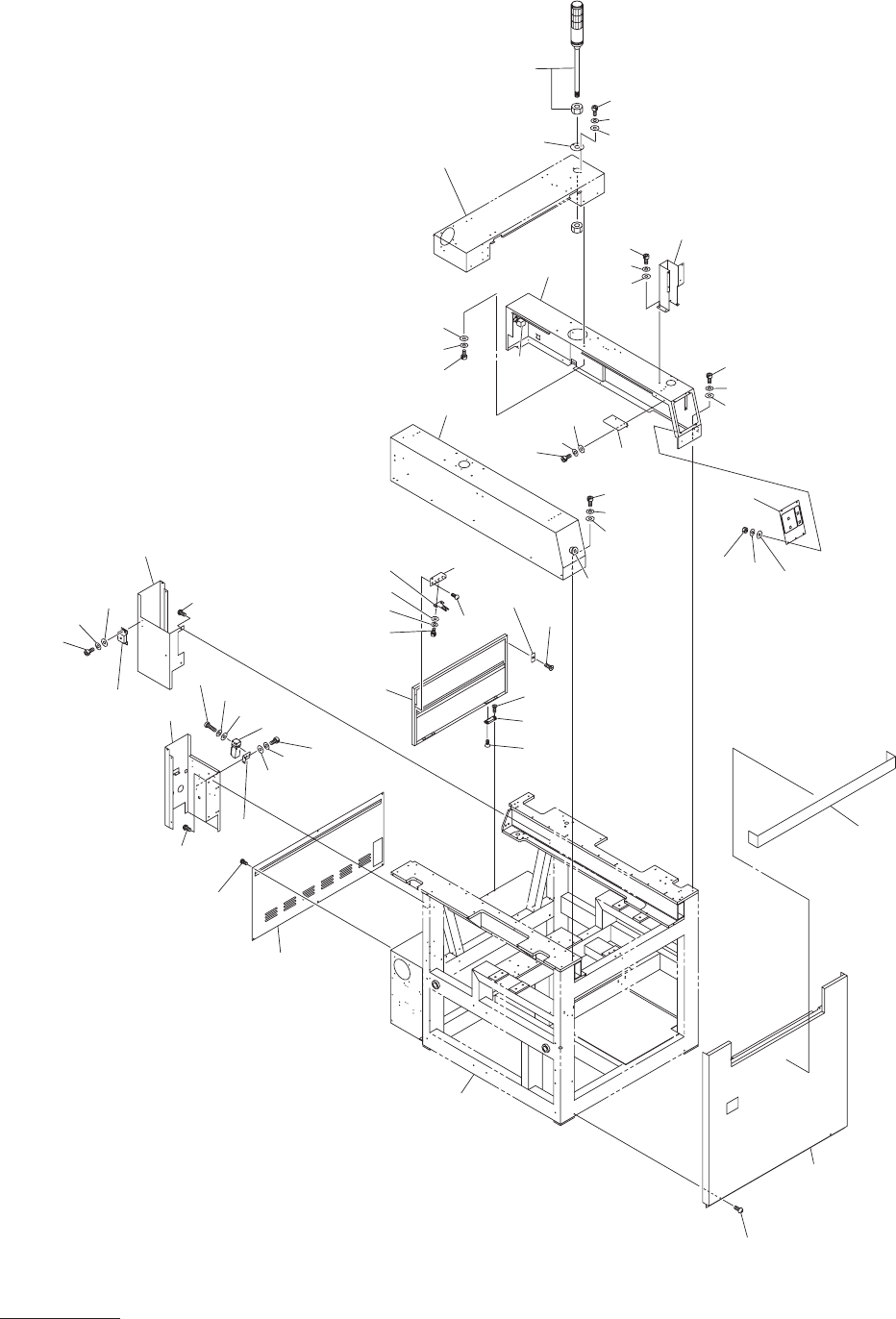

カバー部
COVER SECTION
Fig. R-3
カバー１
Cover 1
280
282
281
206
224
272
273
265
266
275
274
208
219
220
239
216
215
237
212
276
229
276
276
269
271
264
269
271
264
272
273
287
264
271
279
See Fig.K-1
Key No.4
236
204
204
269
271
264
286
273
272
269
271
264
235
205
See Fig.R-2
Key No.107
277
225
208
279
207
272
265
273
226
202
278
278
276
221
MODEL PXH-1
1006-003
167
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
R-3
202 6301447445 HINGE 2 831R--110-202 226F0164
204 6300646528 SWITCH,BUTTON 2 S10,11 831R--110-204 4S1B0110
205 6301384474 PILOT LAMP 1 H24,25,26,27
831R--110-205 4T3A0216
206 6301481395 SWITCH,LIMIT(DOOR SWITCH) 1 S14 831R--110-206 4S1F0064
207 6300885361 ACCESSORY,SW (KEY) 1 831R--110-207 23H20053
208 6300968118 MECH PARTS 1 831R--110-208 226J1031
212 6301421353 COVER 1 831R--110-212 211AA313
215 6301423043 PLATE 1 831R--110-215 211AA333
216 6301423067 PLATE 1 831R--110-216 211AA334
219 6301421384 COVER 1 831R--110-219 211AA316
220 6301558103 COVER 1 831R--110-220 211AB853
221 6301470276 COVER 1 831R--110-221 211AA888
224 6301421407 BRACKET 1 831R--110-224 211FA354
225 6301409535 BRACKET 1 831R--110-225 211FA233
226 6301421421 COVER 1 831R--110-226 211AA318
229 6301218588 NAME PLATE 1 831R--110-229 6P410188
235 6300352658 BRACKET 1 831R--110-235 211F0778
236 6301447766 BRACKET 1 831R--110-236 211AA563
237 6301418216 BOX 1 831R--110-237 211FA312
239 6301447599 PANEL 1 831R--110-239 211C1253
264 6300007749 BOLT,HEX-SCT 29 M5X10 221A0029
265 6300007619 BOLT,HEX-SCT 4 M4X8 221A0016
266 6300007503 BOLT,HEX-SCT 2 M3X6 221A0005
269 4111414107 WASHER V 5X10X1 27 FW5 221H0318
271 4111416705 WASHER SPR 5 27 SW5 221H0287
272 4111414008 WASHER V 4X9X0.8 10 FW4 221H0315
273 4111412905 WASHER SPR 4 10 SW4 221H0284
274 4111413902 WASHER V 3X7X0.5 2 FW3 221H0312
275 4111412806 WASHER SPR 3 2 SW3 221H0281
276 4111408007 SCR TRS 5X6 14 M5X6 TRS 221E0536
277 4110511708 SCR TRS 4X6 2 M4X6 TRS 221E0532
278 4110352707 SCR FLT 4X8 8 M4X8 FLT 221D0225
279 4110022600 SCR FLT 3X6 1 M3X6 FLT 221D0216
280 4111132407 SCR PAN 4X30 2 M4X30 PAN 221E0506
281 4111192005 WASHER F 4X8X0.8 2 FWS4 F 221H0339
282 4110081706 WASHER SPR 4 2 SW4 F 221H0283
286 4111410307 NUT HEX 4 4 M4 221F0082
287 6300007626 BOLT,HEX-SCT 2 M4X10 221A0017
