MODEL PXH-1 1006-002 169 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE R-4 301 6301429304 COVER 1 831R--1 10-301 21 1AA385 302 6301421445 COVER 1 831R--1 10-302 21 1AA320 303 6301461427 COVER 1 831R--1 10-303…
MODEL PXH-1
0606-001
168
カバー部
COVER SECTION

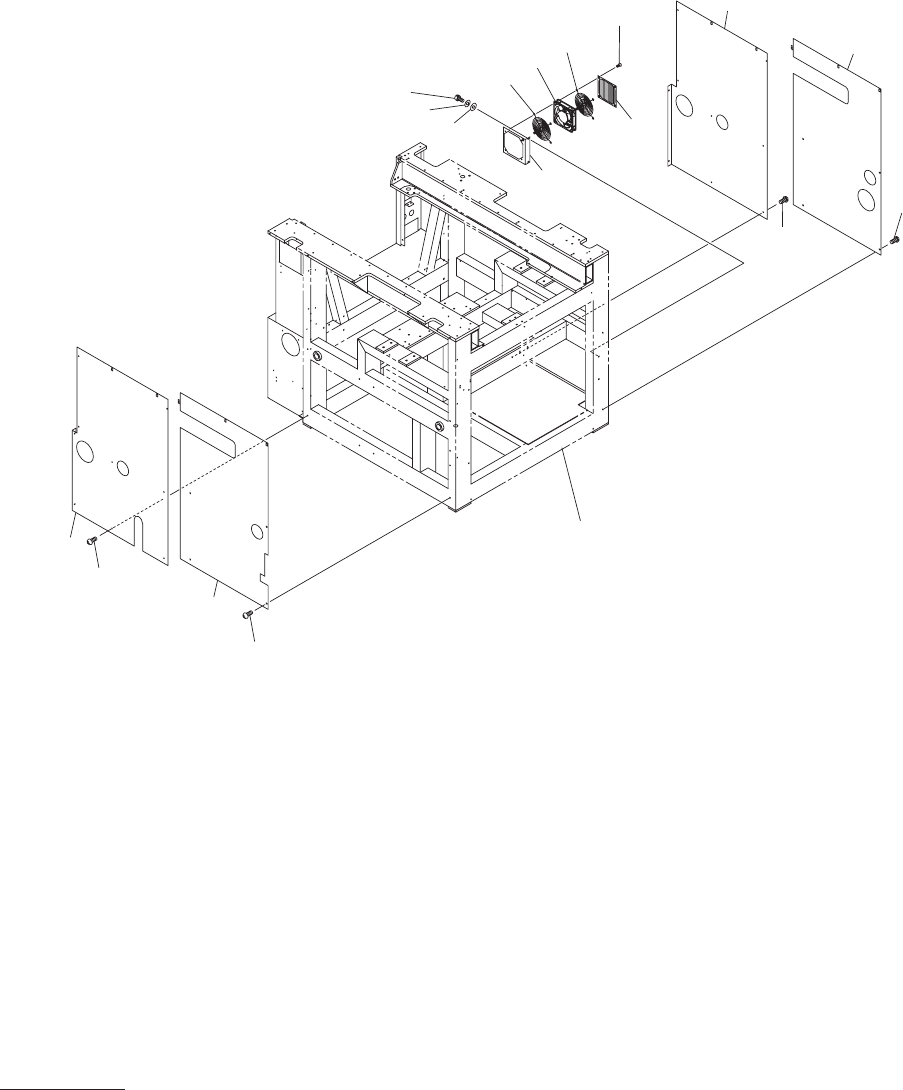

Fig. R-4
カバー２
Cover 2
See Fig.K-1
Key No.4
356
356
356
356
303
304
301
302
350
312
314
314
325
351
353
352
361
MODEL PXH-1
1006-002
169
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
R-4
301 6301429304 COVER 1 831R--110-301 211AA385
302 6301421445 COVER 1 831R--110-302 211AA320
303 6301461427 COVER 1 831R--110-303 211AA783
304 6301421490 COVER 1 831R--110-304 211AA323
312 6301722214 MOTOR,DC 1 M05 831R--110-002 4M130043
314 6301399805 ACCESSORY,MOT-M 2 831R--110-004 23M00062
325 6300000986 ACCESSORY,MOT-M 1 831R--110-015 23M00007
350 6301406831 BRACKET 1 831R--110-450 211FA186
351 6300007749 BOLT,HEX-SCT 2 M5X10 221A0029
352 4111414107 WASHER V 5X10X1 2 FW5 221H0318
353 4111416705 WASHER SPR 5 2 SW5 221H0287
356 4111408007 SCR TRS 5X6 30 M5X6 TRS 221E0536
361 4111621406 SCR FLT 4X35 4 831R--110-461 221D0264
