199 MODEL PXH-1 1006-004 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE 1 6301790824 EQUIPMENT 1 H00,C00 831C--1 10-001 4U260380 3 6301705040 COVER 1 831C--1 10-003 21 1AD313 4 6301486079 CORD 1 831C--1 10-004…
198
MODEL PXH-1
1006-003
1
See Fig.K-1
Key No.4
See Fig.R-3
Key No.237
66
65
.
64
.
20
21
80
71
20
H00-USB
PANEL
10A
24A3
H00
3
N00-USB12
N00-USB11
N00-DVI
BB428
N00-COM1
N00-LAN1
N00
1
22
X2530
X1530
4
XU01
X1G03
X1B04
X2B03
N81-LAN1
69
68
.
67
.
DETAIL
81
24
5
See Fig.BB-5
Key No.428

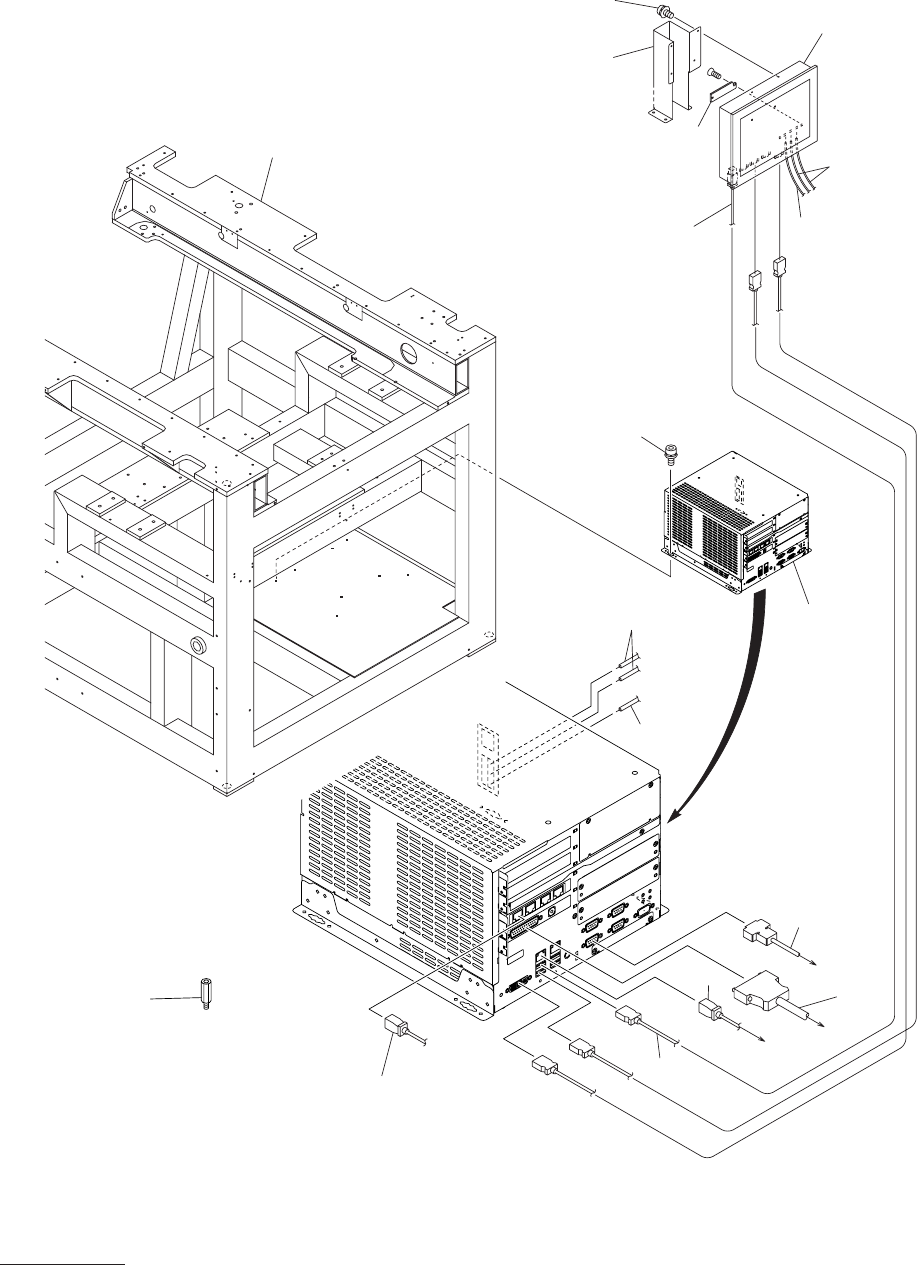

制御ボックス部
CONTROL BOX SECTION
Fig. C-1
タッチパネル
Touch Panel
199
MODEL PXH-1
1006-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
1 6301790824 EQUIPMENT 1 H00,C00 831C--110-001 4U260380
3 6301705040 COVER 1 831C--110-003 211AD313
4 6301486079 CORD 1 831C--110-004 4W203646
5 6301033464 2 831C--110-005 211E0757
20 6301241890 CORD 1 831C--110-020 4W202706
21 6301410999 CORD 1 831C--110-021 4W203311
22 6301630922 CORD 1 831C--110-022 4W204424
24 0831I101 CORD 1 831C--110-024 0831I101
64 6300007527 BOLT,HEX-SCT 4 M3X10 221A0007
65 4111412806 WASHER SPR 3 4 SW3 221H0281
66 4111413902 WASHER V 3X7X0.5 4 FW3 221H0312
67 6300007626 BOLT,HEX-SCT 4 M4X10 221A0017
68 4111412905 WASHER SPR 4 4 SW4 221H0284
69 4111414008 WASHER V 4X9X0.8 4 FW4 221H0315
71 6301708270 CORD 1 831K--110-661 4W204777
80 6301708263 CORD 1 831BB-110-810 4W204776
81 0831I000 CORD 1 831BB-110-811 0831I000
C-1
