MODEL PXH-1 1006-003 31 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE E-4 301 6301424729 PULLEY ,TIMING 1 831E--1 10-301 223Q0622 302 630001 1425 BEARING,RADIAL 2 831E--1 10-302 222D0021 303 41 10007102 RING …
MODEL PXH-1
1006-003
30
チャック部
CHUCK SECTION
Fig. E-4 Z
軸駆動部
Z Axis Driver
314
323
325
324
329
324
330
311
367
368
366
362
312
362
366
311
368
367
321
314
312
See Fig.E-1
Key No.11
See Fig.B-1
Key No.7
333
317
318
317
316
327
365
312
362
366
368
367
320
326
319
313
366
362
312
368
367
363
305
314
313
301
302
332
372
373
371
372
373
371
367
368
366
310
365
327
302
303
364
362
320
314
321
307
306
372
363
364
331
328
306
308
309
372
373
370
361
373
369
336
336
335
335
375
368
374
336
336
375
374
368
304
326
MODEL PXH-1
1006-003
31
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
E-4
301 6301424729 PULLEY,TIMING 1 831E--110-301 223Q0622
302 6300011425 BEARING,RADIAL 2 831E--110-302 222D0021
303 4110007102 RING C 10 1 831E--110-303 221K0076
304 6301431789 COUPLING 1 831E--110-304 223C0227
305 6301400679 MOTOR,STEPPING 1 M23 831E--110-305 4M140157
306 6300011463 BEARING,RADIAL 2 831E--110-306 222D0025
307 6301424705 PULLEY,TIMING 1 831E--110-307 223Q0620
308 6300883916 SET COLLAR 1 831E--110-308 216K0085
309 6301431802 COUPLING 1 831E--110-309 223C0229
310 6301433806 MOTOR,AC-SERVO 1 M17 831E--110-310 4M150233
311 6301394633 BALL SCREW 3 831E--110-311 223B0377
312 6300136241 BEARING,UNIT 6 831E--110-312 222F0026
313 6301424736 PULLEY,TIMING 3 831E--110-313 223Q0623
314 6301429144 CLAMP 6 831E--110-314 226H0067
316 6300966602 RING 1 831E--110-316 221K0040
317 6300884081 BEARING,RADIAL 2 831E--110-317 222D0331
318 6301424743 PULLEY,TIMING 1 831E--110-318 223Q0624
319 6301526027 BELT,TIMING 1 831E--110-319 223L0349
320 6301394640 BALL SCREW 3 831E--110-320 223B0378
321 6301424712 PULLEY,TIMING 3 831E--110-321 223Q0621
323 6301526010 BELT,TIMING 1 831E--110-323 223L0348
324 6300011432 BEARING,RADIAL 4 831E--110-324 222D0022
325 4110007300 RING C 12 2 831E--110-325 221K0077
326 6301445113 COLLAR(SET COLLAR) 3 831E--110-326 216A1361
327 6300883954 BUSH,BALL 3 831E--110-327 222J0196
328 6301419572 BRACKET 1 831E--110-328 211FA330
329 6300879049 PULLEY 2 831E--110-329 213B0120
330 6300906325 BOSS 2 831E--110-330 213E0122
331 6301417967 PLATE 1 831E--110-331 211DB209
332 6301029801 BRACKET 1 831E--110-332 211F6195
333 6301447964 SHAFT 1 831E--110-333 213A1308
335 6301161792 BOSS(PIN) 4 831E--110-335 213E0159
336 6300011548 BEARING,RADIAL 8 831E--110-336 222D0033
361 6300007626 BOLT,HEX-SCT 2 M4X10 221A0017
362 6300007657 BOLT,HEX-SCT 28 M4X16 221A0020
363 4111414008 WASHER V 4X9X0.8 6 FW4 221H0315
364 4111412905 WASHER SPR 4 6 SW4 221H0284
365 6300007770 BOLT,HEX-SCT 12 M5X20 221A0032
366 6300007770 BOLT,HEX-SCT 28 M5X20 221A0032
367 4111414107 WASHER V 5X10X1 28 FW5 221H0318
368 4111416705 WASHER SPR 5 32 SW5 221H0287
369 6300007893 BOLT,HEX-SCT 4 M6X20 221A0044
370 6300007909 BOLT,HEX-SCT 2 M6X25 221A0045
371 6300007930 BOLT,HEX-SCT 4 M6X40 221A0048
372 4111414305 WASHER V 6X12.5X1.6 10 FW6 221H0320
373 4111413001 WASHER SPR 6 10 SW6 221H0289
374 6300007824 BOLT,HEX-SCT 4 M5X45 221A0037
375 6300010220 WASHER 4 BW5 221H0005
MODEL PXH-1
1006-003
32
チャック部
CHUCK SECTION

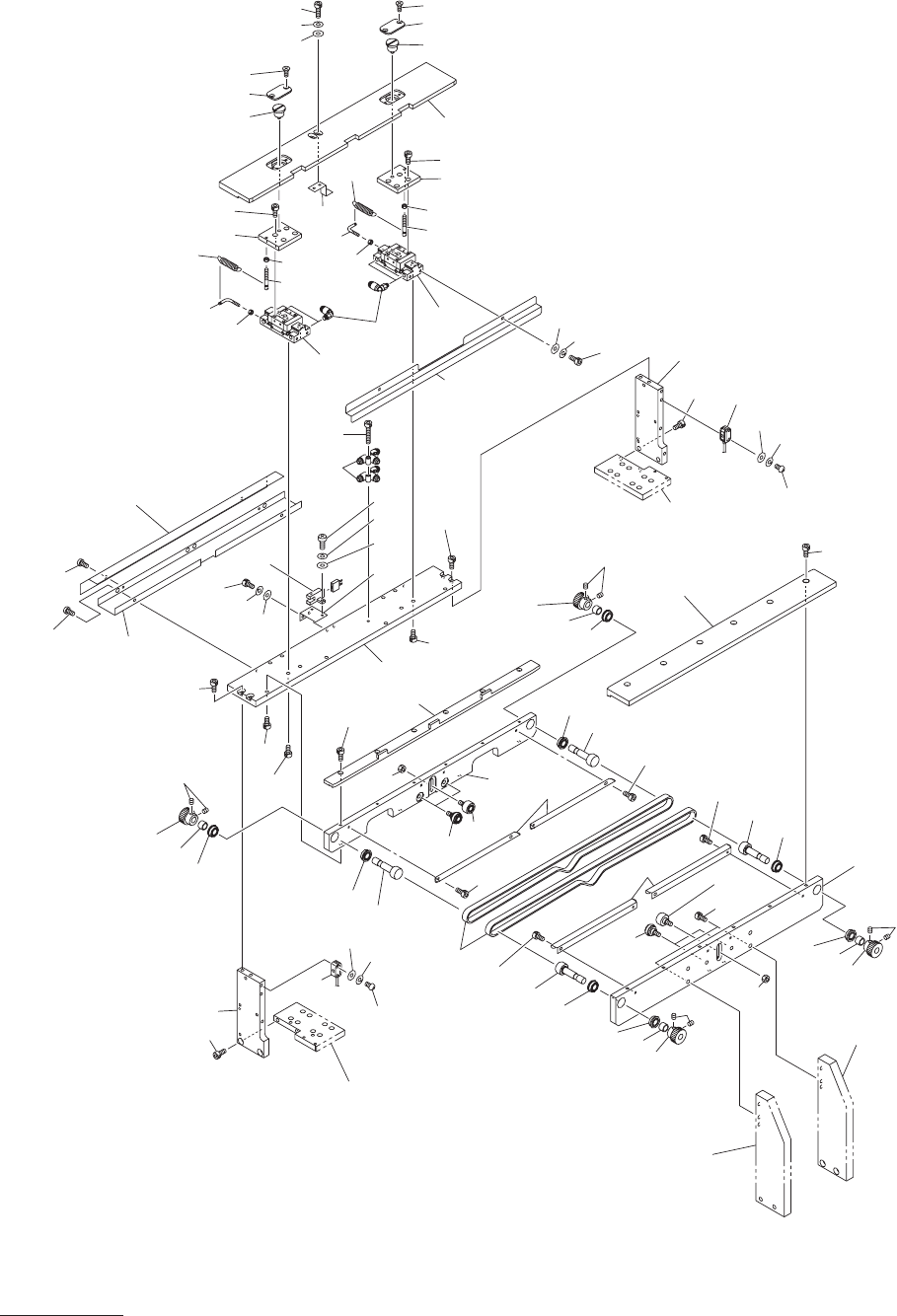

Fig. E-5
基板チャック搬送部
PCB Chuck Transfer Section
( 手前基準）
(Front Reference)
478
426
425
See Fig.E-3
Key No.223
See Fig.E-3
Key No.222
See Fig.E-1
Key No.14
See Fig.E-1
Key No.20
471
474
423
469
468
464
401
422
474
478
426
425
427
407
405
477
469
468
466
464
429
464
430
410
435
470
410
432
470
410
435
411
411
410
432
412
413
420
465
465
414
465
432
410
413
412
474
465
420
432
410
411
470
435
410
411
470
435
410
403
403
404
406
477
407
406
477
408
428
463
463
467
415
471
471
464
405
477
431
419
421
401
475
475
416
471
473
472
471
471
471
433
434
418
417
436
479
480
462
479
480
462
479
480
461
