P-0257-004 - 第48页
MODEL PXH-1 1006-003 46 4 62 63 64 20 18 69 65 70 71 24 1 65 67 70 71 66 72 74 75 16 7 5 76 67 77 25 74 75 72 7 65 17 19 73 68 19 73 23 13 22 68 12 69 1 7 6 78 74 75 29 27 26 28 28 28 8 8 8 See Fig.K-1 Key No.4 See Fig.R…
45
MODEL PXH-1
1006-002
Fig. F
スクリーンホルダ部

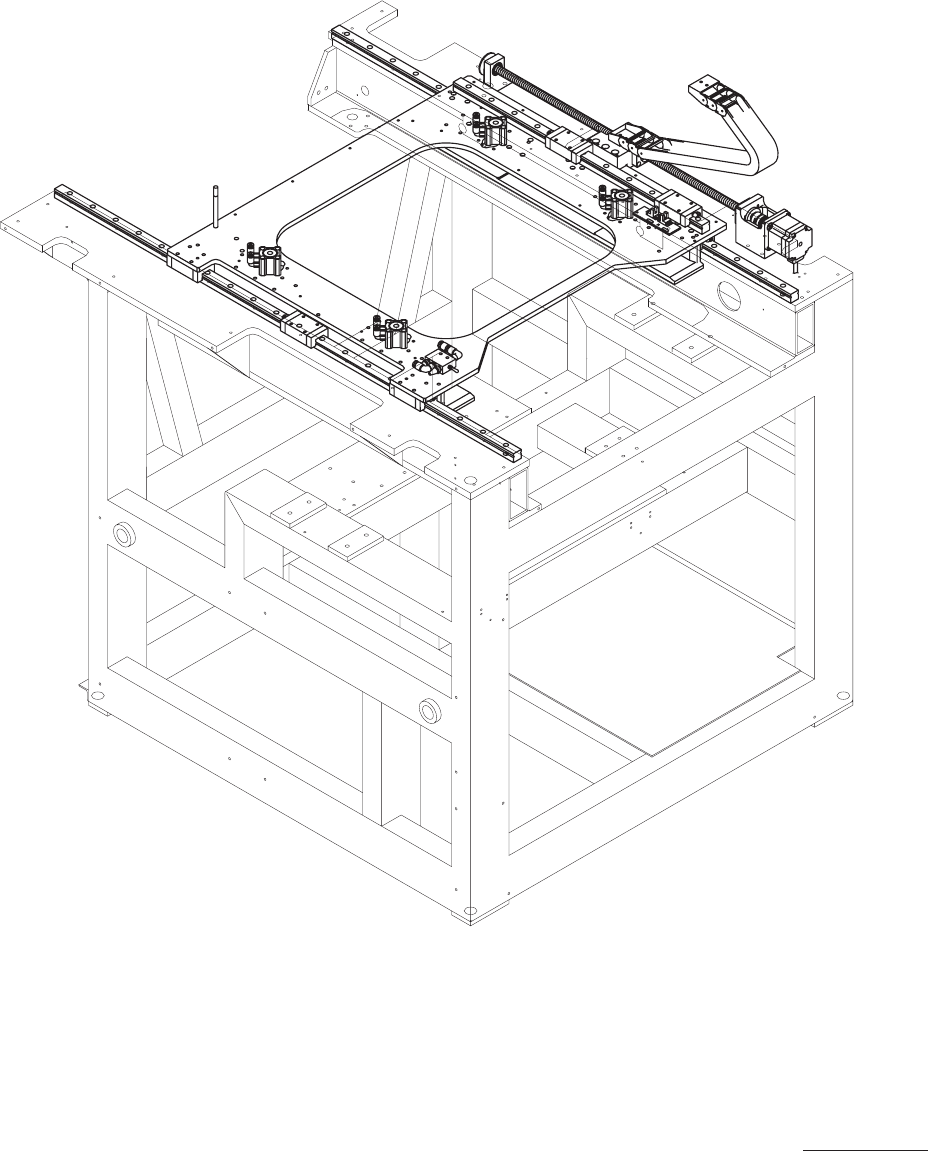

SCREEN HOLDER SECTION
MODEL PXH-1
1006-003
46
4
62
63
64
20
18
69
65
70
71
24
1
65
67
70
71
66
72
74
75
16
7
5
76
67
77
25
74
75
72
7
65
17
19
73
68
19
73
23
13
22
68
12
69
1
7
6
78
74
75
29
27
26
28
28
28
8
8
8
See Fig.K-1
Key No.4
See Fig.R-3
Key No.216
28
70
71
68
70
71
67
A
A
79
10
3
9
11
82
83
81
61
85
84
14
14
スクリーンホルダ部
SCREEN HOLDER SECTION

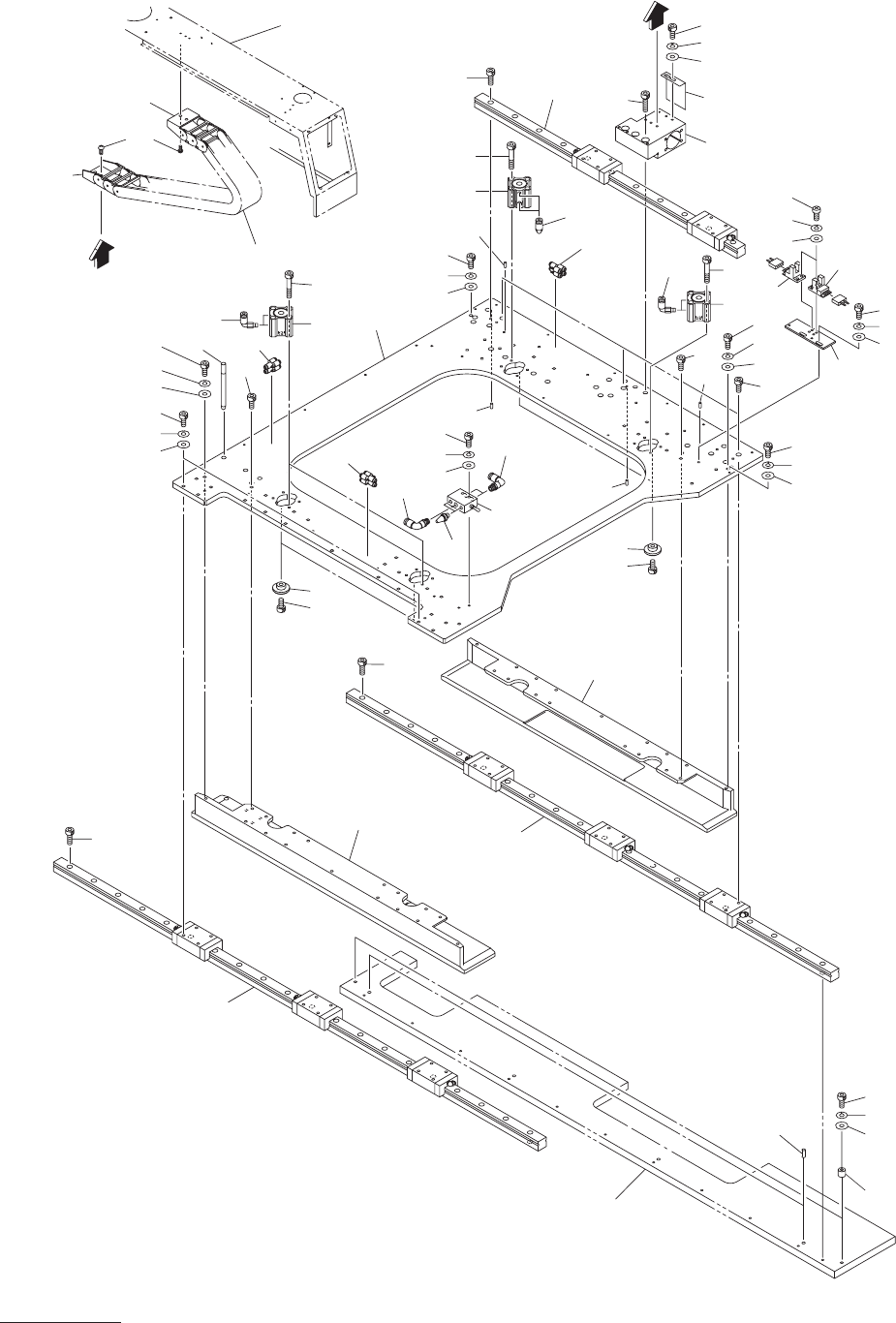

Fig. F-1
スクリーンホルダ
Screen Holder
47
MODEL PXH-1
1006-003
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
1 6300884371 CYLINDER 3 831F--110-001 224C0409
3 6300888867 VALVE 1 831F--110-003 225C0058
4 6300928518 MECH PARTS 1 831F--110-004 226J0941
5 6300883657 MECH PARTS 1 831F--110-005 226J0866
6 6300883664 MECH PARTS 1 831F--110-006 226J0867
7 6300805420 PIPE FITTINGS 8 831F--110-007 225F0345
8 6300817508 PIPE FITTINGS 6 831F--110-008 225F0360
9 6300888850 AIR LINE EQPT 2 831F--110-009 225B0346
10 6300690538 PIPE FITTINGS 1 831F--110-010 225F0307
11 6300884432 PIPE FITTINGS 2 831F--110-011 225F0368
12 6301425597 GUIDE,LINEAR 1 831F--110-012 222L0806
13 6301425580 GUIDE,LINEAR 1 831F--110-013 222L0805
14 6300690545 SENSOR,PHOTO 2 B271,273 831F--110-014 23G10056
16 6301425603 GUIDE,LINEAR 1 831F--110-016 222L0807
17 6301465074 PLATE 1 831F--110-017 211DB694
18 6301465081 BLOCK 1 831F--110-018 211G4604
19 6300880052 BLOCK 4 831F--110-019 211G2016
20 6301420653 PLATE 1 831F--110-020 211DB244
22 6301422800 BRACKET 1 831F--110-022 212A2283
23 6301422817 BRACKET 1 831F--110-023 212A2284
24 6301423791 PLATE 1 831F--110-024 211DB279
25 6301267388 CYLINDER 1 B6F 831F--110-025 224C0537
26 6300910094 PIN,HINGE 1 831F--110-026 216D0328
27 6300548631 PIN,LOCATE 2 831F--110-027 216E0438
28 6300883886 PIN,LOCATE 4 831F--110-028 216E0891
29 6300985450 COLLAR 2 831F--110-029 216A0922
61 4110418908 SCR PAN 3X6 4 M3X6 PAN 221E0497
62 6300007619 BOLT,HEX-SCT 2 M4X8 221A0016
63 4111412905 WASHER SPR 4 2 SW4 221H0284
64 4111414008 WASHER V 4X9X0.8 2 FW4 221H0315
65 6300007749 BOLT,HEX-SCT 9 M5X10 221A0029
66 6300007756 BOLT,HEX-SCT 12 M5X12 221A0030
67 6300007763 BOLT,HEX-SCT 23 M5X16 221A0031
68 6300007770 BOLT,HEX-SCT 12 M5X20 221A0032
69 6300007800 BOLT,HEX-SCT 6 M5X35 221A0035
70 4111416705 WASHER SPR 5 41 SW5 221H0287
71 4111414107 WASHER V 5X10X1 41 FW5 221H0318
72 6300007862 BOLT,HEX-SCT 2 M6X10 221A0041
73 6300007886 BOLT,HEX-SCT 4 M6X16 221A0043
74 4111413001 WASHER SPR 6 2 SW6 221H0289
75 4111414305 WASHER V 6X12.5X1.6 2 FW6 221H0320
76 6300008036 BOLT,HEX-SCT 3 M8X30 221A0058
77 6300007831 BOLT,HEX-SCT 2 M5X50 221A0038
78 6300007909 BOLT,HEX-SCT 2 M6X25 221A0045
79 4111137501 SCR TRS 4X10 4 M4X10 TRS 221E0530
81 6300007572 BOLT,HEX-SCT 2 M3X25 221A0012
82 4111412806 WASHER SPR 3 2 SW3 221H0281
83 4111413902 WASHER V 3X7X0.5 2 FW3 221H0312
84 4111191909 WASHER V 3X7X0.5 4 FW3 F 221H0311
85 4110864408 WASHER SPR 3 4 SW3 F 221H0280
F-1
