P-0257-004 - 第62页
MODEL PXH-1 1006-002 60 スキージヘッド部 SQUEEGEE HEAD SECTION Fig. F A-4 スキージ上下駆動部 Squeegee Leveller Driver 362 302 301 306 305 361 305 308 31 1 307 361 362 301 367 366 368 309 302 See Fig.F A-1 Key No.22 See Fig.F A-3 Key No.2…
MODEL PXH-1
1006-003
59
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
201 6300072303 PLUNGER 2 831FA-110-201 226G0007
202 6300884364 CYLINDER 2 831FA-110-202 224C0408
203 6300884463 PIPE FITTINGS 4 831FA-110-203 225F0371
204 6300011425 BEARING,RADIAL 4 831FA-110-204 222D0021
206 6300023657 SPRING,COMP 4 831FA-110-206 222M0704
207 6300883411 BUSH,BEARING 2 831FA-110-207 222A0134
208 6301188874 WASHER 2 831FA-110-208 221H0201
210 6300907681 BOSS(PIN) 2 831FA-110-210 213E0129
211 6301418025 PLATE 2 831FA-110-211 211DB212
213 6301401546 PLATE 4 831FA-110-213 211DA997
214 6300880243 SHAFT 2 831FA-110-214 213A0655
215 6300880298 BLOCK 2 831FA-110-215 211G2020
216 6300914832 SPACER 4 831FA-110-216 211E0678
217 6301400488 BLOCK 2 831FA-110-217 211G4306
218 6301439136 BLOCK 2 831FA-110-218 211G4504
261 6300007572 BOLT,HEX-SCT 4 M3X25 221A0012
262 6300008937 SET SCREW 2 M4X12 SET 221C0006
264 4111410307 NUT HEX 4 2 M4 221F0082
265 6300007763 BOLT,HEX-SCT 2 M5X16 221A0031
266 4111416705 WASHER SPR 5 2 SW5 221H0287
268 6300007879 BOLT,HEX-SCT 4 M6X12 221A0042
269 6300007909 BOLT,HEX-SCT 4 M6X25 221A0045
270 6300007930 BOLT,HEX-SCT 4 M6X40 221A0048
271 4111413001 WASHER SPR 6 4 SW6 221H0289
272 4111414305 WASHER V 6X12.5X1.6 4 FW6 221H0320
273 4111410703 NUT HEX 6 8 M6 221F0087
274 6300008920 SET SCREW 2 M4X6 SET 221C0005
FA-3
MODEL PXH-1
1006-002
60
スキージヘッド部

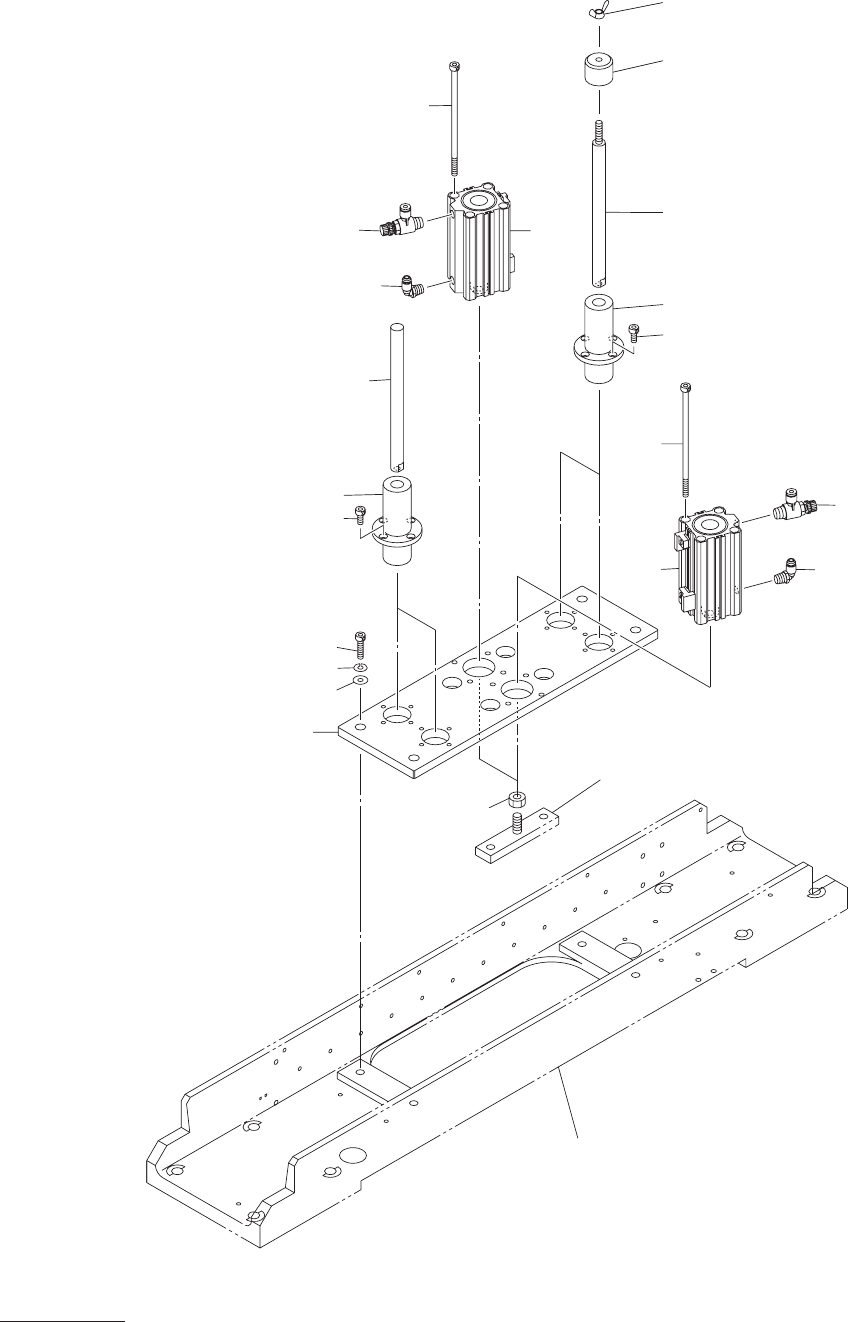

SQUEEGEE HEAD SECTION
Fig. FA-4
スキージ上下駆動部
Squeegee Leveller Driver
362
302
301
306
305
361
305
308
311
307
361
362
301
367
366
368
309
302
See Fig.FA-1
Key No.22
See Fig.FA-3
Key No.215
304
304
369
MODEL PXH-1
1006-002
61
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
301 0831N100 CYLINDER 2 B60,61, B62,63
831FA-110-301 0831N100
302 6300884432 PIPE FITTINGS 2 831FA-110-302 225F0368
304 6300035155 AIR LINE EQPT 2 831FA-110-304 225B0002
305 6300883978 BUSH,BALL 4 TRFC12GUU
831FA-110-305 222J0198
306 6300890471 SHAFT,LINEAR 2 831FA-110-306 222K0203
307 4111557903 NUT WING 6 2 831FA-110-307 221G0224
308 6300890488 SHAFT,LINEAR 2 831FA-110-308 222K0204
309 6301392745 STAY(PLATE) 1 831FA-110-309 211J1313
311 6300943382 BUSH,LOCATE 2 831FA-110-311 216Q0027
361 6300007626 BOLT,HEX-SCT 16 M4X10 221A0017
362 6300008012 BOLT,HEX-SCT 4 831FA-110-362 221A0056
366 6300915426 BOLT,HEX-SCT 8 M8X20 221A0256
367 4111413100 WASHER SPR 8 4 SW8 221H0291
368 4111414503 WASHER V 8X17X1.6 4 FW8 221H0323
369 4111410901 NUT HEX 8 2 M8 221F0089
FA-4
