P-0257-004 - 第85页
MODEL PXH-1 1006-003 83 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE G-2 101 6300929720 CYLINDER 1 831G--1 10-101 224C0420 102 6300805420 PIPE FITTINGS 1 831G--1 10-102 225F0345 103 6300884098 BEARING,RADIAL…
MODEL PXH-1
1006-002
82
102
101
1 1 4
106
105
106
108
120
1 1 0
1 1 5
161
161
1 1 9
1 1 9
164
168
167
104
169
164
168
167
104
169
161
1 1 7
1 1 8
161
1 1 9
1 1 9
164
168
167
104
169
164
168
167
104
169
166
168
167
122
165
1 1 6
1 1 3
172
109
103
167
121
1 1 2
103
168
165
161
See Fig.G-1
Key No.23
123
123
167
168
165
165
165
170
173
174

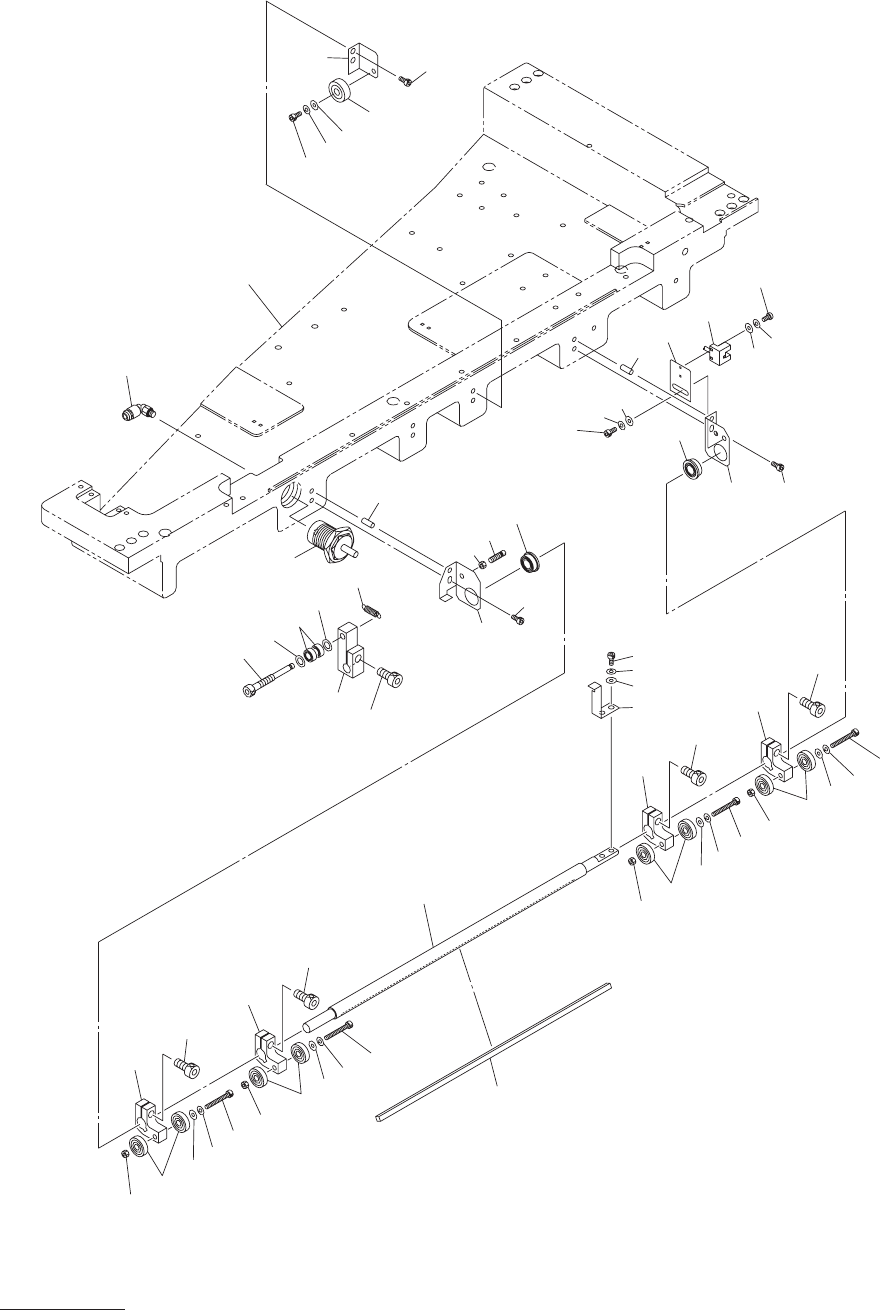

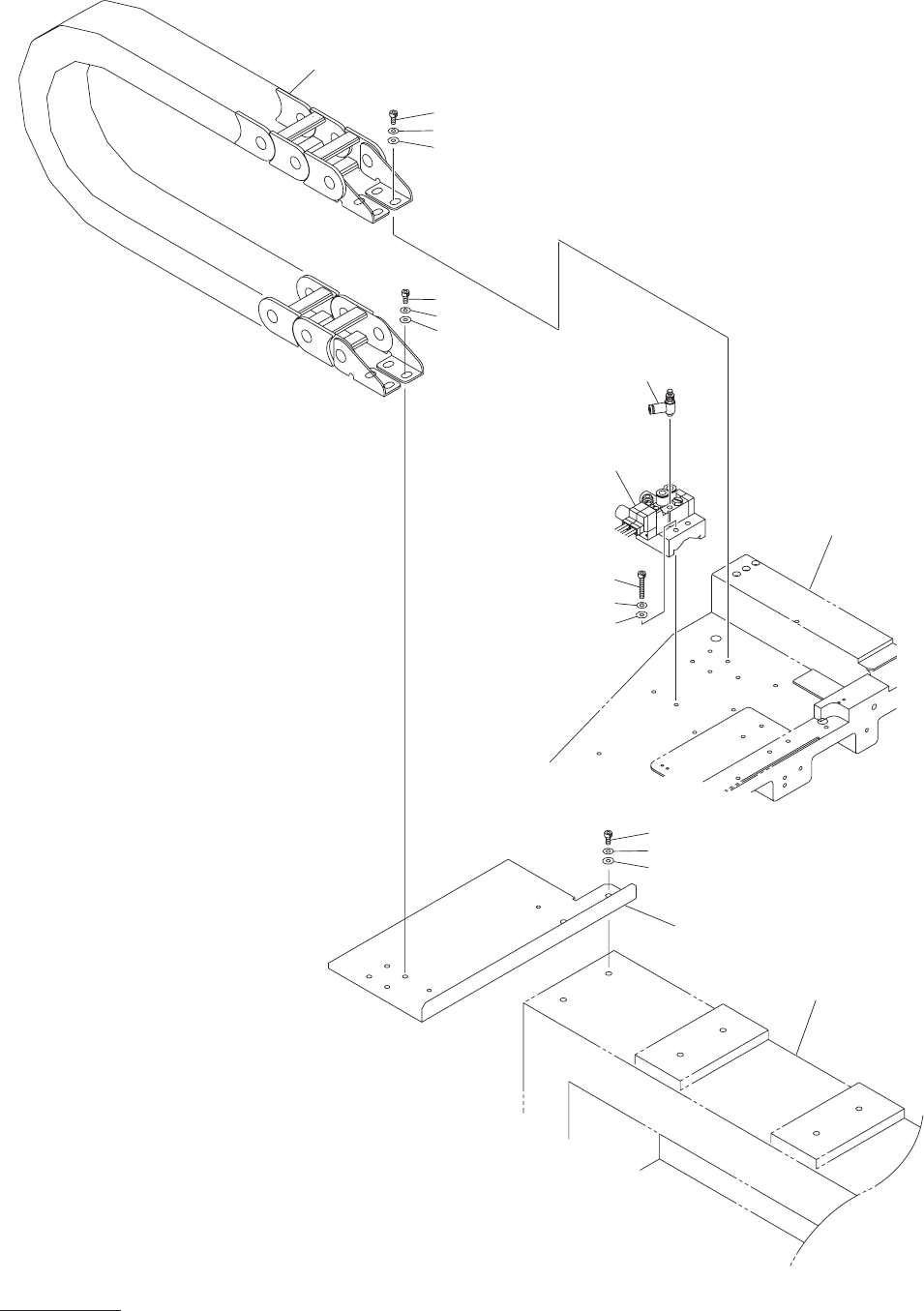

基板認識部
PEC RECOGNITION SECTION
Fig. G-2
基板２枚検出部
Overlapped PCB Detecter
( 右流れ）
(Right Flow)
MODEL PXH-1
1006-003
83
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
G-2
101 6300929720 CYLINDER 1 831G--110-101 224C0420
102 6300805420 PIPE FITTINGS 1 831G--110-102 225F0345
103 6300884098 BEARING,RADIAL 2 831G--110-103 222D0332
104 6300884395 BEARING,RADIAL 8 831G--110-104 222D0334
105 6300884104 BEARING,RADIAL 2 831G--110-105 222D0333
106 6300848588 WASHER 2 831G--110-106 221H0114
108 6300028102 SPRING,TENSION 1 831G--110-108 222N0543
109 6300135770 HOOK 1 831G--110-109 216J0096
110 6301328379 BEARING,RADIAL 1 831G--110-110 222D0409
112 6300805369 SENSOR,PHOTO 1 B6A 831G--110-112 23G10059
113 6301418841 BLOCK 1 831G--110-113 211G4383
114 6300907728 BOSS 1 831G--110-114 213E0133
115 6301418773 BRACKET 1 831G--110-115 211FA316
116 6301418704 BRACKET 1 831G--110-116 211FA315
117 6301163611 SHAFT(SHAFT) 1 831G--110-117 213A0942
118 6300907933 GUIDE 1 831G--110-118 212A1531
119 6300881066 BLOCK 4 831G--110-119 211G2030
120 6301430126 BLOCK 1 831G--110-120 211FA479
121 6301418858 BRACKET 1 831G--110-121 211FA317
122 6300881127 BRACKET 1 831G--110-122 211F4904
123 6300883886 PIN,LOCATE 2 831G--110-123 216E0891
161 6300007879 BOLT,HEX-SCT 5 M6X12 221A0042
164 6300007671 BOLT,HEX-SCT 4 M4X25 221A0022
165 6300007626 BOLT,HEX-SCT 5 M4X10 221A0017
166 6300007619 BOLT,HEX-SCT 2 M4X8 221A0016
167 4111414008 WASHER V 4X9X0.8 9 FW4 221H0315
168 4111412905 WASHER SPR 4 9 SW4 221H0284
169 4111410307 NUT HEX 4 4 M4 221F0082
170 4110392604 SCR PAN 2X6 2 M2X6 PAN 221E0483
172 4111410307 NUT HEX 4 1 M4 221F0082
173 4111412509 WASHER V 2X5X0.3 2 FW2 F 221H0307
174 4111413605 WASHER SPR 2 2 SW2 F 221H0276
MODEL PXH-1
0711-002
84
基板認識部
PEC RECOGNITION SECTION
Fig. G-3
ケーブルベア、エア配管
Cablebearer, Air Piping
See Fig.K-1
Key No.4
261
263
262
263
262
261
See Fig.G-1
Key No.23
266
264
265
211
204
263
262
261
205
201
