P-0257-004 - 第94页
MODEL PXH-1 1006-003 92 61 67 66 See Fig.H-2 Key No.123 See Fig.H-2 Key No.122 62 9 63 70 8 1 2 4 72 1 5 3 6 2 1 18 73 21 1 16 1 1 62 20 62 10 78 62 69 68 74 16 1 7 9 70 65 1 2 1 5 19 73 22 1 2 72 4 3 6 70 63 8 66 67 61 …
91

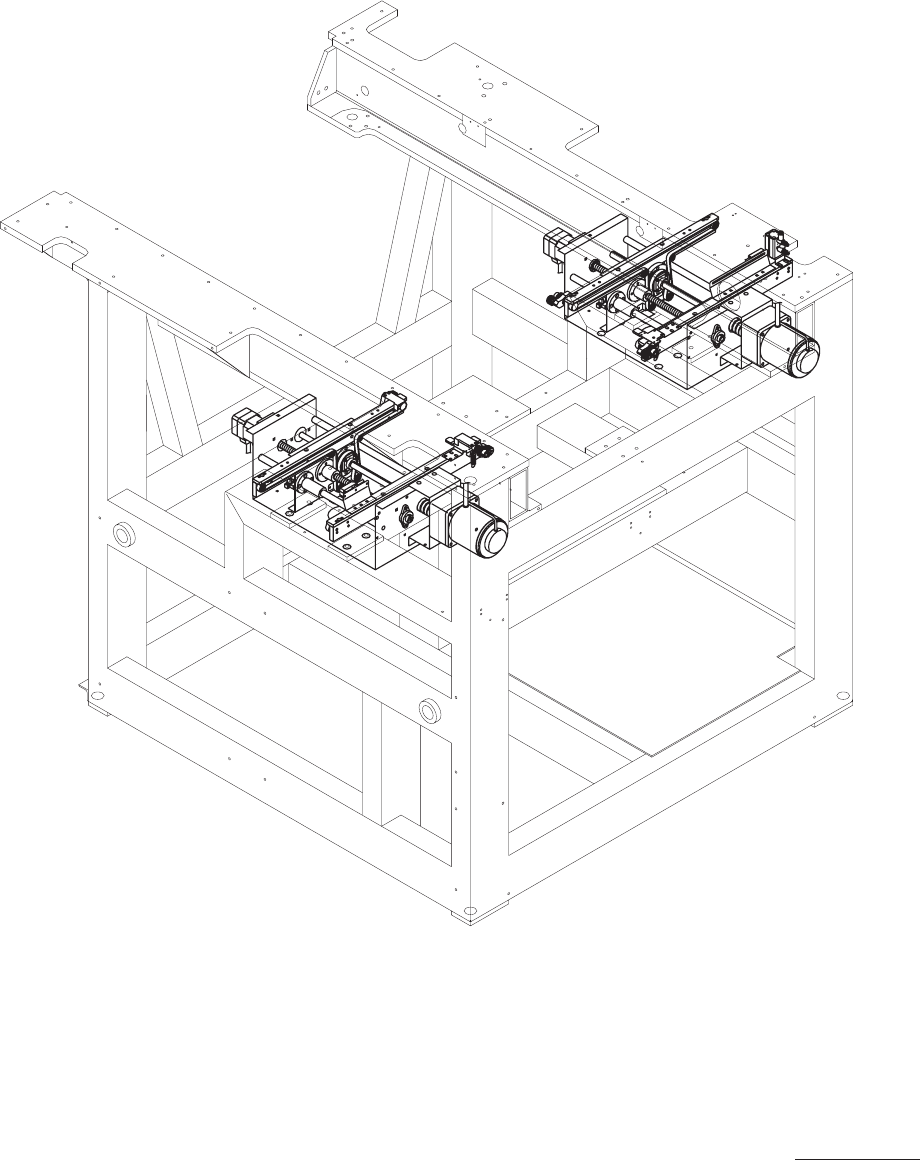

MODEL PXH-1
0606-001
Fig. H
コンベア部
CONVEYOR SECTION
MODEL PXH-1
1006-003
92
61
67
66
See Fig.H-2
Key No.123
See Fig.H-2
Key No.122
62
9
63
70
8
1
2
4
72
1
5
3
6
2
1
18
73
21
1
16
11
62
20
62
10
78
62
69
68
74
16
1
7
9
70
65
1
2
1
5
19
73
22
1
2
72
4
3
6
70
63
8
66
67
61
17
76
75
12
14
11
15
13
62
69
68
14
65
70
13
15
7
62
コンベア部
CONVEYOR SECTION

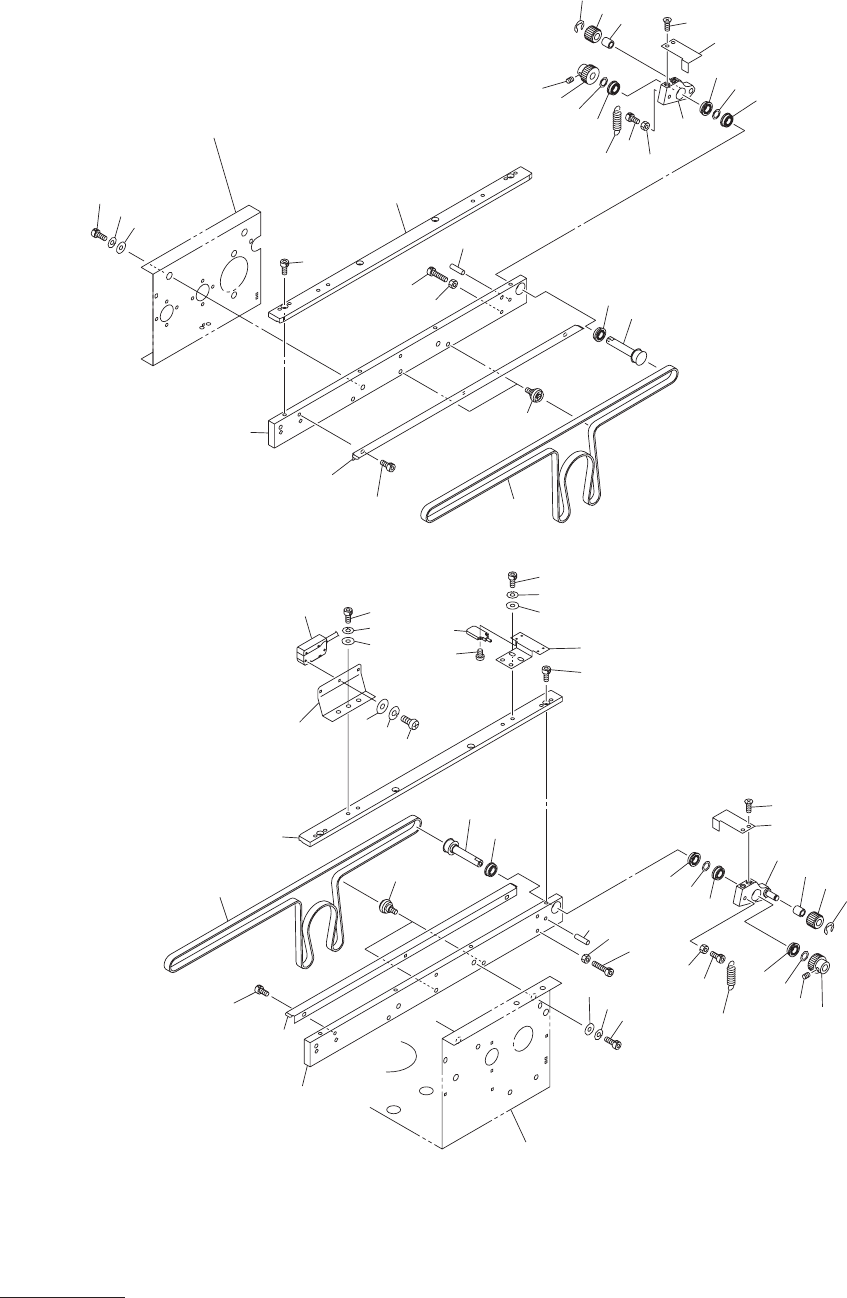

Fig. H-1 L
コンベア搬送部
L Conveyor Transfer Section
( 手前基準、左流れ）
(Front Reference, Left Flow)
93
MODEL PXH-1
1006-003
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
1 6300884098 BEARING,RADIAL 8 831H--110-001 222D0332
2 6300912265 WASHER 4 831H--110-002 221H0125
3 6301425306 GEAR 2 831H--110-003 223E0435
4 6301425313 GEAR 2 831H--110-004 223E0436
5 6300068399 BUSH,BEARING 2 831H--110-005 222A0044
6 4110010201 RING E 5 2 831H--110-006 221K0098
7 6301068961 PULLEY,FLAT 4 831H--110-007 223M0036
8 6300029253 SPRING,TENSION 2 831H--110-008 222N0654
9 6300883831 SPRING PIN 2 831H--110-009 221J0049
10 0831200C ASSY_SENSOR 1 B41 831H--110-010 0831200C
11 6301201047 BELT,FLAT 2 831H--110-011 223H0141
12 0831200B ASSY_SENSOR 1 B40 831H--110-012 0831200B
13 6301065083 PLATE 2 831H--110-013 211D7503
14 6301393735 GUIDE 2 831H--110-014 212A2255
15 6301418063 PLATE 2 831H--110-015 211DB214
16 6301422480 PULLEY 2 831H--110-016 213B0202
17 6301490038 BRACKET 1 831H--110-017 211FB226
18 6301013336 LEVER 1 831H--110-018 216S2218
19 6301013343 LEVER 1 831H--110-019 216S2219
20 6301393759 BRACKET 1 831H--110-020 211FA032
21 6301398426 BRACKET 1 831H--110-021 211FA075
22 6301398433 BRACKET 1 831H--110-022 211FA076
61 6300007886 BOLT,HEX-SCT 4 M6X16 221A0043
62 6300007619 BOLT,HEX-SCT 18 M4X8 221A0016
63 6300007633 BOLT,HEX-SCT 2 M4X12 221A0018
65 6300007671 BOLT,HEX-SCT 2 M4X25 221A0022
66 4111414305 WASHER V 6X12.5X1.6 4 FW6 221H0320
67 4111413001 WASHER SPR 6 4 SW6 221H0289
68 4111414008 WASHER V 4X9X0.8 4 FW4 221H0315
69 4111412905 WASHER SPR 4 4 SW4 221H0284
70 4111410307 NUT HEX 4 4 M4 221F0082
72 6300082296 SET SCREW 2 M4X4 SET 221C0027
73 4110352707 SCR FLT 4X8 4 M4X8 FLT 221D0225
74 4110407803 SCR PAN 3X12 2 M3X12 PAN 221E0489
75 4111191909 WASHER V 3X7X0.5 2 FW3 F 221H0311
76 4110864408 WASHER SPR 3 2 SW3 F 221H0280
78 4110392604 SCR PAN 2X6 2 M2X6 PAN 221E0483
H-1
