4OM-1840 1-4-50 1604-001 4.10.2 Support Pin Detection Sensor Cleaning Cycle : Every Week (Required Time : 1 minute) Support Pin Detection Sensor Fig. 4A4-62 Procedure Clean the support pin detection sensors with a rag. N…

4OM-1840

1-4-491604-001

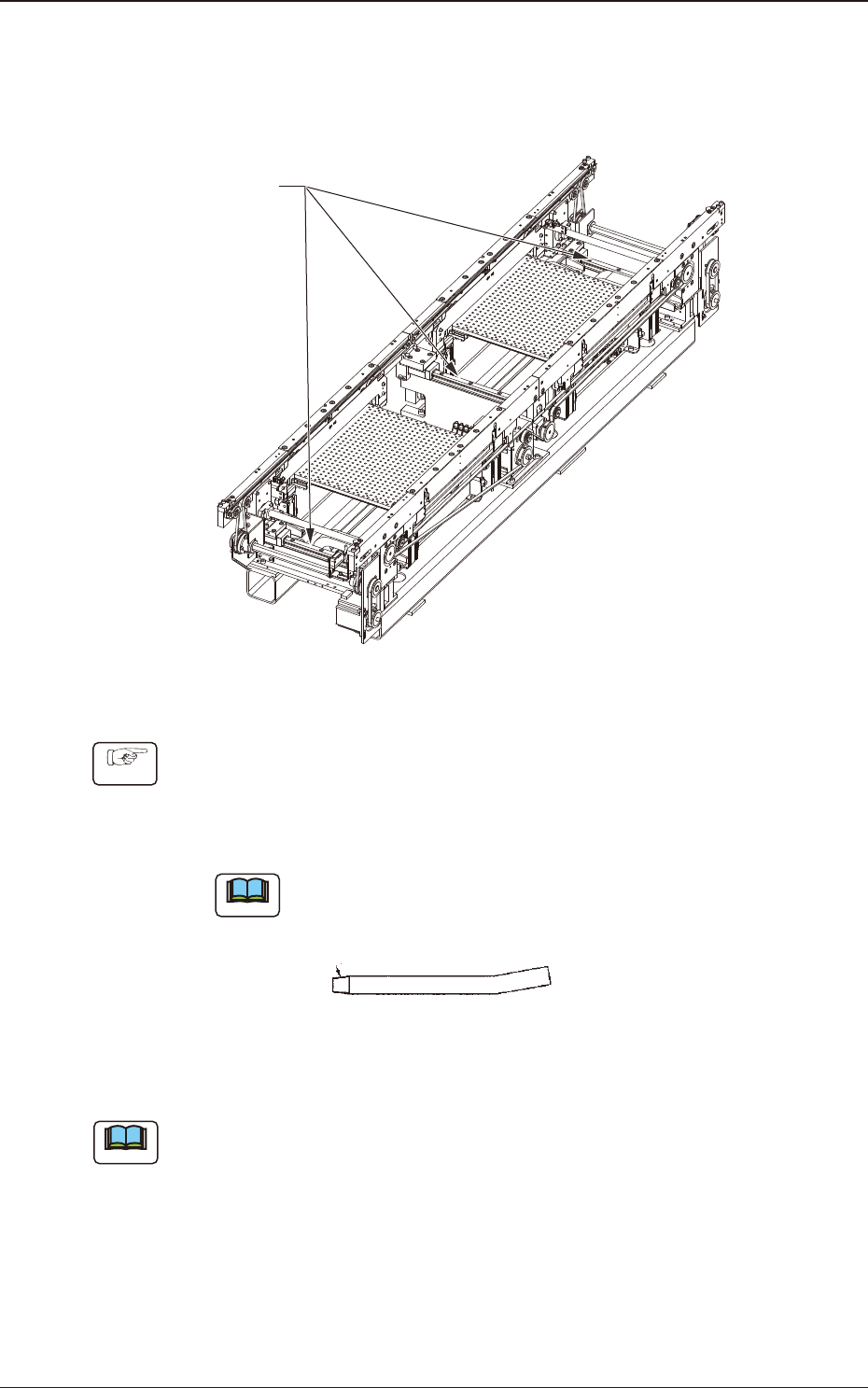

4.10.1 Linear Guide Cleaning and Oiling

Cycle : Every 3 Months (Required Time : 5 minutes)

Grease : DAPHNE GREASE MP No.1

Linear Guide

Fig. 4A4-60

Procedure

  

(2) Attach the H-type attachments to a hand grease gun and supply new grease

to the grease nipples with the hand grease gun.

Note

Use type H nozzle.

Type H

PT1/8

Fig. 4A4-61

Note

Perform the cleaning and oiling operations using the same procedure also in the system

where the Y510 mm Single Transfer Unit (Factory option) has been mounted.

4.10 Conveyor Section

4OM-1840

1-4-501604-001

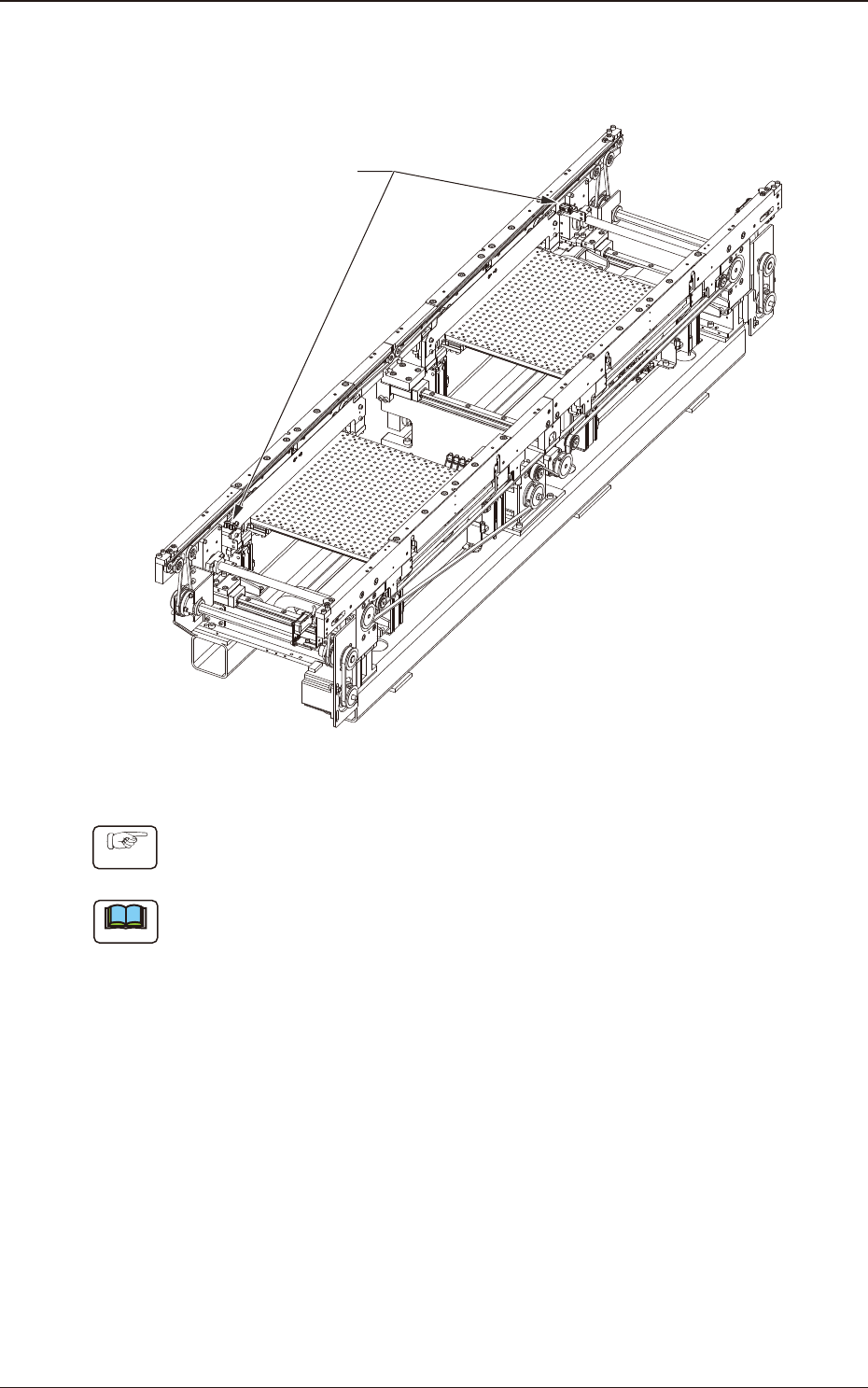

4.10.2 Support Pin Detection Sensor Cleaning

Cycle : Every Week (Required Time : 1 minute)

Support Pin Detection Sensor

Fig. 4A4-62

Procedure

Clean the support pin detection sensors with a rag.

Note

Perform the cleaning operation using the same procedure also in the system where the

Y510 mm Single Transfer Unit (Factory option) has been mounted.

4.10 Conveyor Section

4OM-1840

1-4-511604-001

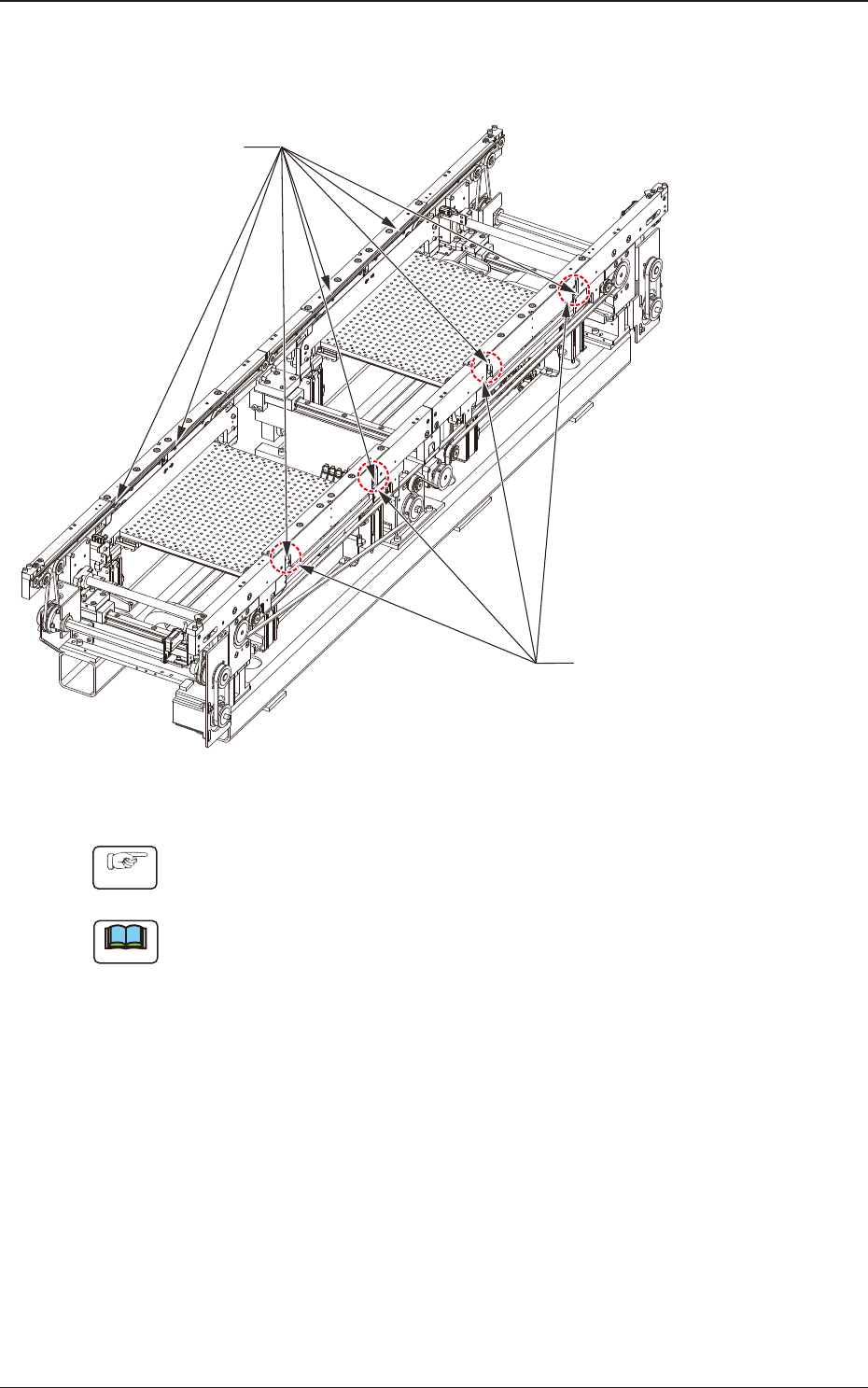

4.10.3 PCB Detection Sensor Cleaning

Cycle : Every Week (Required Time : 2 minutes)

PCB Detection Sensor

The light receiving section is

located inside these sections

in the figure.

Fig. 4A4-63

Procedure

Clean the PCB detection sensor light emitting and receiving sections using a rag.

Note

Perform the cleaning operation using the same procedure also in the system where the

Y510 mm Single Transfer Unit (Factory option) has been mounted.

4.10 Conveyor Section
