4OM-1840 1-5-8 1604-001 5.5 Cleaning of high-speed nozzle hole part with pin gauge (3) Move the pin gauge to the direction of the length hand of pick-up hole and remove the internal clog. Pin gauge High-speed nozzle Fig.…
4OM-1840
1-5-7
1604-001

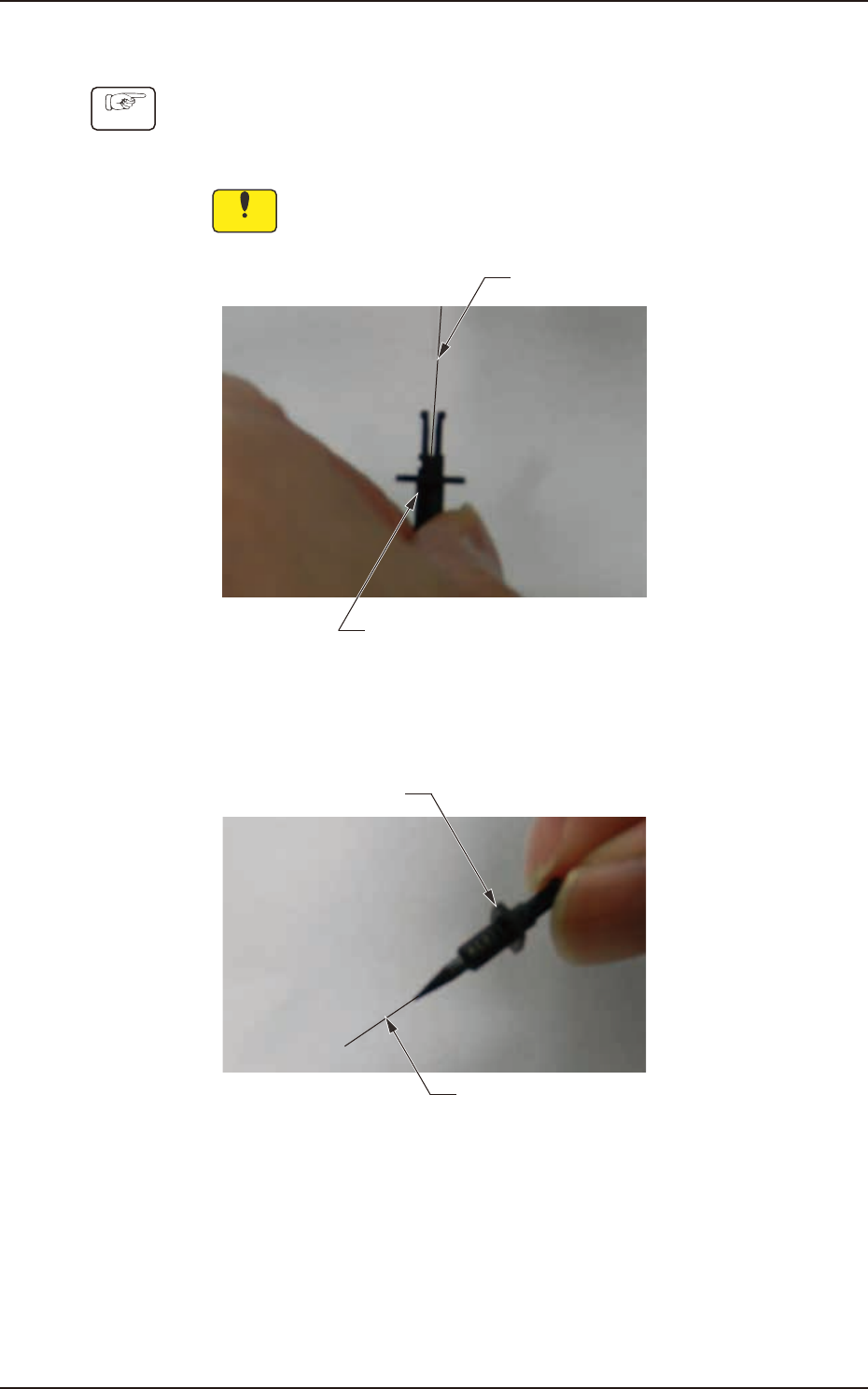

5.5 Cleaning of high-speed nozzle hole part with pin gauge
•
Method of cleaning high-speed nozzle hole
Procedure
(1) Firmly have the high-speed nozzle as shown in the following photograph
and insert it while matching a pin gauge center axis to a center axis of
a high-speed nozzle.
Notice
When a center axis shifts, the head might be damaged.
Pin gauge
High-speed nozzle
Fig. 4A5-5
(2) Put out the pin gauge from the head of the high-speed nozzle.
High-speed nozzle
Pin gauge
Fig. 4A5-6
4OM-1840
1-5-8
1604-001

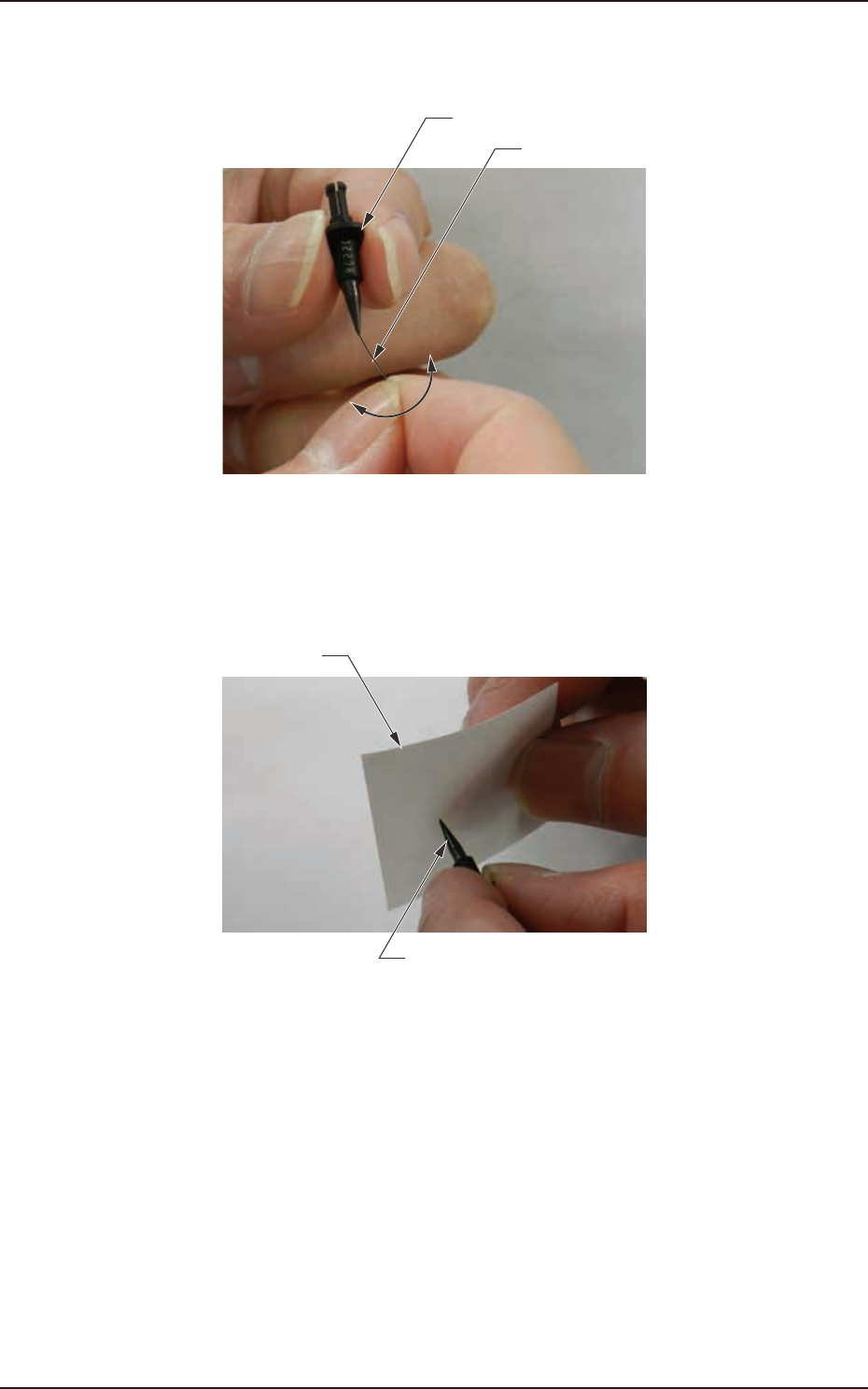

5.5 Cleaning of high-speed nozzle hole part with pin gauge
(3) Move the pin gauge to the direction of the length hand of pick-up hole and
remove the internal clog.
Pin gauge
High-speed nozzle
Fig. 4A5-7
high-speed nozzle head by the masking tape).
High-speed nozzle
Masking tape
Fig. 4A5-8
4OM-1840
1-5-9
1604-001
5.6 Nozzle Filter Insertion Procedure
1304-001
5.6 Nozzle Filter Insertion Procedure
• Filter replacement jig for High-Speed and Middle-Size/Odd-Shape
Note
picking up Middle-Size/Odd-Shape component. The same procedures
apply to both jigs.
For Nozzle picking up
Middle-Size/Odd-Shape
component
For High-Speed Nozzle
Nozzle set position
F4A83
Procedure
tool.
Nozzle filter set position
F4A58A
Acrylic block
(for holing filter)
Acrylic block set on nozzle filter set position
Nozzle filter set position
F4A59A
