4OM-1840 1-6-2 1604-001   Fig. 4A6-3 6. Use Procedure of Diusion Plate Setup Jig

4OM-1840

1-6-1

1604-001

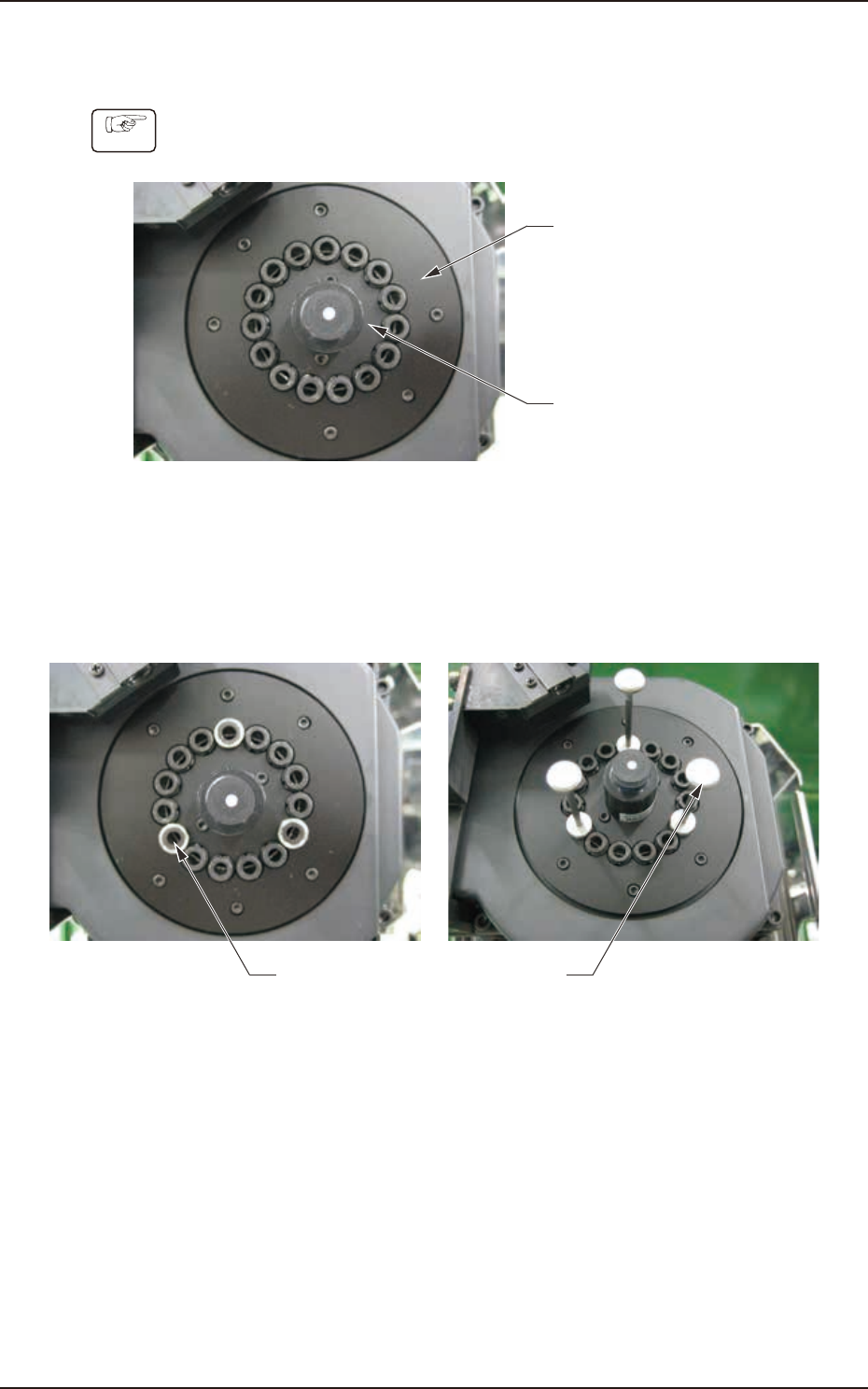

6. Use Procedure of Diusion Plate Setup Jig

Procedure

  

Outer Diffusion Plate

Inner Diffusion Plate

Fig. 4A6-1

(2) Attach the Jigs No. 1 and No. 2 onto the three locations as shown in the



Take care not to damage the linear measure sensor.

Jig 1 Jig 2

Fig. 4A6-2

4OM-1840

1-6-2

1604-001

 

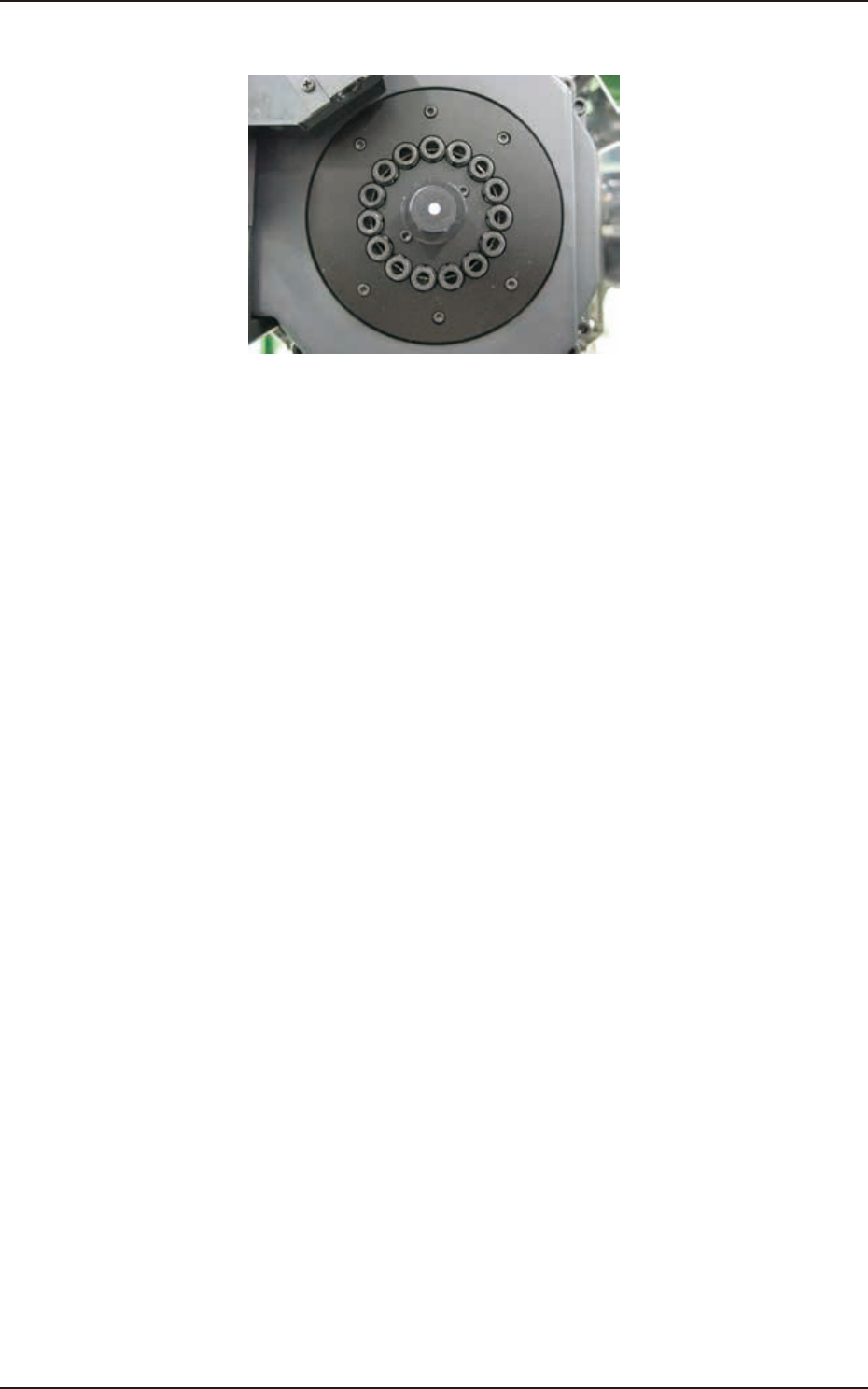

Fig. 4A6-3

6. Use Procedure of Diusion Plate Setup Jig

4OM-1840

1-7-1

1604-001

7. Consumables and Servicing Parts

7.1 List of Consumables

This component list is for the components that would be worn within one year.

When any of these components are to be purchased, contact Marketing Dept. of

YAMAHA MOTOR CO., LTD or our sales agent.

Table 4A7-1

Product Name Part No. Part Name Q'ty

Recommended

Replacement

Cycle

Recommended

number per year

Note (a)

Remarks

Nozzle (HV82C)

Nozzle (HG82C)

KYA-M7782-A0

HV82C---

ASSY_NOZZLE(HV82C) 30 One Year 30

Nozzle (HV13C)

Nozzle (HG13C)

KYA-M7713-A0

HV13C---

ASSY_NOZZLE(HV13C) 30 One Year 30

Nozzle (HV14C)

Nozzle (HG14C)

KYA-M7714-A0

HV14C---

ASSY_NOZZLE(HV14C) 30 One Year 30

Nozzle (HG33C) KYA-M7703-A0

HG33C---

ASSY_NOZZLE(HG33C) 30 One Year 30

Nozzle (HG52C) KYA-M7705-00

HG52C---

ASSY_NOZZLE(HG52C) 30 One Year 30

Nozzle (HG24C) KYA-M7702-A0

HG24C---

ASSY_NOZZLE(HG24C) 30 One Year 30

Vacuum Filter

KYB-M704D-00

225B0572

AIR_CLEAN_EQPT 120 Three Months 480

Nozzle Filter KYA-M7702-10

225A0045

AIR CLEAN EQPT 60 One Week 2880 Note (e)

Note

(a) The recommended number of pieces is the value for reference only.

(b) Refer to "3. Maintenance Spots" for component replacement procedures.

period. The recommended replacement cycle varies depending on the

operation condition or operation environment of the product.

(d) In the case of consumables, for the malfunction due to an error in the

manufacturing process, we will replace it by a new one for free of charge.

 

on the nozzle type, pattern program data or operation environment.

 

HV--- : Rigid Nozzle

HG--- : Soft Mounting Nozzle
