4OM-1840
1-4-91604-001

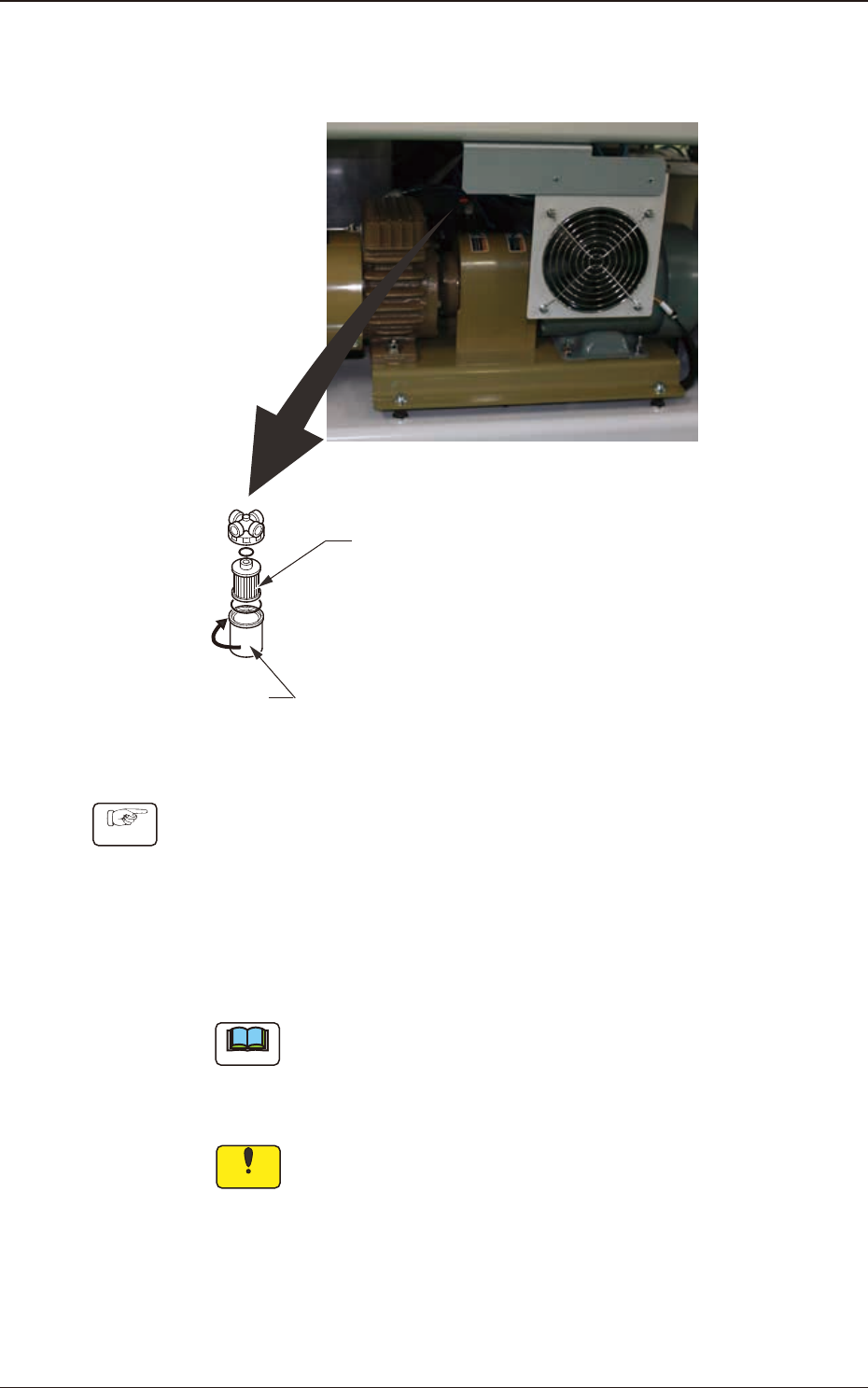

4.2.2 Filter Cleaning
Cycle : Every 3 Months (Required Time : 10 minutes)
Filter Case
C
Filter
Fig. 4A4-10
Procedure
(1) Remove four setscrews fastening the cover located at the lower area of the
front side of the machine and detach the cover.
 

 
Note
When the vacuum pressure has dropped during the operation, replace the

(4) Attach the cover and tighten the setscrews.
Notice
If a clearance is left between the main machine and the cover, the
tape will pop out from the clearance during the operation, causing
the machine to breakdown or generate an error.
4.2 Vacuum System
4OM-1840
1-4-101604-001
4.3 Component Recognition Camera Section
NOTICE
Do not put your hand onto the ducial mark block.
If too much force is given to the ducial mark block it
may become deformed.
Fiducial Mark Block
Component Recognition Camera
(4 locations)
Every Day Cleaning
Required Time: 4 minutes
Fig. 4A4-11
Fiducial Marks (4 locations)
Every Week Cleaning
Required Time: 2 minutes
Component Storage Box
Every Day Cleaning
Required Time: 1 minute
Fig. 4A4-12
Note
These options are selected together with the SIGMA-F8S high-speed
multi-purpose head as a factory set when the system is delivered from the
factor.
4.3 Component Recognition Camera Section
4OM-1840
1-4-111604-001

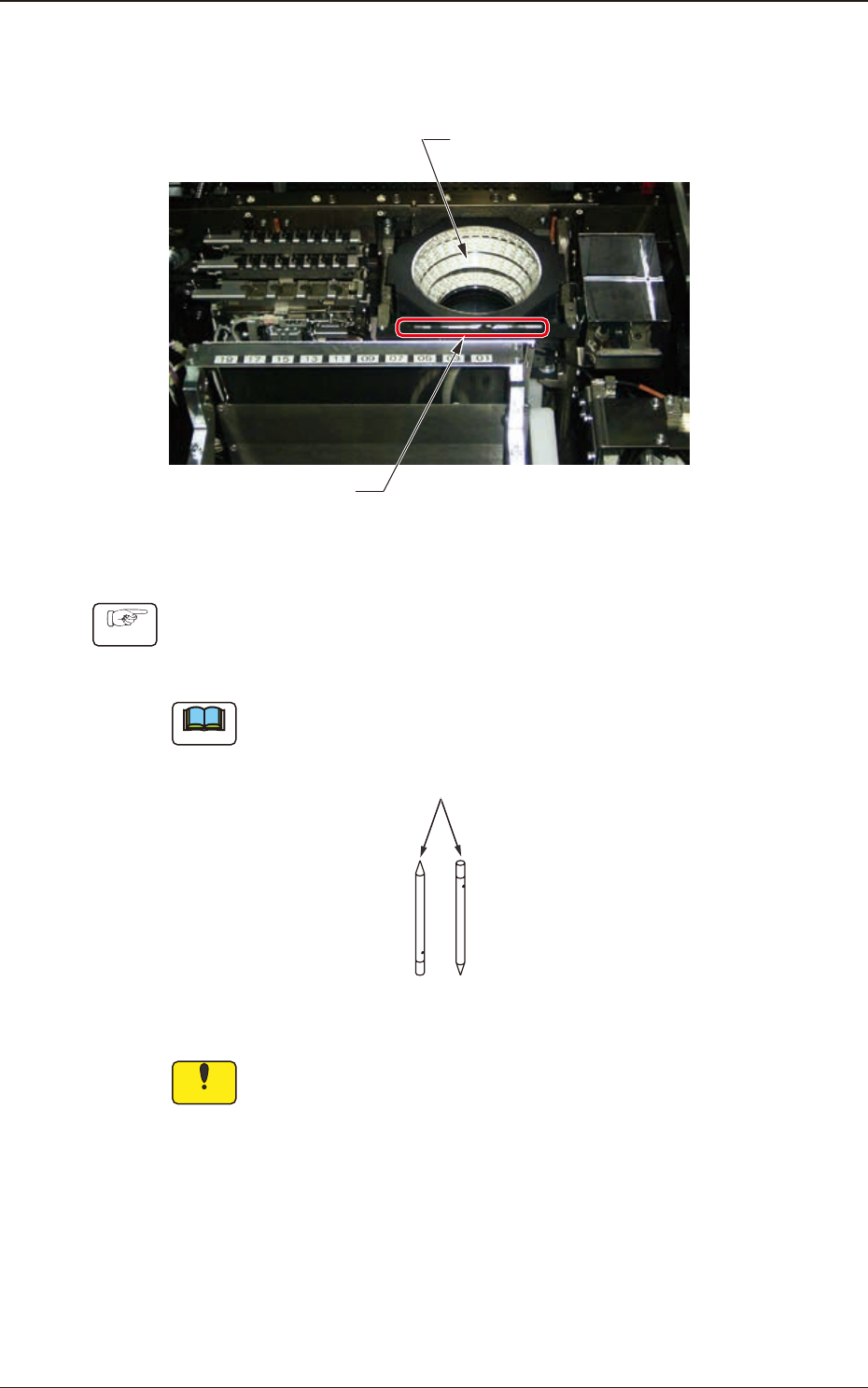

4.3.1 Component Recognition Camera Cleaning
Cycle : Every Day (Required Time : 4 minutes)
Component Recognition
Camera (4 locations)
Fiducial Mark Block
Fig. 4A4-13
Procedure
(1) Remove any dropped component, etc., using the vacuum tweezers.
 
Note
G -S047-01 Adhesive Cleaner (Part No: 226J2091) is also available as an option
Adhesive Cleaner
Fig. 4A4-14
Notice
Use a suction force such as a vacuum cleaner for the cleaning.
Do not blow air to any cleaning section with an air gun.
When air is blown, the dirt and dust inside the machine will disperse,
causing the recognition system and the machine to malfunction.
