Station Software 7xx to 714.0 (R20-2) / Feature Description 11/2020 Edition

Items 3 to 5: LED for Air Blast Valve, DIP Switch and Reject Bin

These states are displayed in the new FCU Inputs/Outputs view under Manual operations –

Subsystems on the GUI and are accessible as of the Machine Service activity level.

Figure 7-33: States of air blast valve, DIP switch and reject bin

There are no sensors to check the state of the air blast valves. Only the ports to which the air blast

valves are connected can be tested - no matter what is connected and operable there. With the Air

blast valve button, it is possible to enable the display of changes on these ports. The displayed

state can be modified on the GUI.

The test mode to check the presence / absence of a reject bin can be enabled and disabled with

the DIP switch, bit 3: Reject bin test mode button.

Only bit 3 (=reject bin test mode) can be enabled and disabled for the DIP switch.

7.33 DX4 Placement Machine – PCB Barcode Reader Functions

Compatible mode: Complete, if the barcode reader is upgraded

All PCB barcode reader functions that can be used on the SX4 placement machine can be

unrestrictedly used on the DX4 placement machine as of this station software version.

Station Software 7xx to 714.0 (R20-2) / Feature Description 11/2020 Edition

100

7.34 Automatic Deactivation of the Component Sensor

Compatible mode: Complete

To avoid scattered light, the component sensor of the CPP placement head is automatically

deactivated before the component centering with the stationary camera or the coplanarity

measurement are performed.

7.35 Automatic Deactivation of the Compressed Air

If the compressed air was automatically deactivated for the CPP and C&P20 placement heads in

station software 705, this setting had to be manually deactivated under Settings – Machine

settings, before the embedded software was downloaded to the subsystems.

As of station software 706, this setting is automatically deactivated.

7.36 Automatic Pin Positioning with Smart Pin Support

Compatible mode: Not supported

Smart Pin Support is also supported on the new X3S, X4S and X4Si placement machines. When

Smart Pin Support is used, each gantry must be equipped with a pin picker.

The Auto Configuration has been adjusted to configure the installation location and position of the

pin pickers and the pin magazines correspondingly.

As of this station software version, the support pin positions can be periodically checked. The

setting to enable the check and time interval can be made under Settings – Machine options. If

necessary, the pin positions will be reset automatically.

Station Software 7xx to 714.0 (R20-2) / Feature Description 11/2020 Edition

101

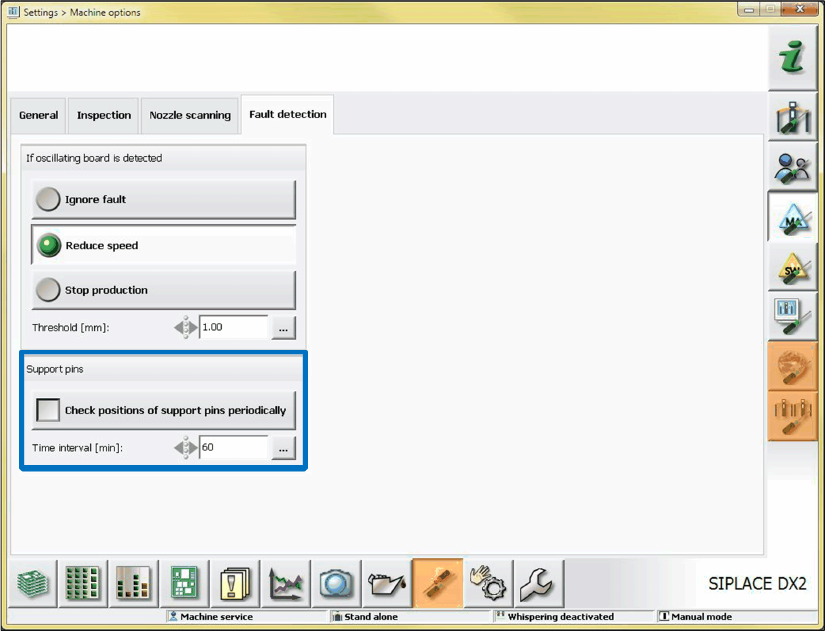

Figure 7-34: Periodically checking support pin positions

Detailed information about Smart Pin Support can be found in the corresponding User Manual, item

no. [00197001-xx], and in the Online Helps for SIPLACE Pro and the station software.

7.37 SIPLACE GlueFeeder Feeder Type

Compatible Mode: Hidden

The station software supports the following new functions for the GlueFeeder feeder type:

– Automatic contamination detection on the jet nozzle

– Displaying an editor on the GUI to edit the process parameters (from XML files). The sets can

be activated, copied, deleted, edited, exported and imported via the GUI.

– Management of different jet nozzle types. In the default XML file at least one default parameter

set is delivered for each jet nozzle type. This set can be copied and modified with the editor.

– After a defined number of shots or after a defined time interval, the jet nozzle must be

maintained. For this, the number of shots is displayed in the Feeder view.

– Improved illumination setting for the glue dot inspection in the Vision system: Components do

not have to be rejected and re-picked anymore when the illumination setting is tested.

Additionally, the system can automatically propose a suitable illumination.

Detailed information about SIPLACE GlueFeeder can be found in the corresponding User Manual,

item no. [00197218-xx], and in the Online Helps for SIPLACE Vision and the station software.
