8.32 Placement Process for Springs
Compatible mode: Not supported
The station software provides a new travel profile to support the placement process for springs.
Special parameters must be set in SIPLACE Pro for this placement process.
8.33 Displaying Cutting Times per Compressed Air Cylinder on the
GUI
Compatible mode: Complete
The cutting times per compressed air cylinder can be displayed on the station software GUI. Thus,
the sensor positions can be checked quickly, and the sensors adjusted if necessary.
The measurement of the cutting times is activated via the Cut button under Manual operations –
Subsystems.

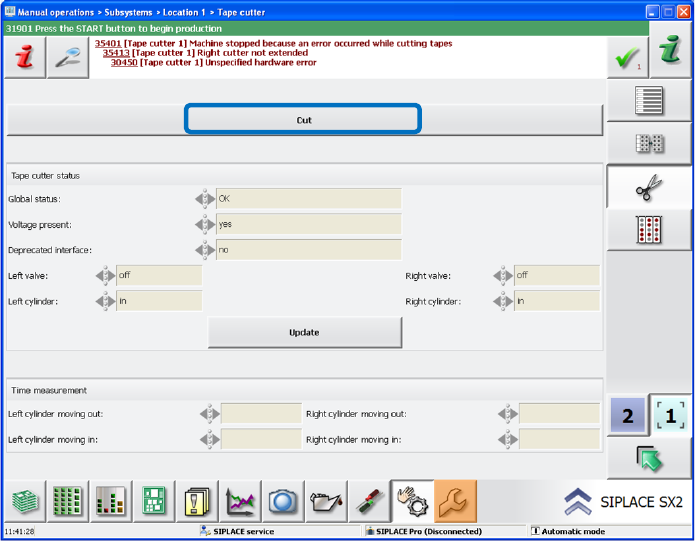

Figure 8-14: Measurement of cutting times
The measured times for moving out and moving back the cylinder are displayed in a table in
milliseconds on the GUI for the left and right cylinders respectively.
The measurement only takes place within the Manual operations and not during production.
Station Software 7xx to 714.0 (R20-2) / Feature Description 11/2020 Edition
149
8.34 SIPLACE Vision Enhancements
The SIPLACE Vision system has been enhanced as follows.
8.34.1 Reading PCB Barcodes with the PCB Camera
Compatible mode: Complete
Until now, a USB dongle containing the necessary software licenses was required for reading PCB
barcodes with the PCB camera.
As of this station software version, another method may be used alternatively with which no USB
dongle is required. The feature is realized via an internal algorithm and only the software licenses
are required.
Detailed information can be found in the respective Installation Manuals to PCB Barcode, item no.
[00197222-xx] and item no. [00197413-xx].
8.34.2 Displaying Polygon Shapes
Compatible mode: Complete
Polygons are now also displayed on the SIPLACE Vision GUI.
8.34.3 Accuracy of Polygon Circles
Compatible mode: Complete
The accuracy of polygon circle features has been improved.
8.34.4 Displaying Component Shape when Teaching Local Fiducials
Compatible mode: Complete
Soldering pad patterns are used as local fiducials for components that require an exact placement
position. In this case it might be difficult to determine the center of the local fiducial. When defining
the reference point, cross hairs and quads are displayed to help aligning the reference point
manually.
Optionally, the component shape of the component that shall be placed at this position may be
displayed. The reference point of the component shape (= placement position) determines the
reference point of the taught fiducial. I.e., it is assumed that the position of the taught local fiducial
is equal to the placement position of the component in the board description.
8.34.5 Multiple Measurements with CPP Placement Head
Multiple measurements can be performed with the CPP placement head via the stationary camera
in Pick&Place mode. Thus, the component range has been extended.
