Station Software 7xx to 714.0 (R20-2) / Feature Description 11/2020 Edition
154

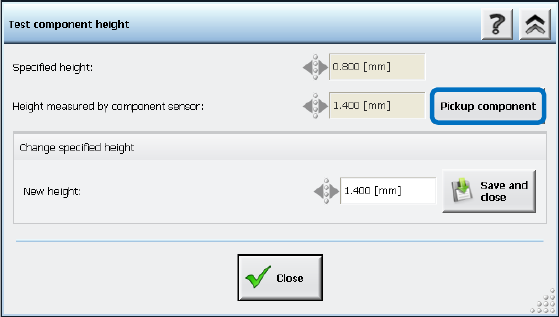

Figure 9-3: Measured height
The pickup of the component with the new measured height can be repeated via the Pickup
component button. If necessary, the measured value can be changed and uploaded to SIPLACE
Pro. The component shape will be updated accordingly in SIPLACE Pro by SIPLACE Pro Line
Control.
Restrictions
– Only for nozzle and component combinations in which the component height is supposed to be
measured with the component sensor.
– The component sensor will not perform any measurement if the component height
measurement is omitted due to SIPLACE Pro rules.
9.7 Logging from Subsystems – Enhancements
Compatible mode: Complete
9.7.1 E Logbook
With the E logbook mechanism (Electronic Card Logging), serial numbers are read from a
subsystem and stored in the ECardLog.xml file. The serial numbers of new modules are listed
under "CurrentMachine" and the old serial numbers of exchanged modules under
"MachineHistory". Thus, the exchange of modules in a machine can be easily detected.
In this station software version, the already available E logbook has been enhanced to include the
recorded data from the following subsystems:
● Complete placement head (with serial number KL-…)
● HCU
● Sensor modules (X, Y)
● FCU
● CAN card
● Box PC
● Power supply (pulse)
Station Software 7xx to 714.0 (R20-2) / Feature Description 11/2020 Edition
155
9.7.2 Statistics Data
The statistics data for the dp-axes of the C&P20A placement heads is read from the subsystem
and stored in the CP20DPDump.xml file. As of this station software version, the statistics data is
additionally recorded for the following subsystems in the same way:
● C&P20 P pressure control valve
● CPP star axis
● CPP z-axis
In contrast to the statistics data for the dp-axes of the C&P20A placement heads that is only
updated during the machine start, the additional statistics data is cyclically loaded from the
subsystems every 24 hours. The data is stored in the C:\Sirio\Work\eSW folder. A separate file is
created for each subsystem.
9.8 New State for Segments of C&P Placement Heads
Compatible mode: Complete
If placement quality and pickup problems occur, the operator frequently disables segments of C&P
placement heads what often results in exchanging the module. However, in many cases the
module is not defective, but the problem was caused by a worn nozzle or filter disk.
In such cases, the new Do not use state can be set for the head segments in the Manual
operations in the State overview view. The Not used state is assigned to the respective
segment. Defective segments first must be set to Do not use and additionally disabled via the
Disable button. Via the Enable button, the segment can be put into operation again.

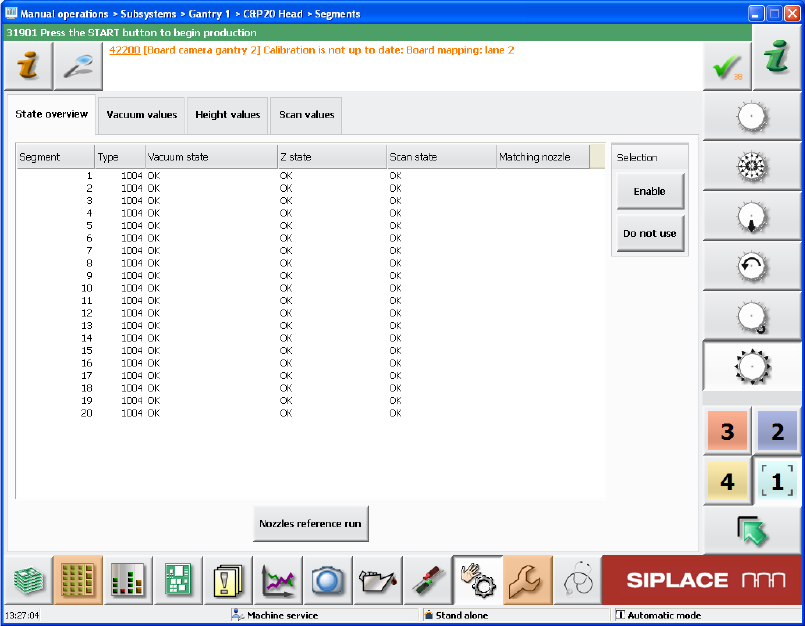

Figure 9-4: Setting the state for segments
Station Software 7xx to 714.0 (R20-2) / Feature Description 11/2020 Edition
156
NOTICE
When upgrading from a previous station software version to the 708.0 version, segments
with the Disabled or Not used states will be automatically reset to the Enabled status! If
required, the state has to be changed manually again for such segments.
9.9 Endurance Run with Components
Compatible mode: Complete
To test parts and modules adequately on early failures before a machine is delivered, an
endurance run has been developed for a possibly real placement mode.
In the endurance run, components are picked up and placed on a board as specified in SIPLACE
Pro. Thereafter, the components are removed from the board in the same sequence they were
placed and recycled before the cycle restarts. Special components, waffle pack trays and boards
are used for this. The waffle pack tray is fed via the conveyor. For higher robustness, fiducials can
be defined on the waffle pack tray.
The endurance run will run automatically and can be enabled under Settings – Software options
– Placement process (advanced) – Endurance run with components as of the Machine
service activity level.

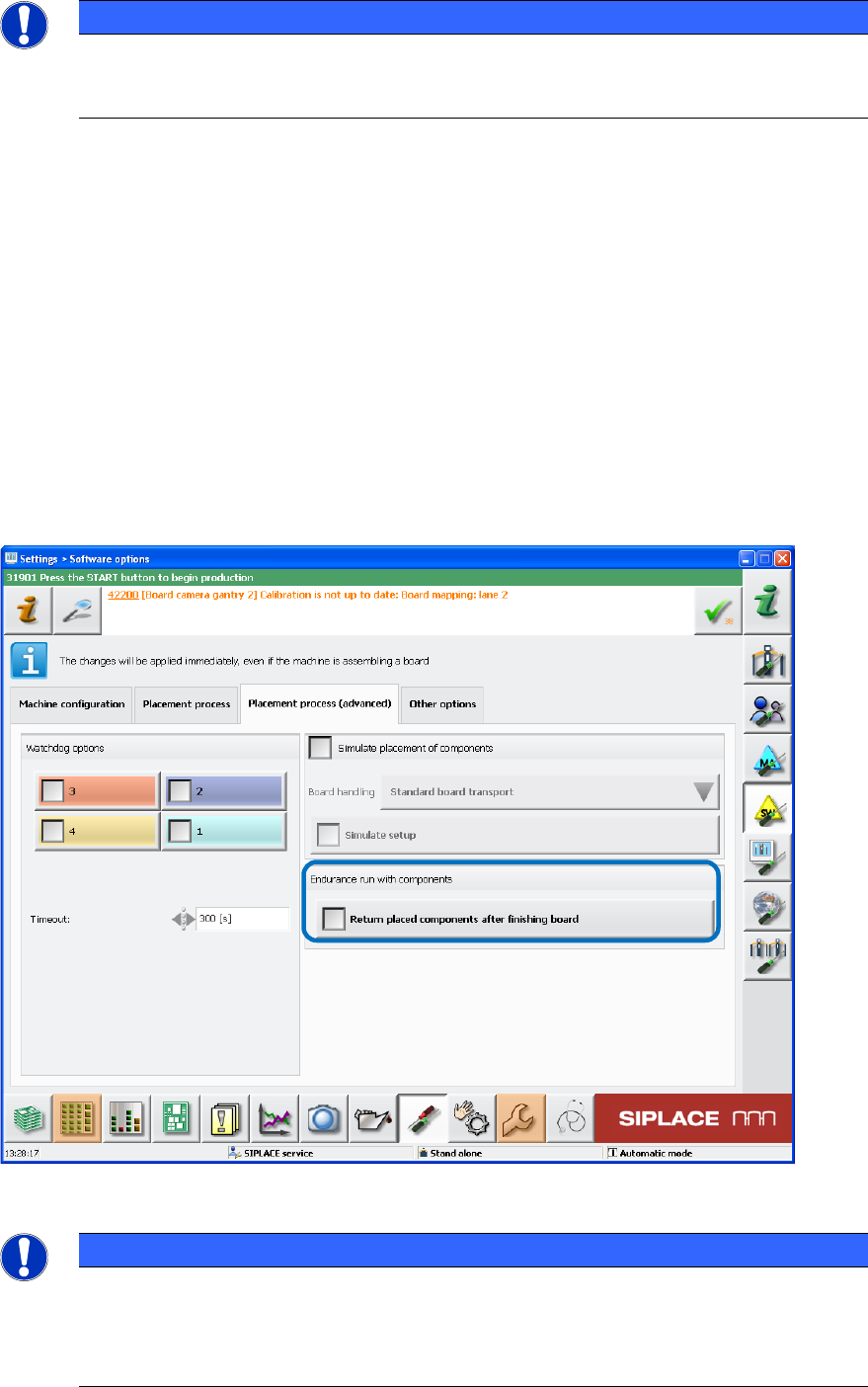

Figure 9-5: Endurance run with components
NOTICE
For operators of previous station software versions:
The already available settings for endurance run without components (Simulate
placement of components) have been moved from the Placement process tab to the
new Placement process (advanced) tab.
