3 Feature Description – Station Software V702.x

Features (V702.01)

3.1 New Placement Head SIPLACE CPP

The new SIPLACE CPP (Collect&Pick&Place with 12 segments) placement head can measure

components with the internal camera as well as with the external stationary camera. Dependent on

the specifications to the camera and the component dimension with the corresponding tolerances,

that are set in SIPLACE Pro, the components will be picked up in Collect&Place mode, in

Pick&Place mode or in a mixed mode. The Collect&Place mode has the same functionality as for

the C&P20 head and the Pick&Place mode has the same functionality as for the Twin Head. The

so-called mixed mode is a combination of Collect&Place mode and inspection with the external

camera for components > 27mm x 27mm, that cannot be inspected with the internal camera due to

their dimensions.

3.2 Support of Twin Head/HFH

Twin Heads/HFH (High Force Heads) are supported on the X2, X3 and X4 placement machines.

With HFH it is possible to achieve placement forces between 2.0 and 30 N, which allows placement

of a wider component range.

3.3 Configurable Nozzle Scan

The nozzle scan can be configured in the machine options concerning the closeness of the nozzle

scan and the behavior of the machine in case of defects.

This function requires the "SIPLACE service" activity level.

3.4 Extended Support of X-Feeders

The support of X-feeders has been extended.

Station Software 7xx to 714.0 (R20-2) / Feature Description 11/2020 Edition

3.5 Tray Feeding

The station software supports the following types of tray feeding on the X2, X3 und X4 placement

machines:

Manual tray feeding:

– Arbitrary Carrier X

– Carrier X

Automatic tray feeding:

– MTC2 on locations 2 and 4.

3.6 New Conveyor Mode "Quad Lane"

Provided that the machine has been configured accordingly, the station software supports the new

"Quad Lane" (QC) conveyor mode additionally to single (SC) and dual (DC) conveyor modes.

The basic principle of "Quad Lane" is that four boards are placed simultaneously on four conveyor

lanes. This increases the overall line performance, especially for boards with a low number of

placement positions. In SIPLACE Pro two boards respectively are defined as a logical pair (2L/2R

and 1L/1R, from left machine side to right machine side). This pair is downloaded in one single job

from SIPLACE Pro to the station. The logically coupled lanes xL and xR are referred to as sub-

lanes. The board width may be different in the 2L/2R and 1L/1R lanes, but all boards must have the

same thickness. The conveyor width is automatically adjusted in the job specification (if automatic

width adjustment is preset in SIPLACE Pro).

Also, single boards may be placed in the sub-lanes. In this case a board must be defined in the job

specification for the sub-lane next to the fixed conveyor edge. Otherwise, the width of this sub-lane

is unknown.

Boards can be aborted separately. However, two boards on one conveyor lane are always

conveyed together. An aborted board is conveyed to the output conveyor together with the placed

board. The placed board will not be driven into the next machine until the aborted board has been

removed from the output conveyor.

The "Quad Lane" conveyor mode is supported on the X4 and X4i placement machines.

Station Software 7xx to 714.0 (R20-2) / Feature Description 11/2020 Edition

The following changes have been made in the station software:

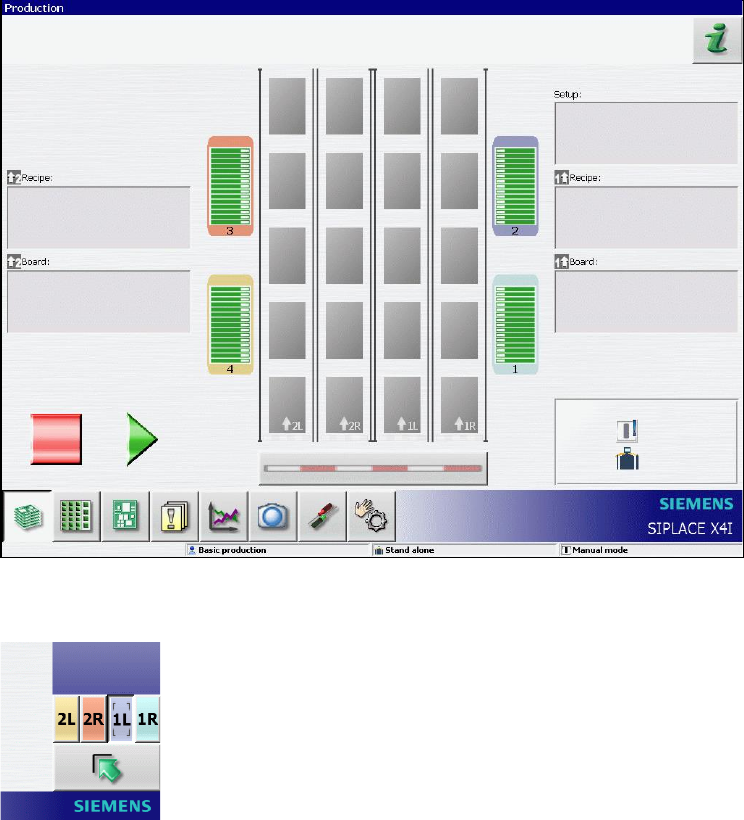

– Four conveyor lanes are displayed in the "Production" view on the GUI main view, when "Quad

Lane" conveyor mode is activated.

– New buttons are used on the GUI to operate the single sub-lanes:

3.7 Single Conveyor Mode on X4i

The single conveyor mode is also supported on the X4i placement machine as of this station

software version.
