Station Software 7xx to 714.0 (R20-2) / Feature Description 11/2020 Edition 227 11.13 Vacuum Tooling The station software supp orts the following new feat ures for vacuum toolings. 11.13.1 Verifying the Vacuum Tooling Co…
Station Software 7xx to 714.0 (R20-2) / Feature Description 11/2020 Edition
226
Features (V710.1 (R17-1): Compatible Mode 709.3)
11.11 SIPLACE CPP M – New Placement Head
Compatible mode: Not supported
The new SIPLACE CPP M placement head offers improved placement accuracy. SIPLACE CPP M
is supported on the TX micron placement machines.
11.12 SIPLACE JTF-ML2 – New Feeder
Compatible mode: Not supported
The new SIPLACE JTF-ML2 tray feeder is supported on the TX-series placement machines and
mounted at location 1 like the SIPLACE JTF-ML feeder. The feeder is equipped with one fixed
magazine and two exchangeable cassettes. There are two cassettes variants: 14 levels (supporting
7/7 cassettes) or 18 levels (supporting 9/9 cassettes). The cassette variants cannot be combined
with each other!
The SIPLACE JTF-ML2 can be combined with the CPP_H, CPP M_H and TH placement heads.
If the SIPLACE JTF-ML2 is used, the operator must set the X-Table, multi tray feeder support
option for location 1 in the auto configuration. After changing the auto configuration, a restart is
required.
The cassettes can be changed during production. When a new setup was downloaded from
SIPLACE Pro, the operator moves the cassettes one after the other in refill position and changes
the cassettes via the station software GUI under Setup – Single feeder - Settings.

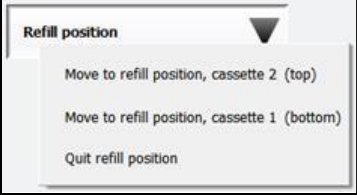

Figure 11-11: Refill position
After having changed the cassettes, the operator must click the Quit refill position button. This
triggers the SIPLACE JTF-ML2 to read the required cassette data from the inserted cassettes. The
station software receives this information and transmits the data to ASM Setup Center. If the wrong
cassette type is inserted, a corresponding error message is displayed.
The station software GUI has been enhanced to display the SIPLACE JTF-ML2 data under Manual
operations – Setup location – Selected feeder – Details…
Station Software 7xx to 714.0 (R20-2) / Feature Description 11/2020 Edition
227
11.13 Vacuum Tooling
The station software supports the following new features for vacuum toolings.
11.13.1 Verifying the Vacuum Tooling
Compatible mode: Not supported
The vacuum tooling must exist in SIPLACE Pro. The SIPLACE Pro user selects the vacuum tooling
for each location in the setup and enters it into a list of each board in the recipe. The selected
vacuum tooling must have been configured in the station software by selecting it manually in the
auto configuration at the station.
11.13.2 Checking the Vacuum Tooling Fiducials
Compatible mode: Not supported
If the vacuum tooling is equipped with fiducials, these will be checked by the board camera at the
station and compared with the imported target positions of the tool.
If vacuum tooling fiducials are used, the station software performs a plausibility check while
calibrating the vacuum tooling to ensure that the correct data set is used. If the fiducials are not
plausible (e.g. distances between the fiducials are larger than 4 µm), a corresponding warning is
displayed. Additionally, the station software checks the assembling position of the vacuum tooling.
11.14 Providing Process and Board Data via ASM OIB
Compatible mode: Not supported
To provide a defined set of process and board data via ASM OIB, the station software OIB
interface has been extended accordingly. Because of the expected huge amount of data, the
information will be sent in portions during placement. This is a licensed feature.
11.15 Shuttle Extension for SIPLACE TX-Series – Enhancements
Compatible mode: Not supported
The following enhancements have been implemented for the shuttle extension for SIPLACE TX-
series in this station software version:
● Optionally, a barcode reader can be installed in the shuttle for reading barcodes on the top and
bottom side.
In this case, the following hardware options are required in the shuttle configuration in the
station software:
– Conveyor belt extension
– Barcode scanner – Lane 1/2 – top/bottom
Under Manual operations – Shuttle manual operations the new Read barcode button is
offered if at least one barcode reader is installed. After pressing this button, the configured
barcode readers are displayed for selection.
If a barcode is required but barcode reading fails during production, a detailed error is
displayed. The operator can select to cancel the board or enter the barcode manually.
Station Software 7xx to 714.0 (R20-2) / Feature Description 11/2020 Edition
228
● If WDTL is used, the data of the board located in the shuttle is stored to support auto recovery.
● Station-wise download is now supported together with the shuttle.
Restrictions
SIPLACE Pro does not send any information of the barcode position on the board top side.
11.16 Board Inspections – New Types
Compatible mode: Not supported
Additional inspections can be coupled to a placement position. The board camera is used for those
inspections.
Detailed information on the board inspections can be found in the Onboard PCB Inspection User
Guide, item no.: [00198375-xx].
11.17 Alternative Components – Enhancements
Compatible mode: Not supported
When alternative components are used, the station software now supports setup changes without
running the machine empty.
11.18 Temperature-Based Head Recalibration
Compatible mode: Not supported
The temperature sensor at the head plate is now used within the station software for recalibrating
the placement head on TX2 micron and TX2i micron placement machines. The temperature sensor
triggers recalibrations during production to achieve an optimal placement rate.
A new repetition strategy in the accuracy procedures ensures that recalibrations are performed
more often when the machine is changing rapidly (indicated by a change of the temperature) and
seldom when the machine reaches its operating point (indicated by a stable temperature).
11.19 Touchless Placement – New Placement Process
Compatible mode: Not supported
A new placement process has been introduced for placing very sensitive components in the chip
process. With the Touchless Placement process, components will be placed on a board for which
the position of height measurement points has been defined in SIPLACE Pro. Detailed information
can be found in the Touchless Placement User Guide, item no: [00198376-xx].
