RV Series Automated Dispensing Systems 136 www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide. AppendixD, QR Code Scanning Setup (continued…
RV Series Automated Dispensing Systems
135www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.

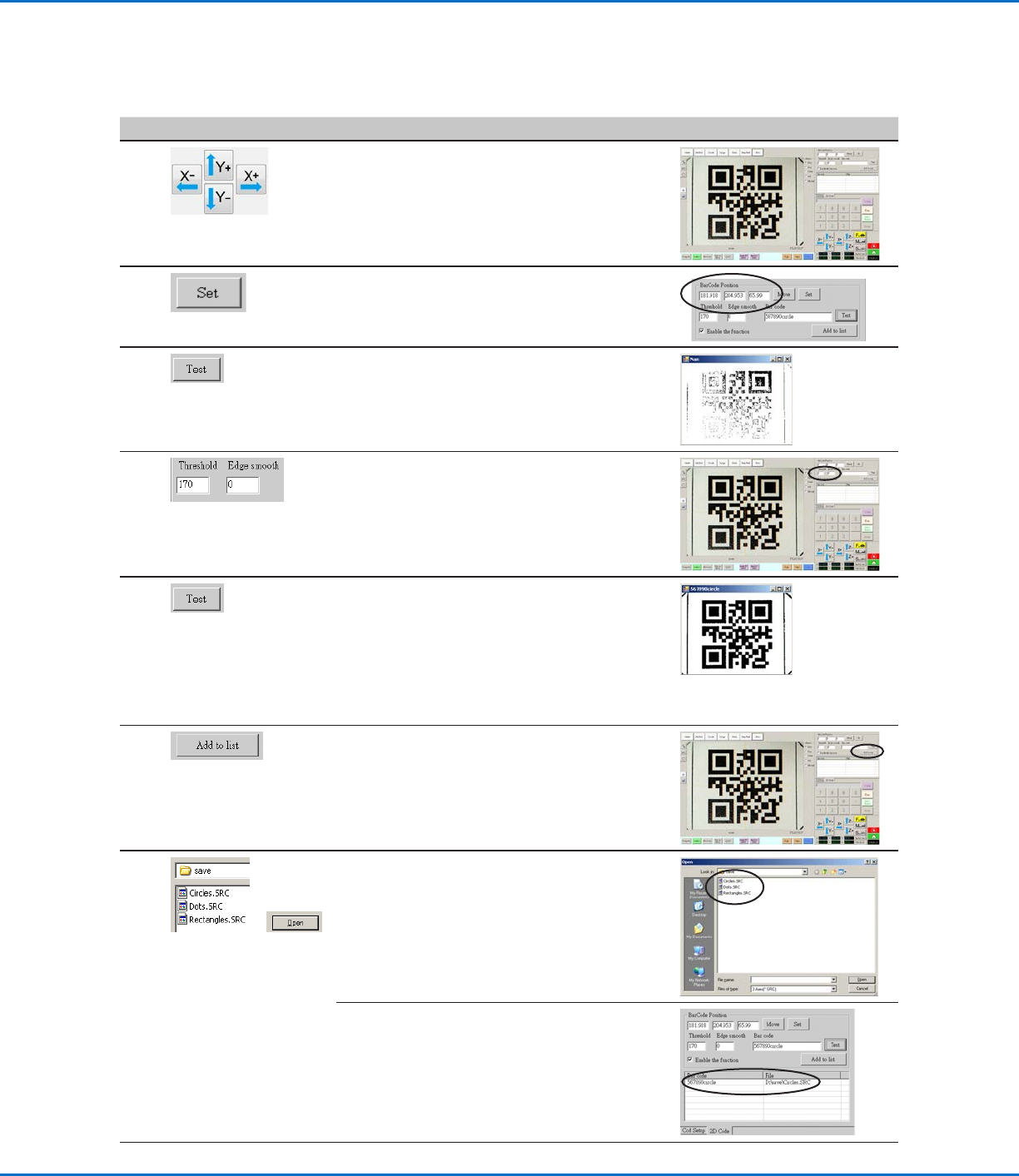

AppendixD, QR Code Scanning Setup (continued)
To Associate a QR Code with a Program
# Click Step Reference Image
1
• Jog the camera until it is centered over
the QR code you want to associate with a
program.
2 • Click SET to record the location.
The QR code location coordinates appear in
the BarCode Position fields.
3 • With the QR code in view and in focus, click
TEST to scan the QR code.
If the system cannot identify the QR code, the
Nan pop-up window appears.
4 • Adjust the THRESHOLD and EDGE SMOOTH
values:
- THRESHOLD: Range = 0–255
- EDGE SMOOTH: Range = 0–5
5 • Click TEST again.
When the system properly identifies the QR
code, a window like the one at right appears.
• Repeat steps 4 and 5 until the system
recognizes the QR code. After the QR code
is recognized, continue with the next steps to
associate it with a program.
6 • Click ADD TO LIST.
The Open file window appears.
7
>
• Select the dispense program to associate
with the QR code, the click OPEN.
The dispense program is now associated with
the QR code.
Continued on next page
RV Series Automated Dispensing Systems
136 www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
AppendixD, QR Code Scanning Setup (continued)
To Associate a QR Code with a Program (continued)
# Click Step Reference Image
8
• Continue to add additional QR codes as
needed.
• To remove a QR code, right-click on the QR
code and then click DELETE.
9
>
• Return to PROGRAM screen and then click
RUN to test the program.
The system finds the QR code, scans it,
opens the associated program, and executes
the program.
Refer to the screen captures.
The system is now set up for QR code
scanning. Refer to “Running a Program by
Scanning a QR Code” on page89 for an
operating procedure.
1. Clicking PROGRAM and then RUN to test the program. 2. The system moves to the QR code and scans it.
The system opens the program and executes it.
RV Series Automated Dispensing Systems
137www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
To Set the Camera-to-Tip Offsets for Multiple Dispensers
NOTE: This procedure explains the setup process for two dispensers. Repeat steps as needed to set up the system
for additional dispensers (up to four dispensers can be installed).
# Click Step Reference Image
1
> >
• Click the CAMERA tab, click SETUP at the
top of the Camera screen, and then click the
MULTI-NEEDLE tab.
The Multi Needle fields appear.
2 • If your system does not include the tip
detector, create a crosshair target point close
to the workpiece.
Continued on next page

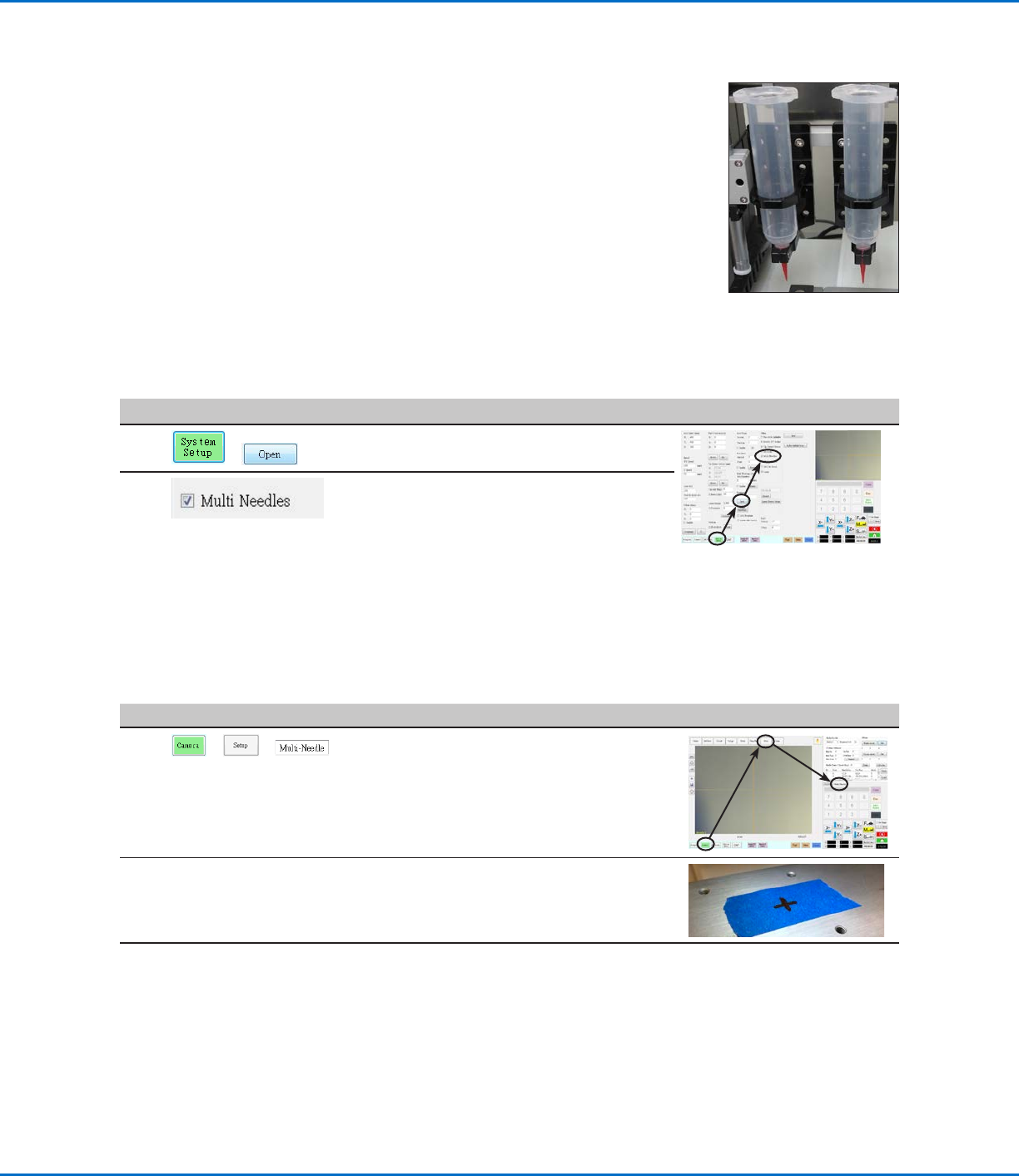

AppendixE, Multi-Needle Setup and Use
A multi-dispenser bracket can be installed on the Zaxis to accommodate up to four
dispensers. When more than one dispenser is installed, the camera-to-tip offset must
be set for each dispenser. After the system is set up for multi-needle operation, you can
insert the Multi Needle dispense command to specify which dispenser executes the
commands that follow the Multi-Needle command.
NOTE: For contact dispensing applications with multiple dispensers, an additional toggle
assembly is required for the multi-dispenser bracket.
PREREQUISITES
The required additional dispensers are installed on the robot. Contact your Nordson
EFD representative for assistance as needed.
The system is properly set up. Refer to “Setting Up and Calibrating the System (Required)” on page45.
A test workpiece is positioned on the fixture plate or work surface.
To Enable Multi-Needles Dispensing
#
Click Step Reference Image
1
>
• Click the SYSTEM SETUP tab, then click
OPEN.
2 • Check MULTI NEEDLES.
