RV Series Automated Dispensing Systems
27www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.

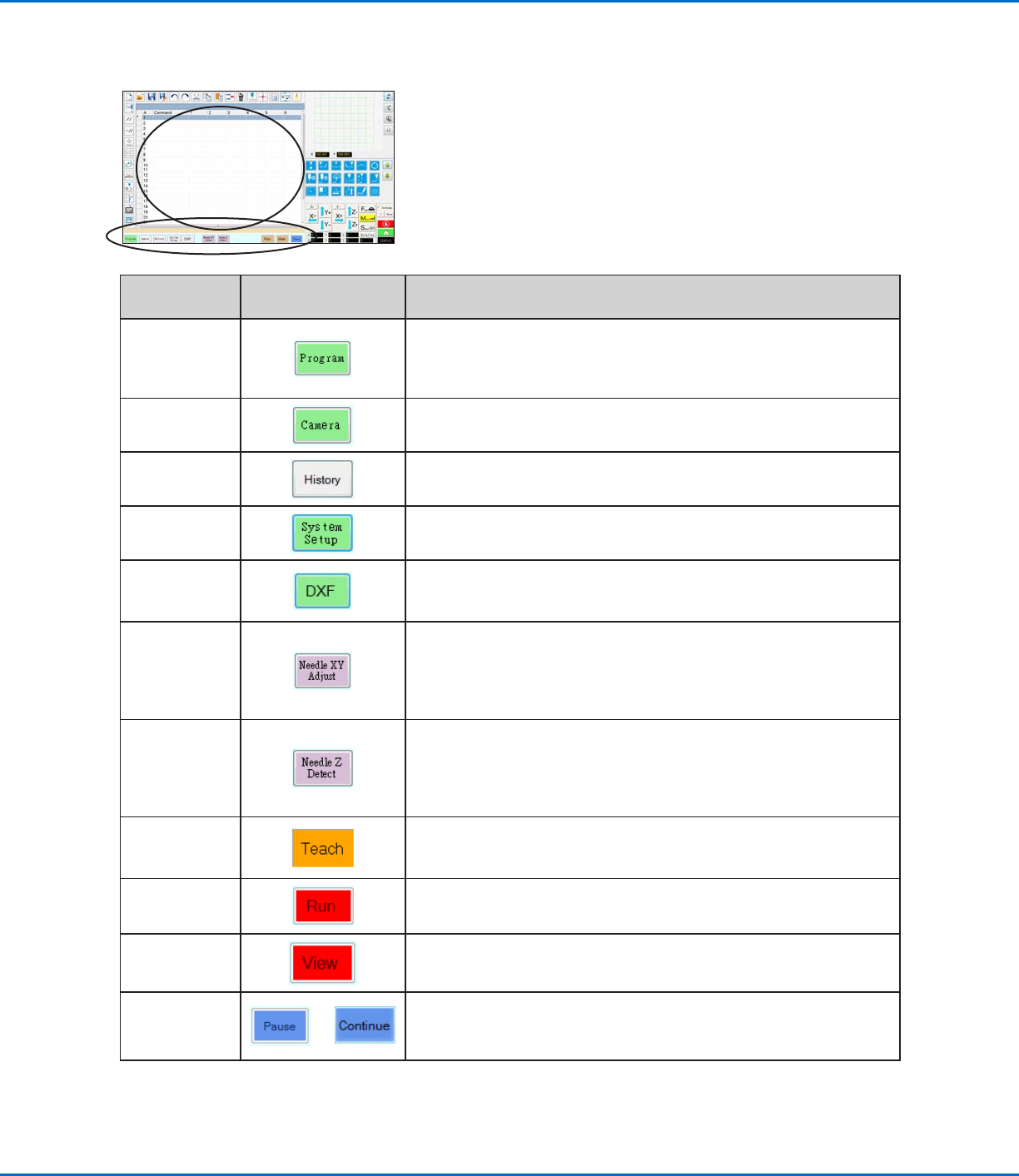

Primary View Screen and Tab Bar
The Primary View screen changes depending on the selected tab. All the tabs are visible at all times.
Tab Name
Tab Color When
Selected
Function
Program
Shows the command view; used to create programs. Right-clicking
on this screen provides quick access to commonly used programming
functions. Refer to “Primary View Screen Right-Click Functions” on
page28 for details.
Camera
Shows the actual camera view; used to perform all camera-related
functions.
History
Shows a time-line of different commands.
System Setup
Shows the settings screen; used to view or change system-level
settings or parameters.
DXF
Allows you to load drawings in DXF format into the DispenseMotion
software. Refer to “AppendixC, DXF File Import” on page127 for
more information.
Needle XY
Adjust
Automatically checks and adjusts the XY offsets without touching the
tip to any surface. This button is present only when Needle XY Adjust
is enabled on the System Setup screen. The system must be properly
setup as described under “Setting Up and Calibrating the System
(Required)” on page45.
Needle Z
Detect
Automatically checks and adjusts the tip-to-workpiece offset (Z
clearance) then performs a Needle XY Adjust. This button is present
only when Tip Detect Device is enabled on the System Setup screen.
The system must be properly setup as described under “Setting Up
and Calibrating the System (Required)” on page45.
Teach
When the optional start / stop box is connected, this indicator appears
on the tab bar and flashes when the robot is in the safety bypass mode.
When the Teach indication is present, the Run button is disabled.
Run
Runs the selected program.
View
Runs the selected program without dispensing and also centers the
camera on the dispense path.
Pause or
Continue
or
Pauses the program that is currently running. When you click on Pause,
the button changes to Continue.
Click Continue to stop the pause.
RV Series Automated Dispensing Systems
28 www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
Primary View Screen Right-Click Functions
When the Program tab is selected, all the commands for the open
dispense program are shown. Right-click on one or more selected
commands to open a right-click menu. The functions shown below can
be used on the selected commands.
Item Function
Copy Copies the selected command
Cut Copies and then deletes the selected command
Edit Opens the edit window for the selected command
Paste Pastes a cut or copied command into the selected command address
Change Command Type Changes the selected command to a different command type
Jump To Jumps to a specific Address command or Label command
Reflect Flips the selected commands along the X or Y axis, thus creating a mirror image.
An example is provided below.
4th Axis Follow Convert Rotates a selected pattern based on the specified parameters. Refer to “How to
Rotate a Pattern” on page29 for an example.
Rotate Point Rotates a single command. Refer to “How to Rotate a Command” on page29
for an example.
How to Reflect (Mirror) a Pattern
1. Select the lines to reflect, right-click to select REFLECT X or Y
2. The system mirrors the selected pattern
RV Series Automated Dispensing Systems
29www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
How to Rotate a Pattern
1. Select the lines to rotate, then right-click and select 4TH AXIS FOLLOW
CONVERT
2. Enter parameter settings and click CONVERT to apply the settings to all
selected commands
Primary View Screen Right-Click Functions (continued)
Parameter Description
Initial Angle Sets the angle you to change to.
Add Point When selected, adds a Line
Passing command to the
program so that tip rotates to the
desired angle before continuing
with dispensing.
Reverse to 0
Degree
When selected, overrides the
settings and sets all R values to
degree 0.
3. The system rotates the selected pattern
How to Rotate a Command
1. Select the command to rotate, then right-click and select ROTATE POINT
2. Enter the desired degrees of rotation 3. The system rotates the selected command
