RV Series Automated Dispensing Systems
28 www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
Primary View Screen Right-Click Functions
When the Program tab is selected, all the commands for the open
dispense program are shown. Right-click on one or more selected
commands to open a right-click menu. The functions shown below can
be used on the selected commands.
Item Function
Copy Copies the selected command
Cut Copies and then deletes the selected command
Edit Opens the edit window for the selected command
Paste Pastes a cut or copied command into the selected command address
Change Command Type Changes the selected command to a different command type
Jump To Jumps to a specific Address command or Label command
Reflect Flips the selected commands along the X or Y axis, thus creating a mirror image.
An example is provided below.
4th Axis Follow Convert Rotates a selected pattern based on the specified parameters. Refer to “How to
Rotate a Pattern” on page29 for an example.
Rotate Point Rotates a single command. Refer to “How to Rotate a Command” on page29
for an example.
How to Reflect (Mirror) a Pattern
1. Select the lines to reflect, right-click to select REFLECT X or Y
2. The system mirrors the selected pattern
RV Series Automated Dispensing Systems
29www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.

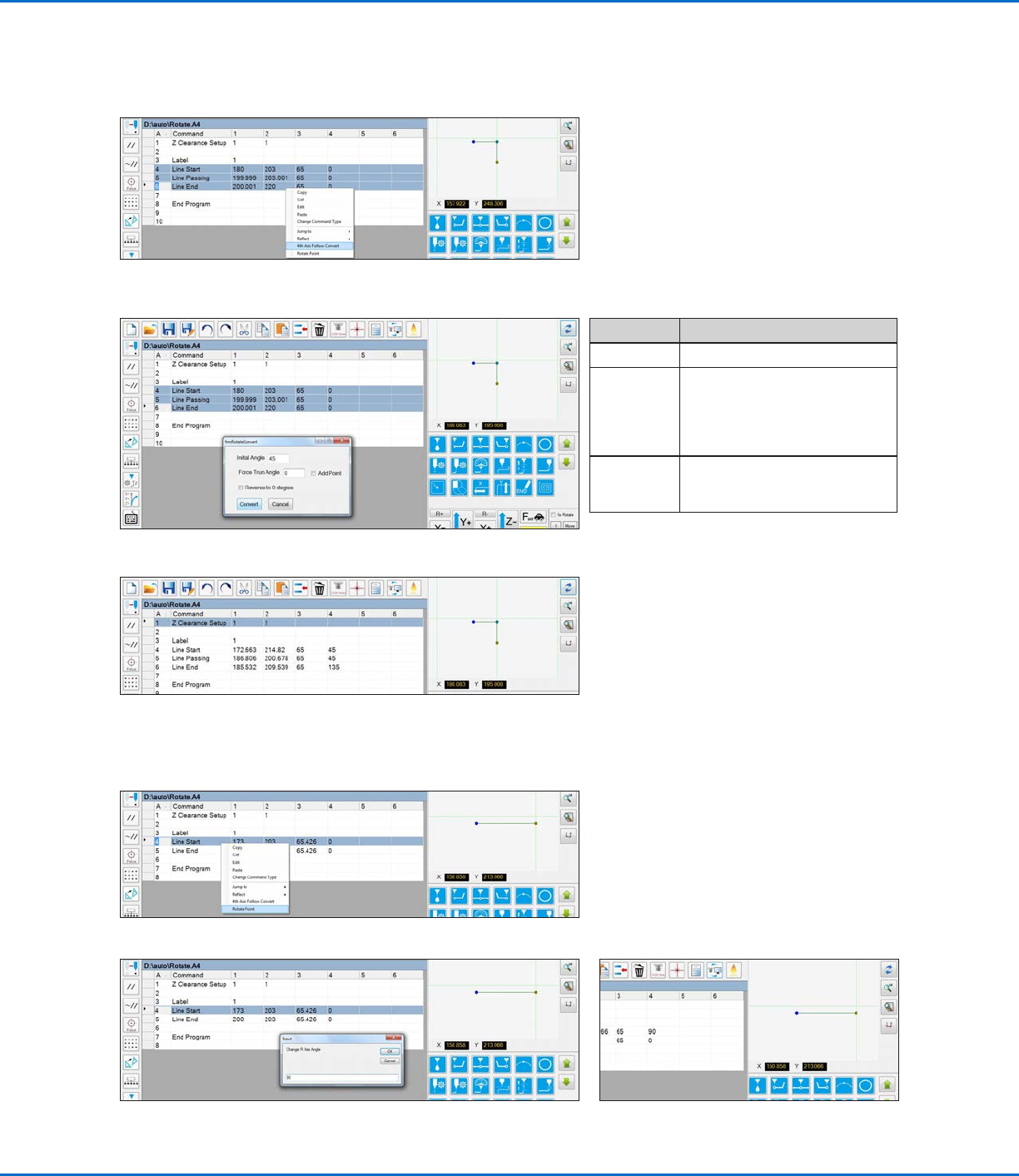

How to Rotate a Pattern
1. Select the lines to rotate, then right-click and select 4TH AXIS FOLLOW
CONVERT
2. Enter parameter settings and click CONVERT to apply the settings to all
selected commands
Primary View Screen Right-Click Functions (continued)
Parameter Description
Initial Angle Sets the angle you to change to.
Add Point When selected, adds a Line
Passing command to the
program so that tip rotates to the
desired angle before continuing
with dispensing.
Reverse to 0
Degree
When selected, overrides the
settings and sets all R values to
degree 0.
3. The system rotates the selected pattern
How to Rotate a Command
1. Select the command to rotate, then right-click and select ROTATE POINT
2. Enter the desired degrees of rotation 3. The system rotates the selected command
RV Series Automated Dispensing Systems
30 www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
Secondary View Screen
The Secondary View screen changes depending on the selected tabs and icons.
Selected
Tab
Tab Color
When Selected
Secondary Screen Display Function
Program
When the Path icon is toggled ON: When the Path icon is toggled ON,
shows a visual representation of
the programmed pattern and the
Path mode icons:
• Refer to “Horizontal and Vertical
Toolbar Icons” on page32 for
an explanation of the icons.
• Refer to “Secondary View Screen
in Path View” on page31 for
additional path view functionality.
When the Path icon is toggled OFF:
When the Path icon is toggled OFF,
shows an actual view of the fixture
plate or workpiece surface as seen
by the camera.
Camera
Mark Library: Stores up to 240 mark files.
System
Setup
Path view and keypad: The keypad is used to enter
numeric values. Refer to “Keypad”
on page40.
Path iconMode icon (toggles
between Tip mode
and CCD mode)
