Setting Password Protection

Use the Password portion of the System Setup screen to set or reset a password. The purpose of a password is to

protect the system settings from unauthorized editing.

NOTES:

• The default is no password protection.

• If the password is forgotten, contact your Nordson EFD representative for assistance.

• A password is limited to 16 numbers or characters.

Click Step

• Click SYSTEM SETUP > OPEN.

• Under Password, enter a password or make the ﬁeld blank to

remove a password, then click CHANGE PASSWORD.

The system conﬁrms and immediately implements the

password change:

- If a password was entered, the system will prompt for the

password before opening the System Setup screen.

- If the Password ﬁeld was blank, no password will be required

to open the System Setup screen.

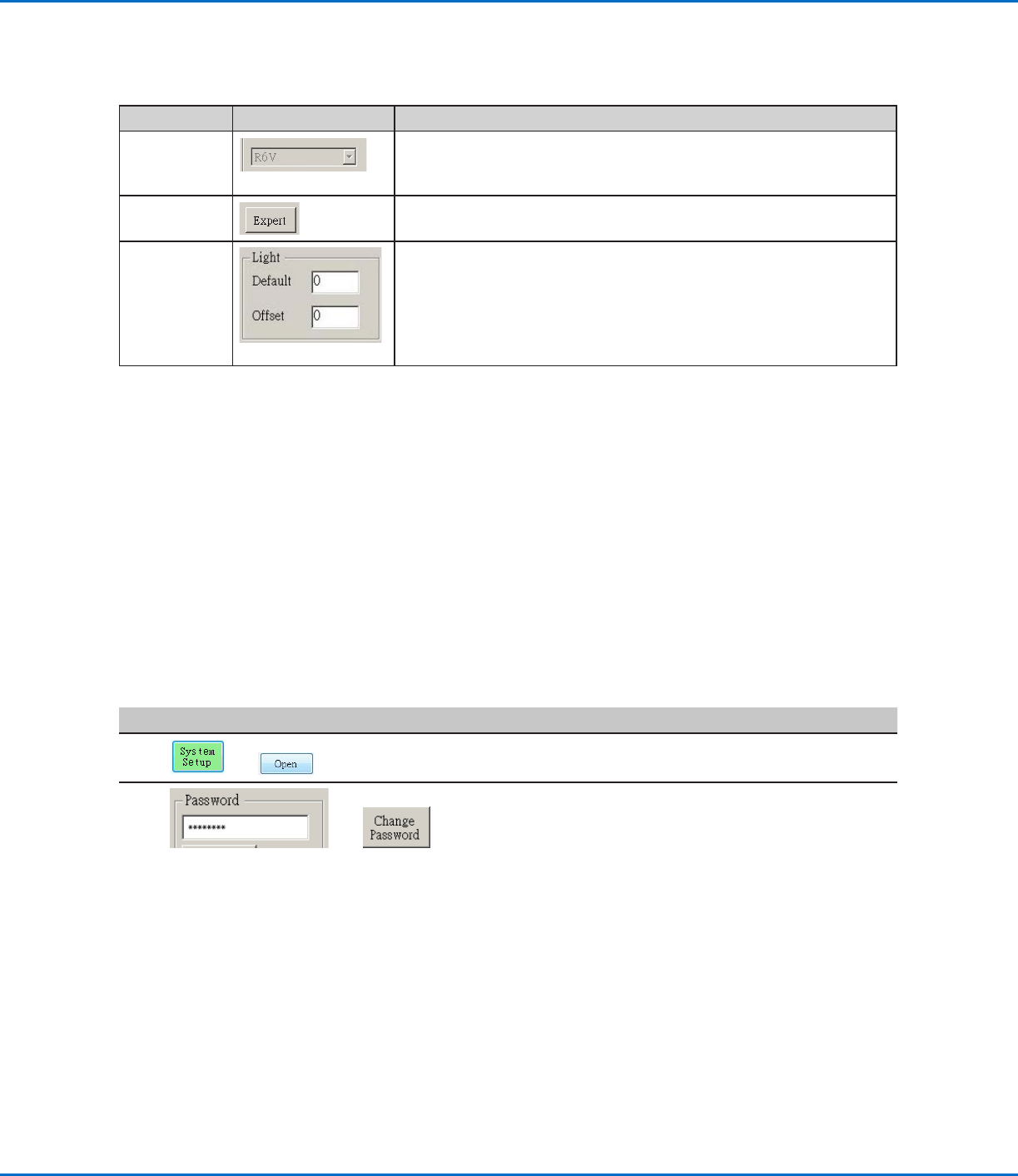

Item Screen Capture Description

Model drop-

down menu

Sets the dispensing software conﬁguration; this setting must match the

system conﬁguration (model). Any change takes effect upon software

restart.

Expert

For advanced users only.

Light (if

present)

• Default: Allows you to control the light intensity if an external switch is

used to control the light.

• Offset: When the system is in the CCD Mode, automatically changes

the light intensity based on the value entered.

NOTE: The Light settings are present only if an optional light accessory

is installed.

Setting System Parameters (continued)

System Setup Screen Fields (continued)

RV Series Automated Dispensing Systems

45www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.

Verifying the Robot Model, Tip Detection, and Set Z to Focus Selections

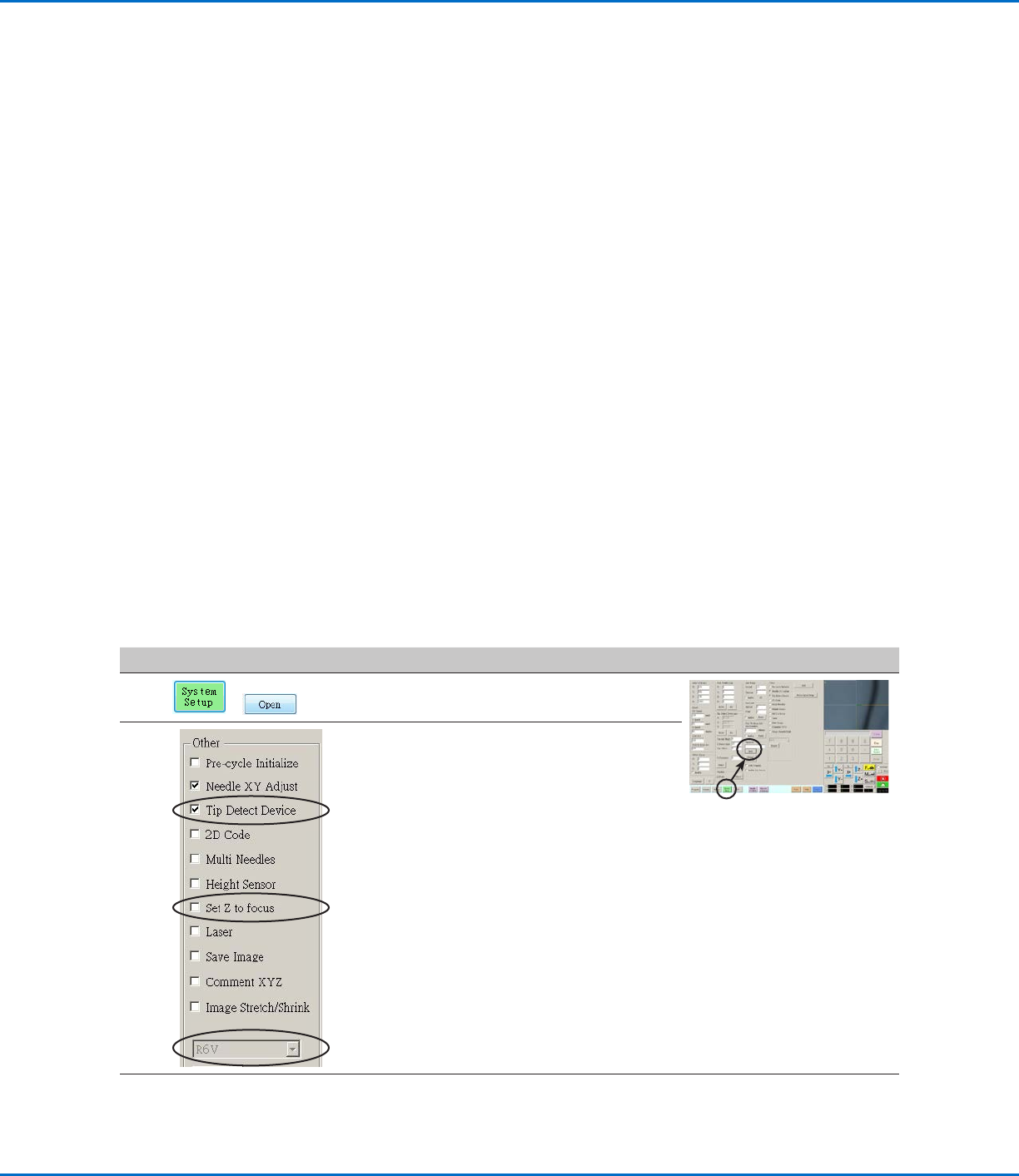

Click Step Reference Image

• Click SYSTEM SETUP > OPEN.

2 • Under Other, verify the following:

- If your system includes a tip detector or

tip aligner, Tip Detect Device is checked.

- Set Z to Focus is unchecked (not

checked).

- The correct robot model is shown. If

the robot model is not correct, go to

“Changing the Robot Model Selection”

on page57 to select the correct model.

Return here to continue.

• If you made changes, close and reopen the

DispenseMotion software for the changes to

take effect.

• Continue to “Setting the Optional Tip Aligner

Selection” on page46.

Setting Up and Calibrating the System (Required)

Before creating any programs or using the automatic offset update capabilities of the system, you must properly set

up and calibrate the system. Correct system setup and calibration are critical for proper system operation.

The Robot Initial Setup wizard guides you through the complete setup and calibration process. This process must

be performed at initial startup and also after any change to the system.

Examples of system changes include the following:

• Any time a component installed on the Zaxis (such as the syringe barrel or camera) is moved.

• Any time a dispensing tip or nozzle is changed.

Setup and calibration includes the following tasks:

• Verifying the robot model, tip detection, and Set Z to Focus selections

• Setting the optional tip aligner selection (if applicable)

• Setting up the tip detector* or tip alignment device

• Verifying the 4-axis selection

• Opening the robot initial setup wizard and setting the angle of rotation

• Setting up tip detection and tool centering calibration

• Setting the camera-to-tip offset

• Setting a mark

• Setting the camera scale*

• Setting the tip-to-workpiece offset*

• Testing the system setup and calibration

*All required setup and calibration tasks are guided by the Robot Initial Setup wizard. However, the tasks shown above with

an asterisk (*) can be performed individually as needed. Refer to “AppendixB, Non-Wizard Setup Procedures” on page124

for the procedures.

NOTE: Refer to “About Offsets” on page23 for an explanation of offsets.

RV Series Automated Dispensing Systems

46 www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.

Setting the Optional Tip Aligner Selection

IMPORTANT: If your system does not include this optional tip aligner, skip to the next procedure.

If you installed the optional tip aligner, follow this procedure to specify the kit in the Expert window. A tip aligner

allows tip-to-workpiece offset setup, or tip height calibration, without the need for the tip to physically touch the

sensor. Refer to “Accessories” on page91 for the optional tip aligner part number.

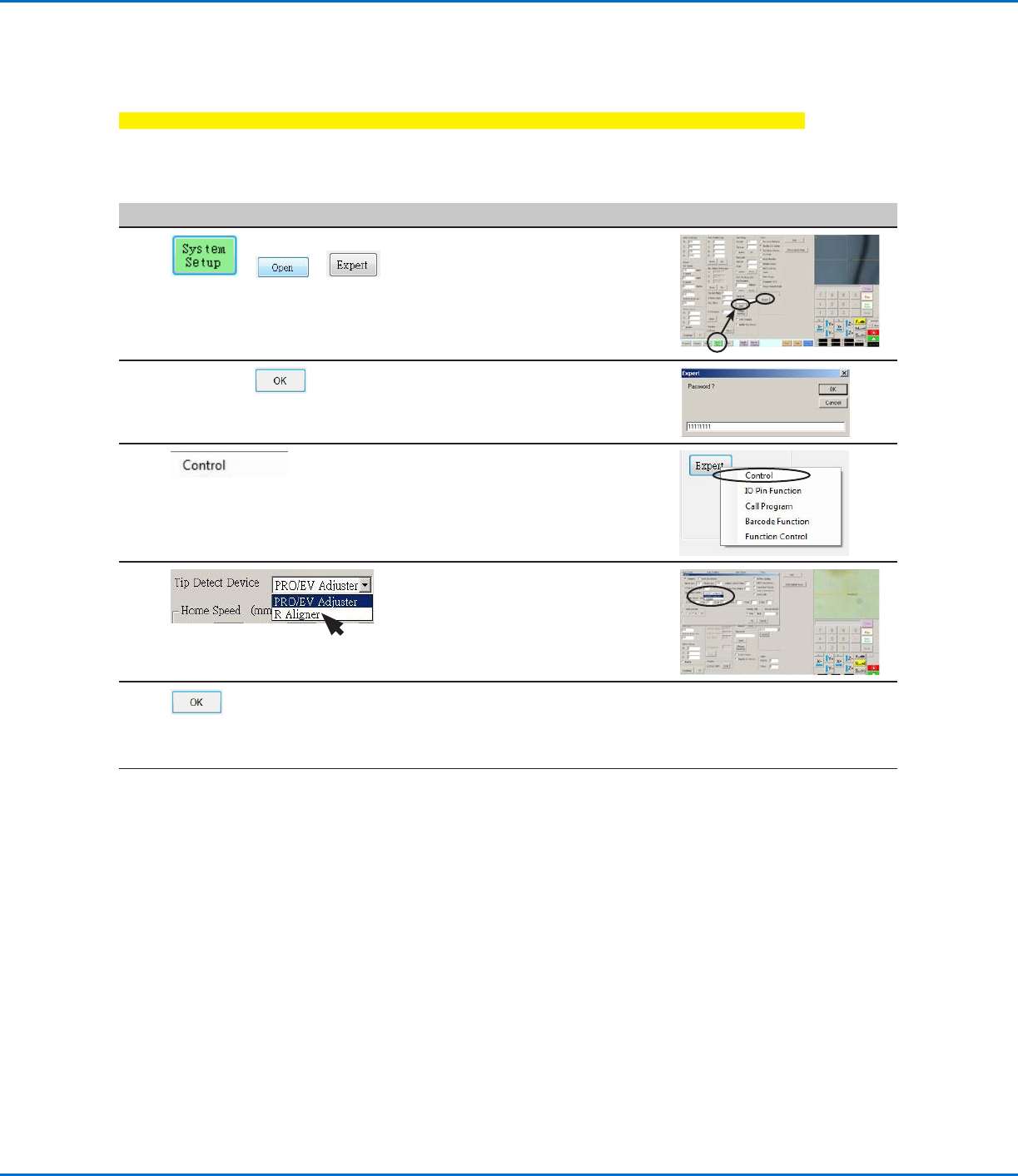

# Click Step Reference Image

> >

• Click SYSTEM SETUP > OPEN >

EXPERT.

11111111 >

• Enter 11111111, then click OK.

3 • Click CONTROL.

4 • In the Expert window, select

RALIGNER.

• Click OK to save the setting, then

click OK again to conﬁrm.

5 • Click OK to save the setting.

The system automatically exits the

software to allow the change to take

effect.

• Continue to “Verifying the 4-Axis

Selection” on page47.

Setting Up and Calibrating the System (Required) (continued)
