Machine part:
1. Square driving head
2. Work light
3. Start/stop switch
4. Battery pack lock button
5. Reversing yoke
6. Speed position selection （red light）
7. Battery level display （green light）
8. Battery pack
Accompanied accessories:
Model Content Quantity
51074
4.0 Ah Li-ion battery pack 2
4.0A charger 1
1
5
8
7
6
5
2
3
中文
EN DE RU KO PT JA ES
51074
17
Charging duration of 4.0A battery pack: about 60min
Charging duration of 2.0A battery pack: about 30min
We recommend that you choose the accessories from the store where you purchased the electric tool. 7 Please use the high-quality
accessories from the well-known brands. Please choose the right accessory for your job. Please refer to the accessory package and you
will get more methods and help for using the accessory.
Specification:
Model 51074
Chuck type 1/2" square head
Voltage 18V
No-loading speed 0-900/0-1400/0-2000 rev/min
Frequency 0-1700/0-2500/0-3400 impacts/min
Max. torque 580 N·m
Standard bolt M12-M22
High-strength bolt M10-M20
Machine weight 2.5kg
Battery capacity 4000mA
Recharge time 60min
中文
EN DE RU KO PT JA ES
51074
18
Operation guideline:
Caution:
Please read the instruction carefully before operating the machine.
Before the use:
1.Charging:
This charger and machine shall be used together. Do not use other chargers. The machine has a protection circuit. When the battery is
low, the protection circuit is turned on and the machine stops rotating.
The machine may become hot under the high temperatures or after a long period of operation. At this time, do not charge immediately
but wait until the battery is cooled. Otherwise, the service life of battery will be shortened or the charging failure may be caused due to
overheating.
For the first charging or after a long period of storage, the efficiency of first charging may only reach about 60%. After 2-3 charging and
discharging cycles, the battery efficiency may reach 100%.

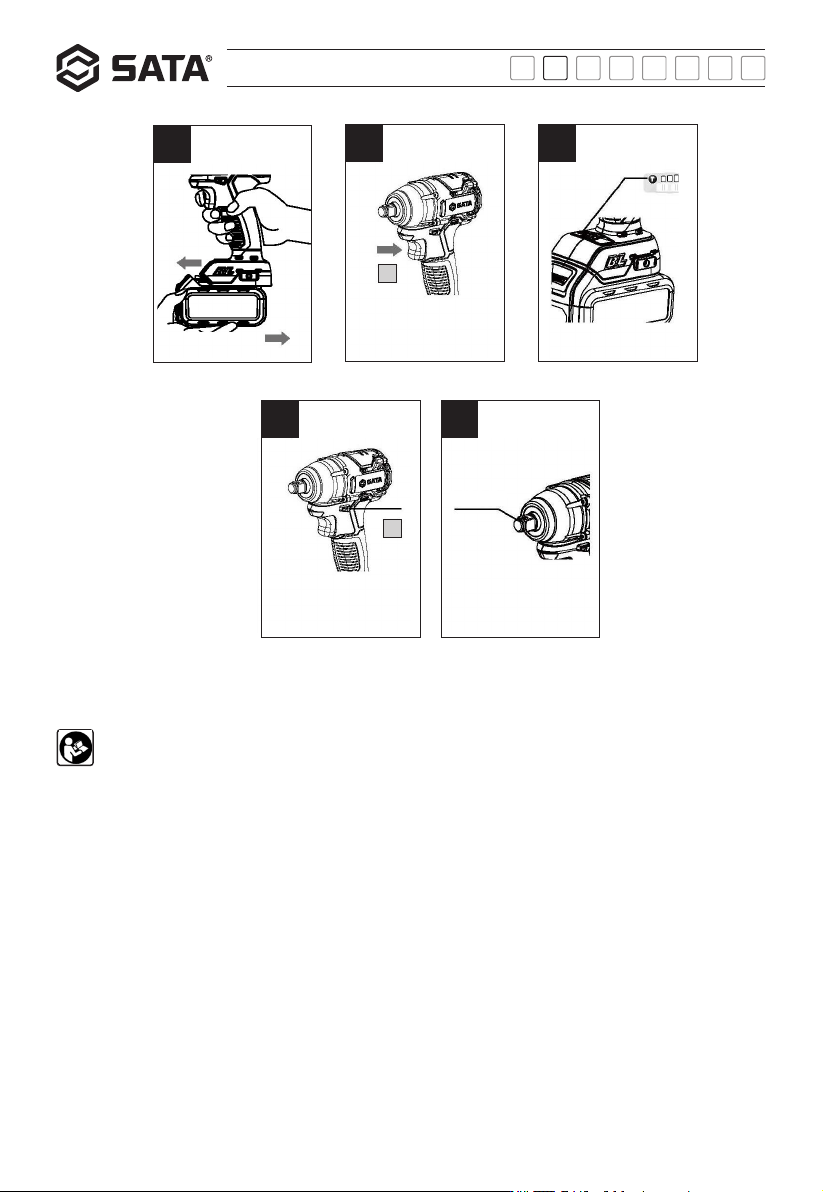

2.Installation and removal of battery pack （see Figure A）:
Press the lock button on the front of battery pack and pull it out. To insert the battery pack, simply push it into the machine while
avoiding the excessive force.
A
B
C
D
E
1/2" square head
