NO. PART󰚟NO. PART󰚟NAME Q'TY TYPE REMARK 1 J7500010A COUPLER 1 J7500010A 2 J1300862 COUPLER󰚟(CORK) 1 CM24 3 J2101163 NIPPLE-QC 1 0131-611035 4 J2101164 NIPPLE-QC󰚟NUT 1 0131-611036 5 J1301187 ELBOW󰚟FITTING 5 KQ2L…

100%1 / 140

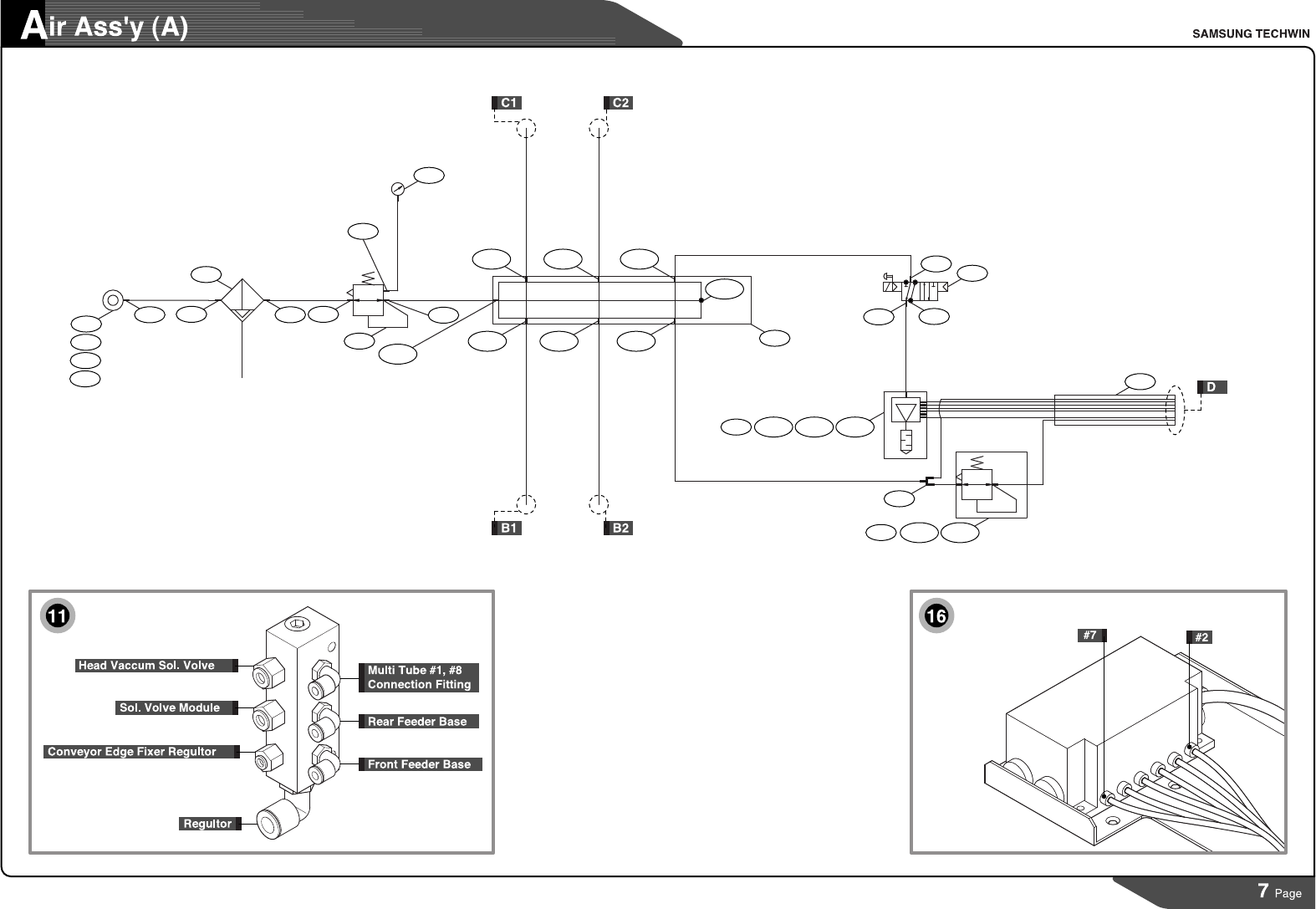

U2-4-8*5
U2-4-6*4
U2-4-8*5
U2-4-12*8
U2-4-12*8
U2-4-12*8
U2-4-10*6.5
U2-4-4*2.5
U2-4-6*4
U2-4-6*4
1
8
FRONT
REAR
9
6
5
11-B
11-F
11-D
1
2
3
4
5
5
5
7
8
5
11
11-C 11-C 11-C
11-D 11-D
16-C16-B16-A
16
17
19
13
12
15
14
18-B18-A
18
NO. PART󰚟NO. PART󰚟NAME Q'TY TYPE REMARK
1
J7500010A COUPLER 1 J7500010A
2
J1300862 COUPLER󰚟(CORK) 1 CM24
3
J2101163 NIPPLE-QC 1 0131-611035
4
J2101164 NIPPLE-QC󰚟NUT 1 0131-611036
5
J1301187 ELBOW󰚟FITTING 5 KQ2L12/PL12-04
6
J6708016A AIR󰚟FILTER 1 AF40-04BC
7
J6709012A REGULATOR 1 TAR4000-04
8
J6711028A ELBOW󰚟FITTING 1 KQ2L04-01
9
J6711116A BULKHEAD󰚟UNION󰚟FITTING 1 KQ2E04-01S
10
J9080794A AIR󰚟INDICATOR󰚟󰚟CABLE󰚟ASS'Y 1 SM-CV026
11
J9058086A SM1󰚟MANIFOLD󰚟ASS'Y 1 J9058086A
11-A
J2100009 MANIFOLD 1 0131-611008
11-B
J6711244A MALE󰚟ELBOW 1 KQ2L12-03
11-C
J1301189 ELBOW󰚟FITTING 3 KQ2L06-02/PL6-02
11-D
J1301339 STRAIGHT󰚟FITTING 1 KQ2H06-02/PC6-02
11-E
J6711135A STRAIGHT󰚟FITTING 2 PC8-02
11-F
J1301213 PLUG 1 PT󰚟3/8
12
J6711157A ELBOW󰚟FITTING 1 KQ2L08-01S
13 J9080795B MAIN󰚟AIR󰚟SOL󰚟PWR󰚟CABLE󰚟ASS'Y
1
SM-CV027
14
J6711116A BULKHEAD󰚟UNION󰚟FITTING 1 KQ2E04-01S
15
J6712008A PLUG 3 PT󰚟1/8
16
J6707018A VACUUM󰚟GENERATOR 1 VKME10A-0418S-3
16-A
J6708019A VACUUM󰚟FILTER 1 VGFE10
16-B
J6708020A VACUUM󰚟PART 1 VKM-SET
16-C
J6707020A VACUUM󰚟GENERATOR 1 VKME10A-000000-B
17
J6711168A UNION󰚟Y󰚟FITTING 1 BUYD06-04
18
J6709019A REGULATOR 1 AR08-T2-D0M0-J182A
NO. PART󰚟NO. PART󰚟NAME Q'TY TYPE REMARK
18-A
J6709021A REGULATOR 1 AR08-T2-DOMO
18-B
J6711259A FITTING 2 FSE-04-1/4
19
J6713048A MULTI󰚟TUBE 4 UML-408󰚟(BL-BK6-BL)
