Page SAMSUNG TECHWIN 65 SM482 Head Ass’y(5/5) NO. Lev . P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 J9081010B R56_MOT OR_CABLE_ASSY 1 2 J7255083A THET A MOTOR ISOLA TOR 3 3 J7155531A THET A MOTOR…
Page
SAMSUNG TECHWIN
64
SM482

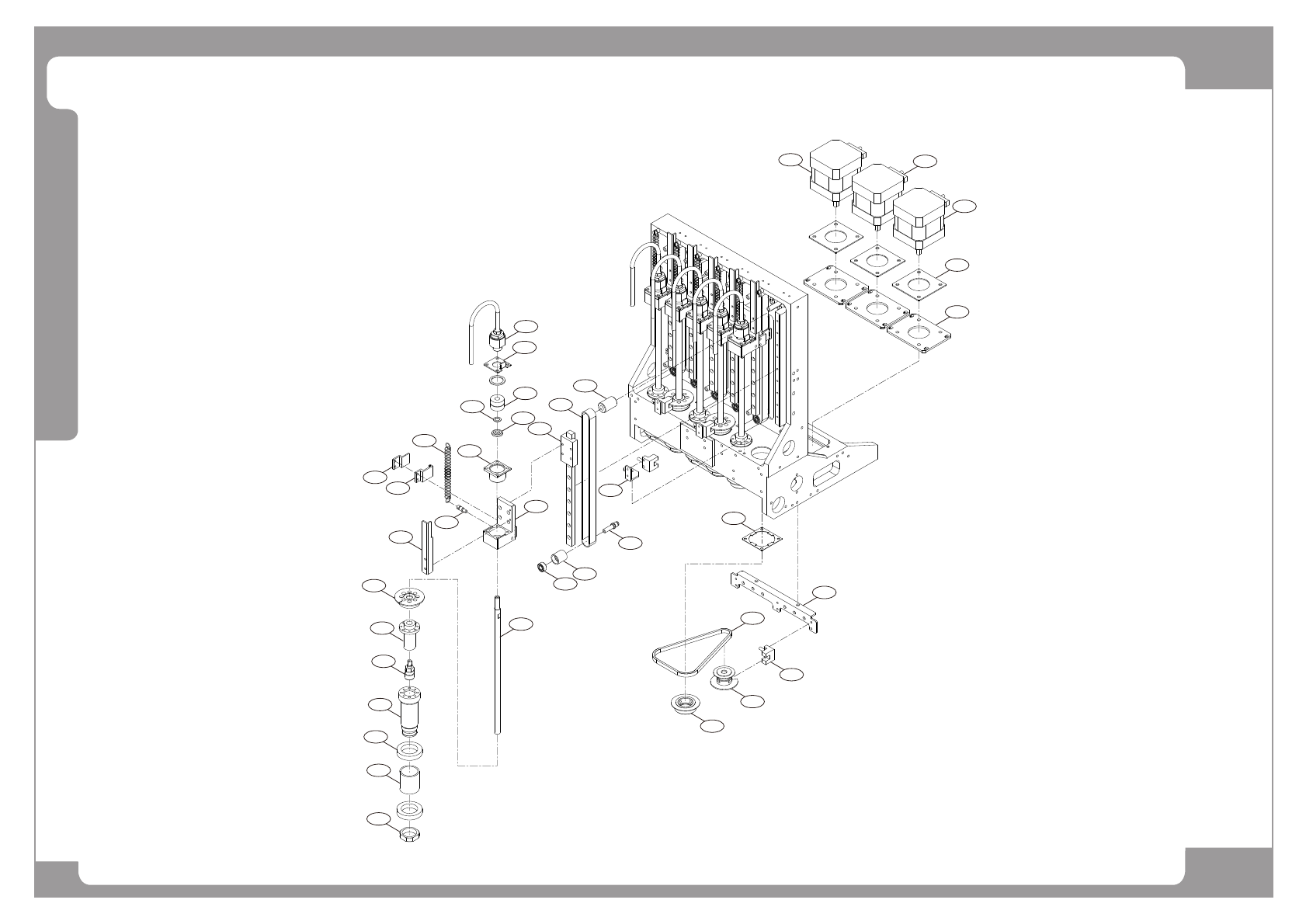

Head Ass’y(5/5)
20
22
24
10
12
28
30
31
32
33
34
35
36
11
4
1
38
2
3
5
6
7
8
14
15
16
9
13
17
21
18
19
23
29
25
26
27
37
Page
SAMSUNG TECHWIN
65
SM482
Head Ass’y(5/5)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J9081010B R56_MOTOR_CABLE_ASSY 1
2 J7255083A THETA MOTOR ISOLATOR 3
3 J7155531A THETA MOTOR PLATE 3
4 J7055659A BEARING PLATE 1
5 J7055663A SENSOR BRACKET 1
6 J6602077A R BELT 2
7 J3212027A SENSOR 1
8 JS755030B PULLEY R AXIS 3
9 J7155521A PULLEY R AXIS 1
10 J7155518A PULLEY Z AXIS 1
11 J6602076A Z BELT 1
12 J6607055A LM GUIDE 1
13 J7055552A SENSOR BRACKET R 3
14 J7055658A PULLEY PIN 3
15 J7155565A PULLEY Z AXIS 1
16 J6601140A BALL BEARING 1
17 AM03-007198A R_JOINT 1
18 J6601088A Z UP BEARING 2
19 J7055562A SPRING SPACER 1
20 J7055554A SPACER 1
21 FC09-002273A SLIDE ALIGNER CAP 1
22 J7055545A SPLINE ALIGNER 1
23 J7155508A SPLIDE BODY 1
24 J70550548B Z SPRING 1
25 J7055664A BELT CLAMP 1 1
26 J7055665A BELT CLAMP 2 1
27 J7155541A PIN Z 1
Page
SAMSUNG TECHWIN
66
SM482
Head Ass’y(5/5)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
28 J7155512A SENSOR DOG 1
29 FC09-002280A BALL SPLINE 1
30 J7155513A SENSOR DOG R 3
31 J7055543A SPLINE HOUSING 1
32 J9055209A COMMON NOZZLE HOLDER 1
33 FC09-002280A SPINDLE HOUSING 1
34 J131687 BEARING 6803ZZ 2
35 J7055544A BEARING COLLAR 1
36 J7055555A BEARING NUT 1
37 J90830190B R12_MOTOR_CABLE_ASSY 1
38 J90831009B R34_MOTOR_CABLE_ASSY 1
