Page
SAMSUNG TECHWIN
32
SM482
Base Frame Ass’y
1
8
2
3
5
6
7
4
Page
SAMSUNG TECHWIN
33
SM482
Base Frame Ass’y
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC15-000983A COVER BOTTOM FR 2
2 FC15-000985A COVER BOTTOM RR 1
3 FC15-000986A COVER BOTTOM RL 1
4 J7051010D HOUSING-FOOT 4
5 J2100018 NUT-FOOT 4
6 J70511014A BOLT_FOOT 4
7 J7051008C BASE-FOOT 4
8 J7351001A CUSHION FOOT 4
Page
SAMSUNG TECHWIN
34
SM482

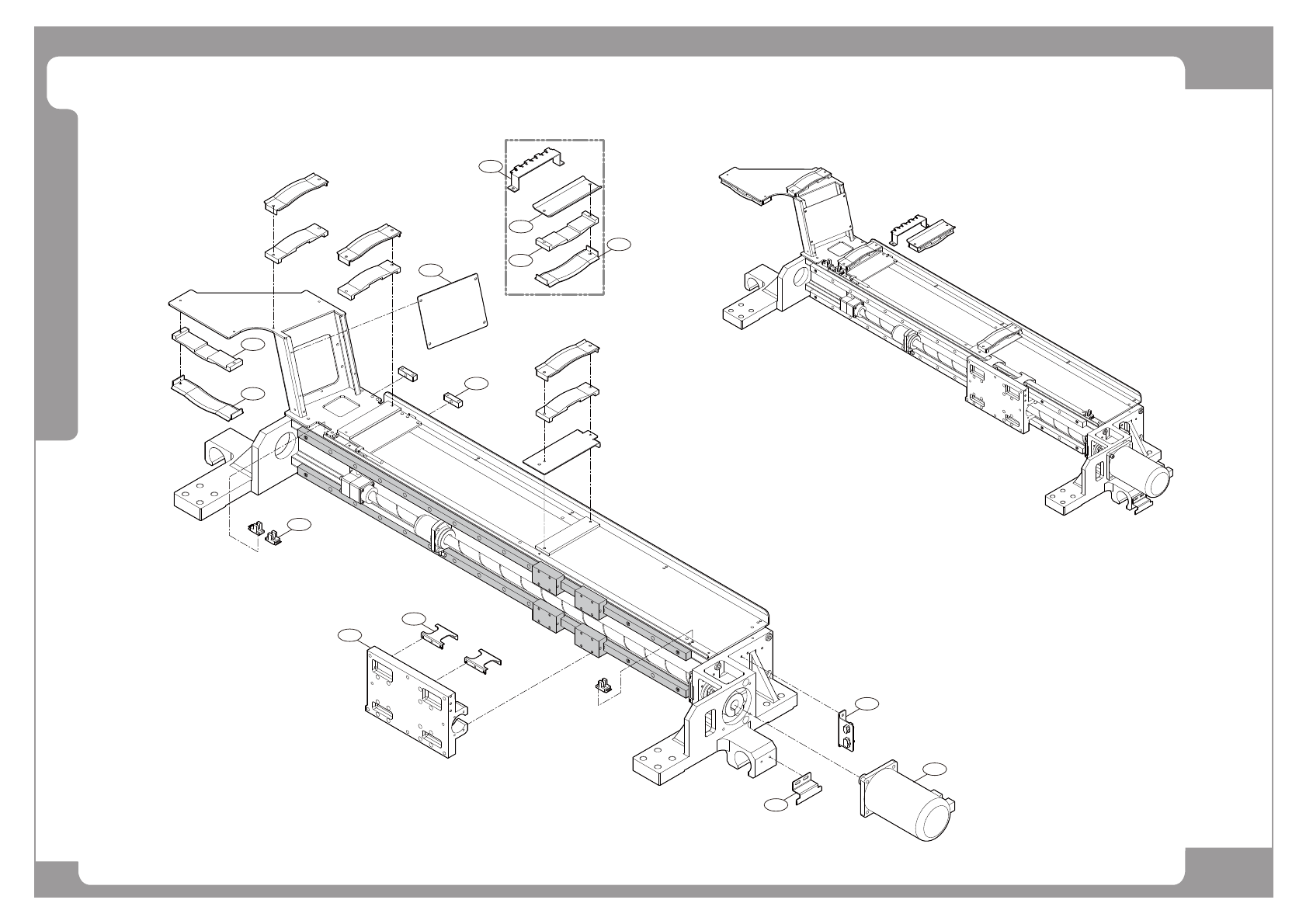

X-Y Frame Ass'y(1/4)
1
7
10
11
13
14
4
8
9
12
2
3
5
6
