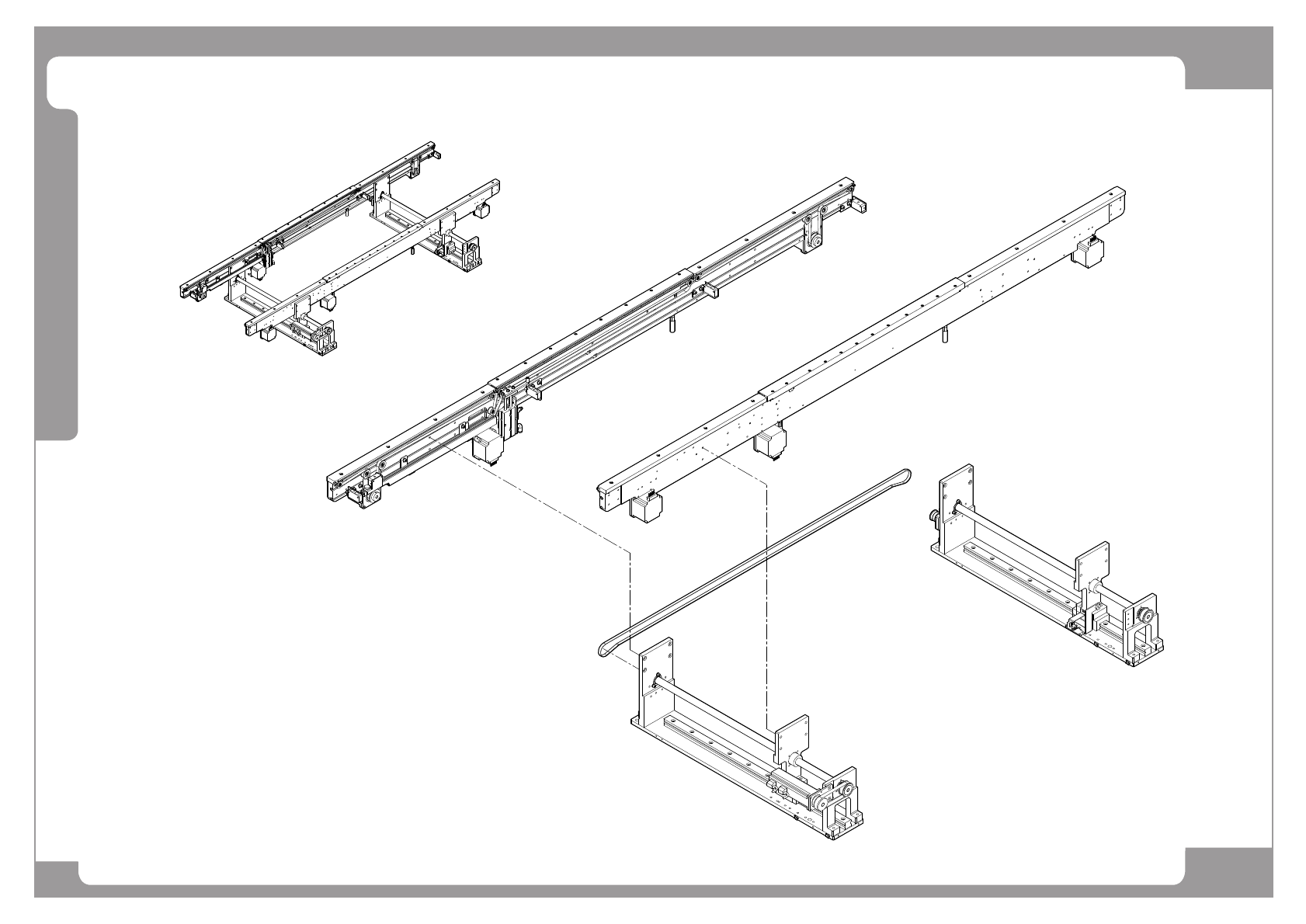

Page SAMSUNG TECHWIN 44 SM482 Conveyor Ass'y(1/4)
Page
SAMSUNG TECHWIN
43
SM482
ANC Ass'y
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC05-000212A TOP_COVER 1
2 FC18-000621A COVER_SPACE 9
3 FC09-002208A TOP_COVER_L 1
4 FC29-001527A SHUTTER 1
5 J6703029A SPEED_CONTOL_VALVE 2
6 HP03-000083 CYLINDER 1
7 FC09-002171A SHUTTER_BKT 1
8 FC05-000215A ANC_BASE 1
9 FC38-000093A SPRING 1
10 FC18-000619A SPACE_PIN 1
11 AM03-000621A DRAIN SENSOR HARNESS ASSY V8 2
12 J7153373A FIDUCIAL_DISK 2
13 FC09-002173A REF_SHAFT 2
14 FC09-002172A FID_SHAFT 2
15 FC05-000214A ANC_PLATE 1
