Page SAMSUNG TECHWIN 52 SM482 Conveyor Ass'y(4/4) 1 2 3 4 11 10 12 15 6 5 14 13 9 7 8
Page
SAMSUNG TECHWIN
51
SM482
Conveyor Ass'y(3/4)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC30-001116A PLATE-PCB_GUIDE_RC_P 1
2 J71531048B PCB_GUIDE_END 2
3 J7253009B STOPPER 2 2
4 FC39-000970A FRAME-CONV_REAR_P 1
5 J7253007A IDLER 2 8
6 J7053047A IDLER SPACER-S 9
7 J7253006A IDLER 1 4
8 J7053184A SQUARE NUT 8
9 J31041014A STEP_MOTOR 3
10 J70531106A BRACKET_BELT_MOTOR_S 2
11 J7153111A STEP_MOTOR_PULLEY 3
12 J7253008A STOPPER 2
13 J7153010B ADJUST SHAFT 2
14 J7153034A CLAMP SHAFT 2
15 J6073010136H C-RING 2
16 J66011035A BALL_BUSH 2
17 J7153033A BUSH SPACER 2
18 J66011035A BALL_BUSH 2
19 J7053763A IDLER SPACER-M 3
20 J66021017A BELT_410_1 2
21 J66021019A BELT_410_R 1
22 J71530400C CLAMP REAR FRAME 1
23 J70531085A BRACKET_BELT_MOTOR_M 1
24 J7053009A IDLER SHAFT-S2 9
25 J7053770A IDLER SHAFT-M 3
Page
SAMSUNG TECHWIN
52
SM482

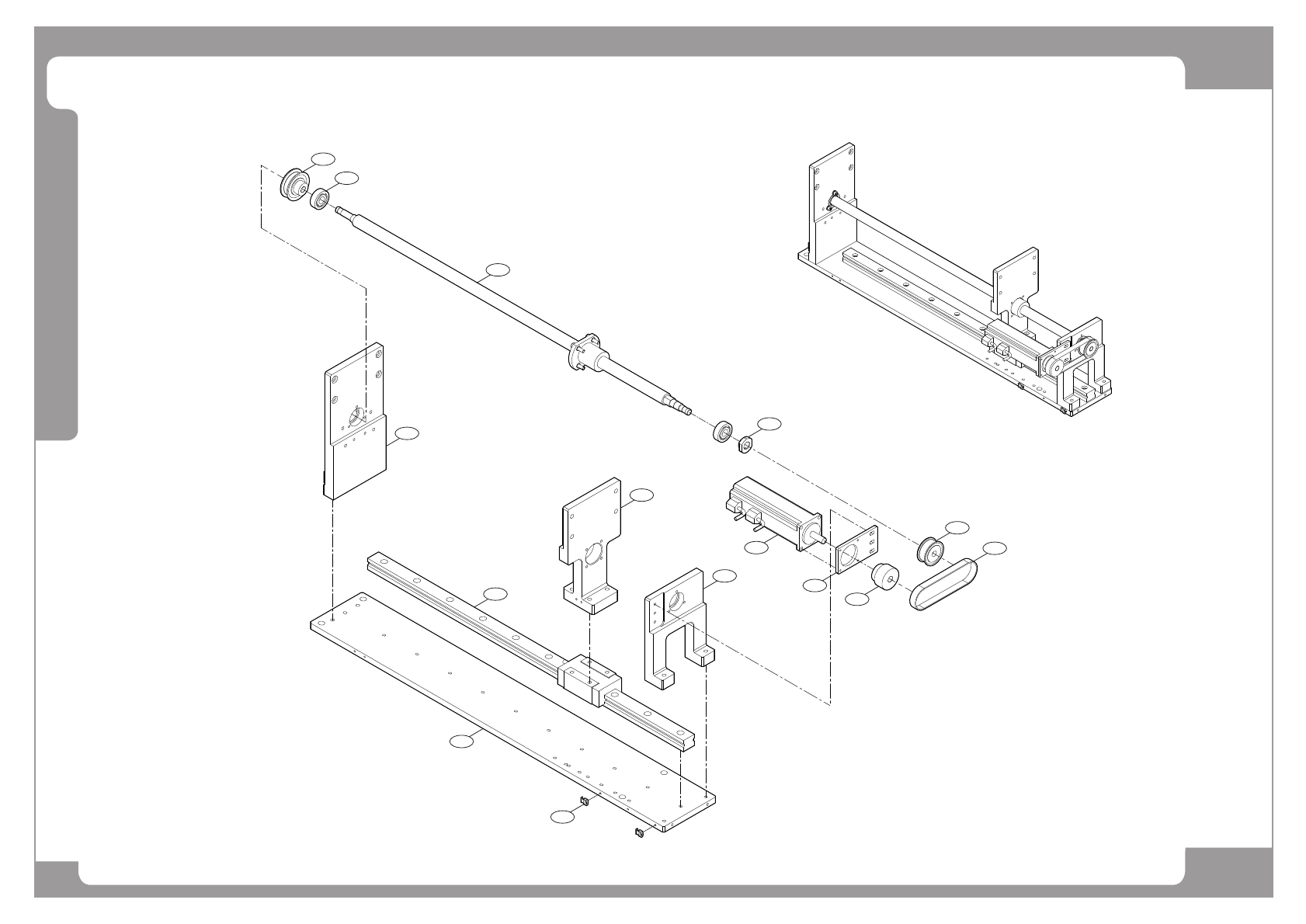

Conveyor Ass'y(4/4)
1
2
3
4
11
10
12
15
6
5
14
13
9
7
8
Page
SAMSUNG TECHWIN
53
SM482
Conveyor Ass'y(4/4)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J6609012A PULLEY-WIDTH 1
2 J1300509 BALL BEARING 2
3 MC13-000042A SCREW,LEAD-SM421_P 1
4 J7053194A BEARING NUT 1
5 J7153330A PULLEY SHAFT 1
6 J6602030A TIMING BELT 1
7 J6609015B PULLEY-MOTOR 1
8 FC09-002134A BRACKET-SERVO_MOTOR_P 1
9 J3108062A SERVO MOTOR 1
10 FC09-002125A BRACKET-SCREW_STAND_P 1
11 FC09-002126A BRACKET-MOVE_STAND_P 1
12 J6607083A LM GUIDE 1
13 J6502008A LOW PROFILE MOUNTS 2
14 FC05-000207A BASE-WIDE_ADJUST_SM421_P 1
15 FC09-002124A BRACKET-FIX_STAND_P 1
