Page SAMSUNG TECHWIN 56 SM482 Head Ass’y(2/5) 2 3 5 10 11 6 7 7 21 9 13 14 16 15 1 4 12 8 17 18 19 20
Page
SAMSUNG TECHWIN
55
SM482
Head Ass’y(1/5)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J71541079A HEAD TOP COVER 1
2 J70541125A HEAD COVER SUPPORT 2
3 AM03-006867A HEAD IF BOARD 1
4 J70541124A CABLE_SPACER 1
5 J71541016B HARNESS SUPPORT 2
6 J71541019A HEAD CBOARD BRACKET 1
7 J71541018B CABLEVEYOR_BRACKET 1
8 J70541015B CONNECTOR_PANEL 1
9 J6119056A HANDLE BG-10 1
10 FC09-002283A HARNESS PLATE 1
11 J67111169A FITTING 1
12 J67021055A SOLENOID VALVE 1
13 HP06-000084 SPEED CONTROL VALVE 2
14 J67111169A SILENCER 2
Page
SAMSUNG TECHWIN
56
SM482

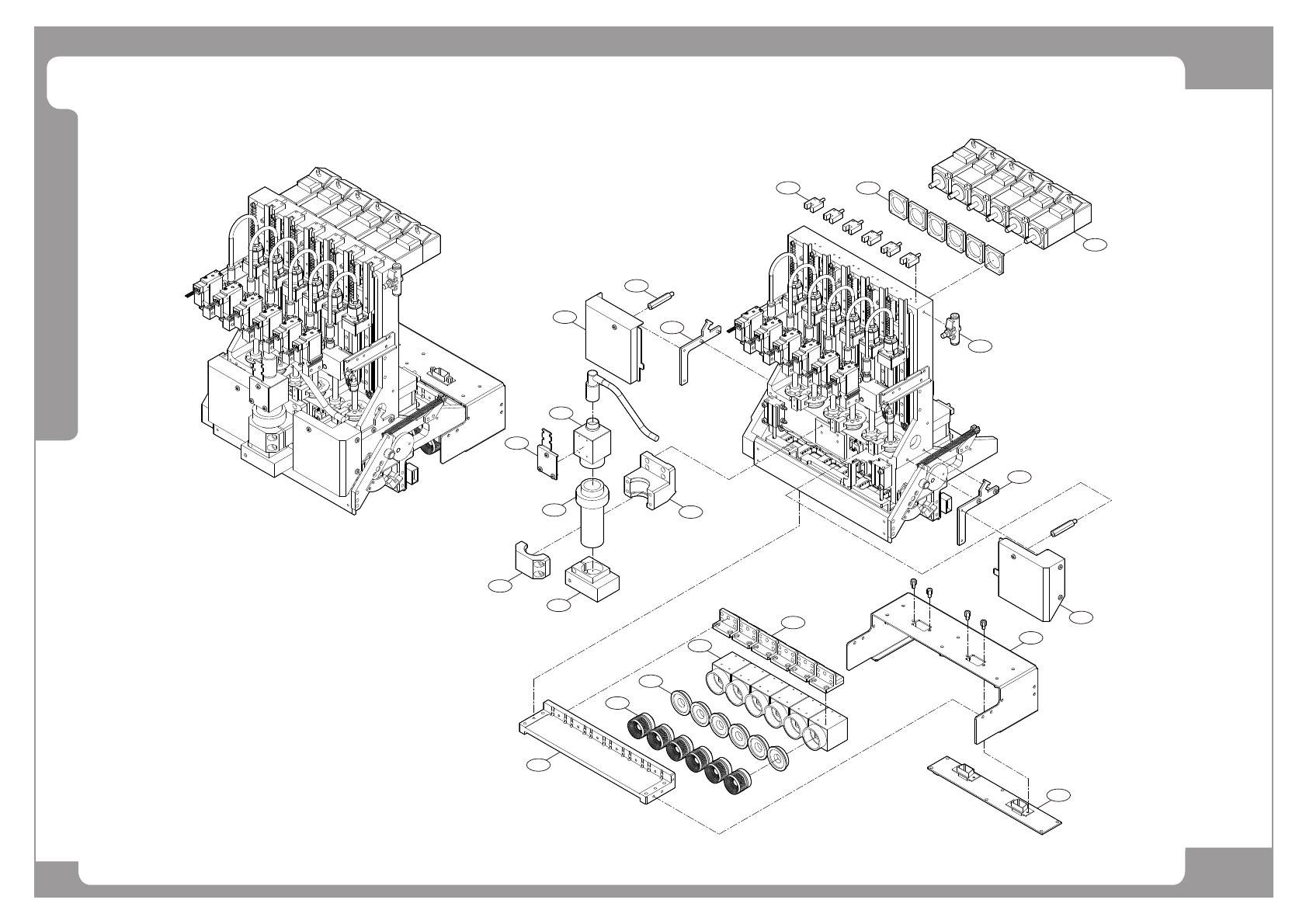

Head Ass’y(2/5)
2
3
5
10
11
6
7
7
21
9
13
14
16
15
1
4
12
8
17
18
19
20
Page
SAMSUNG TECHWIN
57
SM482
Head Ass’y(2/5)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J3108060A Z MOTOR 6
2 J7055656A Z TENSION BRACKET 6
3 J3212048A SENSOR PM 6
4 J67031006A SPEED CONTROLLER 1
5 J715555A MIRROR COVER L 1
6 J7055566A SUPPORT 2
7 J7055657A MIRROR COVER BKT 1
8 J7155553A MIRROR COVER R 1
9 AN06-000358A ASSY.PCB SMD-SM400_CAMERA_IO_BD 1
10 J6751009A CCD CAMERA 1
11 J7055568A CAMERA CABLE HOLDER 1
12 J7155516A FIDUCIAL CAMERA BKT 1
13 J9059139A R MOVING LENS ASSY 1
14 J7155517A FUDUCIAL CAMERA CLAMP 1
15 J71550560C LED HOUSING-F 1
16 J7155534A FLY CAMERA BKT 1
17 J9059010A LENS ASSY 6
18 J7155269A COUPLET 6
19 J6751009A CCD CAMERA 6
20 J7155535A CAMERA HOLDER 6
21 FC15-000445A CAMERA-COVER 1
