8 Maintenance Parts Locate-Pin 2 2 1 1 No. Part No. Part Name Q'ty Remarks Rank 1 KGA-M9174-00X PIN 1, LOCA TION 2 A 2 KGA-M9179-A0X CYLINDER ASSY . 2 PDAS 6X40 B
7

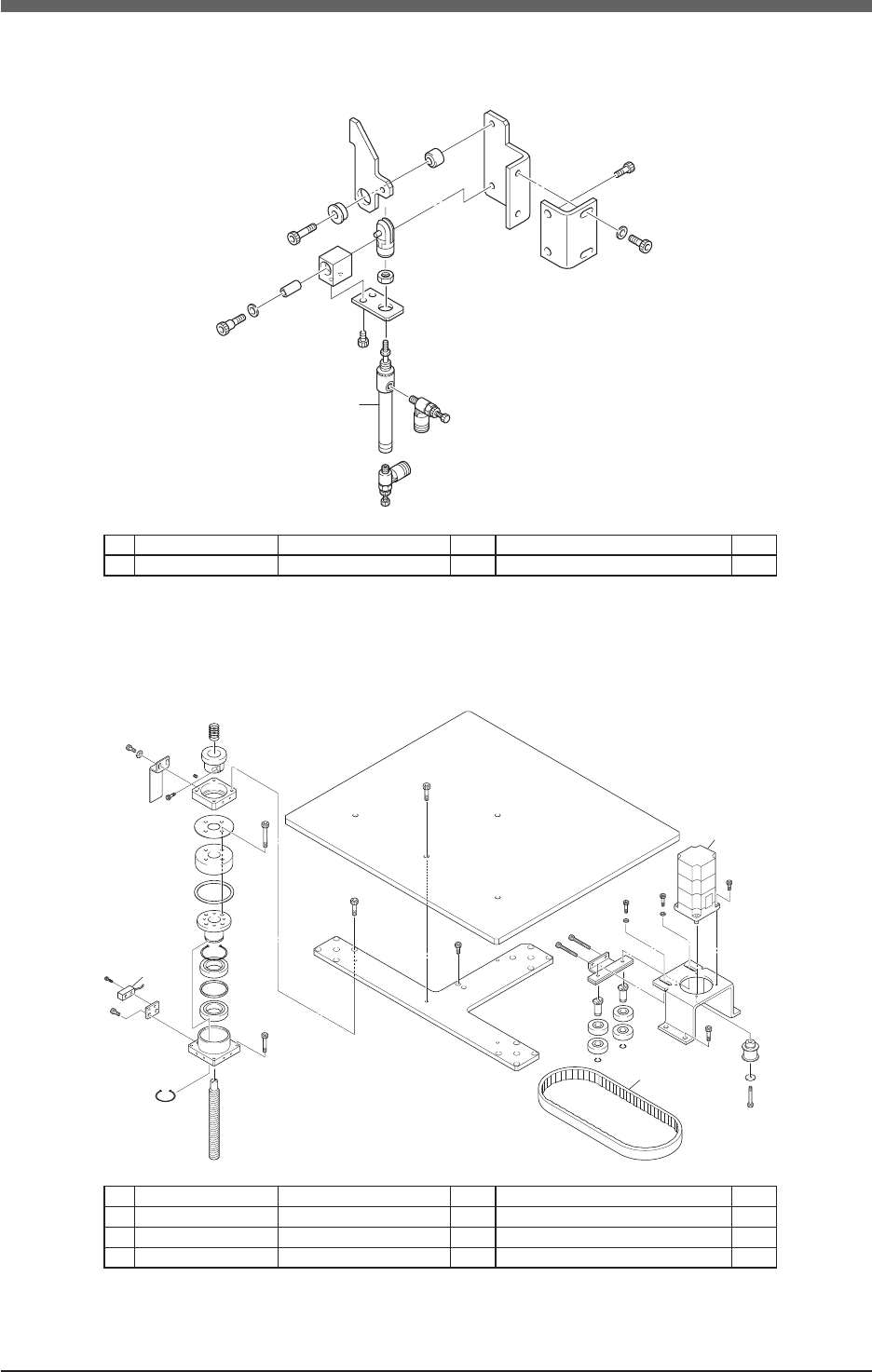

Maintenance Parts
■
Conveyor Unit
Push-In
Push-Up
1
1
3
2
No. Part No. Part Name Q'ty Remarks Rank
1 KG7-M9166-00X CYLINDER 1 B
No. Part No. Part Name Q'ty Remarks Rank
1 90K55-523D5U AC SERVO MOTOR 1 B
2 KGA-M921G-00X SENSOR, ORG 1 L=600 B
3 KV7-M921A-01X BELT 1 A
8
Maintenance Parts
Locate-Pin
2
2
1
1
No. Part No. Part Name Q'ty Remarks Rank
1 KGA-M9174-00X PIN 1, LOCATION 2 A
2 KGA-M9179-A0X CYLINDER ASSY. 2 PDAS 6X40 B
9
Maintenance Parts
Stoppers
1
6
2
4
1
1
5
5
10
7
3
2
2
8
12
9
11
10
6
6
15
4
4
4
4
Sub Stopper, Moving
Sub Stopper, Fixed
Main Stopper
EXIT Stopper
5
5
13
5
5
3
7
14
No. Part No. Part Name Q'ty Remarks Rank
1 KV7-M9282-00X STOPPER, SUB 3 B
2 KV7-M9283-00X CYL. 3 YMDA16X35 B
3 KGA-M928A-00X SENSOR ,UP 1 L=1150 B
4 $SL4-M5 JOINT 6 B
5 91317-03015 BOLT HEX. SOCKET HEAD 9 B
6 91317-04016 BOLT HEX. SOCKET HEAD 4 B
7 KGA-M928B-00X SENSOR , LOW 1 L=1150 B
8 KV7-M9163-00X STOPPER 1 B
9 KV7-M9165-02X CYLINDER 1 B
10 $SC4-M5A SPEED CONTROLLER 2 B
11 $UEF JOINT 1 B
12 91317-05010 BOLT HEX. SOCKET HEAD 2 B
13 KGA-M927A-00X SENSOR , UP 1 B
14 KGA-M927B-00X SENSOR , LOW 1 B
15 90990-41J104 COLLAR 2 B
