9 Maintenance Parts Stoppers 1 6 2 4 1 1 5 5 10 7 3 2 2 8 12 9 1 1 10 6 6 15 4 4 4 4 Sub Stopper , Moving Sub Stopper , Fixed Main Stopper EXIT Stopper 5 5 13 5 5 3 7 14 No. Part No. Part Name Q'ty Remarks Rank 1 KV…
8
Maintenance Parts

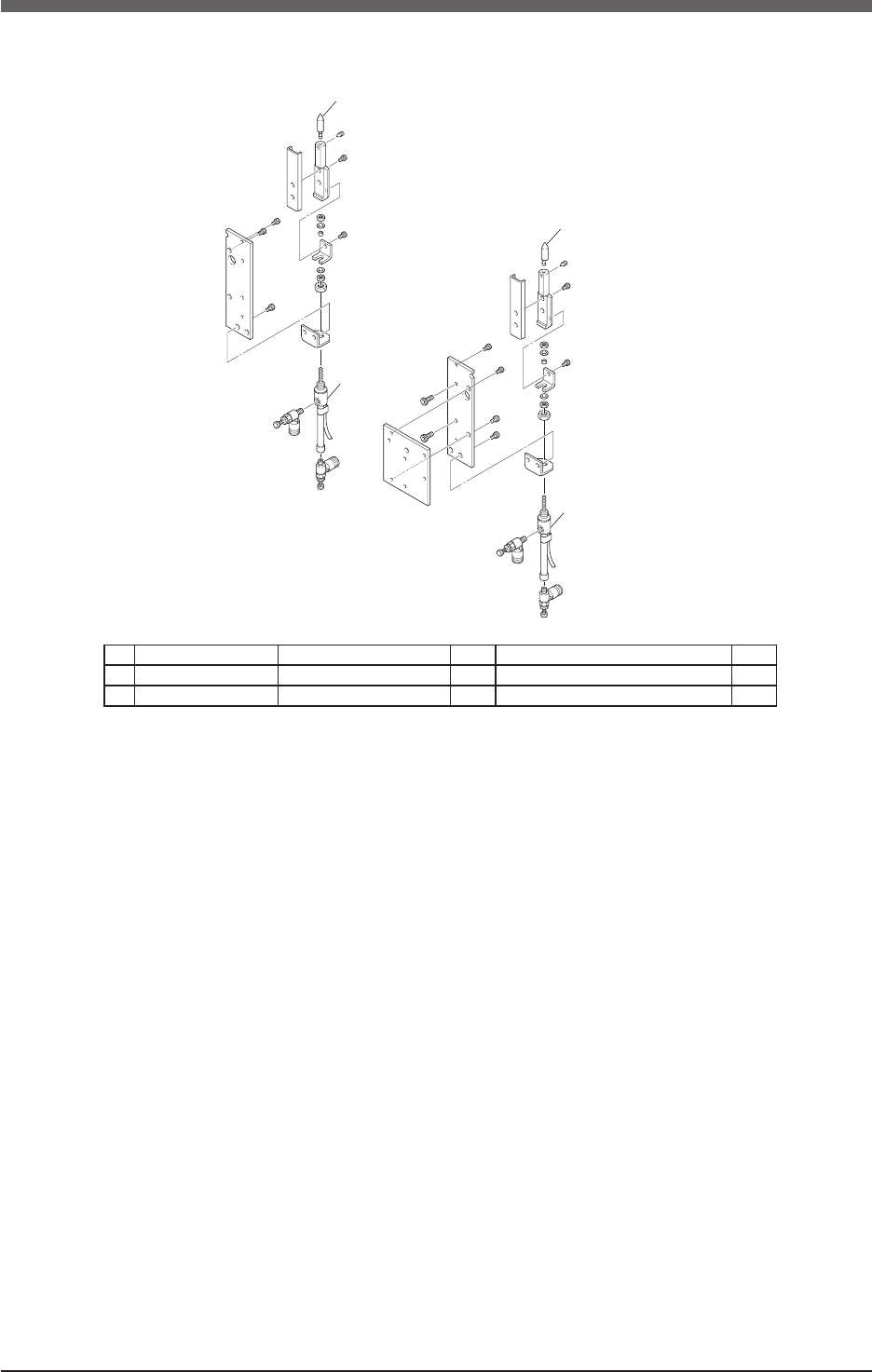

Locate-Pin
2
2
1
1
No. Part No. Part Name Q'ty Remarks Rank
1 KGA-M9174-00X PIN 1, LOCATION 2 A
2 KGA-M9179-A0X CYLINDER ASSY. 2 PDAS 6X40 B
9
Maintenance Parts
Stoppers
1
6
2
4
1
1
5
5
10
7
3
2
2
8
12
9
11
10
6
6
15
4
4
4
4

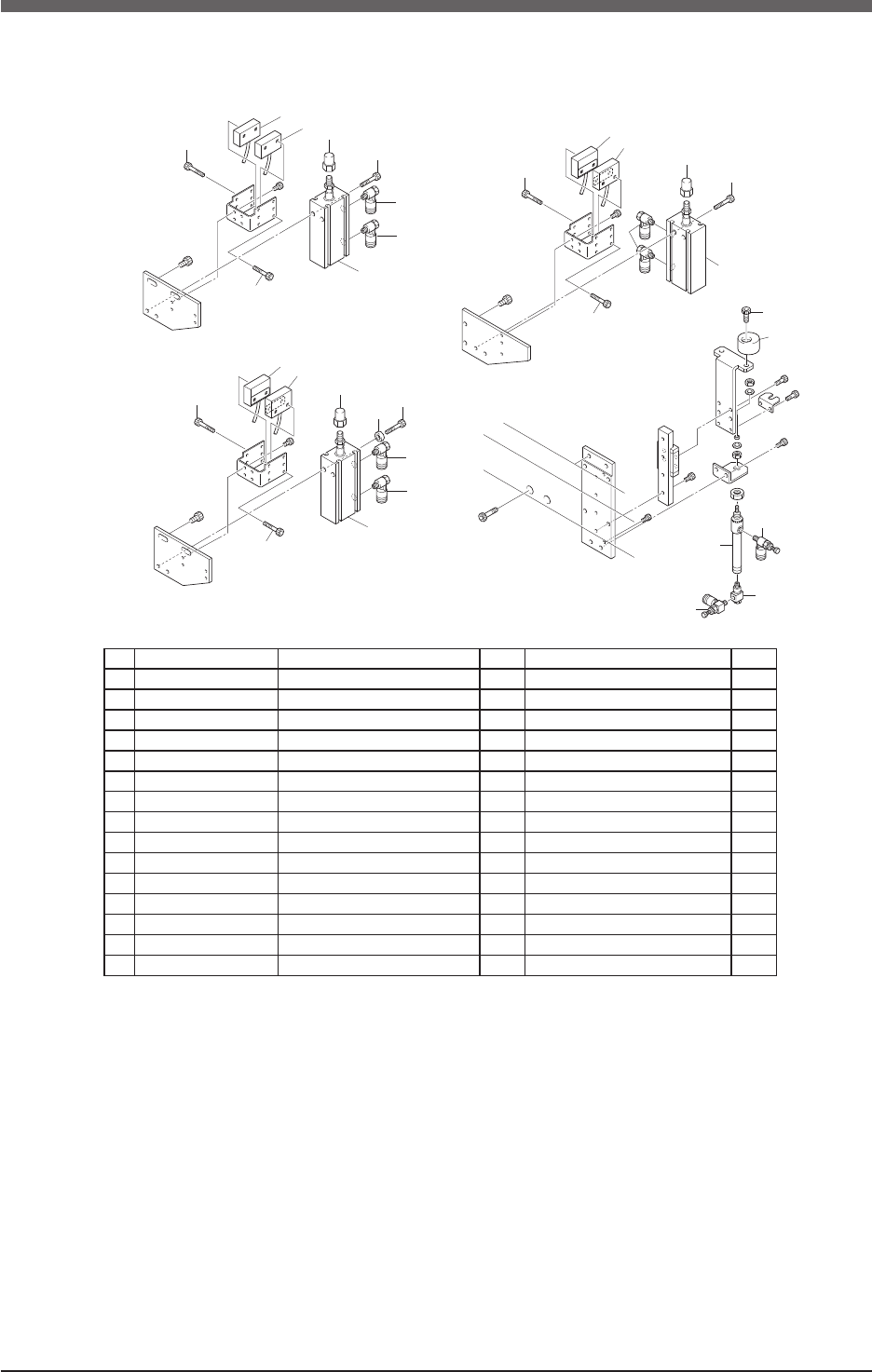

Sub Stopper, Moving
Sub Stopper, Fixed
Main Stopper
EXIT Stopper
5
5
13
5
5
3
7
14
No. Part No. Part Name Q'ty Remarks Rank
1 KV7-M9282-00X STOPPER, SUB 3 B
2 KV7-M9283-00X CYL. 3 YMDA16X35 B
3 KGA-M928A-00X SENSOR ,UP 1 L=1150 B
4 $SL4-M5 JOINT 6 B
5 91317-03015 BOLT HEX. SOCKET HEAD 9 B
6 91317-04016 BOLT HEX. SOCKET HEAD 4 B
7 KGA-M928B-00X SENSOR , LOW 1 L=1150 B
8 KV7-M9163-00X STOPPER 1 B
9 KV7-M9165-02X CYLINDER 1 B
10 $SC4-M5A SPEED CONTROLLER 2 B
11 $UEF JOINT 1 B
12 91317-05010 BOLT HEX. SOCKET HEAD 2 B
13 KGA-M927A-00X SENSOR , UP 1 B
14 KGA-M927B-00X SENSOR , LOW 1 B
15 90990-41J104 COLLAR 2 B
10

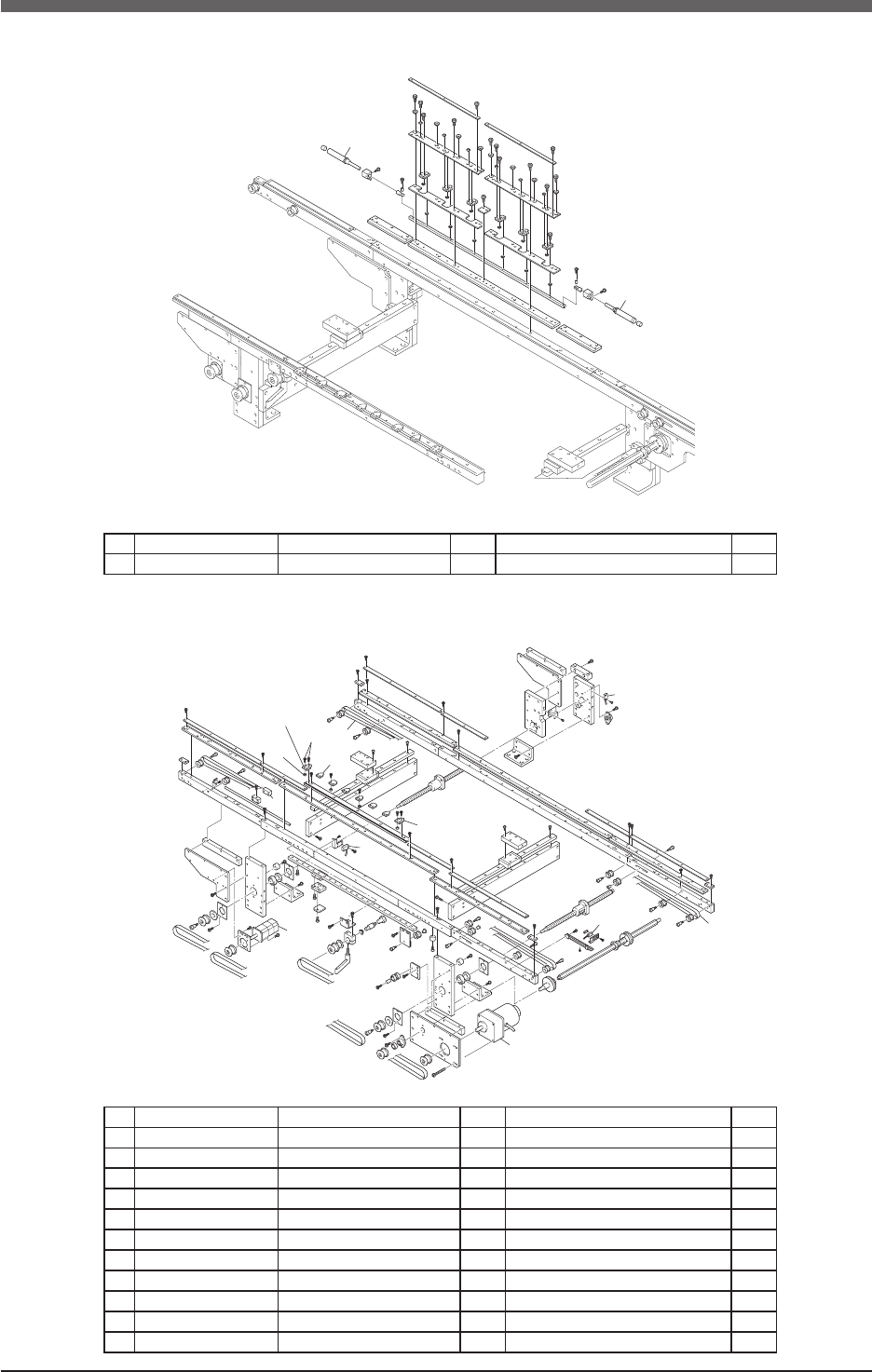

Maintenance Parts
Edge Clamp
Main Conveyor
1
1
8
5
4
3
2
6
1
1
7
7
9
11
10
No. Part No. Part Name Q'ty Remarks Rank
1 KV7-M9237-00X CYLINDER 2 PBSA 10X5 B
No. Part No. Part Name Q'ty Remarks Rank
1 KV7-M9129-00X BELT 1,CONVEYOR 2 A
2 KV7-M4886-00X MOTOR ASSY. 1 CONV.MO B
3 KGA-M911D-00X SENSOR SET POS 1 SQ034 B
4 KU0-M655F-20X SENSOR 1-3 2 L=1400 B
5 KGA-M911E-00X SENSOR, OUT 1 A
6 90K55-4W476W AC SERVO MOTOR 1 B
7 KG7-M9113-00X PLATE, LOCATE PIN 2 A
8 KGA-M911F-00X SENSOR ORG 1 B
9 KG7-M9135-00X PLATE, EDGE 2 4 C
10 98907-03005 SCREW BINDING HEAD 20 C
11 95302-03700 NUT HEXAGON 20 C
