4 Maintenance Parts ■ Head Body Head 6 3 4 5 10 9 8 1 11 2 No. Part No. Part Name Q'ty Remarks Rank 1 92A90-03103 SCREW , SET 2 A 2 KV6-M7120-10X HEA TER UNIT ASSY 1 B 3 KV6-M71 14-01X JOINT , NOZZLE 1 A 4 KU4-M71 1…
3
Maintenance Parts

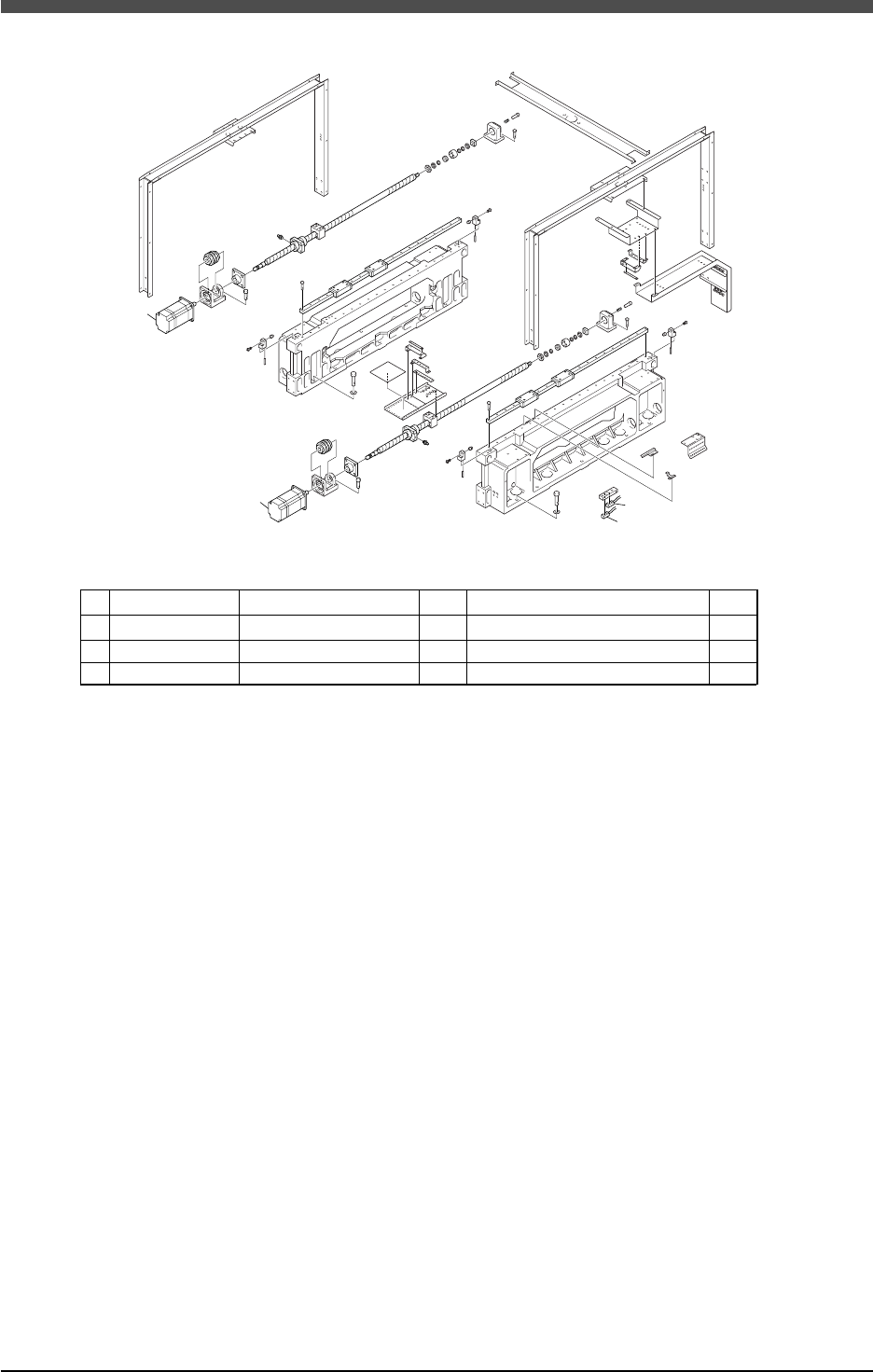

Y-Axis
No. Part No. Part Name Q’ty Remarks Rank
1 KGA-M260A-00X SENSOR, ORG 1 L=300 B
2 KGA-M260B-00X SENSOR, OT 1 L=300 B
3 90K56-8A174Y AC SERVO MOTOR 2 B
3
1
2
3
Nov./2003
4
Maintenance Parts
■

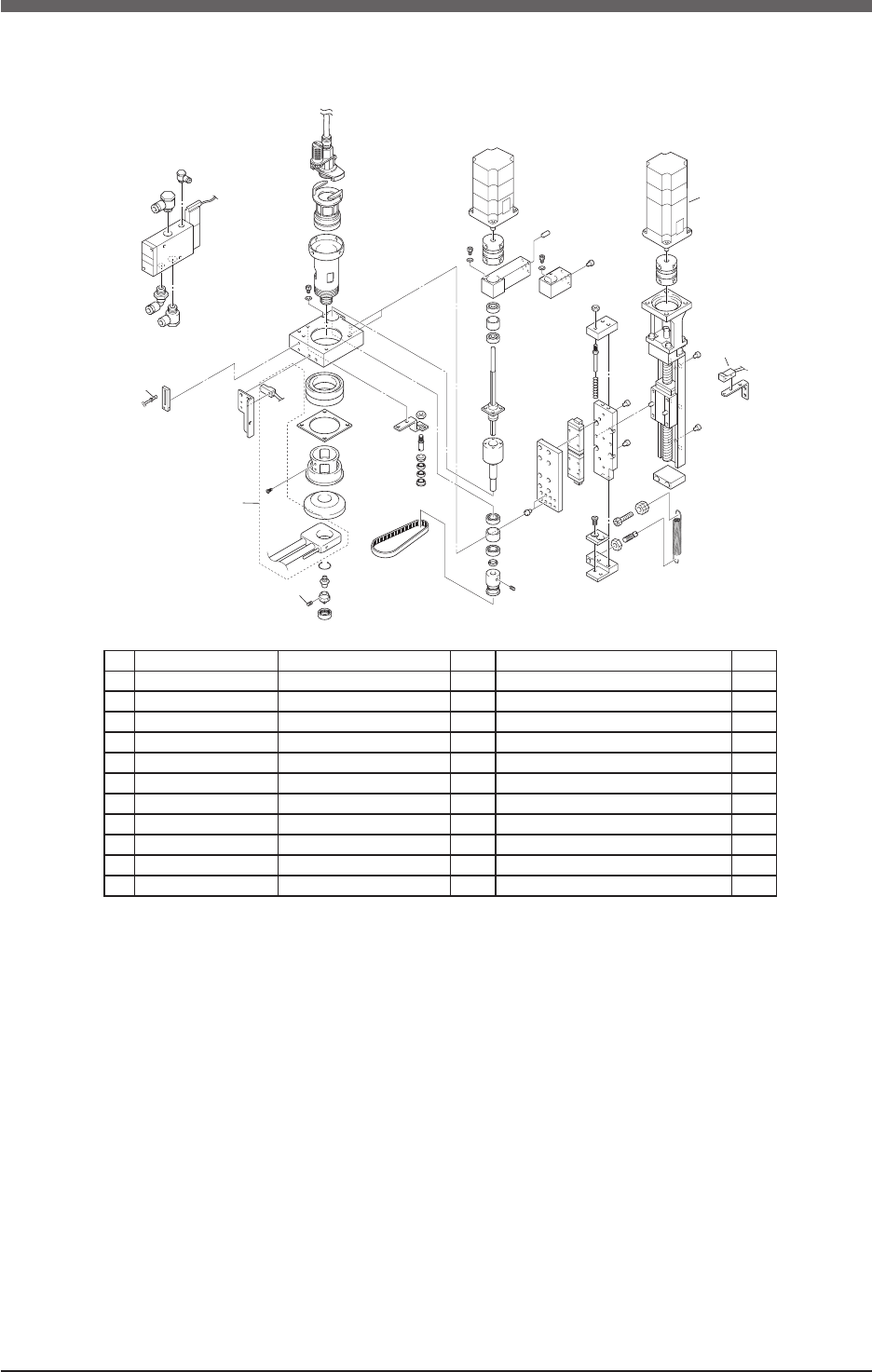

Head
Body Head
6
3
4
5
10
9
8
1
11
2
No. Part No. Part Name Q'ty Remarks Rank
1 92A90-03103 SCREW, SET 2 A
2 KV6-M7120-10X HEATER UNIT ASSY 1 B
3 KV6-M7114-01X JOINT, NOZZLE 1 A
4 KU4-M7114-00X NUT, NOZZLE 1 A
5 KV6-M7144-00X BELT, R AXIS 1 A
6 KV6-M7171-10X VALVE ASSY 1 B
7
8 KV6-M655B-00X SENSOR,1-2 1 B
9 90K55-4107HA AC SERVO MOTOR 1 B
10 90K55-4W07HC AC SERVO MOTOR 1 B
11 KV6-M7187-00X FIBER 1 B
5
Maintenance Parts

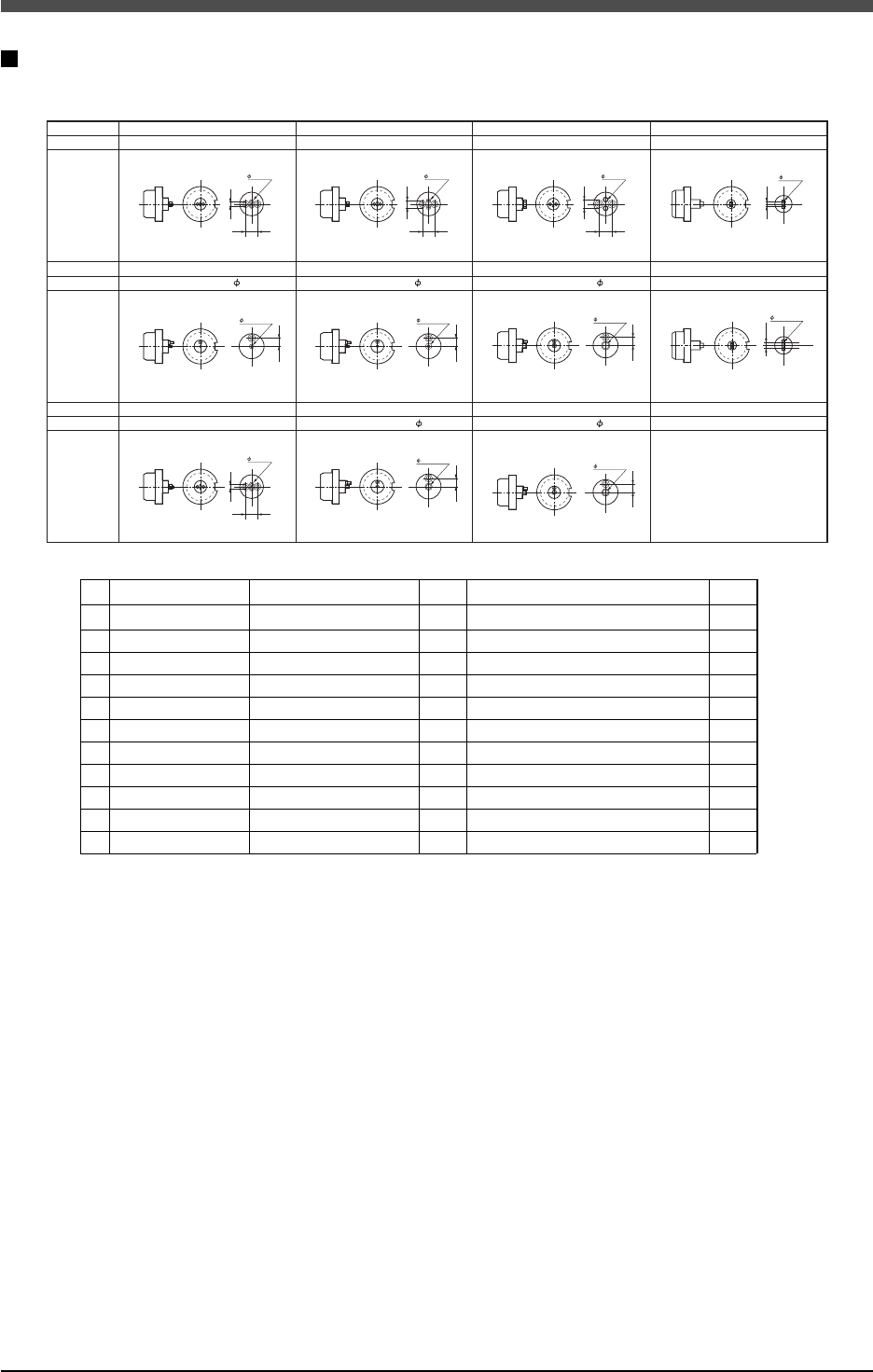

Nozzle
Nozzle Selection
No. Part No. Part Name Qíty Remarks Rank
1 KV6-M7113-1XX NOZZLE 2 SHOT 1608 1 Type111 A
2 KV6-M7113-2XX NOZZLE 2 SHOT 2012 1 Type112 A
3 KV6-M7113-3XX
NOZZLE 2 SHOT LARGE
1 Type113 A
4 KV6-M7113-4XX NOZZLE 1 SHOT 0.4 1 Type114 A
5 KV6-M7113-5XX NOZZLE 1 SHOT 0.8 1 Type115 A
6 KV6-M7113-6XX NOZZLE 1 SHOT 1.5 1 Type116 A
7 KV6-M711A-0XX
NOZZLE 2 SHOT1608(P0.8)
1 Type11A A
8 KV6-M711B-0XX NOZZLE 1 SHOT 1.0 1 Type11B A
9 KV6-M711C-0XX NOZZLE 1 SHOT 1.3 1 Type11C A
10 KV6-M71LB-AXX NOZZLE LBA(1608A.P) 1 Type LBA A
12 KV6-M71LC-AXX NOZZLE LCA(2012A.P) 1 Type LCA A
NOZZLE 2 SHOT 1608
Type 111
NOZZLE 2 SHOT 2012
Type 112
NOZZLE 2 SHOT LARGE
Type 113
NOZZLE 1 SHOT 0.4
Type 114
NOZZLE 1 SHOT 0.8
Type 115
NOZZLE 1 SHOT 1.5
Type 116
NOZZLE 2 SHOT 1608(P0.8)
Type 11A
NOZZLE 1 SHOT 1.0
Type 11B
NOZZLE 1 SHOT 1.3
Type 11C
Nozzle Type
Name
Size
Nozzle Type
Name
Size
Nozzle Type
Name
Size
0.4
2.4
0.4
0.9
0.5
2.4
1.3
0.9
3.2
1.8
1.6
0.8
1.6
1.0
1.6
1.5
1.8
1.3
1.8
0.4
2.4
0.8
NOZZLE LBA (1608 A.P)
Type LBA
NOZZLE LCA (2012 A.P)
Type LCA
0.4
0.4
1.2
0.9
