MODEL TCM-3700 9912-001 5- 5 PART No. PART NAME Q'ty REMARK S 121 630 076 53 66 ASSY ,CORD (C30 -R-SVM-LO) 1 122 630 076 90 43 COR D(C30-R-PG-LO ) 1 739FB-01D-805 123 630 076 20 37 ASSY ,CORD (C30 -R1-LO) 1 131 630 …
MODEL TCM-3700
9912-001

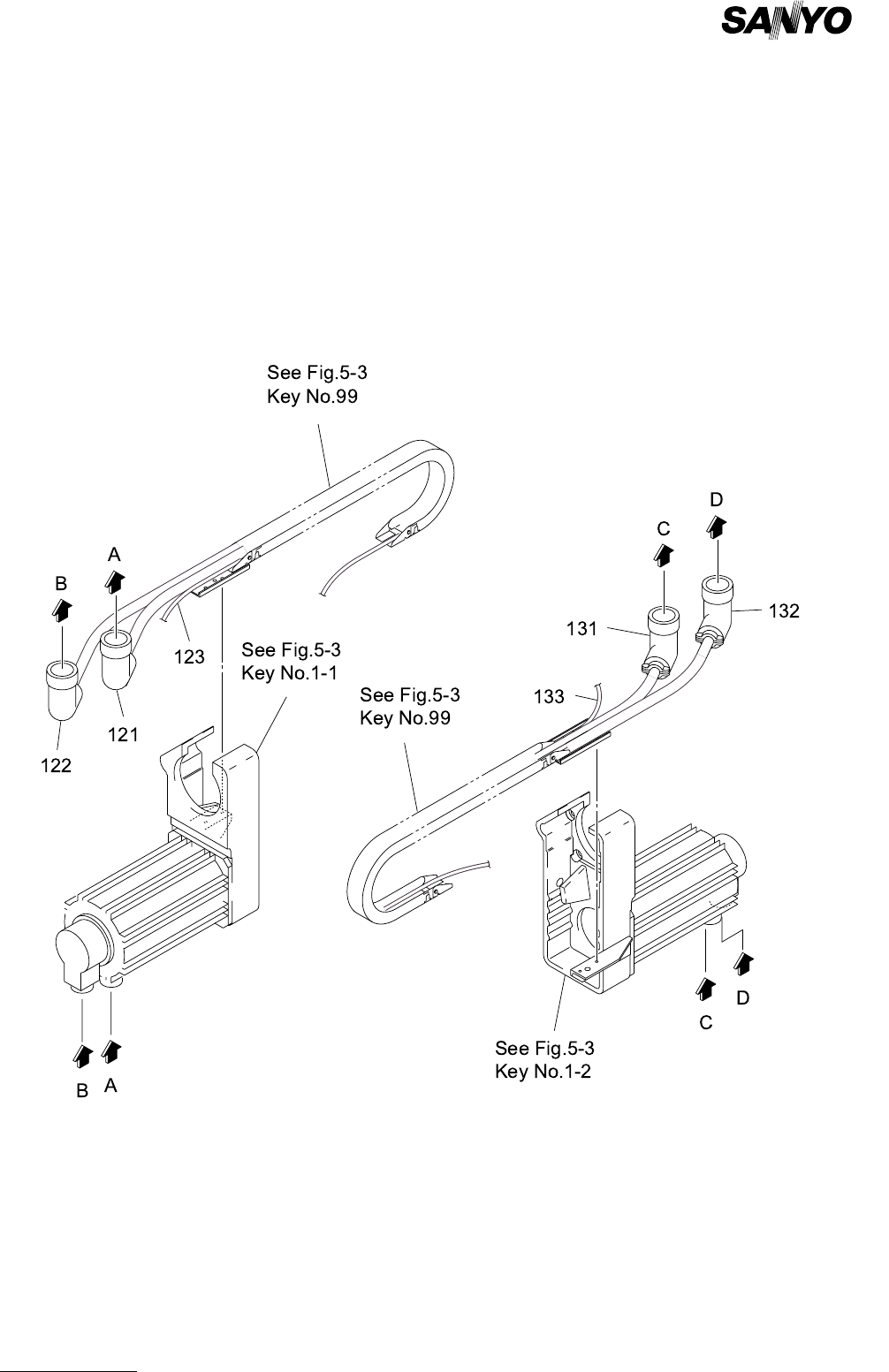

部品供給部 FEEDER CARRIAGE SECTION
Fig. 5-5 ケーブル Cable
MODEL TCM-3700
9912-001
5- 5
PART No. PART NAME Q'ty REMARKS
121 630 076 5366 ASSY,CORD (C30-R-SVM-LO) 1
122 630 076 9043 CORD(C30-R-PG-LO) 1 739FB-01D-805
123 630 076 2037 ASSY,CORD (C30-R1-LO) 1
131 630 076 5366 ASSY,CORD (C30-R-SVM-LO) 1
132 630 076 9043 CORD(C30-R-PG-LO) 1 739FB-01D-805
133 630 076 2068 ASSY,CORD (C30-R2-LO) 1
Key No.
NOTE
MODEL TCM-3700
9912-001

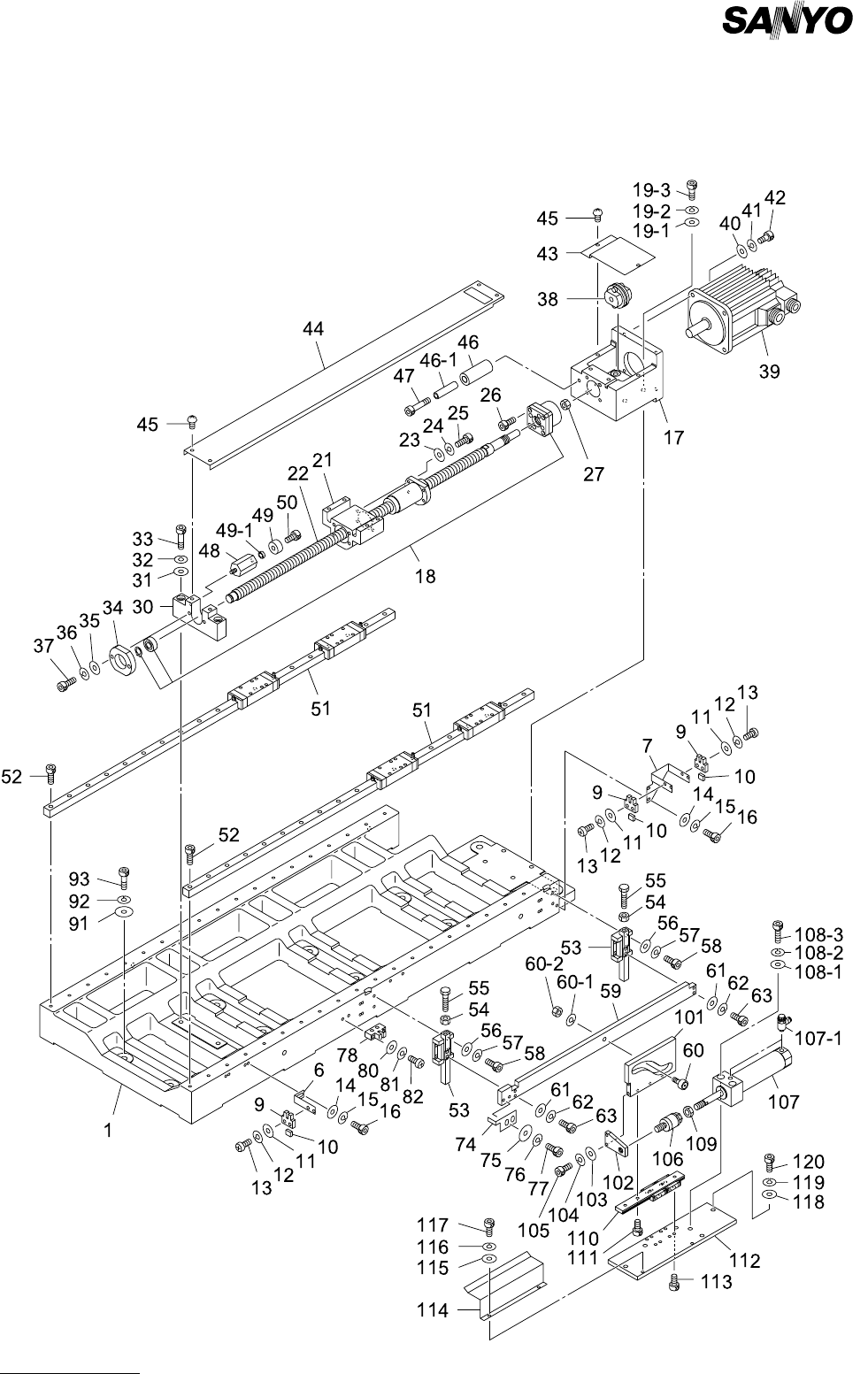

ＸＹテーブル部 XY TABLE SECTION
Fig. 6-1 Ｘ軸 X Axis
