MODEL TCM-3700 9912-001 中間ベース部 MIDDLE BASE SECTION Fig. 4-10 基板認識カメラ P .E.C. Camera
MODEL TCM-3700
9912-001
4- 9
PART No. PART NAME Q'ty REMARKS
1 -1 630 048 8647 COLLAR(0.5) 4 739EB-01B-103
1 -2 630 048 8630 COLLAR(0.1) 16 739EB-01B-104
2 630 048 8623 BASE(SCOPE XY) 1 739EB-01B-101
2 -1 630 048 9354 PIN,LOCATE 2 739EB-01H-036
3 630 001 0244 WASHER 4 739EB-01H-035
4 411 141 3100 WASHER SPR 8 4 SW8
5 630 000 8043 BOLT,HEX-SCT 4 M8X35
11 630 051 8740 LIGHTING UNIT 1 739R--01D-010
12 630 087 2576 ASSY,SCOPE UNIT 1
12 -1 630 085 9331 SCOPE UNIT 1 739R--01D-009
12 -2 630 085 9362 UNIT,CAMERA 2 739R--01D-008
13 411 141 3902 WASHER V 3X7X0.5 3 FW3
14 411 141 2806 WASHER SPR 3 3 SW3
15 630 000 7527 BOLT,HEX-SCT 3 M3X10
16 630 052 3140 UNIT(XY TABLE) 1 739EB-01H-024
17 630 048 8654 BRACKET 1 739EB-01B-102
18 411 141 4107 WASHER V 5X10X1 2 FW5
19 411 141 6705 WASHER SPR 5 2 SW5
20 630 000 7763 BOLT,HEX-SCT 2 M5X16
21 411 141 4107 WASHER V 5X10X1 4 FW5
22 411 141 6705 WASHER SPR 5 4 SW5
23 630 000 7770 BOLT,HEX-SCT 4 M5X20
24 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
25 411 141 3001 WASHER SPR 6 4 SW6
26 630 000 7893 BOLT,HEX-SCT 4 M6X20
27 630 057 6979 PLATE 1 739BD-01V-002
28 411 141 4107 WASHER V 5X10X1 3 FW5
29 411 141 6705 WASHER SPR 5 3 SW5
30 630 000 7749 BOLT,HEX-SCT 3 M5X10
31 630 061 1939 LIGHTING UNIT 1 739R--01D-013
31 -1 630 036 8642 LAMP 1
32 630 061 1946 LIGHTING UNIT 2 739R--01D-014
32 -1 630 036 8642 LAMP 1
33 630 051 1338 BRACKET 1 739L--01B-017
34 411 141 3605 WASHER V 2X5X0.3 8 FW2 F
35 411 141 2509 WASHER SPR 2 8 SW2 F
36 411 140 6300 SCR PAN 2X8 8 M2X8 PAN
37 411 141 4305 WASHER V 6X12.5X1.6 2 FW6
38 411 141 3001 WASHER SPR 6 2 SW6
39 630 000 7879 BOLT,HEX-SCT 2 M6X12
40 630 009 2875 ACCESSORY,CAMERA 2 739R--01D-003
41 411 086 9809 WASHER IN TW 3 1
42 411 114 7005 SCR PAN+SW+W 3X8 1
Key No.
NOTE
MODEL TCM-3700
9912-001

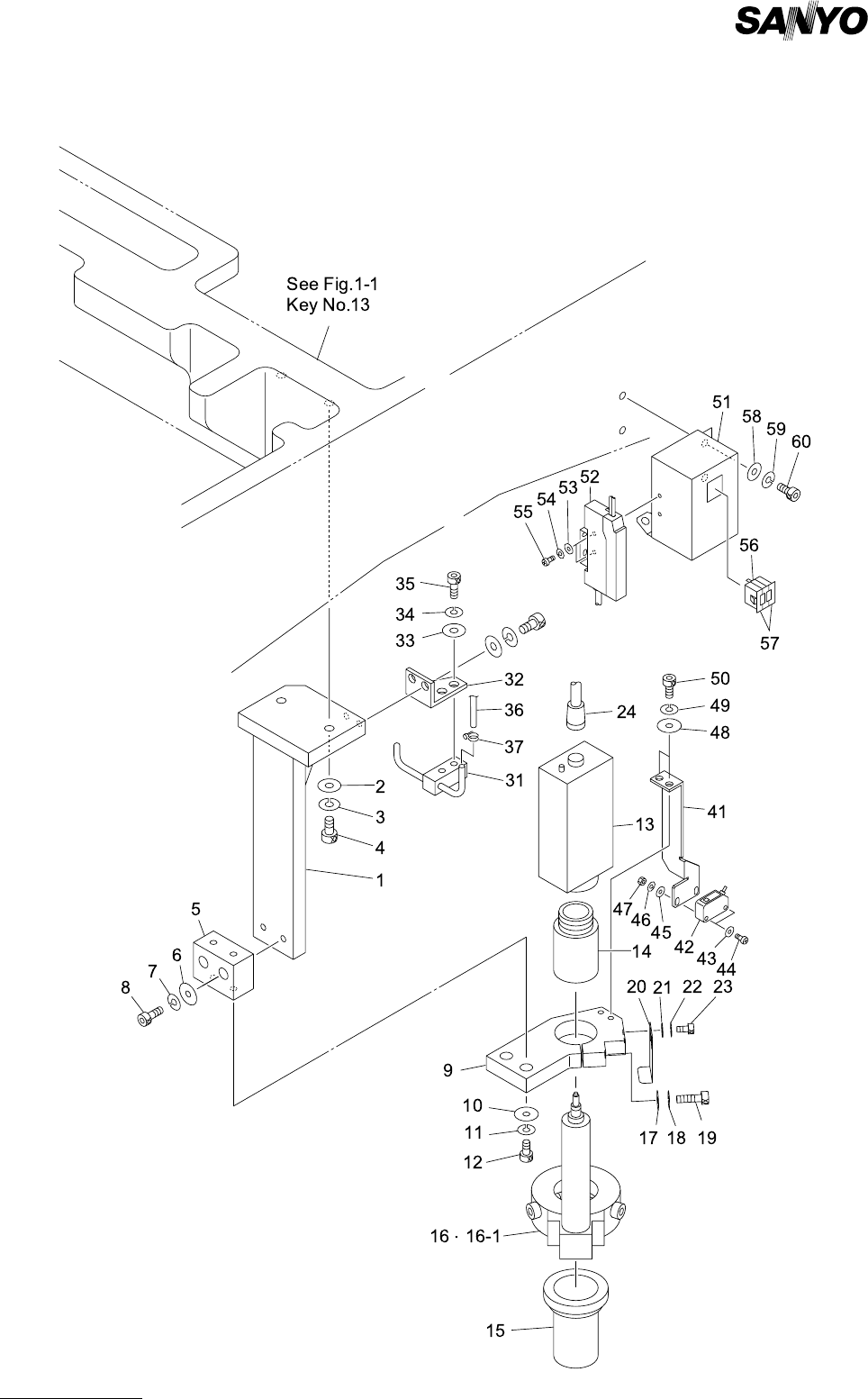

中間ベース部 MIDDLE BASE SECTION
Fig. 4-10 基板認識カメラ P.E.C. Camera
MODEL TCM-3700
9912-001
4-10
PART No. PART NAME Q'ty REMARKS
1 630 052 1016 SUPPORT 1 739E--01B-002
2 411 141 4305 WASHER V 6X12.5X1.6 2 FW6
3 411 141 3001 WASHER SPR 6 2 SW6
4 630 000 7909 BOLT,HEX-SCT 2 M6X25
5 630 048 7381 BLOCK 1 739E--01B-003
6 630 001 0220 WASHER 2 739E--01H-008
7 411 141 6705 WASHER SPR 5 2 SW5
8 630 000 7794 BOLT,HEX-SCT 2 M5X30
9 630 084 2654 BRACKET 1 739E--01B-004
10 630 001 0220 WASHER 2 739E--01H-008
11 411 141 6705 WASHER SPR 5 2 SW5
12 630 000 7787 BOLT,HEX-SCT 2 M5X25
13 630 085 9348 UNIT,CAMERA 1 739R--01D-002
14 630 085 7641 SCOPE UNIT 1 739R--01D-004
15 630 066 2580 ACCESSORY,LIGHT 1 739R--01D-005
16 630 066 2009 LIGHTING UNIT 1 739R--01D-001
16 -1 630 005 5580 LAMP 1
17 411 141 4107 WASHER V 5X10X1 1 FW5
18 411 141 6705 WASHER SPR 5 1 SW5
19 630 000 7794 BOLT,HEX-SCT 1 M5X30
20 630 038 9294 PLATE 1 739E--01B-034
21 411 141 4008 WASHER V 4X9X0.8 2 FW4
22 411 141 2905 WASHER SPR 4 2 SW4
23 630 000 7626 BOLT,HEX-SCT 2 M4X10
24 630 009 2875 ACCESSORY,CAMERA 1 739R--01D-003
31 630 051 7972 BLOCK 1 739E--01B-038
32 630 051 7965 BRACKET 1 739E--01B-037
33 411 141 4107 WASHER V 5X10X1 4 FW5
34 411 141 6705 WASHER SPR 5 4 SW5
35 630 000 7756 BOLT,HEX-SCT 4 M5X12
37 630 029 6389 PIPE FITTINGS 1 739E--01H-012
41 630 084 2661 BRACKET 1 739E--01B-043
42 630 055 3055 SENSOR,PELEC 1 739E--01H-015
43 411 119 1909 WASHER V 3X7X0.5 2 FW3 F
44 411 113 0700 SCR PAN 3X16 2 M3X16 PAN
45 411 119 1909 WASHER V 3X7X0.5 2 FW3 F
46 411 086 4408 WASHER SPR 3 2 SW3 F
47 411 054 6809 NUT HEX 3 2 M3 F
48 411 141 4008 WASHER V 4X9X0.8 2 FW4
49 411 141 2905 WASHER SPR 4 2 SW4
50 630 000 7619 BOLT,HEX-SCT 2 M4X8
51 630 059 8605 BRACKET 1 739E--01B-042
52 630 055 3048 SENSOR,PELEC 1 739E--01H-016
53 411 119 1909 WASHER V 3X7X0.5 2 FW3 F
54 411 086 4408 WASHER SPR 3 2 SW3 F
55 411 113 0700 SCR PAN 3X16 2 M3X16 PAN
56 630 007 6622 SWITCH,ROTARY 1 739FB-01D-503
57 630 007 6554 ACCESSORY,SW 1 739FB-01D-504
58 411 141 4107 WASHER V 5X10X1 2 FW5
59 411 141 6705 WASHER SPR 5 2 SW5
Key No.
NOTE
