P-0138-001 - 第106页
MODEL TCM-3700 9912-001 中間ベース部 MIDDLE BASE SECTION Fig. 4-12 中間ベースカバー Middle Base Cover
MODEL TCM-3700
9912-001
4-11
PART No. PART NAME Q'ty REMARKS
1 630 056 9551 BOX 1 739E--01B-025
1 -1 630 000 7497 BOLT,HEX-SCT 1 M3X4
2 630 000 7749 BOLT,HEX-SCT 2 M5X10
3 630 053 1312 SHEET 1 739E--01B-021
4 411 141 3902 WASHER V 3X7X0.5 2 FW3
5 411 141 2806 WASHER SPR 3 2 SW3
6 630 000 7497 BOLT,HEX-SCT 2 M3X4
7 411 050 5004 SCR TRS 3X6 1 M3X6 TRS
8 630 070 9407 BOX 1 739E--01B-026
9 630 071 0212 SHEET 1 739E--01B-027
11 630 052 3225 BRACKET 1 739E--01B-040
12 630 052 8169 SENSOR,PROXIMITY 1 739E--01H-013
13 411 141 3902 WASHER V 3X7X0.5 2 FW3
14 411 141 2806 WASHER SPR 3 2 SW3
15 630 000 7510 BOLT,HEX-SCT 2 M3X8
16 630 000 1150 ACCESSORY,WIRING 2
17 630 000 7510 BOLT,HEX-SCT 2 M3X8
Key No.
NOTE
MODEL TCM-3700
9912-001
中間ベース部 MIDDLE BASE SECTION

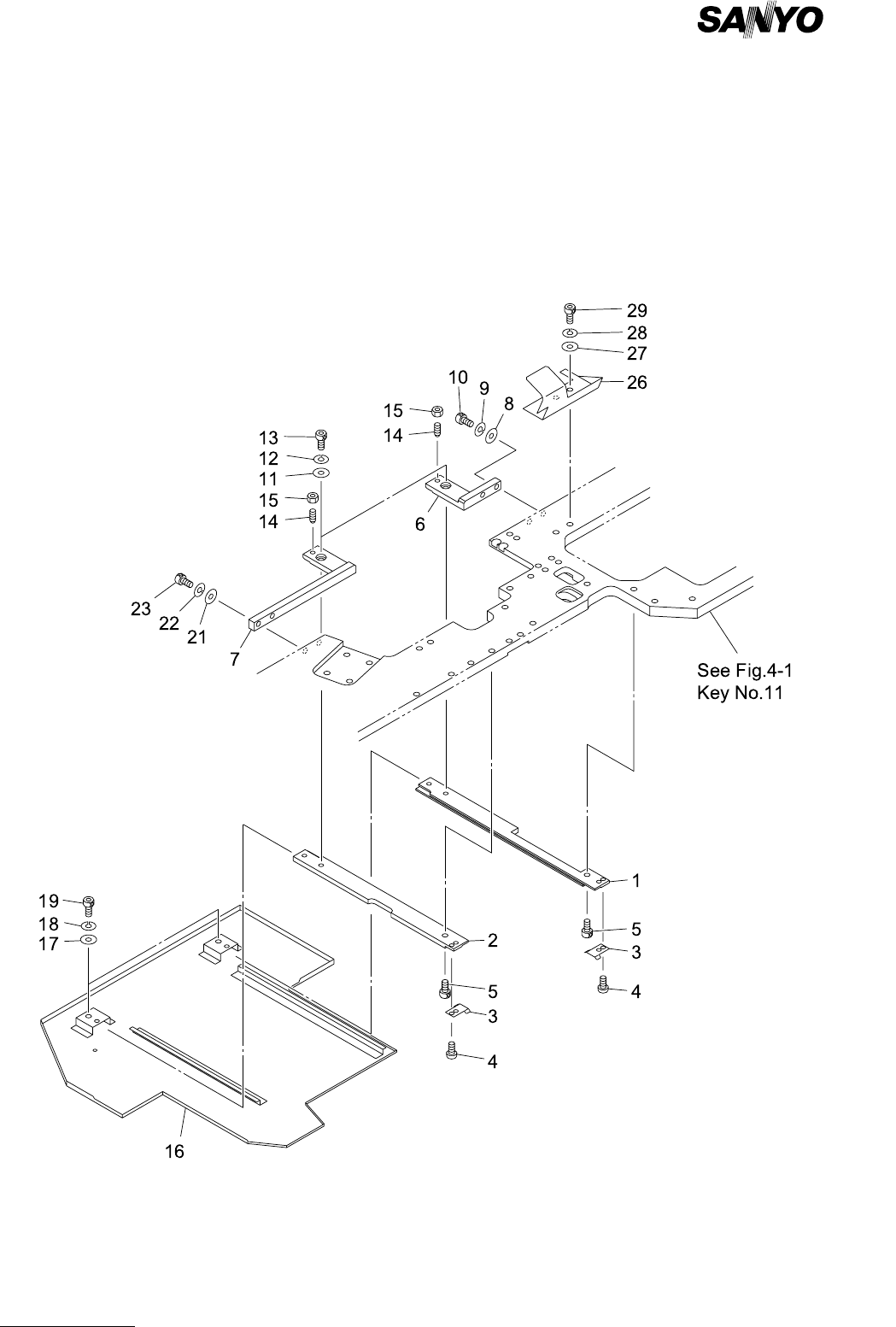

Fig. 4-12 中間ベースカバー Middle Base Cover
MODEL TCM-3700
9912-001
4-12
PART No. PART NAME Q'ty REMARKS
1 630 070 9117 SUPPORT 1 739E--01B-046
2 630 070 9124 SUPPORT 1 739E--01B-047
3 630 069 5694 SPRING,FLAT 2 739E--01B-045
4 630 070 9902 MACHINE SCREW 4 739E--01H-018
5 630 000 7749 BOLT,HEX-SCT 2 M5X10
6 630 069 5731 SUPPORT 1 739E--01B-049
7 630 069 5724 SUPPORT 1 739E--01B-048
8 411 141 4107 WASHER V 5X10X1 4 FW5
9 411 141 6705 WASHER SPR 5 4 SW5
10 630 000 7770 BOLT,HEX-SCT 4 M5X20
11 411 141 4008 WASHER V 4X9X0.8 2 FW4
12 411 141 2905 WASHER SPR 4 2 SW4
13 630 000 7626 BOLT,HEX-SCT 2 M4X10
14 630 069 4598 PLUNGER 2 739E--01H-017
15 411 141 0406 NUT HEX 4 2 M4-3
16 630 070 9100 COVER 1 739E--01B-044
17 411 141 4008 WASHER V 4X9X0.8 2 FW4
18 411 141 2905 WASHER SPR 4 2 SW4
19 630 000 7619 BOLT,HEX-SCT 2 M4X8
26 630 070 9391 COVER 1 739E--01B-051
27 411 141 4008 WASHER V 4X9X0.8 2 FW4
28 411 141 2905 WASHER SPR 4 2 SW4
29 630 000 7626 BOLT,HEX-SCT 2 M4X10
Key No.
NOTE
