MODEL TCM-3700 9912-001 4-12 PART No. PART NAME Q'ty REMARK S 1 630 070 9117 SUPPO RT 1 739E--01B-046 2 630 070 9124 SUPPO RT 1 739E--01B-047 3 630 069 5694 SPRING,F LAT 2 739E--01B-045 4 630 070 9902 MAC HINE SCREW…
MODEL TCM-3700
9912-001
中間ベース部 MIDDLE BASE SECTION
Fig. 4-12 中間ベースカバー Middle Base Cover
MODEL TCM-3700
9912-001
4-12
PART No. PART NAME Q'ty REMARKS
1 630 070 9117 SUPPORT 1 739E--01B-046
2 630 070 9124 SUPPORT 1 739E--01B-047
3 630 069 5694 SPRING,FLAT 2 739E--01B-045
4 630 070 9902 MACHINE SCREW 4 739E--01H-018
5 630 000 7749 BOLT,HEX-SCT 2 M5X10
6 630 069 5731 SUPPORT 1 739E--01B-049
7 630 069 5724 SUPPORT 1 739E--01B-048
8 411 141 4107 WASHER V 5X10X1 4 FW5
9 411 141 6705 WASHER SPR 5 4 SW5
10 630 000 7770 BOLT,HEX-SCT 4 M5X20
11 411 141 4008 WASHER V 4X9X0.8 2 FW4
12 411 141 2905 WASHER SPR 4 2 SW4
13 630 000 7626 BOLT,HEX-SCT 2 M4X10
14 630 069 4598 PLUNGER 2 739E--01H-017
15 411 141 0406 NUT HEX 4 2 M4-3
16 630 070 9100 COVER 1 739E--01B-044
17 411 141 4008 WASHER V 4X9X0.8 2 FW4
18 411 141 2905 WASHER SPR 4 2 SW4
19 630 000 7619 BOLT,HEX-SCT 2 M4X8
26 630 070 9391 COVER 1 739E--01B-051
27 411 141 4008 WASHER V 4X9X0.8 2 FW4
28 411 141 2905 WASHER SPR 4 2 SW4
29 630 000 7626 BOLT,HEX-SCT 2 M4X10
Key No.
NOTE
MODEL TCM-3700
9912-001

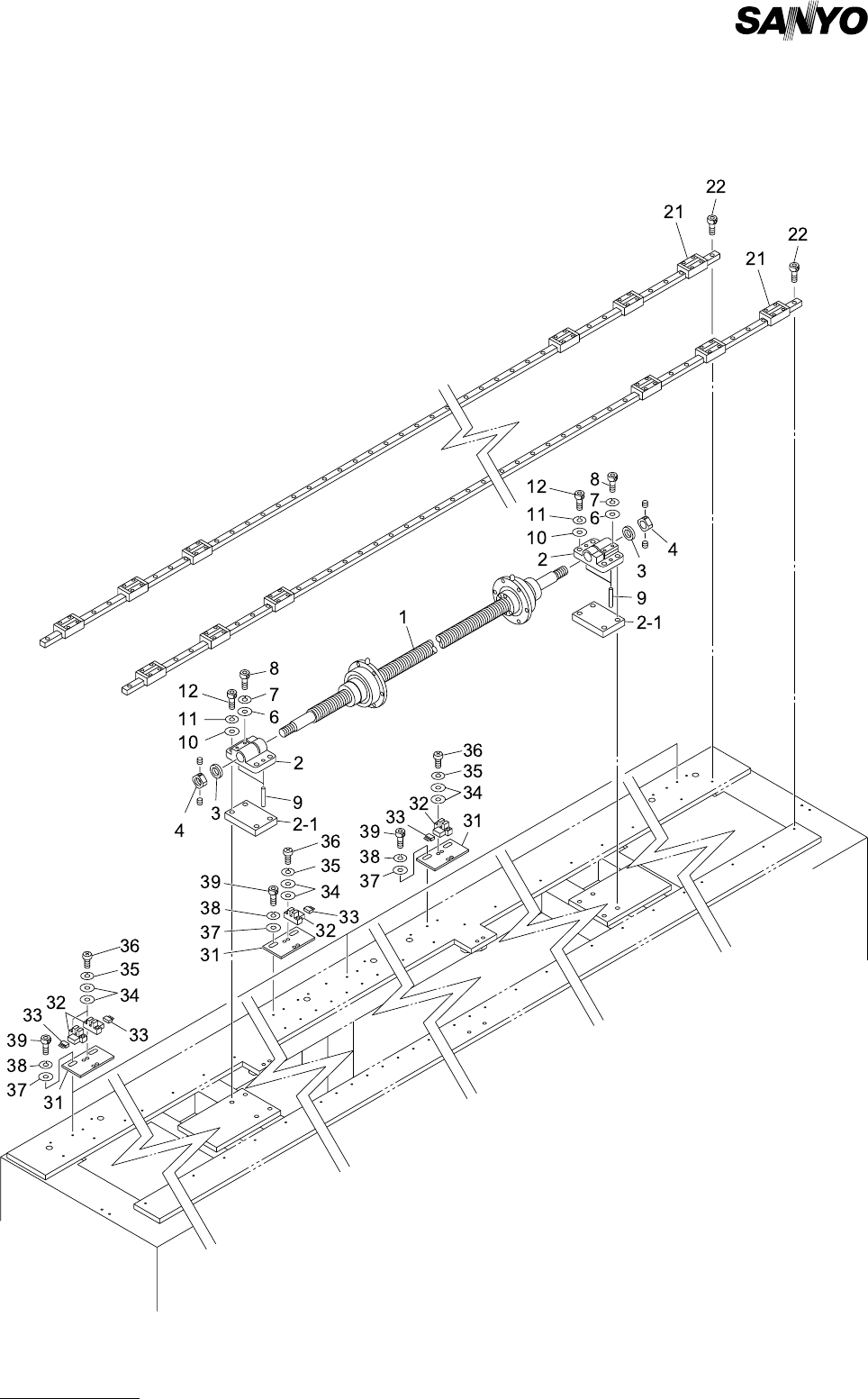

部品供給部 FEEDER CARRIAGE SECTION
Fig. 5-1 リール軸 Feeder Axis
